p-gasket renewal how-to

Discussion in '300 TDi' started by lerk, Dec 8, 2009.

< Previous Thread | Next Thread >
  1. lerk

    lerk New Member

    Joined:
    Jun 15, 2008
    Posts:
    1,763
    Likes Received:
    5
    Location:
    Creswell, Derbyshire UK

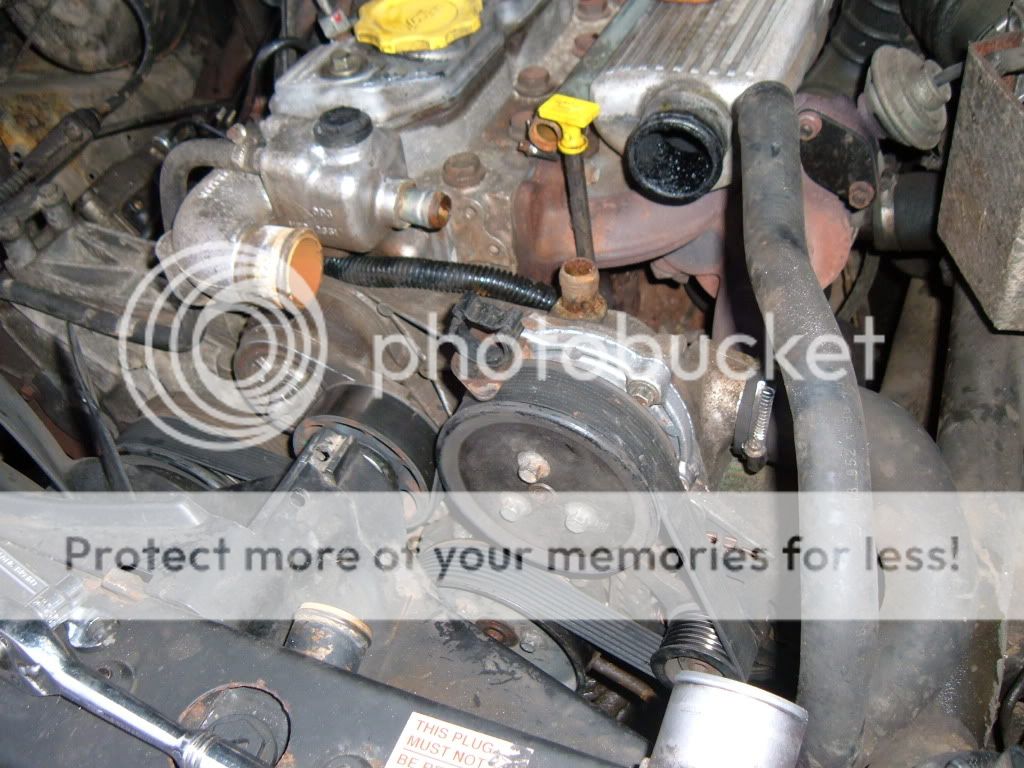

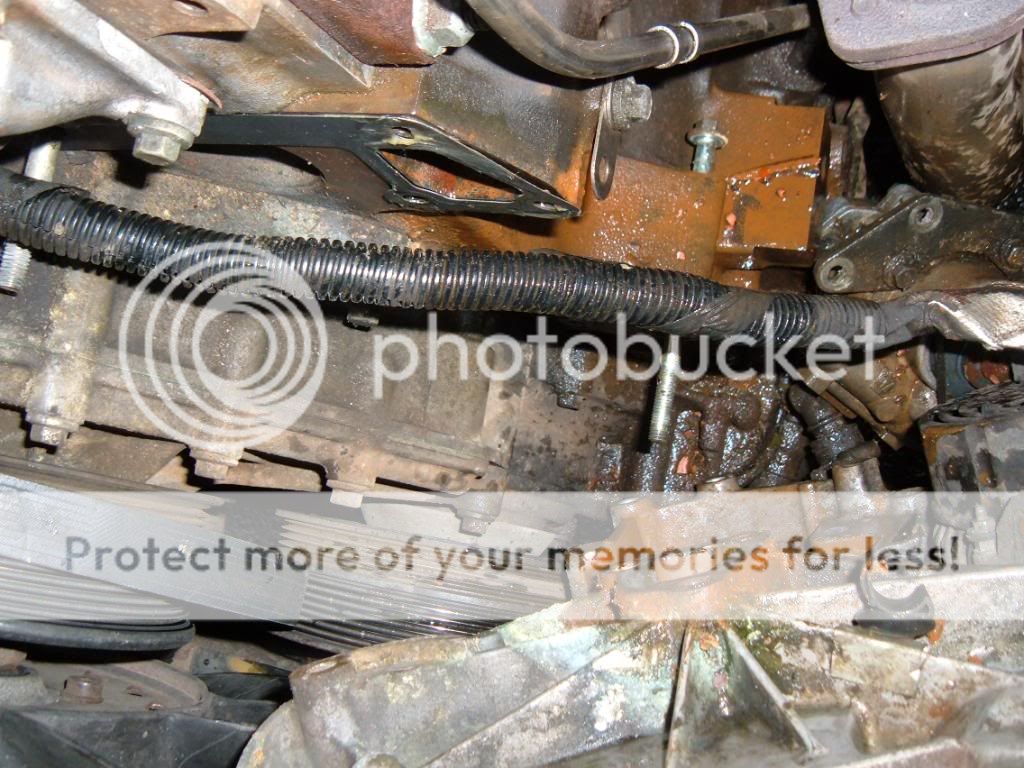

    If your P-gasket hasn't been replaced before, you'll probably find it's perished... Looking from the nearside wing down behind the alternator you may see something like this...


    [​IMG]


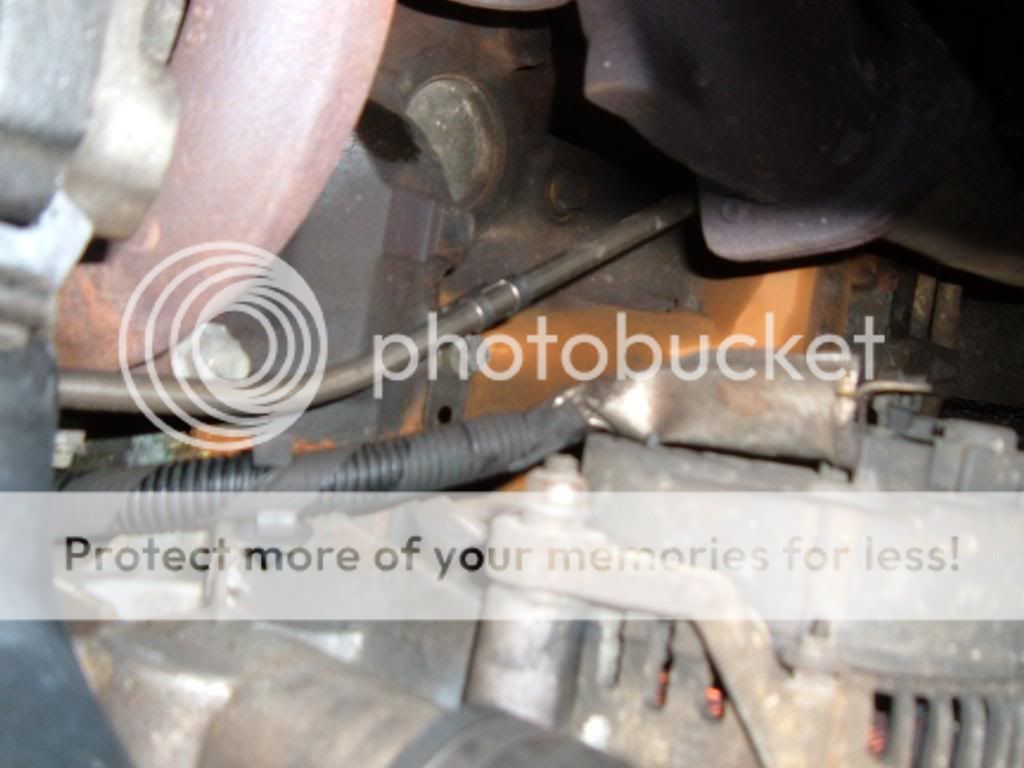

    Firstly dump the coolant from the engine, then remove all coolant hoses and the top intercooler hose from the top of the engine and thermostat housing, this gives you plenty of space to get at the rest of the job


    [​IMG]


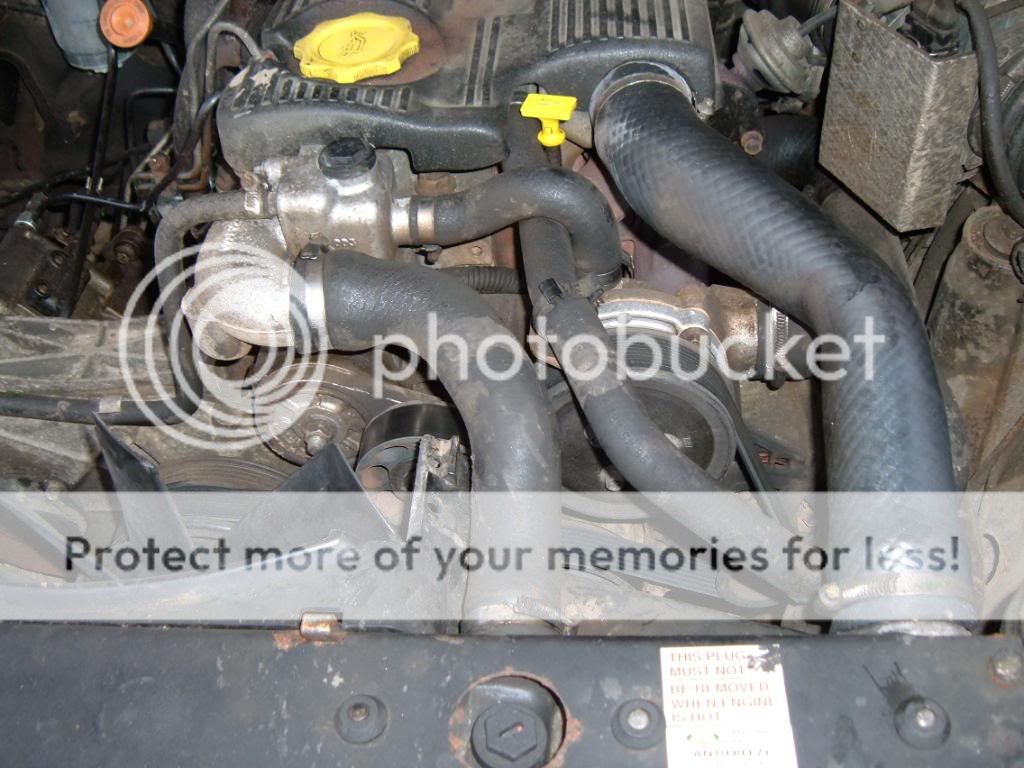

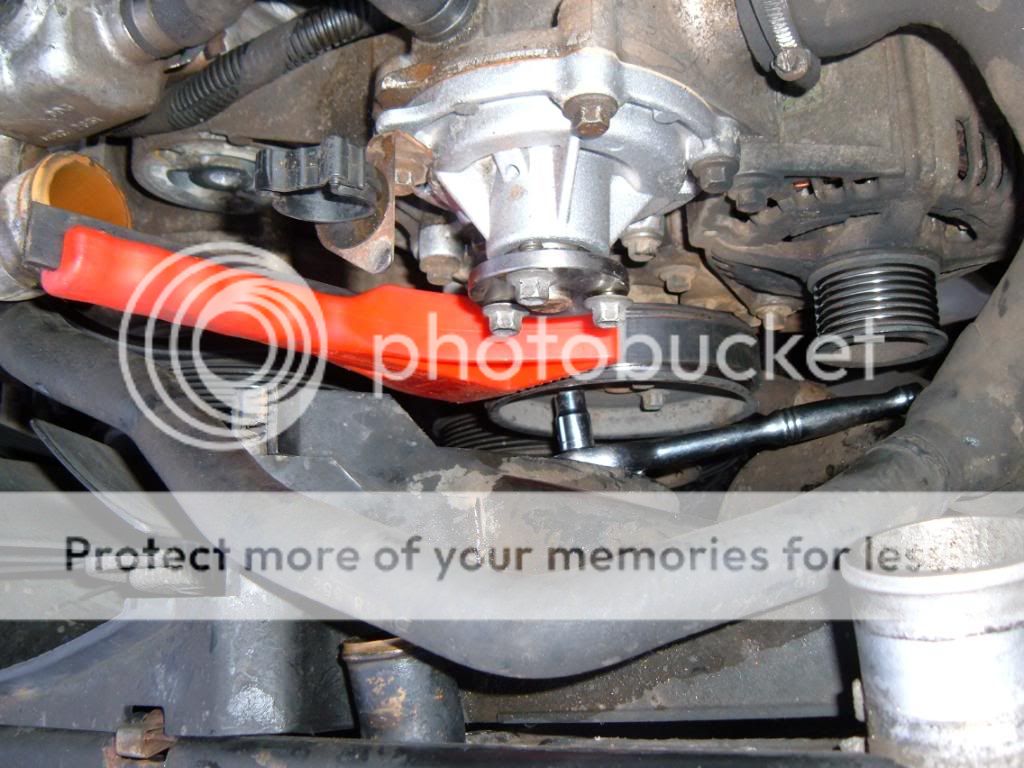

    Before removing the serpentine belt, try and crack the bolts holding the waterpump and steering pump pulleys


    [​IMG]

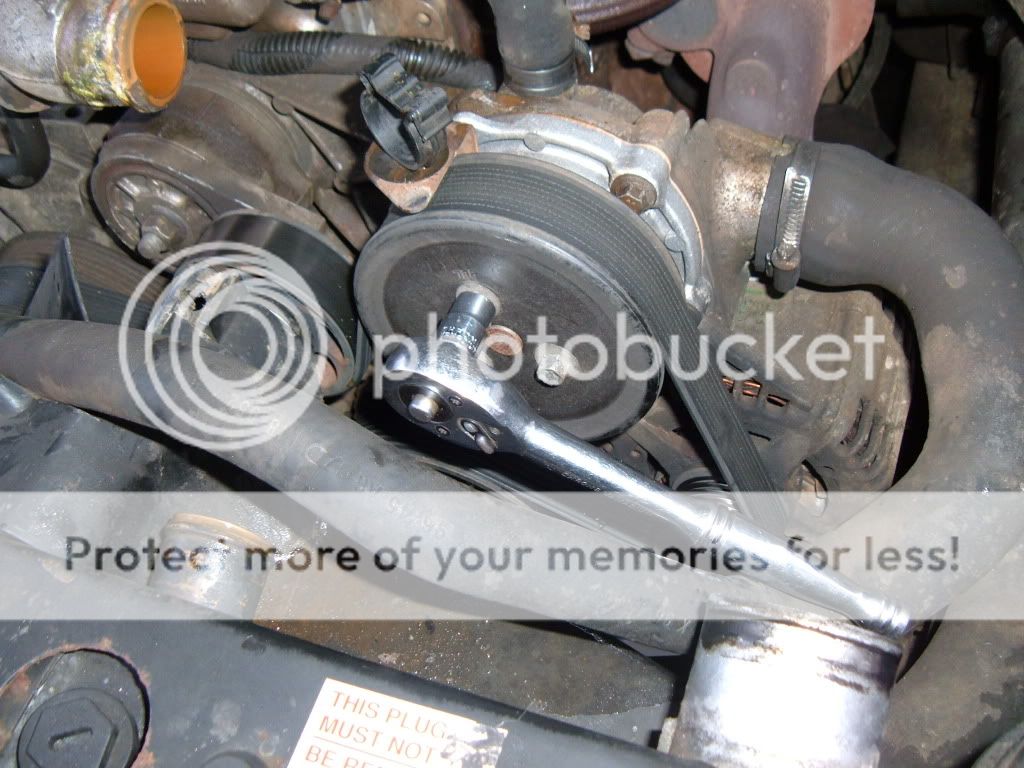

    I couldn't get the steering pump bolts to crack without the belt slipping, so I used a strap wrench to hold the pulley while I cracked the bolts.


    [​IMG]


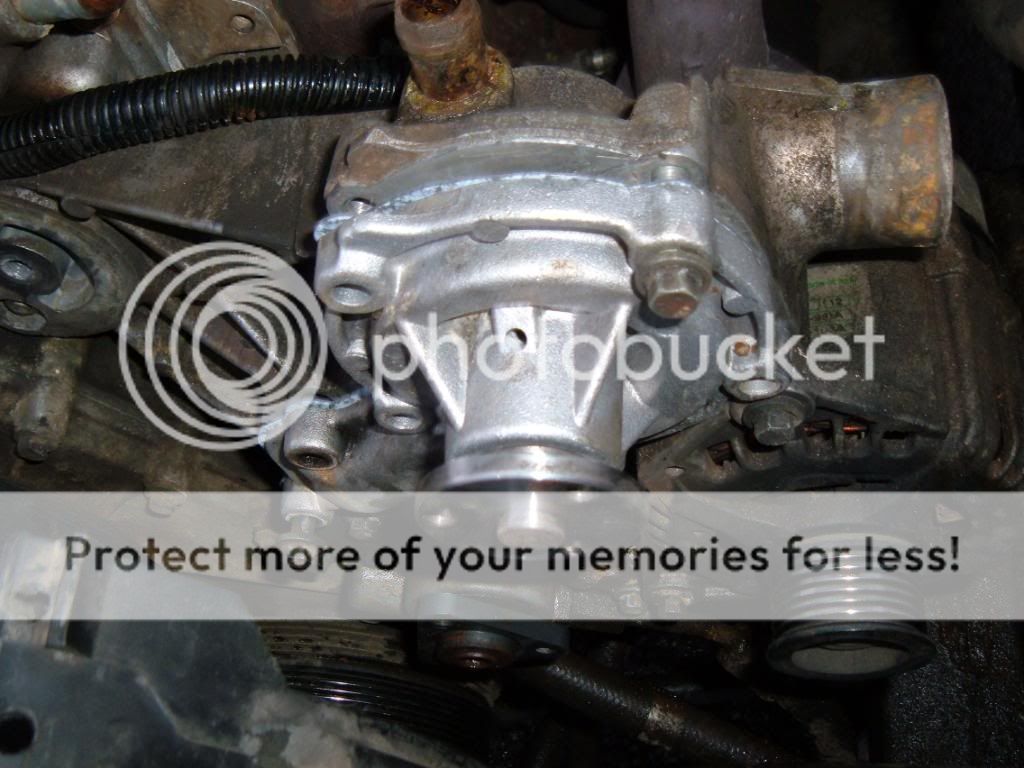

    Completely remove the pulleys and you can now access all bolts holding the waterpump on, then remove waterpump


    [​IMG]


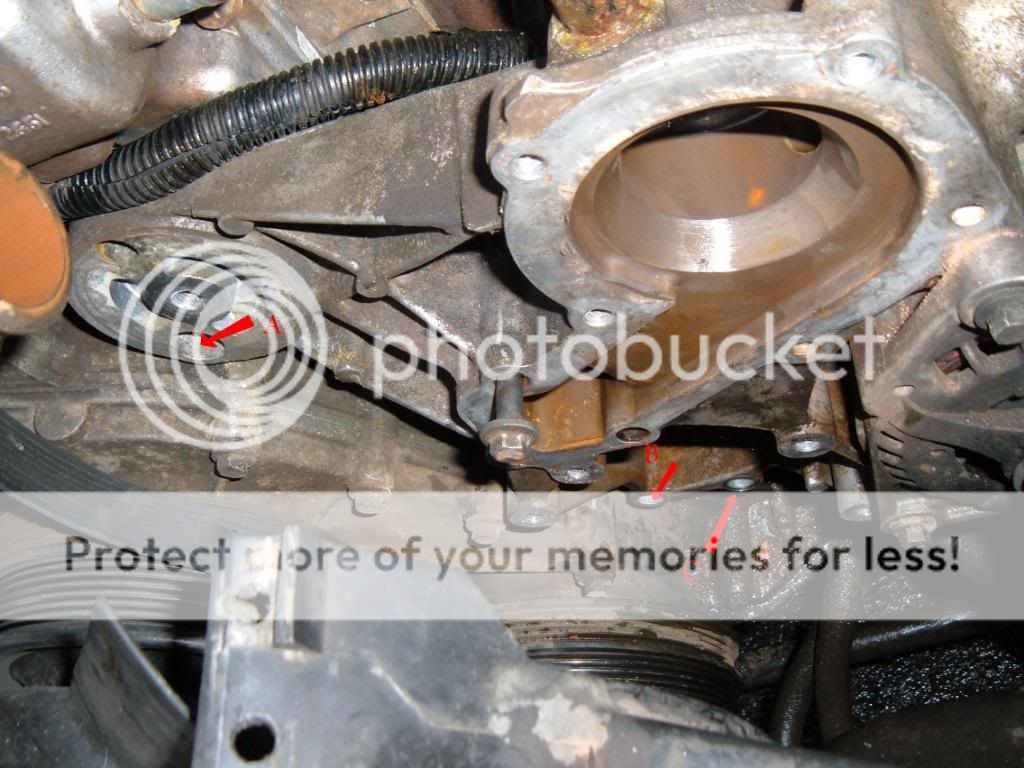

    Remove the four bolts marked with arrows and the power steering pump will be liberated


    [​IMG]
    [​IMG]


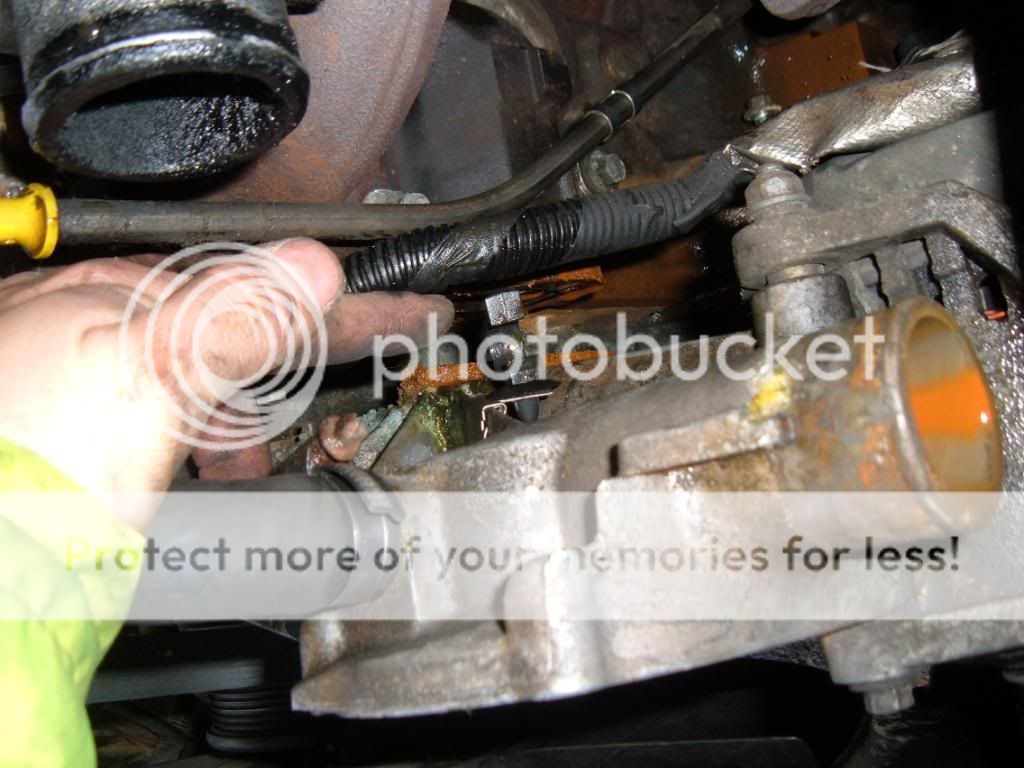

    Pull the pump out of the way, and you can then turn your attention to the last three studs holding the waterpump housing to the engine.
    A – is a nut
    B – is a bolt

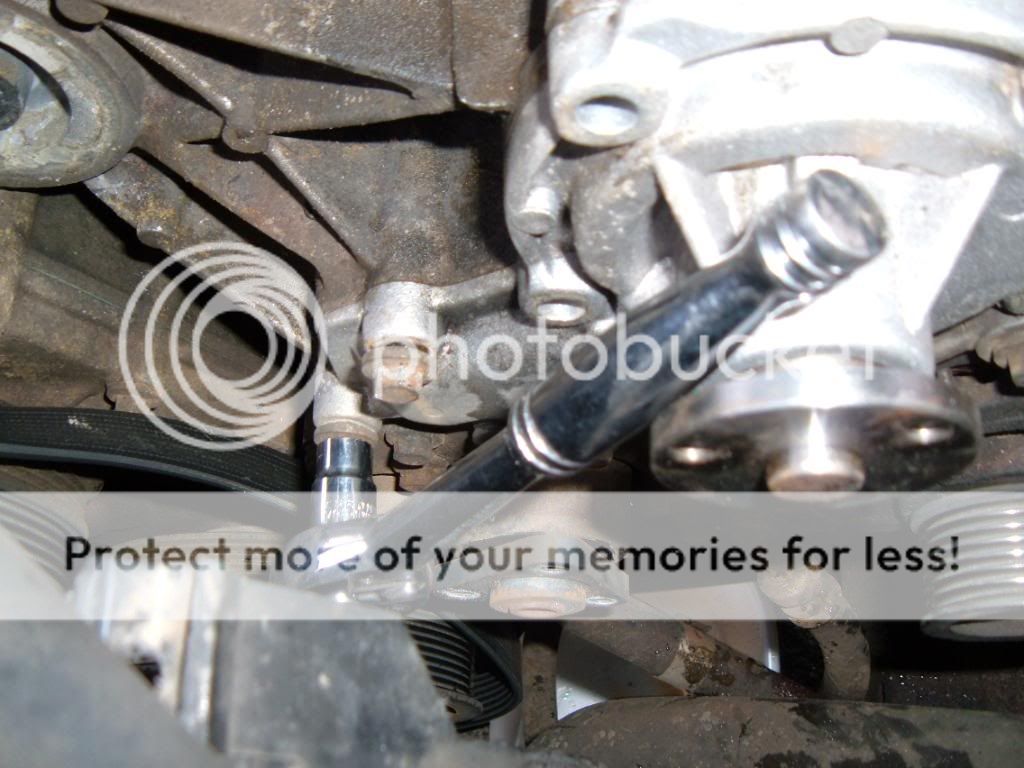

    C – is a nut, attached to a bolt which you'll need to hold from underneath the alternator


    [​IMG]


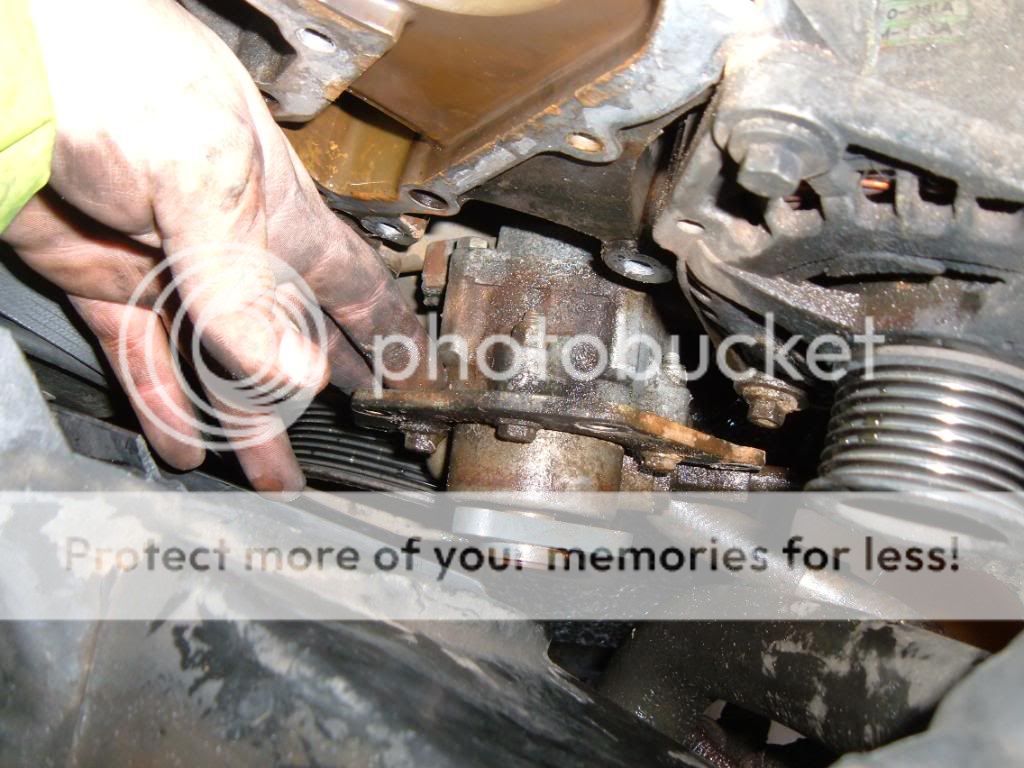

    Once these are undone you can pull the entire lot forwards to access the p-gasket, be careful not to strain the cables to the alternator


    [​IMG]


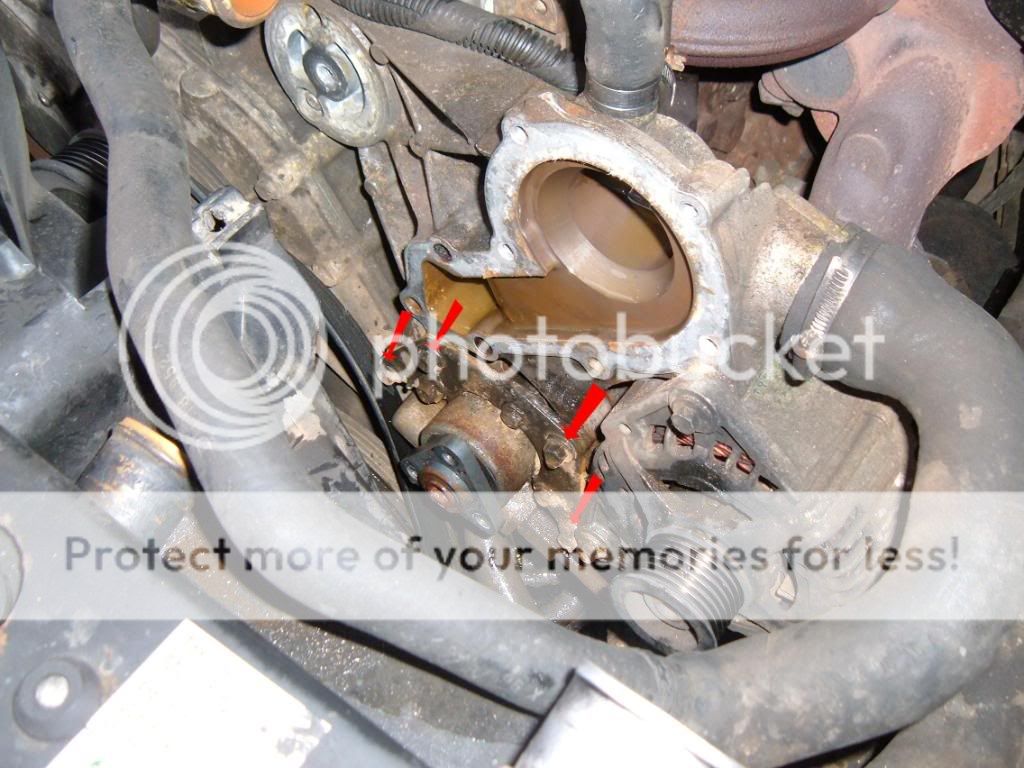

    Clean off the old gasket then fit the new one with a smear of grease to hold it in place, you may wish to use gasket sealant – but I hate the stuff so I didn't!


    [​IMG]


    Slide the waterpump housing back onto the studs and quickly insert one of the long waterpump bolts to hold the gasket in place
    Refit the bolts and nuts to the housing and then refit the steering pump and waterpump (with new gasket)

    [​IMG]


    Refit belt and all hoses and refill the coolant and t'jobs a fish!


    [​IMG]

    PETER PETRAKIEV likes this.
  2. robint

    robint Well-Known Member

    Joined:
    Jan 19, 2008
    Posts:
    7,052
    Likes Received:
    11
    Location:
    werz te cyder applez do grow zomerzet
    why dont you ask this to be a sticky

  3. lerk

    lerk New Member

    Joined:
    Jun 15, 2008
    Posts:
    1,763
    Likes Received:
    5
    Location:
    Creswell, Derbyshire UK
    Was thinking a mod may see it and do the deed without me needing to ask, thought it would be a useful one for folks and buster hasn't done this one!

  4. trax99

    trax99 Well-Known Member

    Joined:
    Oct 25, 2007
    Posts:
    1,139
    Likes Received:
    5
    Location:
    Montgomeryshire
    Cheers, Lerk,
    nice and clear, easy to follow, did mine today.

  5. oversteer

    oversteer New Member

    Joined:
    Nov 18, 2008
    Posts:
    40
    Likes Received:
    0
    Do yourself a favour and buy the original 'P'-gasket from your main dealer it is a metal coated thing and not the fail-prone paper one as seen in the photograph on this link. They are about £3.90.

  6. chrissparky

    chrissparky New Member

    Joined:
    Jan 3, 2010
    Posts:
    2
    Likes Received:
    0
    Location:
    Derbyshire
    Just like to say lerk what a fantastic post
    you have placed about "P" gasket renewal
    nice bit of work, pics all high res.
    you get a pad on the back from me.
    many thanks Chrissparky.
    Ps in the middle of doing the head gasket
    that has now turned into an engine overhall
    due to finding more things amiss than than i
    could shake a stick at, so changing the "P"
    gasket while up to my armpits disco juice
    seamed like a good idea? actually thanks to your
    post it's not to bad a job.
    thanks again Chris

  7. lerk

    lerk New Member

    Joined:
    Jun 15, 2008
    Posts:
    1,763
    Likes Received:
    5
    Location:
    Creswell, Derbyshire UK
    It is actually a metalised gasket, just doesn't show well on the photo! :cool:

  8. drewster

    drewster Well-Known Member

    Joined:
    Jul 12, 2007
    Posts:
    2,995
    Likes Received:
    3
    Location:
    new milton hampshire
    go and get lro theres an artical in this months abought p gaskets

  9. louis123

    louis123 New Member

    Joined:
    Jun 8, 2009
    Posts:
    39
    Likes Received:
    0
    Thanks lerk did mine today. Very helpfull

  10. David Pye

    David Pye Active Member

    Joined:
    Nov 3, 2009
    Posts:
    623
    Likes Received:
    1
    Location:
    Newcastle Upon Tyne
    Don't suppose anybody has the part number for the core-plug? I went in to the LR dealer and the parts guy and I couldn't find it on any of the microcat drawings :-(

    Also, if anyone has a disco 1 Haynes manual, would be very grateful for the torque settings for the housing, water pump and pulley bolts.

    Cheers,

    David

  11. topgun

    topgun New Member

    Joined:
    Sep 3, 2009
    Posts:
    50
    Likes Received:
    0
    First class that my friend what a nice thing to do, well done.

  12. Kernow oli

    Kernow oli New Member

    Joined:
    Jun 28, 2010
    Posts:
    15
    Likes Received:
    1
    this is going to sound stupid but im still wet behind the ears in this department!! but what does changing the p gasket improve whats the need????
    cheers
    oli

  13. Yogi Bear

    Yogi Bear New Member

    Joined:
    Jul 15, 2010
    Posts:
    174
    Likes Received:
    0
    Location:
    Chesterfield
    Awesome thread matey, thanks for taking the time to put it on here. Doing mine tomorrow and it's given me a good heads up!

    Jon

  14. TS888

    TS888 New Member

    Joined:
    Dec 23, 2009
    Posts:
    66
    Likes Received:
    0
    Location:
    A Yank in Lestah
    Part number for the core plugs on 300TDi is ERC4996, the 53 mm ones. Just had to order, as my leaky P gasket turned out to be a leaky core plug...

  15. Yogi Bear

    Yogi Bear New Member

    Joined:
    Jul 15, 2010
    Posts:
    174
    Likes Received:
    0
    Location:
    Chesterfield

    If your doing one you might as well do them all!

    Theres one behind the water pump/ps pump and tensioner housing, three down behind the turbo and one on the rear. Not sure if theres anymore.

    Jon

  16. trandy

    trandy New Member

    Joined:
    Jan 7, 2010
    Posts:
    1
    Likes Received:
    0
    Thanks for the clear photos and imformative write up all it cost was 99p for the gasket instead of £200 at the garage:D

  17. aquaplane

    aquaplane New Member

    Joined:
    Sep 3, 2007
    Posts:
    70
    Likes Received:
    0
    Location:
    Mirfield West Yorkshire
    Top thread, I just got mine orffff, waiting for bits to come then I canput it back together.

    I wish I had read the bit about cracking off the nuts on the water pump and power steering pump pulleys before taking off the serpentine belt before I took my waterpump off last night, top tip.

  18. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    82,381
    Likes Received:
    8,070
    Location:
    Embasinga stocæ
    yu dont need to remove the water pump, but it is best to do so, as yu can check it whilst it is off.

  19. restless

    restless New Member

    Joined:
    Aug 24, 2011
    Posts:
    2
    Likes Received:
    0
    Oh for f's sake... put in new pulleys and did the pee job whilst at it.
    Smugly starting the lump up without the shrieking budgie was very cool.. till I noticed the pee gasket flooding coolant all over the place. I cleaned and fussed and was really well behaved, using one of those metal (!??!) jobbies from the local LR dealer. (Didn't need to remove steering pump tho)
    Has anyone got any ideas as I'm feeling really downhearted now. I even used blue hylomar!

  20. Chris L

    Chris L New Member

    Joined:
    Oct 12, 2011
    Posts:
    12
    Likes Received:
    0
    Location:
    A small town called Blairgowrie 60 Km from Melbour
    Lerk I can't thank you enough for the P gasket post !!! Well done . Cheers Chris L
