opinion needed ,please comment

Discussion in 'Land Rover Freelander' started by griff2, Jan 31, 2014.

< Previous Thread | Next Thread >
  1. griff2

    griff2 Active Member

    Joined:
    Dec 25, 2013
    Posts:
    694
    Likes Received:
    4
    Location:
    STAFFORD UK
    hi all

    right went out to do the thermostat mod on the car today

    read up on it so went and got a cheap dremmal to cut the metal band (pic attached)

    i could not get in to cut it without first taking all the fu.king inlet manifold off :(:(:(:(:(:(:(:(

    anyway thats all up in my kitchen now as seeing wife out tonight i may aswell try and get that all cleaned up ,also taken the fuel spil pipes off so i can replace them

    anyway back to my question lol ,why cut that metal band ,approx 1cm past that there is a clip that looks like when undone you could maybe just pull it out ?

    or even so why can you not just disconet the other end of the water pipe from the rad end and slid the thermostat in there ??????????

    is it some thing to do with the height ie if at that end would be very hard to get rid of air locks????? or does it not matter?


    Attached Files:

    • twat.jpg
      File size:
      38.9 KB
      Views:
      182
  2. Jonty1

    Jonty1 New Member

    Joined:
    Nov 30, 2011
    Posts:
    90
    Likes Received:
    1
    Griff - even if U did unclip the hose, you would still have to cut the band in order to remove the part of the plastic clip which is still in the end of the hose - you can't get the 'stat in with it still in place.

    You can't really put the stat in the radiator end of the hose, it's too far from the source of heat ( the engine ) to work properly.

    I also had to remove the inlet manifold to do the mod on my TD4, but it has been well-worth doing - not only a warmer car, but also a 6% improvement in fuel economy !!}

  3. matt1295

    matt1295 New Member

    Joined:
    Jan 20, 2007
    Posts:
    1,734
    Likes Received:
    3
    Location:
    Scarborough
    where is the original thermostat placed on a td4 i see you all doing this mod....

  4. griff2

    griff2 Active Member

    Joined:
    Dec 25, 2013
    Posts:
    694
    Likes Received:
    4
    Location:
    STAFFORD UK
    cool thanks for your help

    i will put it engine side ,and going to give everything a good clean inside :)

  5. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,301
    Likes Received:
    6,641
    Location:
    Near Newquay
    You put the manifold on the kitchen table!! You're brave ;)

  6. griff2

    griff2 Active Member

    Joined:
    Dec 25, 2013
    Posts:
    694
    Likes Received:
    4
    Location:
    STAFFORD UK

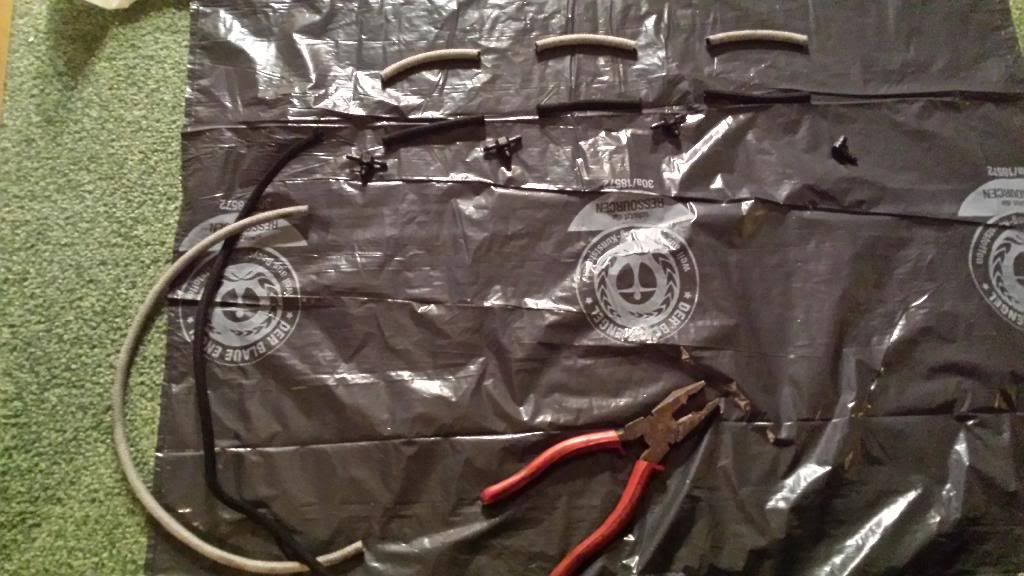

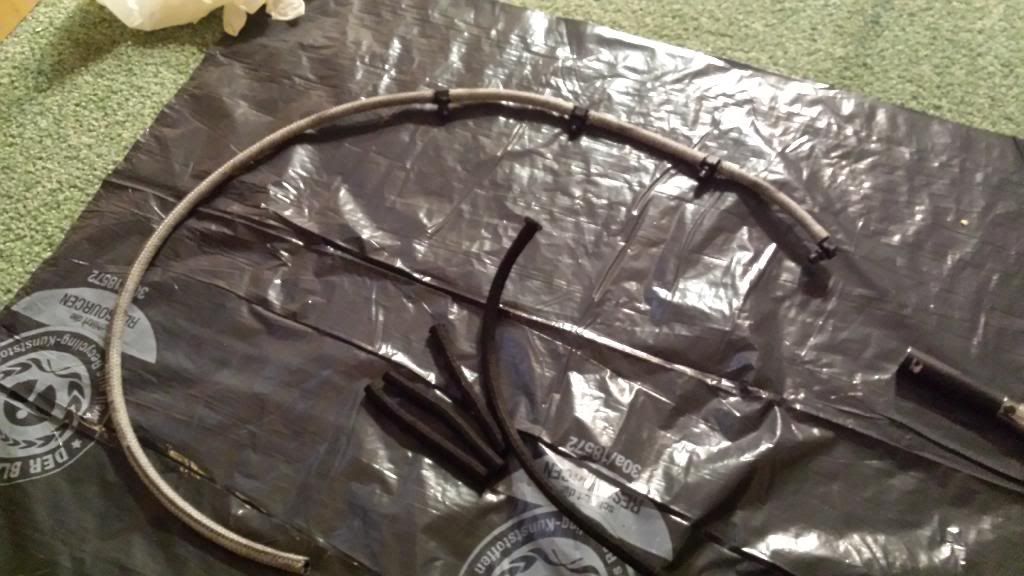

    wifes out lol but the diesle leak off pipes are on living room floor so i can fix/make while watching ncis lmfao :)

    [​IMG]

    all made :)
    [​IMG]

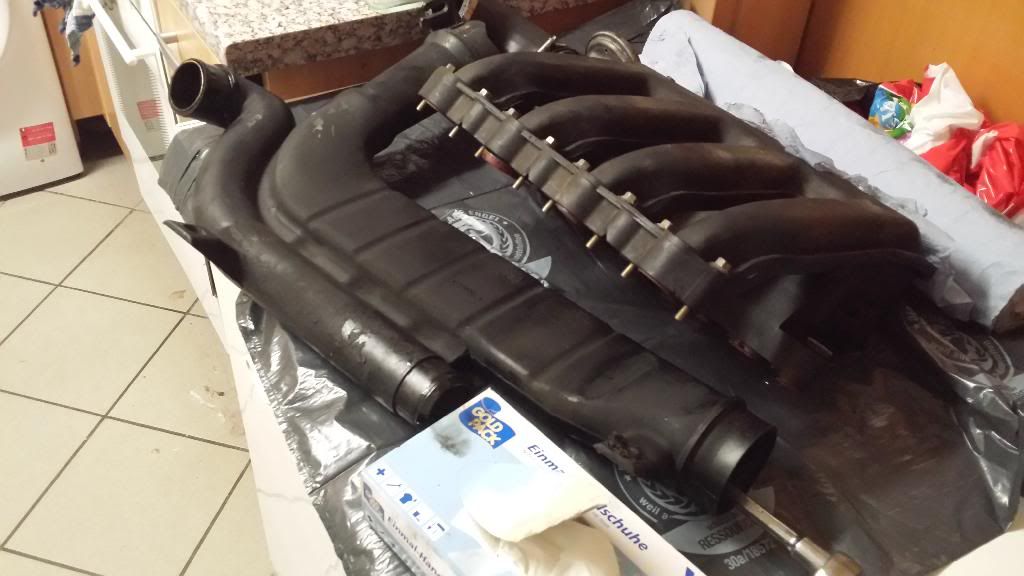

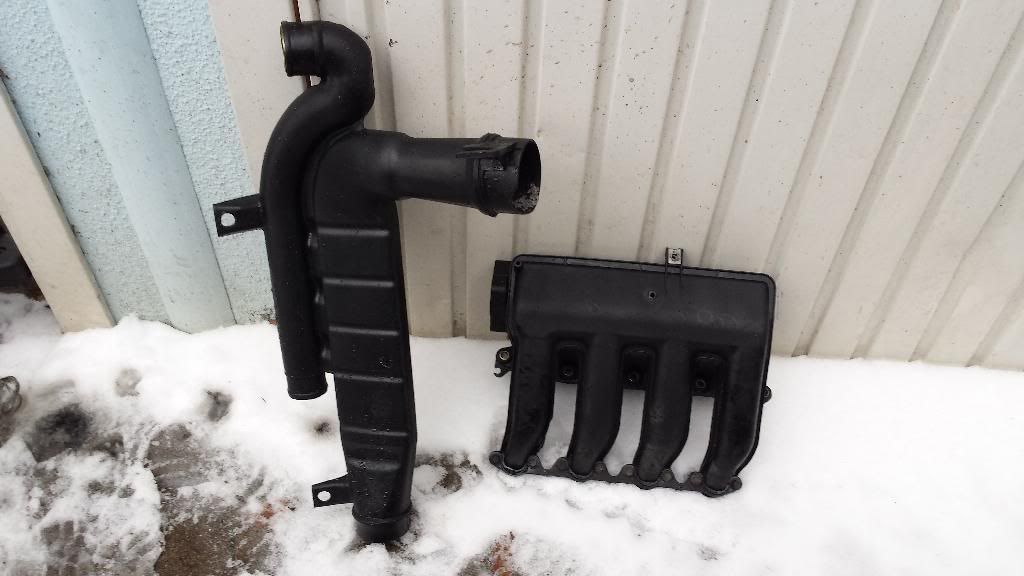

    but the kitchen is a dif matter lol still got this lot to sort out

    [​IMG]

  7. griff2

    griff2 Active Member

    Joined:
    Dec 25, 2013
    Posts:
    694
    Likes Received:
    4
    Location:
    STAFFORD UK
    looks like im waiting till morning to clean things ,i def need petrol to help clean

  8. griff2

    griff2 Active Member

    Joined:
    Dec 25, 2013
    Posts:
    694
    Likes Received:
    4
    Location:
    STAFFORD UK
    went out today got petrol for cleaning and some bottle brushes

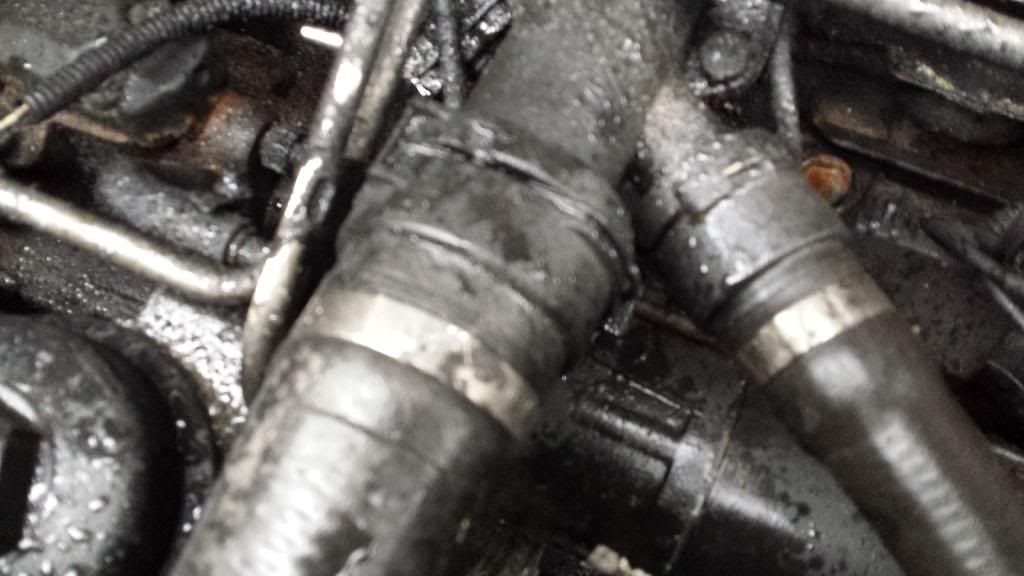

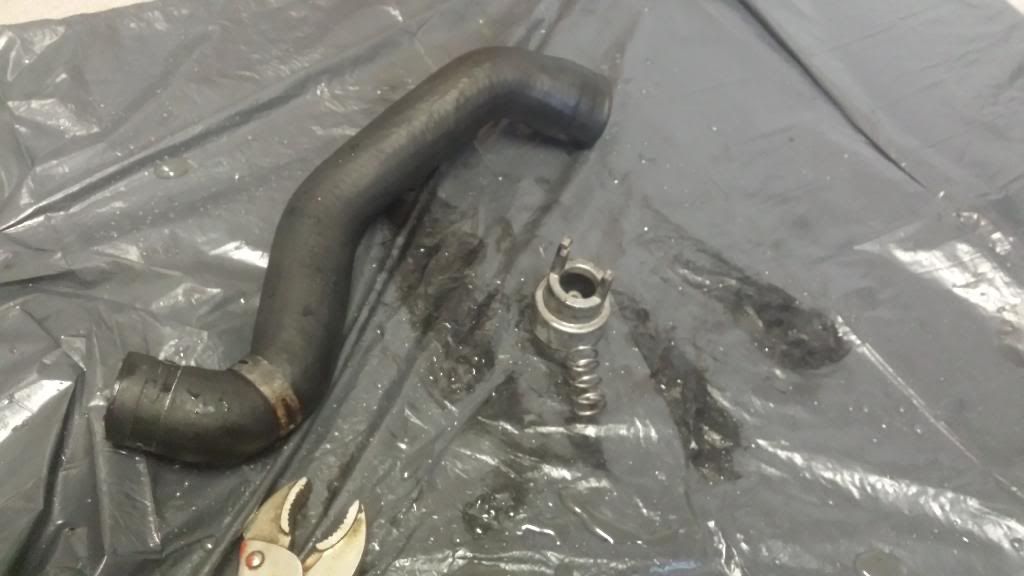

    before cleaning i wanted to get the steel band off (what a #### that turned out to be lol)
    [​IMG]

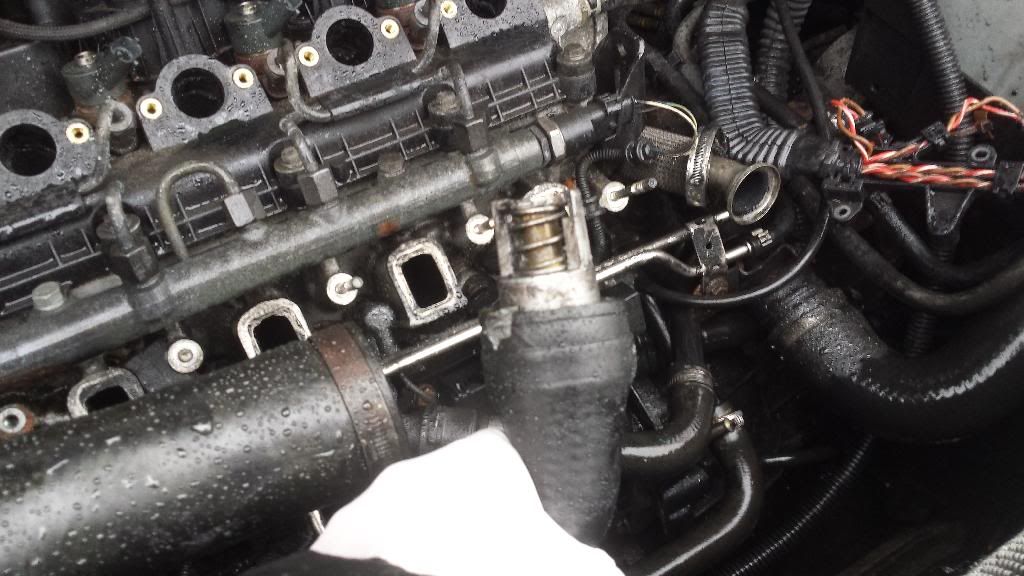

    finally got it out ,next to TRY and get new thermostat in
    [​IMG]
    was finding it very very hard to get in ,so took the pipe off completly
    and then :mad::mad::mad::mad::mad: the fu..ing new thermostat broke in to !!!!!!:mad::mad::mad::mad::mad::mad::mad::mad:
    [​IMG]
    totaly bust :mad::mad::mad::mad:
    so the hole point of this job was to sort the thermostat ,but cant till at least next week now :mad::mad::mad::mad::mad::mad::mad:

    so i decided to just clean everything out and put everything back together :-(
    but at least when i get a new on the job will be easy as pipe now held on with jubilee clip (with screw part pointing in the correct direction to remove easy )

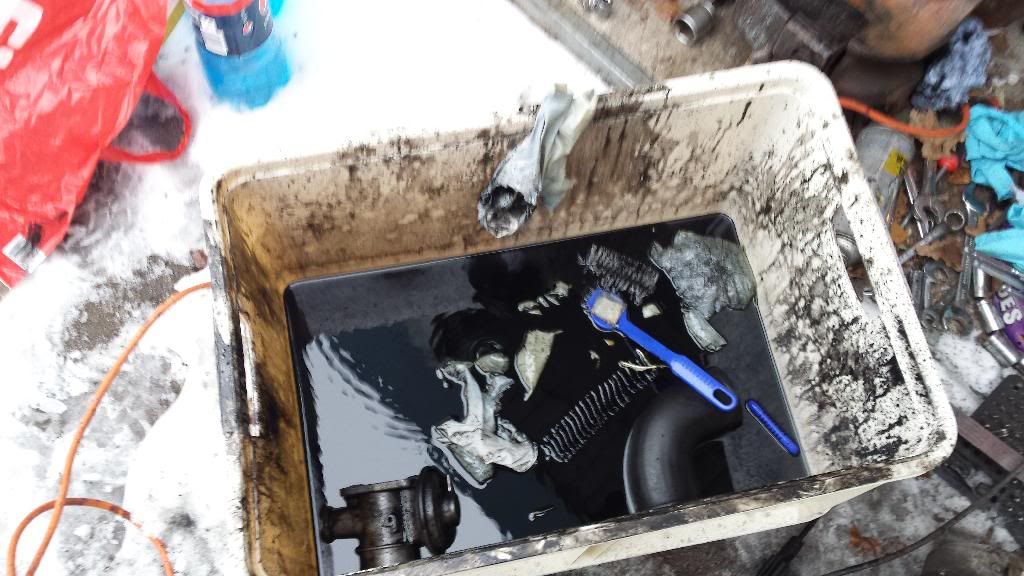

    anyway next this is what came out of my parts
    [​IMG]
    lots and lots of crap ,but all done and clean now :)
    [​IMG]

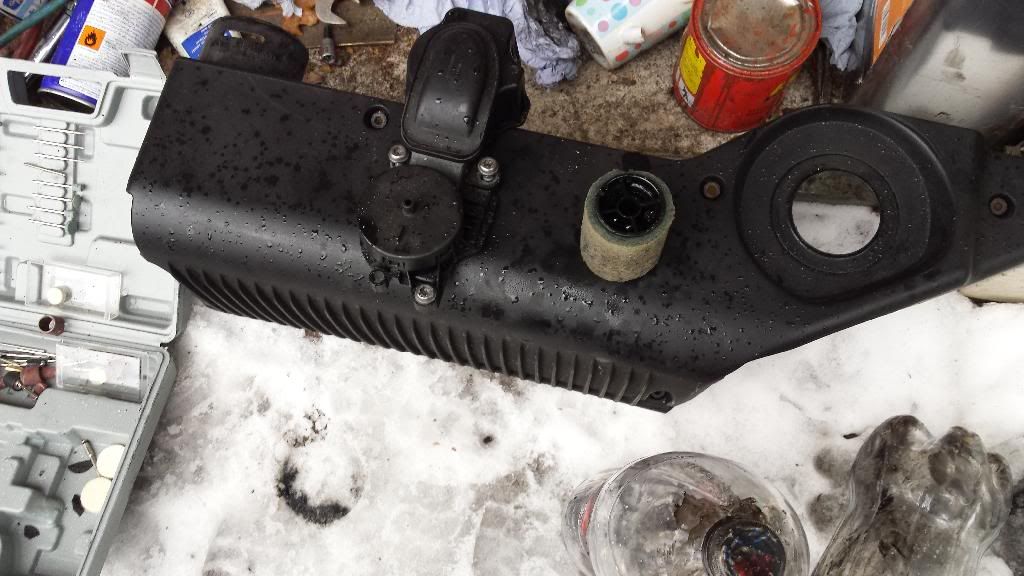

    while doing this i changed air filter and cleaned the crank breather(petrol cleaned it out perfect in 2 mins)
    [​IMG]
    refitted my newly built leak off pipes
    [​IMG]

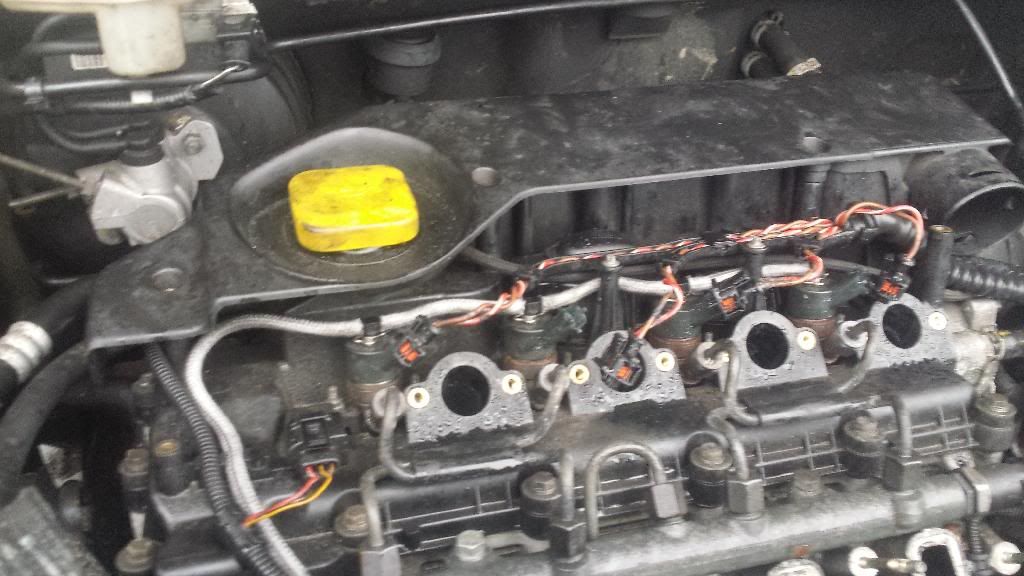

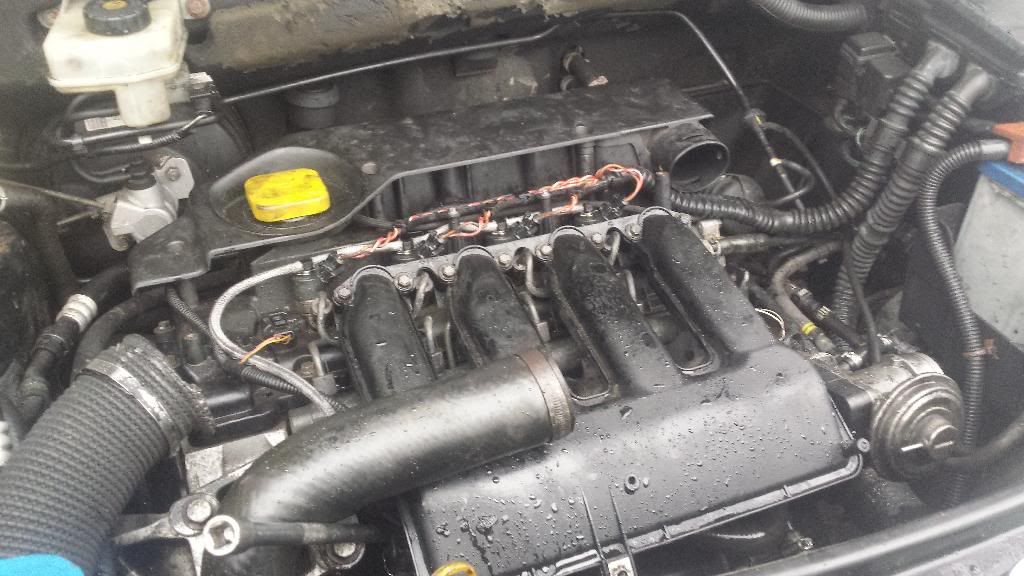

    inlet back on
    [​IMG]
    :mad::mad::mad::mad::mad::mad:but dropped a socket into the engine ,could not reach it so had to take it all back off again :mad: im a #### !!!

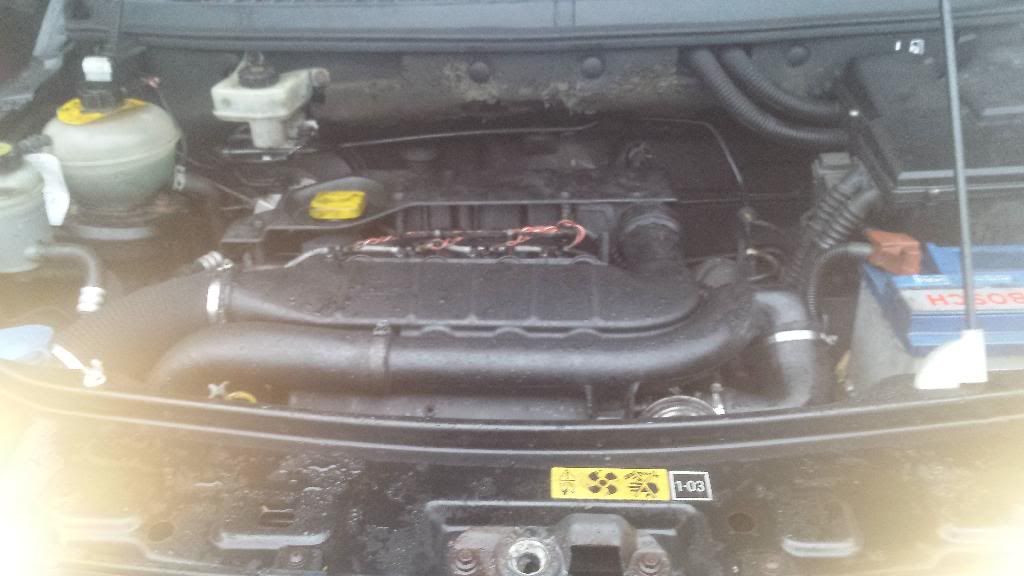

    all back together now :)
    [​IMG]
    did now get thermostat done as such ,but now done crank breather,etc, it seems to run much better :)
    and no smell of diesle now ive changed my leak off pipes
    so all in all the day turned out better than i expected

  9. roccotune

    roccotune New Member

    Joined:
    Oct 15, 2010
    Posts:
    428
    Likes Received:
    1
    That thermo is much bigger than the one I used I must say!

  10. roccotune

    roccotune New Member

    Joined:
    Oct 15, 2010
    Posts:
    428
    Likes Received:
    1
  11. matt1295

    matt1295 New Member

    Joined:
    Jan 20, 2007
    Posts:
    1,734
    Likes Received:
    3
    Location:
    Scarborough
    Where is the LR thermostat located...

  12. teddywood1

    teddywood1 Well-Known Member

    Joined:
    Jul 7, 2011
    Posts:
    5,554
    Likes Received:
    302
    Location:
    stoke-on-trent
    it is on the driver side of the engine on the top of the water pump dam of a job

  13. griff2

    griff2 Active Member

    Joined:
    Dec 25, 2013
    Posts:
    694
    Likes Received:
    4
    Location:
    STAFFORD UK
    the one i ordered was the type from the link you just posted but when it arrived at shop it was the one i showed in pics , i checked on google and they say its for that renualt ,and it says its 43mm but to say it was tight was a joke even with seal grease and boiling water !!
    anyway im going to order the part next time from uk ,that way i now what im getting lol

  14. Jonty1

    Jonty1 New Member

    Joined:
    Nov 30, 2011
    Posts:
    90
    Likes Received:
    1
    The stat in roccotune's link is the correct one - still a tight fit !! Make sure you fit it with the bulb towards the engine, not the radiator .

  15. griff2

    griff2 Active Member

    Joined:
    Dec 25, 2013
    Posts:
    694
    Likes Received:
    4
    Location:
    STAFFORD UK
    thanks for replies

    i have ensured that the pipe that i refitted has all the new jubilee clips are facing the right way to remove at later date ,so will only need to take that off no need to strip down any further so should be a easy job,i can take it in house and heat the pipe in boiling water

    but after looking and reading im in 2 minds if to say fu.k it and change the org one and water pump at same time ,will have to see how i get one with £££ as still need to invest in a vcu so i can put it back into 4x4

  16. llay101

    llay101 Member

    Joined:
    Sep 26, 2013
    Posts:
    65
    Likes Received:
    1
    Excellent pictures!

    It makes jobs like that less daunting for noobs like me when you have something to look at before you start.

  17. griff2

    griff2 Active Member

    Joined:
    Dec 25, 2013
    Posts:
    694
    Likes Received:
    4
    Location:
    STAFFORD UK
    i agree

    thats why i take and post pics ,some think there is no need ,but for me the pics are much more helpfull than reading a page of text

    and of course it reminds me of what ive done lol

  18. Skynet

    Skynet Well-Known Member

    Joined:
    Jul 10, 2008
    Posts:
    1,197
    Likes Received:
    6
    Location:
    Melksham, Wiltshire
    Matt, you access it by removing the front offside wheel to get at the engine bay :( I got a garage to do it a few months back

  19. Spacemonkey...

    Spacemonkey... Well-Known Member

    Joined:
    Apr 27, 2010
    Posts:
    1,042
    Likes Received:
    14
    Location:
    Darzet
    My stat went in really easy - I heard it was a pig but I lubed it with neat red coolant then pushed it in with a socket (pipe not removed from rad) a bit at a time. I walked it in if that makes sense, with a screwdriver when the socket wouldn't do it. It's easy, cheap and really works.

  20. Dangermike

    Dangermike Active Member

    Joined:
    Jul 4, 2011
    Posts:
    482
    Likes Received:
    2
    Location:
    Benfleet Essex
    Do you have to remove the original thermostat? Or can I leave that in place? Can you do this mod if the oem thermostat hasn't failed?
