OneTen 2.5TD Indicator Relay

wowa75

Member

Posts

91

Location

Vancouver Island

• Nov 9, 2023

• #1

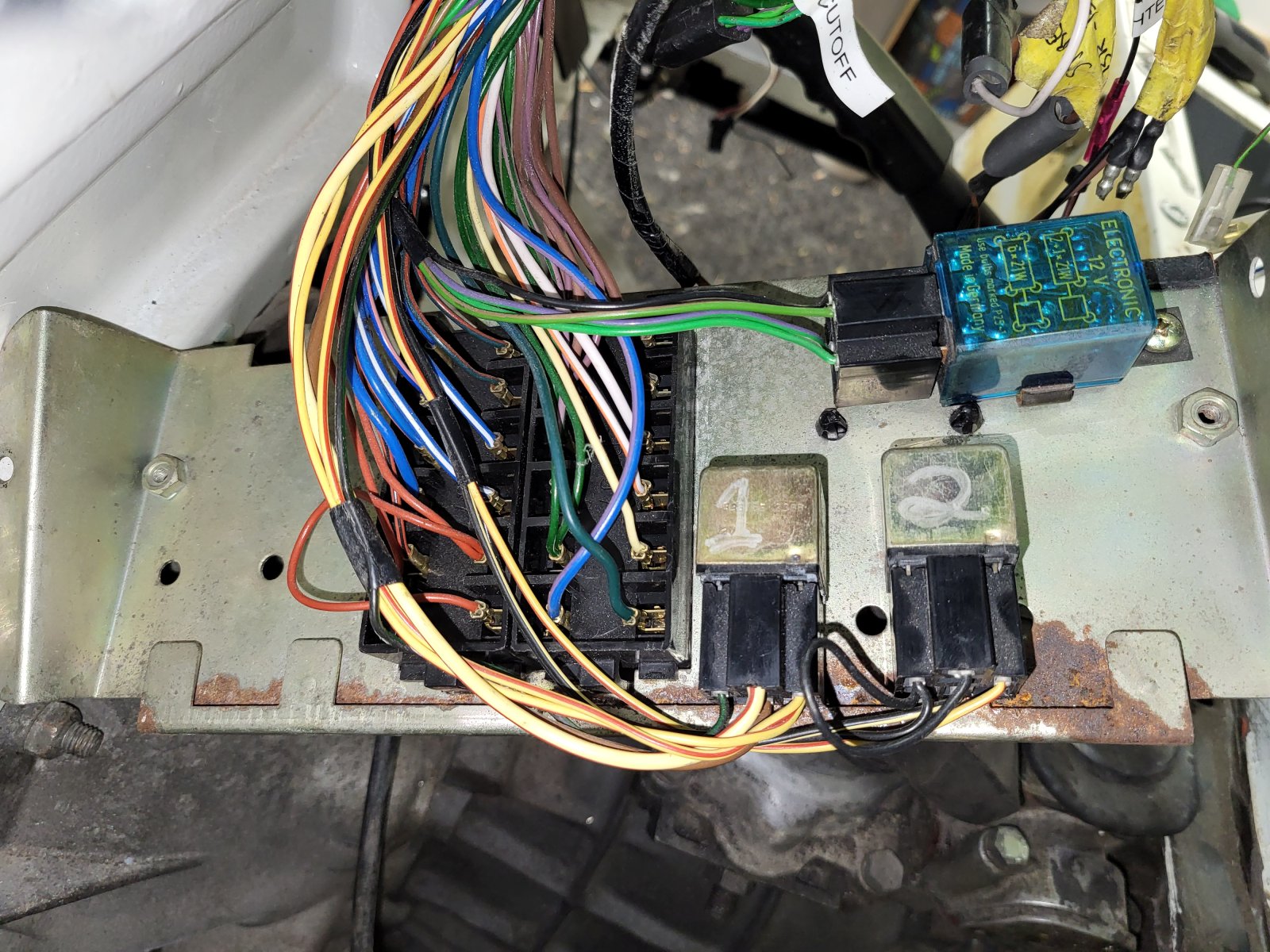

Completing my rebuild. Plugging back electrics and was going great until no indicators. No relay clicking. Wondering where she might be. Here are some pics. My fuse panel looks particularly 'relay sparse'.



Attachments

•
  Relays 2.jpg

  189.1 KB · Views: 72

wowa75

Member

Posts

91

Location

Vancouver Island

• Nov 9, 2023

• #2

wowa75 said:

Completing my rebuild. Plugging back electrics and was going great until no indicators. No relay clicking. Wondering where she might be. Here are some pics. My fuse panel looks particularly 'relay sparse'.View attachment 302131

Click to expand...

Fixed......the blue relay behind fuse panel. Needed the hazard switch connecting at dash to activate relay......then new RDX relay swap to operate LED indicators.



H

Hicap phill

Well-Known Member

Posts

16,320

Location

Wiltshire

• Nov 9, 2023

• #3

Glad you have sorted…
Number 1 starter relay
Number 2??
As you now know blue is the flasher. This is a good type, fitted for trailer usage

Did you put any resistors on the LED indicators?
