OIl sump plug location

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

llewekab

Member
Posts
65
Location
Sheffield
Hey,

Does anyone have a diagram of where i can drill a hole in the under-tray to locate the oil sump plug when doing an oil change,

Im trying to avoid removing the tray.

Many thanks

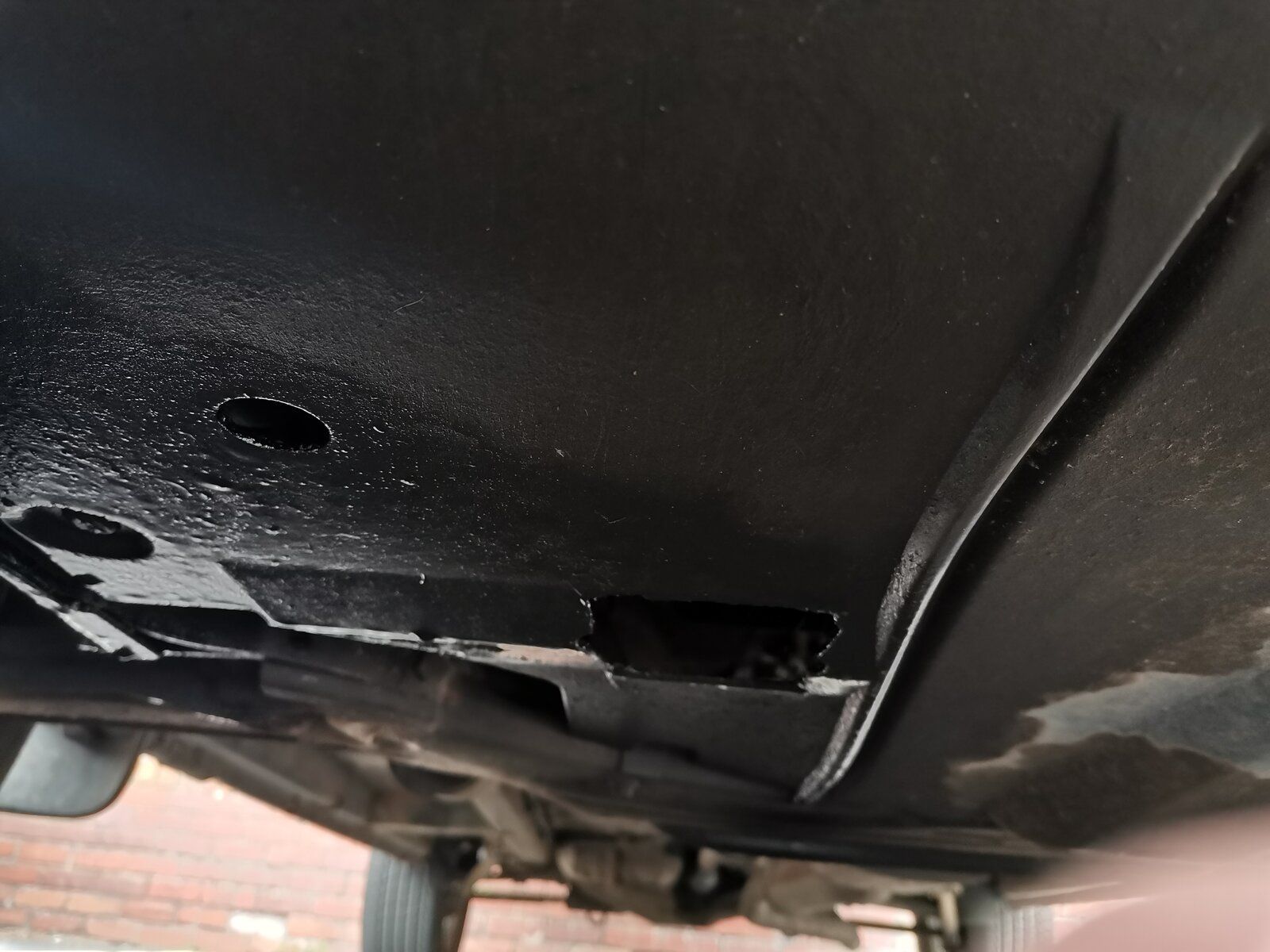

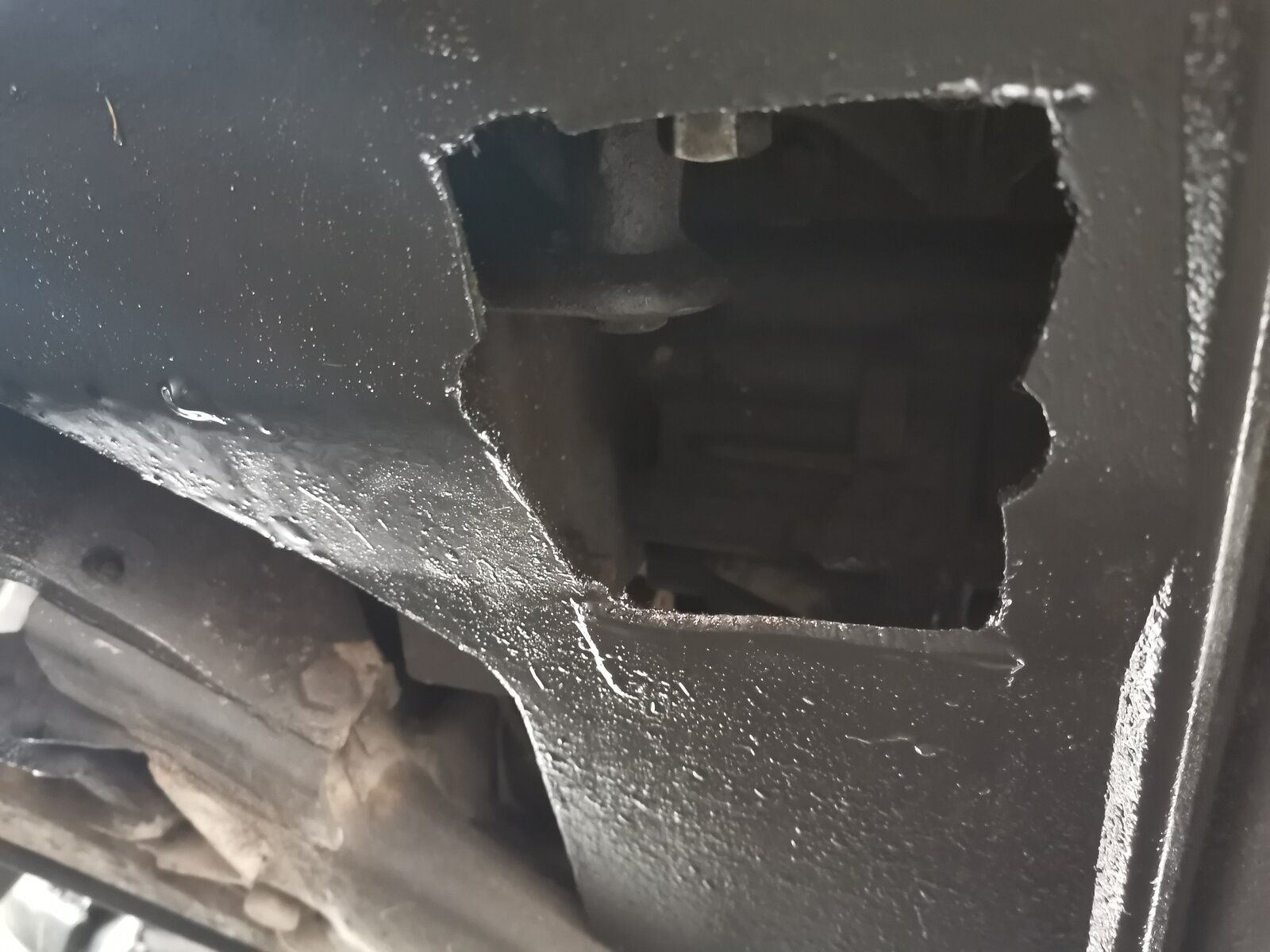

This is mine, already done when I bought her. Taken from the front of the car looking to the back, next to the front right tyre.
IMG_20200513_131535.jpg IMG_20200513_131528.jpg

Best, in my opinion, is to drill 2 holes to undo the front bolts of the tray easily. That way when it needs to come off its not totally seized, just almost seized.

In my experience, it's better to remove the sump guard once a year to do the oil change, and grease the bolts when it goes back on. Not doing so will normally result in the situation where the bolts simply refuse to undo when needed. It takes 5 minutes, 10 tops to remove well maintained sump guard fixings. So it add little time to an oil change, and gives to opportunity to grease the fixings for the next time it needs removing. ;)
