Oil pressure light

geordielad

Active Member

Posts

134

Location

Wrexham North Wales

• Mar 6, 2010

• #1

can anyone help me ive got no oil light, on checking ive also got no oil pressure swltch, there is a oil temp switch with 2 wires going to it, i have had a good look around & i cant even find a wire for the oil pressure switch which i believe is only 1 wire can anyone throw any light on this as it is baffling me. i cant even try the wires off the oil temp switch as the plug has a offset lug where as the oil pressure switch has a central lug.



TD John

New Member

Posts

343

Location

Essex

• Mar 6, 2010

• #2

Like wot Ming said - google 'Green Oval' dowload the RAVE for the FL (or buy one on Fleabay couple of squids)
These have ALL the info you need to answer your questions, pictures as well and lots and lots more.
With the Haynes you have a full set, sorry I can't help more mine's a TD4.



TD John

New Member

Posts

343

Location

Essex

• Mar 6, 2010

• #3

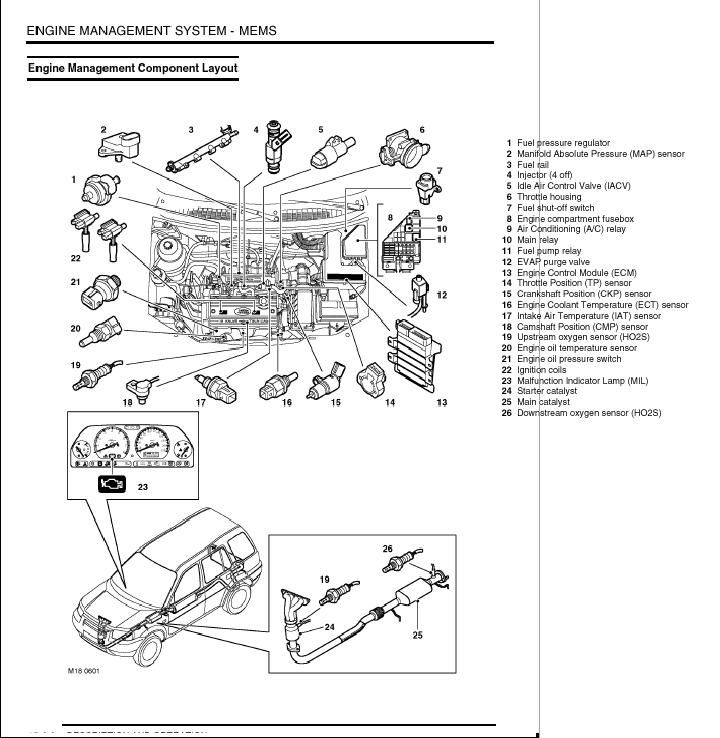

Does this help - from RAVE



Attachments

•
  MEMS Sensors.JPG

  87 KB · Views: 204

geordielad

Active Member

Posts

134

Location

Wrexham North Wales

• Mar 6, 2010

• #4

thanks for the pic but i need to know how many wires go to the oil pressure switch & what colour thanks G L



mystery

Well-Known Member

Posts

1,510

Location

BULKINGTON

• Mar 7, 2010

• #5

connection C0187 all models oil pressure switch single wire WN on petrol units NG on Td4
if you have the rave disk Co187 shows pict's of position it can be found in if you don't have rave try » Land Rover Manuals Land Rover One Ten: Articles, Manuals, VIN Checker, Guides and Tips on the Land Rover Ninety, One Ten & Defender 90 & 110
