Oil loss!

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Robfr

Member
Posts
22
I changed the engine oil of my Freelander 1 TD4, as I have done previously. A week later, having used it during that week, on a return short journey, I wondered why I was being tooted by a car overtaking me, only to find upon my return home, I had lost a substantial amount of oil. After removing the tray, the underneath of the car mainly on the driver’s side, was covered in oil. It definitely came from the front of the engine. After cleaning the whole area and topping up the oil(about a litre) and running the car I can’t find any indication of where the oil came from. Desperate!!!

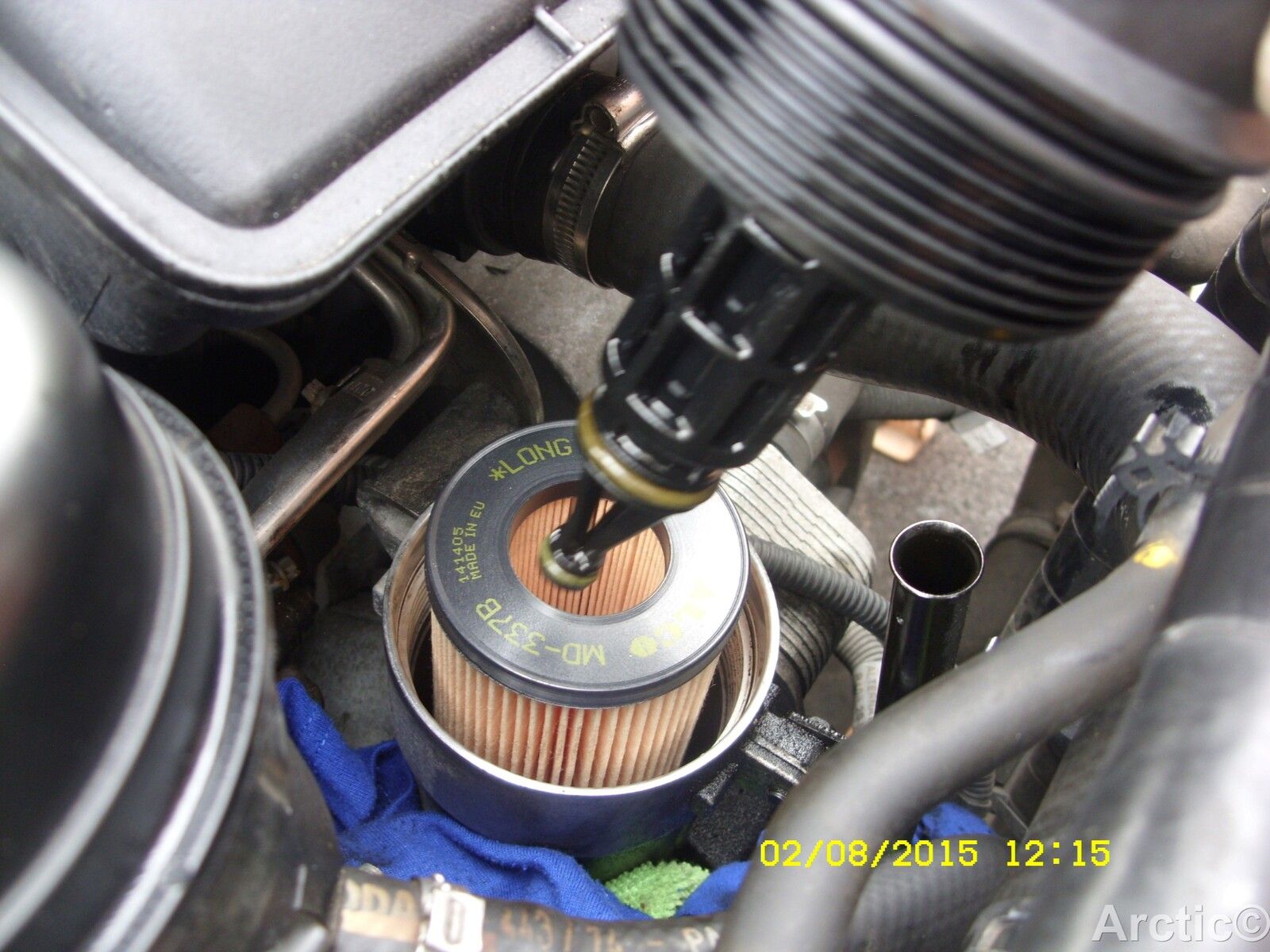

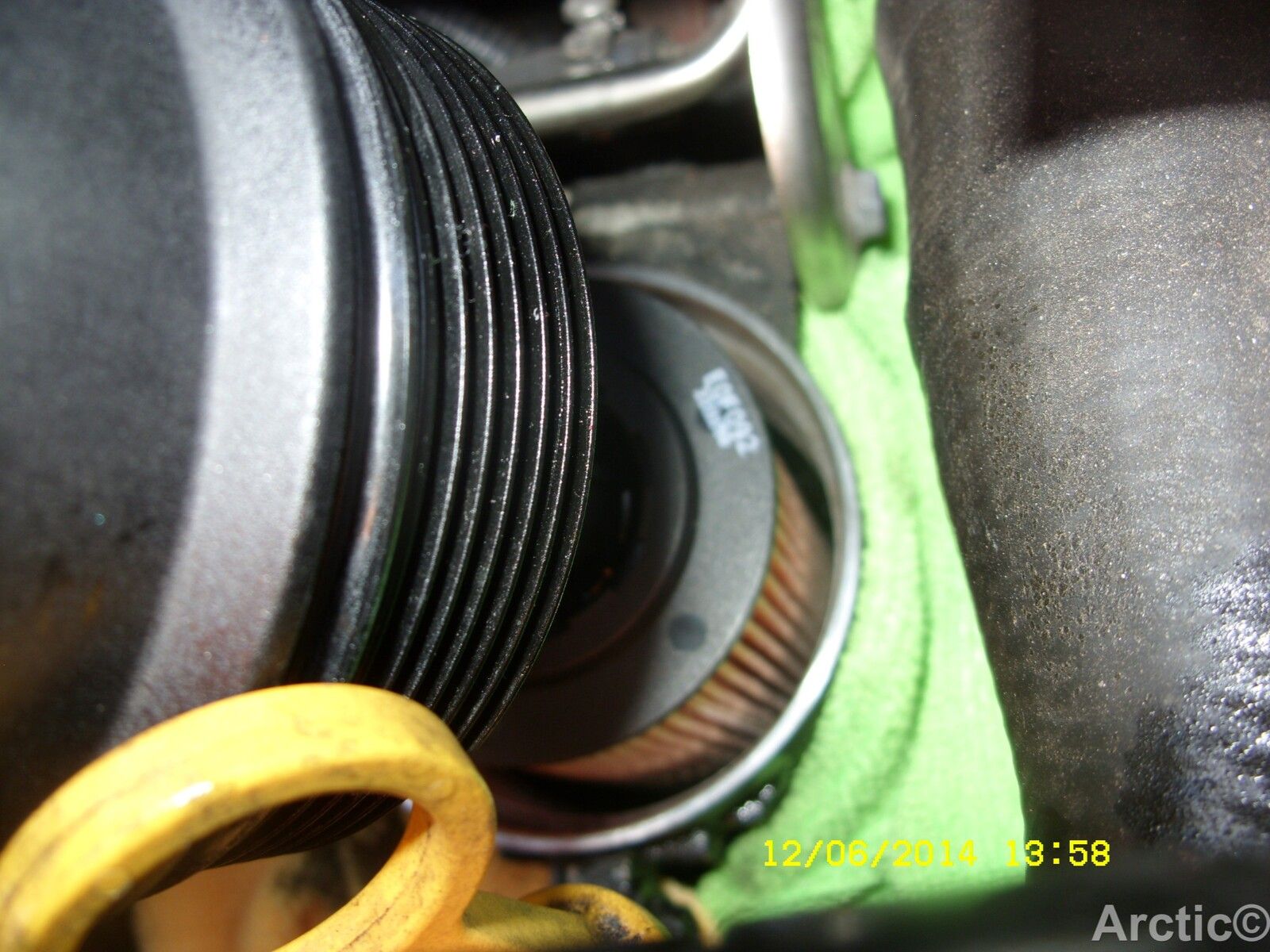

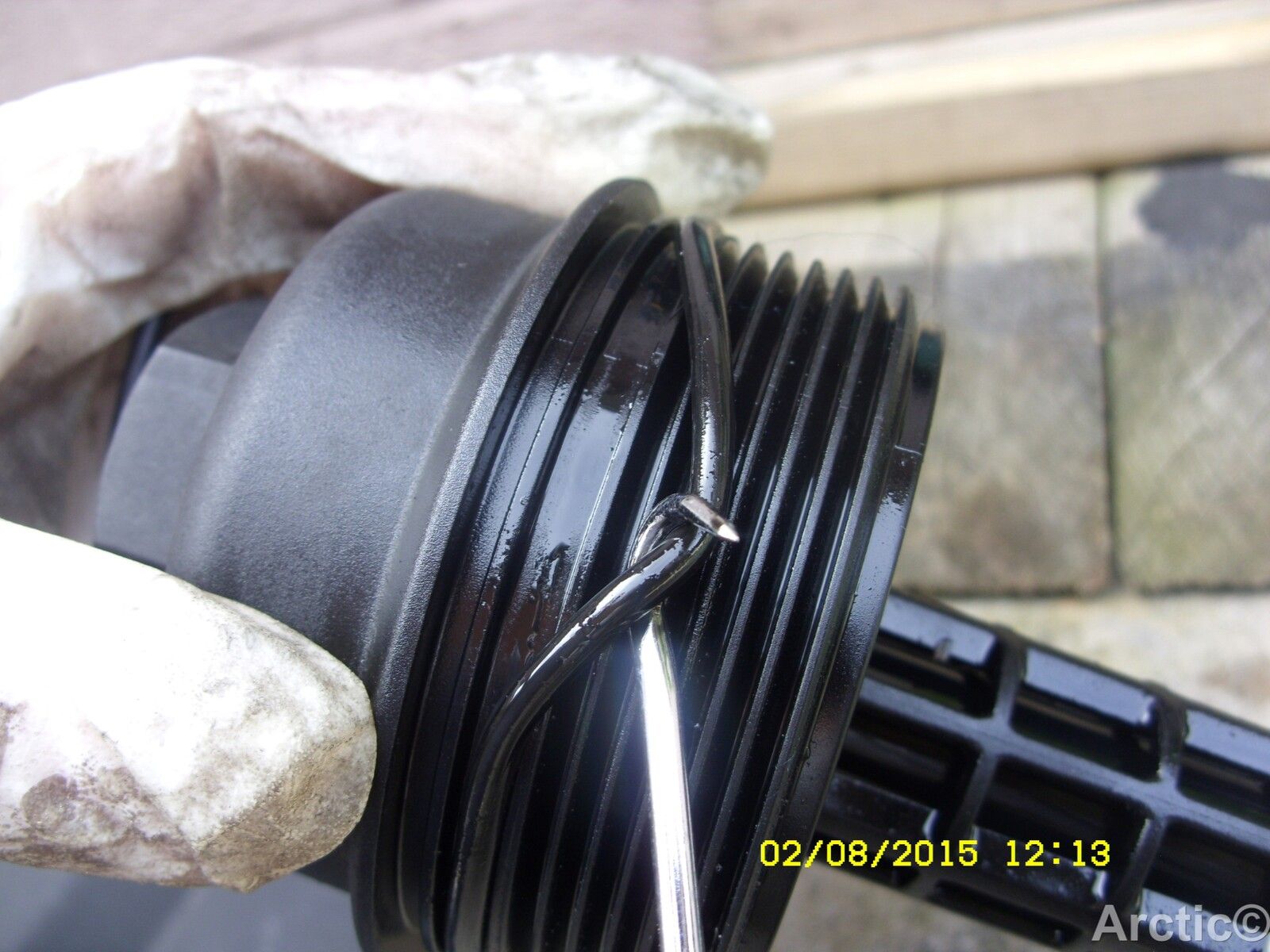

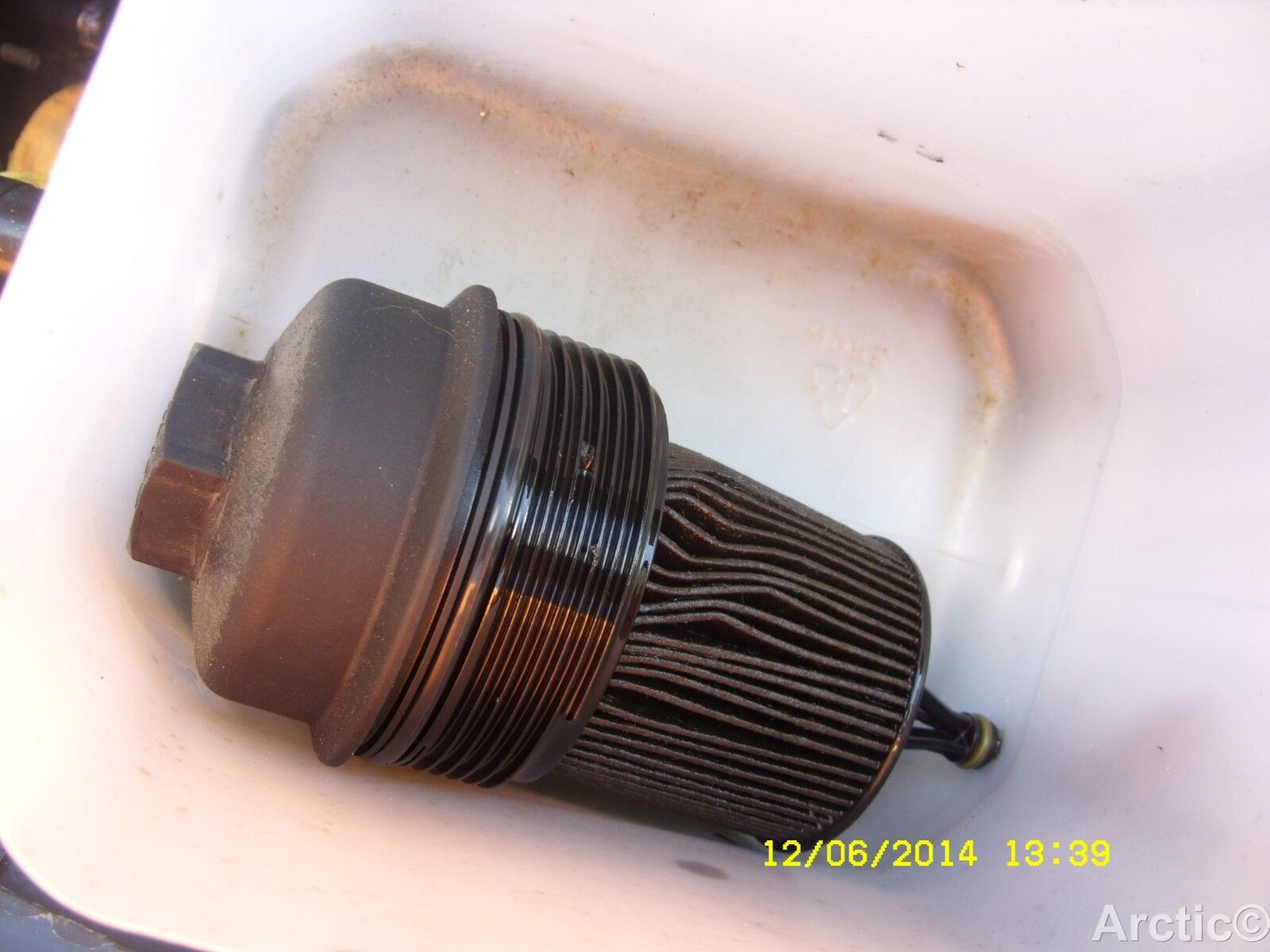

As above when you changed the oil filter did you re-fit the oil seal in it's correct place, I have know people fit it right at the top thus not allowing the filter to seat & seal properly,


Attachments

  • SDC10651.JPG
    218.1 KB · Views: 169
  • SDC10655.JPG
    240.2 KB · Views: 141
  • ROVER 75 OIL  (118).JPG
    ROVER 75 OIL (118).JPG
    170.5 KB · Views: 212
  • ROVER 75 OIL  (137).JPG
    ROVER 75 OIL (137).JPG
    258.9 KB · Views: 186
Start the engine and see if you can see where the oil is coming from.
It could be coming out the filter screw cap, if the seal isn't in the large groove as Arctic said. Alternatively it could be coming up the dip stick if the crankcase filter is blocked or the crankcase vent valve is dirty.

As above when you changed the oil filter did you re-fit the oil seal in it's correct place, I have know people fit it right at the top thus not allowing the filter to seat & seal properly,
Yes the only change I made was to fit the new filter to top before replacing and screwing down.

Start the engine and see if you can see where the oil is coming from.
It could be coming out the filter screw cap, if the seal isn't in the large groove as Arctic said. Alternatively it could be coming up the dip stick if the crankcase filter is blocked or the crankcase vent valve is dirty.
Yes I have done that and there no oil leak now.
