Oil leak

Clarky79

Member

Posts

10

Location

Hertfordshire

• Jun 27, 2023

• #1

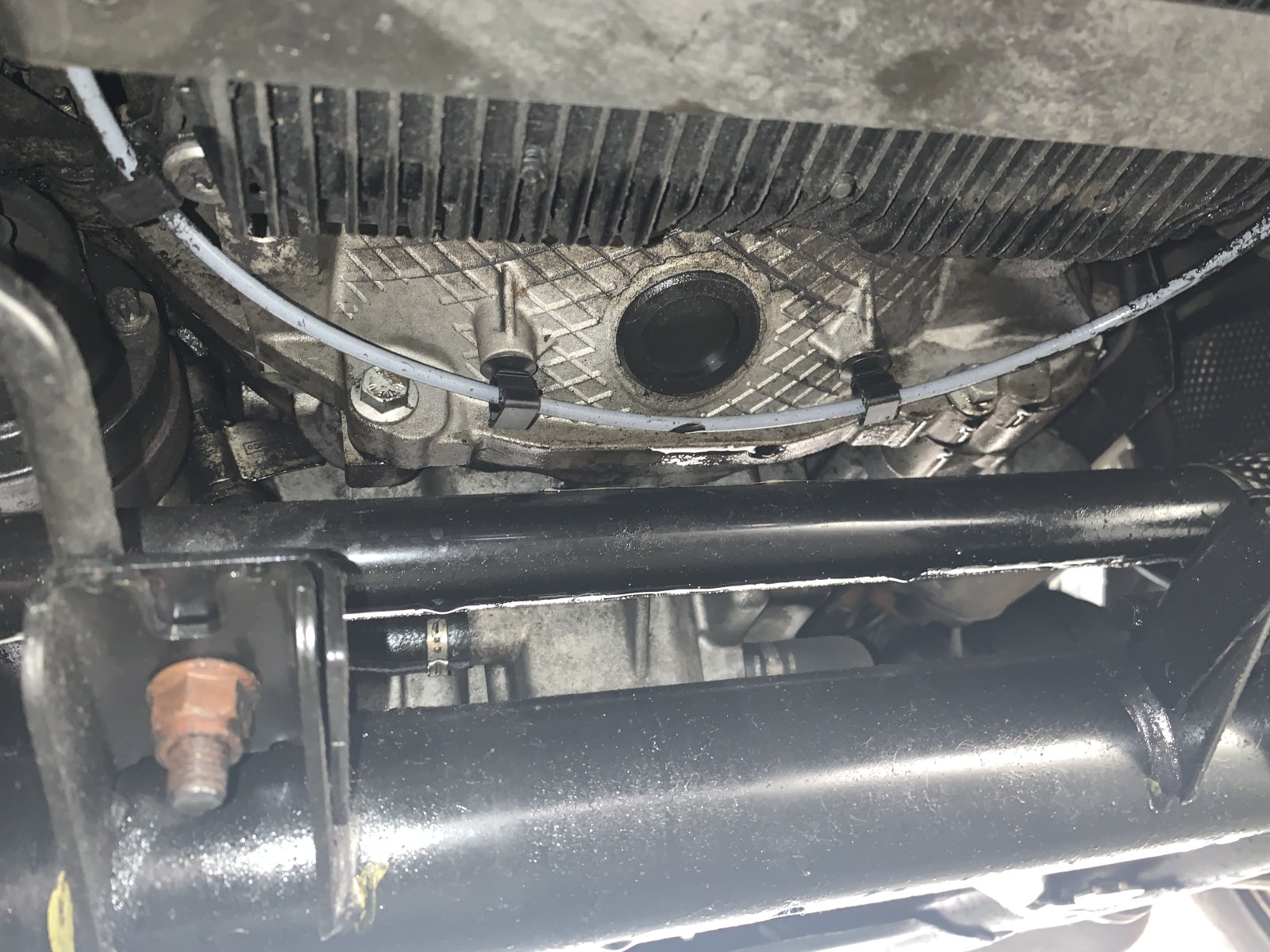

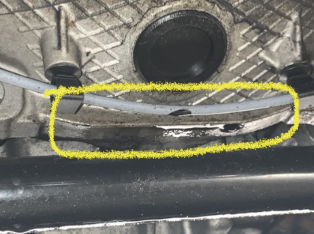

Hi, I have an oil leak under my l322 4.4tdv8 2012. I can visually see the leak but unfortunately I’m not mechanically minded enough to know the part name of where it’s leaking from. Any help with the part name, drivability and any rough idea of the repair cost would be greatly appreciated.
Thanks.



Datatek

Well-Known Member

Posts

45,012

Location

Near Poitiers SW France

• Jun 27, 2023

• #2

Looks like it's coming from the joint between the engine and gearbox from your photo. In which case, it's either the engine crank oil seal or the gearbox input shaft seal. I presume the car doesn't have a dipstick so you cannot closely monitor the engine oil level?



Clarky79

Member

Posts

10

Location

Hertfordshire

• Jun 27, 2023

• #3

Thanks so much,it’s a digital reading unfortunately. I’m guessing in both scenarios it’s going to be quite an expensive fix?



Datatek

Well-Known Member

Posts

45,012

Location

Near Poitiers SW France

• Jun 27, 2023

• #4

Clarky79 said:

Thanks so much,it’s a digital reading unfortunately. I’m guessing in both scenarios it’s going to be quite an expensive fix?

Click to expand...

Four figures I would guess if you cannot DIY.



Clarky79

Member

Posts

10

Location

Hertfordshire

• Jun 27, 2023

• #5

Datatek said:

Four figures I would guess if you cannot DIY.

Click to expand...

Thanks



brianp38dse

Well-Known Member

Posts

20,093

Location

heathrow

• Jun 27, 2023

• #6

I would remove the black bung and have a look for oil in side the bellhousing, but to me that looks like its coming down from the left, oil will allways run down so look up high first as to were it is coming from as you are seeing the drips about to drop



K

kds

Well-Known Member

Posts

2,267

Location

old,ugly, tired in Lincoln.

• Jun 29, 2023

• #7

The tdv8 is known to leak from 2 "O" rings at top rear of the V back of the oil filter housing and run down onto bell housing, you need to remove heater plenum housing look down back of engine for a silver pipe, (sorry chaps and chapesses but got to mention that other forum again) have a look on fullfatrr in wiki section there is a how to on there . (Note to self it would have been quicker to switch laptop on to reply than trying to do it on my phone!)



marjon

Well-Known Member

Full Member

Posts

16,834

Location

Bulgaria

• Jun 29, 2023

• #8

Had a leak like that last year.
Try to clean it off and see if its coming down the left side of the engine (stood looking from the front) which it seems to show on your pic.
As above there are some O rings that fail but ours was at the oil cooler itself which is in the V at the top behind the oil filter.

J



Clarky79

Member

Posts

10

Location

Hertfordshire

• Jun 29, 2023

• #9

Thanks a lot for the suggestions, I’m going to investigate over the weekend starting with the two O rings and the oil cooler.
