Oil ****in Out Me Landy But Where's It Comin From?
- Thread starter HybridGirl
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
HybridGirl
New Member
- Posts
- 5,393
- Location
- Bucks.
Aye. Am glad me wires wer fooked, cos if it wasn't fer that, I wudn't of taken the alternator out, and wudn't of spotted the oil leak. I was cursin the feckin wires for a while.. But now am thankin em! I reckon I could o been lookin for a noo engine if i'd not seen me leak when I did!
HybridGirl
New Member
- Posts
- 5,393
- Location
- Bucks.
Hopefully not. Will wait and see wot Sir Stig sez when he comes round an has a look next week. Then I cun start gettin some parts ordered and get on wi fixin it. Mite as well ave a go at the timing belt too while i'm at it. Cos I'm not sure when that was done last. Gonna be a busy girl me thinks!
HybridGirl
New Member
- Posts
- 5,393
- Location
- Bucks.
Well Sir Stig juss called round to ave a look at me motor, an on the brite side, he reckons its not me head gaskit. He reckons I need to get timin belt covers off an check the gaskit an oil seal behind it.. I love Stig I do.
TheVengefulElephant
Well-Known Member
- Posts
- 6,527
knew I gave yer the right pics
HybridGirl
New Member
- Posts
- 5,393
- Location
- Bucks.
Can anyone tell me the name o this gasket? The one by the left hand arrow. I need to order one up ready to do me cam shaft oil seal but theres no piccies on Paddocks or Craddocks and I don't no wot its called. Also is there another gasket by the right hand arrow and wots that called too?
Attachments
GRUNT
Well-Known Member
- Posts
- 8,911
- Location
- On the lake Geneva shoreline.
I reckon the fost one is the front cover to block gasket an the second is the front cover gasket. But I also reckon that if oils coming out of them gaskets it's cos one of the seals have gone inside the covers, the gaskets are there more to stop ****e getting in than oil getting out.
HybridGirl
New Member
- Posts
- 5,393
- Location
- Bucks.
Thank you Grunt. Aye, am hoping its the cam shaft oil seal, but I gotta tek all that gubbins off the front to get to it. So I gotta then replace the gaskets. Hence I need to get me parts list together. Gonna do the timing belt too whilst i'm at it.
Grippa
New Member
- Posts
- 12,310
- Location
- Where the winches aren't.
bustersbus
Well-Known Member
- Posts
- 13,755
- Location
- Near Dumfries, Scotland
Just had a look in the parts catalogue HB and found the gaskets ye're lookin' for.....
ERR4860 - gasket front cover
ERR4120 - gasket cover plate
ERR4860 - gasket front cover
ERR4120 - gasket cover plate
HybridGirl
New Member
- Posts
- 5,393
- Location
- Bucks.
Er, is yer munkee playing any part in this 'work'?
Aye. He's gonna make the tea and pass me the spanners.
bustersbus
Well-Known Member
- Posts
- 13,755
- Location
- Near Dumfries, Scotland
and yer oil seals are...
ERR3356 - camshaft oil seal
ERR4575 - crankshaft oil seal
ERR3356 - camshaft oil seal
ERR4575 - crankshaft oil seal
HybridGirl
New Member
- Posts
- 5,393
- Location
- Bucks.
Just had a look in the parts catalogue HB and found the gaskets ye're lookin' for.....
ERR4860 - gasket front cover
ERR4120 - gasket cover plate
Buster yer a star! Thankyou!
bustersbus
Well-Known Member
- Posts
- 13,755
- Location
- Near Dumfries, Scotland
HybridGirl
New Member
- Posts
- 5,393
- Location
- Bucks.
Buster!! Can you think of anythin else I mite need to change me camshaft oil seal?? Me shoppin list so far is:
camshaft oil seal
gasket front cover
gasket cover plate
crankshaft oil seal
timing belt (mite as well do it while i'm in there)
water pump gasket??
also gonna order me UJ's and one o them oil seals that where the prop goes into the diff. Think its a pinion oil seal??
camshaft oil seal
gasket front cover
gasket cover plate
crankshaft oil seal
timing belt (mite as well do it while i'm in there)
water pump gasket??
also gonna order me UJ's and one o them oil seals that where the prop goes into the diff. Think its a pinion oil seal??
bustersbus
Well-Known Member
- Posts
- 13,755
- Location
- Near Dumfries, Scotland
Ah'm not too sure HB. When ah had me timin' belt changed, ah put a new pulley tensioner in as well.
Here's some more part #'s for ye though
ERR1092 - timing belt
ERR1972 - pulley tensioner
ERR2378 - water into block gasket
just found this if it's any good tae ye...
300TDI timing belt replacement - LR4x4 - The Land Rover Forum
(it's for a disco tho', but might give ye some idea
)
bustersbus
Well-Known Member
- Posts
- 13,755
- Location
- Near Dumfries, Scotland
HybridGirl
New Member
- Posts
- 5,393
- Location
- Bucks.
Ah'm not too sure HB. When ah had me timin' belt changed, ah put a new pulley tensioner in as well.
Here's some more part #'s for ye though
ERR1092 - timing belt
ERR1972 - pulley tensioner
ERR2378 - water into block gasket
just found this if it's any good tae ye...
300TDI timing belt replacement - LR4x4 - The Land Rover Forum
(it's for a disco tho', but might give ye some idea
Thankyou Buster. Yer just sooooooooooooo good you are! I've just ordered the timin belt and the seals and gaskets for now. The timin belt tensioner will have to wait. I'm sure when I bought the Landy the bloke mumbled summat about a 'conversion kit' which had been fitted?? Not sure what he ment but i'll suss it when I open her up. My 300tdi came out of a Disco you see, but I don't know wot year it was as I haven't got an engine number on it. So I didn't know wot timin belt tensioner to get. I can order that bit up when i've got it all apart and can see wot it looks like. Think its an earlyish Disco engine but need to know cos apparently they differ slightly. But i'll have enuff to be gettin on with getting to me cam shaft! Where there was some uncertainty about which gasket it cud be i've ordered both, so hopefully one of them will be rite..! But this is a Land Rover so I'm not holdin me breath....

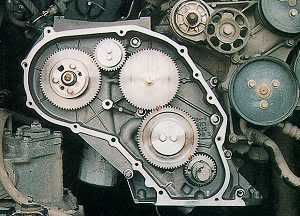

you might be unlucky enough to have had a set of these fitted
if it looks like this - take them out
