Disco 3 (LR3) Oh dear.

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
L

lynall

Well-Known Member
Full Member
Posts
25,892
Location
Kent

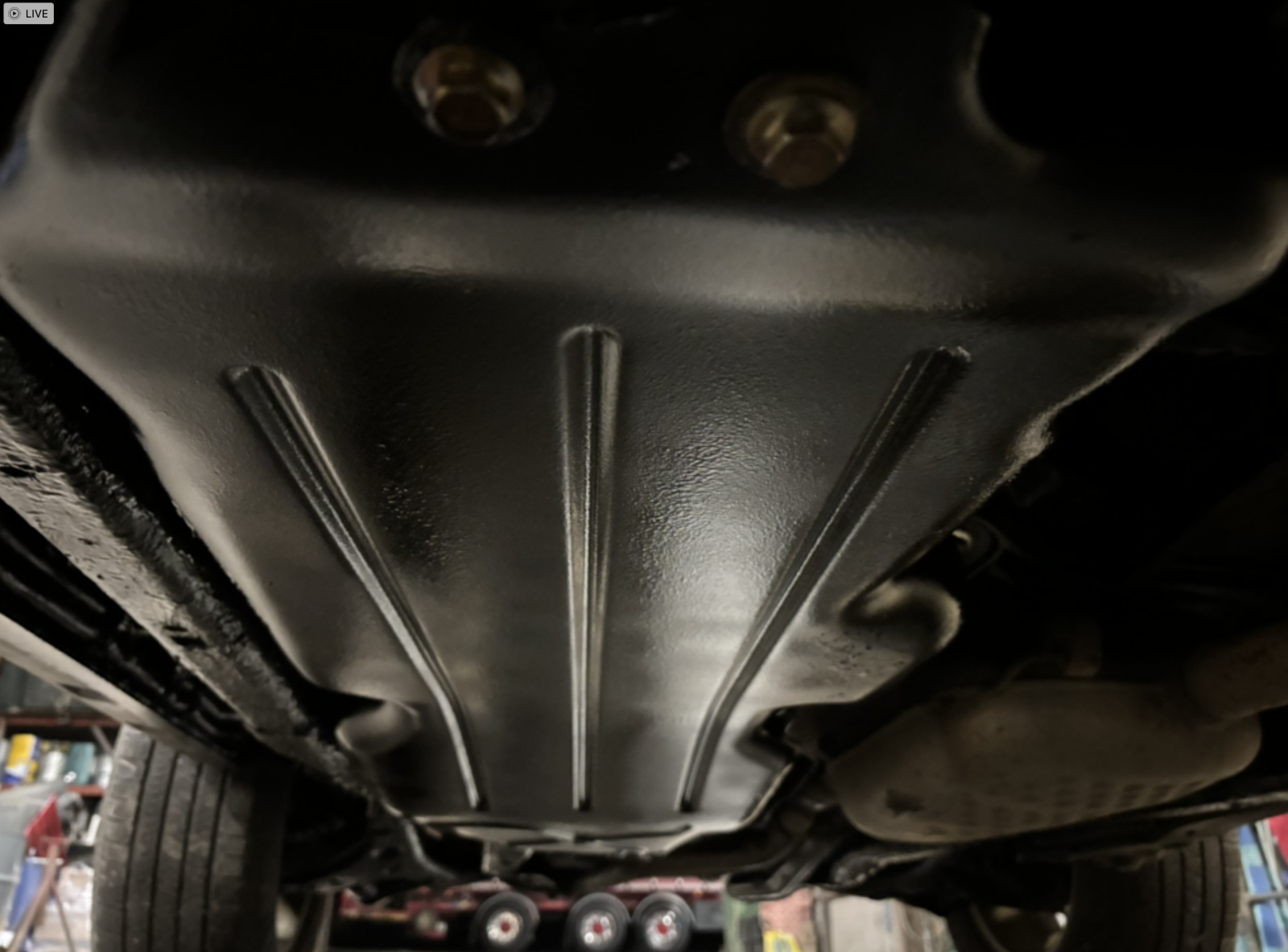

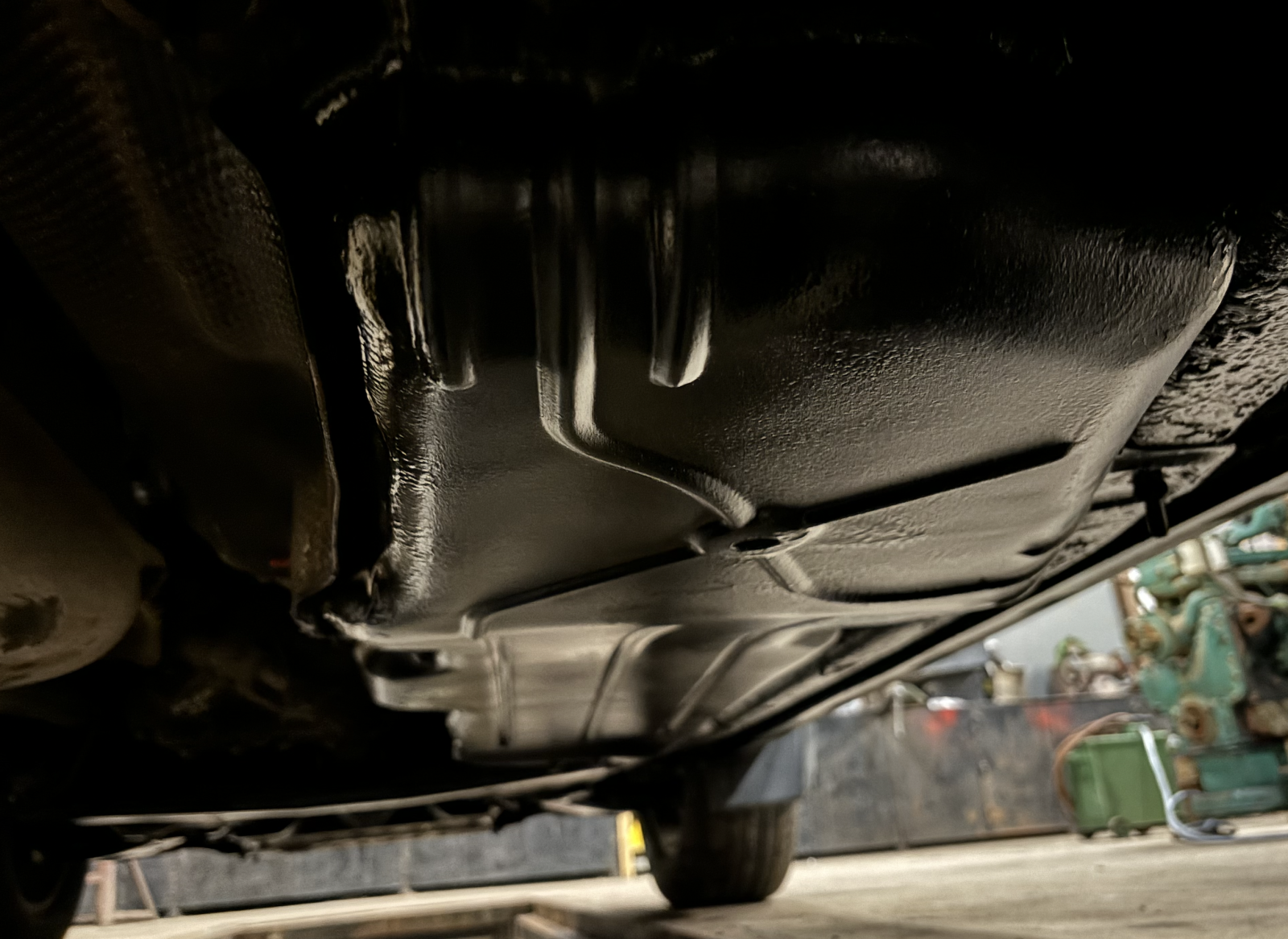

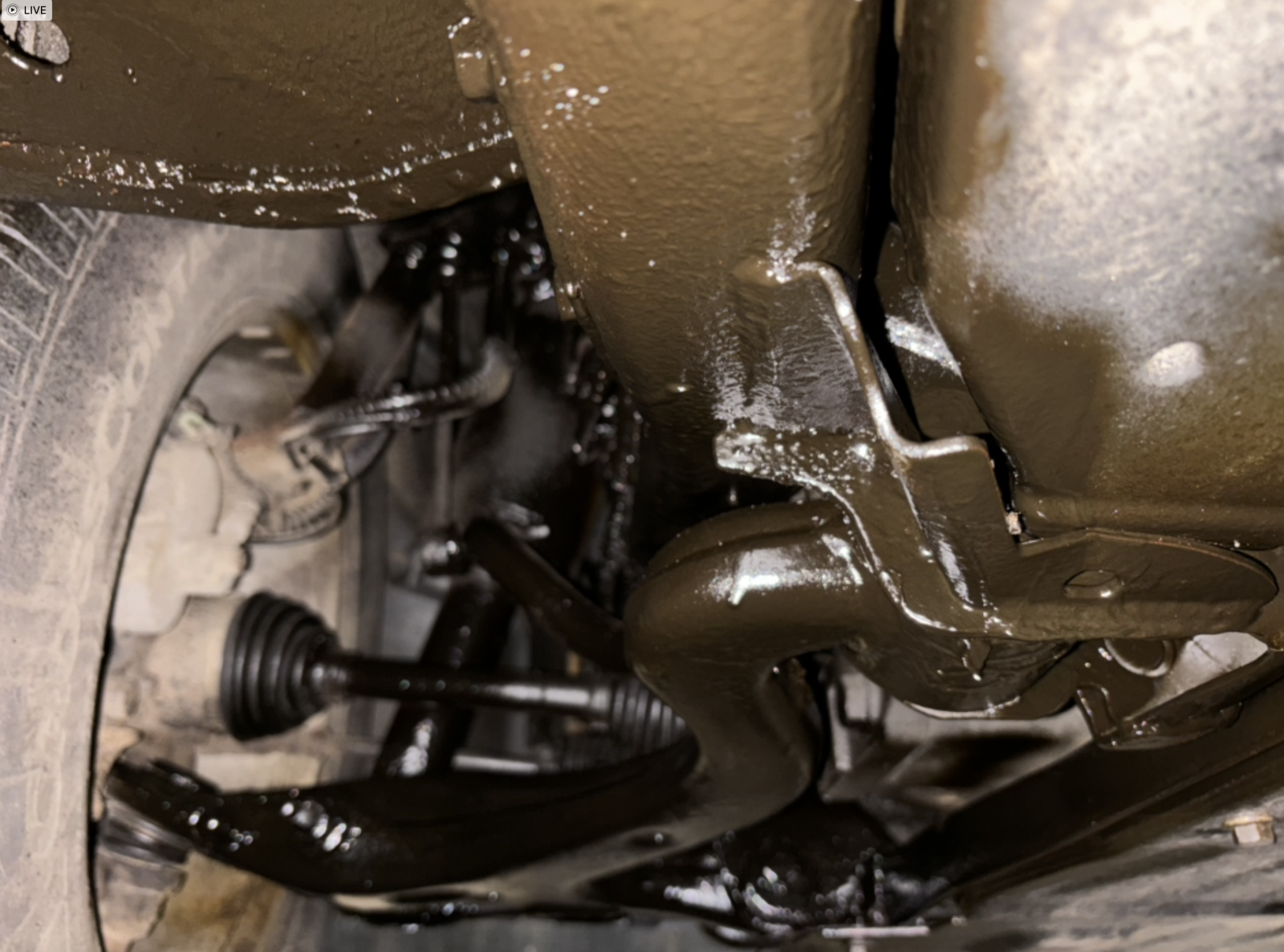

Thought about time I waxed the old girl as not done for a few years now, what a sorry mess, tank guard totally rotted off, only 18 years old as well!

Think to myself I can weld this no issues, turns out it is proper shagged, and thought to myself it is Sunday, I am grovelling around in crap to save 200 quid, so new one to be ordered Monday.
Turns out a 400a welder turned down to baby setting with 1.2mm wire is pretty much a non starter.

Screenshot 2024-10-20 at 11.26.33.png
Screenshot 2024-10-20 at 11.27.37.png

Hats off to u mate for such an awesome job , does seem rust issues are becoming more apparent as they age

Don’t forget watch out for those pesky sills for rust 🤣

gstuart said:
Hats off to u mate for such an awesome job , does seem rust issues are becoming more apparent as they age

Don’t forget watch out for those pesky sills for rust 🤣
Click to expand...
Chain and wire grease aerosol sprayed on the inside a few years back seems to have kept the worst of it at bay, very bottom lips are a bit crusty, but only surface rust that I can see, and I aint going digging!

Spong said:
What chassis wax did you use? Is it from aerosol can?
Click to expand...
Tetroseal from fleabay, on offer 25 quid for a 5 litre tin, only two tins left so I bought them.
I did mix some hydraulic oil in with the wax (about 5 to 10 percent) as I wanted more creep.

Not aerosol but a sealey wax gun, years old, still sell them.
Weirdly price is pretty much what I paid for mine a decade ago!

www.ebay.co.uk

Sealey SG18 Air Operated Wax Injector Kit Application of Wax Rust Inhibitor | eBay

Sealey SG18 Wax Oil Application Gun. Product Code: SG18. Supplied with a selection of lances to enable the wax to be sprayed into body cavities through small access points. Air Consumption: 15cfm. Air Inlet Size: 1/4"BSP.
www.ebay.co.uk

lynall said:
Tetroseal from fleabay, on offer 25 quid for a 5 litre tin, only two tins left so I bought them.
I did mix some hydraulic oil in with the wax (about 5 to 10 percent) as I wanted more creep.

Not aerosol but a sealey wax gun, years old, still sell them.
Weirdly price is pretty much what I paid for mine a decade ago!

www.ebay.co.uk

Sealey SG18 Air Operated Wax Injector Kit Application of Wax Rust Inhibitor | eBay

Sealey SG18 Wax Oil Application Gun. Product Code: SG18. Supplied with a selection of lances to enable the wax to be sprayed into body cavities through small access points. Air Consumption: 15cfm. Air Inlet Size: 1/4"BSP.
www.ebay.co.uk
Click to expand...
Damn, I was afraid you'd say that! I don't have a compressor. Shame, looks nice.

Spong said:
Damn, I was afraid you'd say that! I don't have a compressor. Shame, looks nice.
Click to expand...
To be fair I only used 5 litres, and I gave most bits at least two coats, so depending on what an aerosol costs it might not be as expensive as you think.

lynall said:
To be fair I only used 5 litres, and I gave most bits at least two coats, so depending on what an aerosol costs it might not be as expensive as you think.
Click to expand...
True, I'll see if it can be bought in a can.
I bought some underbody stuff a while back, but it didn't spray so much as squirt and splatter back! I ended up brushing it afterwards to even it up.

Spong said:
True, I'll see if it can be bought in a can.
I bought some underbody stuff a while back, but it didn't spray so much as squirt and splatter back! I ended up brushing it afterwards to even it up.
Click to expand...
That will be underseal, you don't want that as it hardens, then water gets behind it.

I think you can get hand applicators for chassis wax, they work okay so long as the wax is warm, ie nice and thin.

lynall said:
That will be underseal, you don't want that as it hardens, then water gets behind it.

I think you can get hand applicators for chassis wax, they work okay so long as the wax is warm, ie nice and thin.
Click to expand...
+1^.
It can be a bit fiddly finding holes to poke the applicator down and into the chassis, You might have to drill one or two, and I have found that the applicator that comes with it often doesn't work very well, so you have to make your own end to the pipe with a bit of nail and by poking more holes in the end of it with a needle or a pin. Test it good and propa before using.
Bucket of hot water keeps it thin and when I used old skool waxoyl I used to thin it with white spirit (I think) but don't know if that would be the right thinner now!

Stanleysteamer said:
+1^.
It can be a bit fiddly finding holes to poke the applicator down and into the chassis, You might have to drill one or two, and I have found that the applicator that comes with it often doesn't work very well, so you have to make your own end to the pipe with a bit of nail and by poking more holes in the end of it with a needle or a pin. Test it good and propa before using.
Bucket of hot water keeps it thin and when I used old skool waxoyl I used to thin it with white spirit (I think) but don't know if that would be the right thinner now!
Click to expand...
Loads of factory holes on the D3, of course older ones have even more!

lynall said:
Loads of factory holes on the D3, of course older ones have even more!
Click to expand...
Wouldn't know!
I had to cross my fingers with the holes I found on the rear chassis of my D2 as I didn't drill holes. Many of the original ones had gone when I had it plated.

Course there is the school of thought where you spread a tarp, thin it to heck, drill holes and plug em then fill up the chassis with the stuff until it starts to come out of the filling holes.

Then unplug and catch the excess.
Could still have trapped air pockets unless you are very careful where you drill the holes.
Very old skool nowadays I expect.
