Obd

Discussion in 'Land Rover Freelander' started by Tomster, Nov 24, 2020.

< Previous Thread | Next Thread >
  1. Tomster

    Tomster Member

    Joined:
    Aug 4, 2020
    Posts:
    30
    Likes Received:
    1
    Location:
    Uk
    Any of you good people know why this would be showing a fail? Just had full service apart from fuel filter as it looked a bit daunting for me to do myself. Car kind of judders a bit when decelerating to a steady speed.
    F1 TD4 56 plate

    cheers


    Attached Files:

  2. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    22,636
    Likes Received:
    5,306
    Location:
    Near Newquay
    Got any fault codes to go with that rather vague and inaccurate readout?

    kermit_rr likes this.
  3. Tomster

    Tomster Member

    Joined:
    Aug 4, 2020
    Posts:
    30
    Likes Received:
    1
    Location:
    Uk

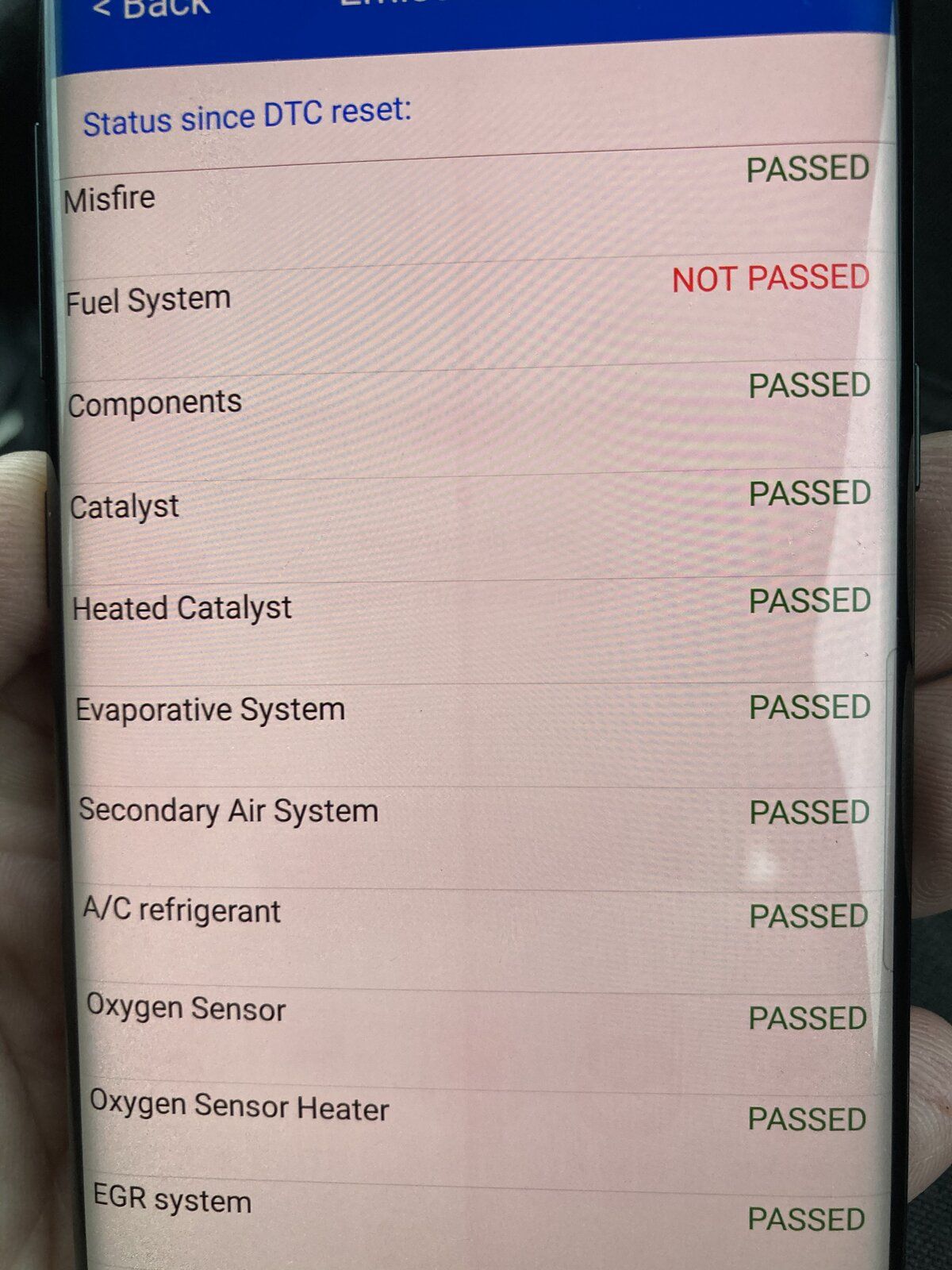

    Emissions readout from phone app.
    Ran fault code scan and returned no faults.
    Just wondered if it could be the fuel filter as I don’t know the last time it was replaced.
    Car runs fine, just feels a bit judders when I ease of the gas to hold a lower steady speed. Feels a bit like driving slow in to high a gear.(Auto)

  4. kermit_rr

    kermit_rr Well-Known Member

    Joined:
    Dec 9, 2018
    Posts:
    9,971
    Likes Received:
    7,750
    Location:
    North Shropshire
    judder sounds like its not firing on a cylinder

  5. Tomster

    Tomster Member

    Joined:
    Aug 4, 2020
    Posts:
    30
    Likes Received:
    1
    Location:
    Uk
    A bit more info. When driving car from cold it seems to drive lovely.when accelerating it also seems fine but when I ease of gas it starts to judder slightly, but definitely noticeable. When I accelerate it stops, so only on deceleration. I have also noticed that the temp gauge only ever appears to go to just slightly over a quarter of the way up.
    Have had a problem previously with juddering after I discovered a horseshoe spacer between the prop and vcu was missing. After replacing it and tightening up all judder appeared to stop. I have checked that it hasn’t come loose again and all seems fine. Car has just had oil and filter, air filter, cam filter mod upgrade and turbo solenoid breather filter. Also has egr delete ( not done by me). I am not the most mechanical minded person and was just hoping someone my have had similar probs who could advise what could possibly be causing the issue.
    Thanks in advance for all the help from you freelander nuts

  6. Tomster

    Tomster Member

    Joined:
    Aug 4, 2020
    Posts:
    30
    Likes Received:
    1
    Location:
    Uk
    Problem seems to start once engine has warmed up.

  7. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    22,636
    Likes Received:
    5,306
    Location:
    Near Newquay
    Does it only do this withe the engine spinning at around 2,000 Rpm?

  8. Tomster

    Tomster Member

    Joined:
    Aug 4, 2020
    Posts:
    30
    Likes Received:
    1
    Location:
    Uk
    Pretty much.

  9. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    22,636
    Likes Received:
    5,306
    Location:
    Near Newquay
    Sounds like another case of the 2k misfire.

    There's been loads of cases of it over the years.
    Search 2k misfire, and you'll find many threads about it.

  10. kermit_rr

    kermit_rr Well-Known Member

    Joined:
    Dec 9, 2018
    Posts:
    9,971
    Likes Received:
    7,750
    Location:
    North Shropshire
    Need to get the thermostat replaced too so it gets up to normal running temp

  11. SWalker

    SWalker Active Member

    Joined:
    Sep 16, 2017
    Posts:
    166
    Likes Received:
    27
    Location:
    lisburn
    yeah get her up to temp and see what happens. what scan set up is that - may also help us to know where you are getting the info from.

  12. Tomster

    Tomster Member

    Joined:
    Aug 4, 2020
    Posts:
    30
    Likes Received:
    1
    Location:
    Uk

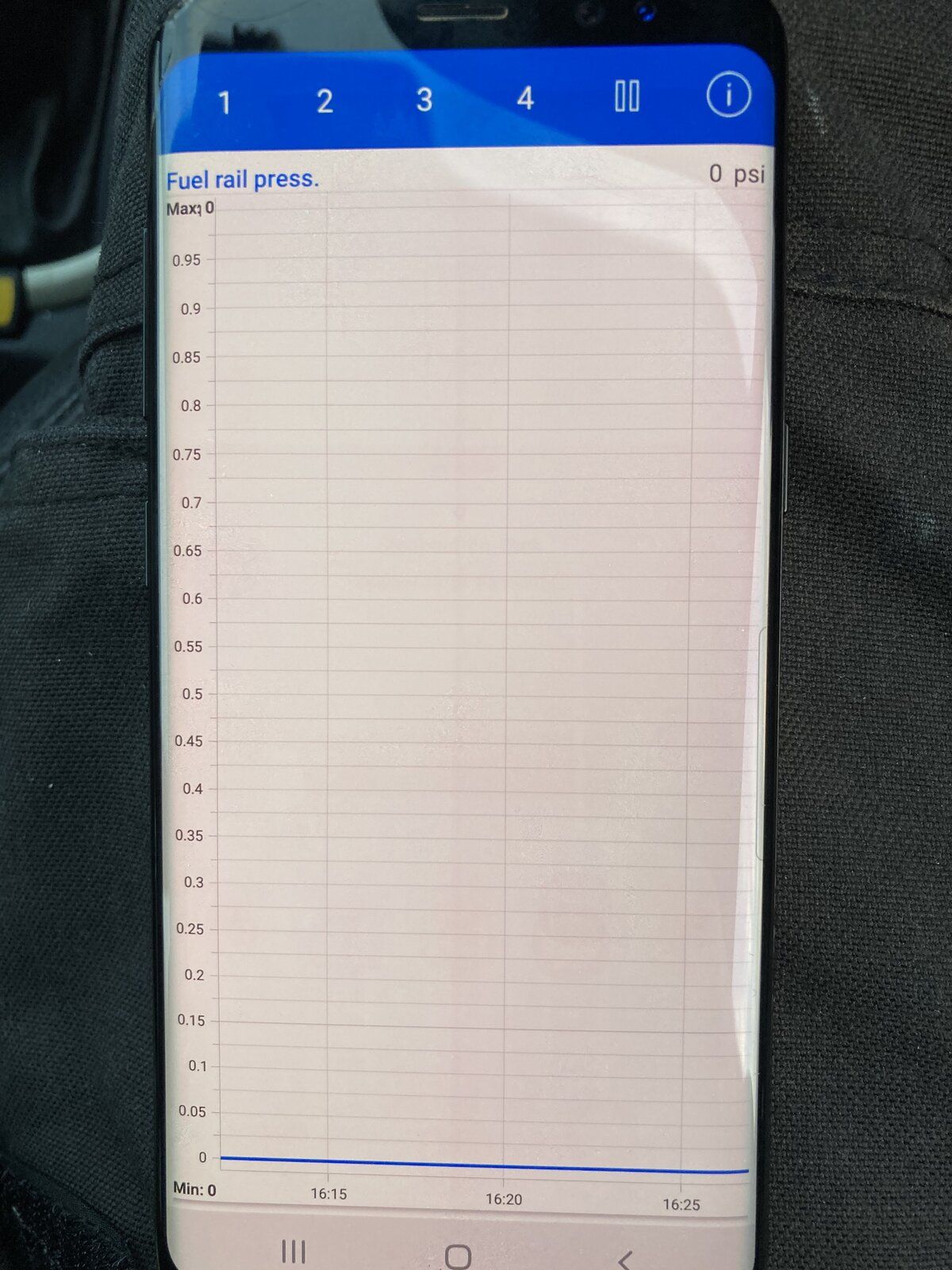

    Car scanner app with adapter.
    Should this be at 0 on tick over?
    To be fare it’s all above me:)


    Attached Files:

  13. kermit_rr

    kermit_rr Well-Known Member

    Joined:
    Dec 9, 2018
    Posts:
    9,971
    Likes Received:
    7,750
    Location:
    North Shropshire
    i'm sure you can't have zero fuel pressure. try unplugging the pressure sensor and see how it goes, should fall back to default values which is a good test

  14. SWalker

    SWalker Active Member

    Joined:
    Sep 16, 2017
    Posts:
    166
    Likes Received:
    27
    Location:
    lisburn
    0 fuel pressure and the engine wouldn't even attempt to fire. you have 2 pumps, one in the tank to lift the fuel and a high pressure one working at silly pressure to feed the injectors.

  15. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    22,636
    Likes Received:
    5,306
    Location:
    Near Newquay
    What app are you using? I find Torque to be about the best Android app. ;)

    kermit_rr likes this.
