No Choke?

O

OldBluey

New Member

Posts

2

Location

Sevenoaks

• Jun 27, 2019

• #1

Hi,

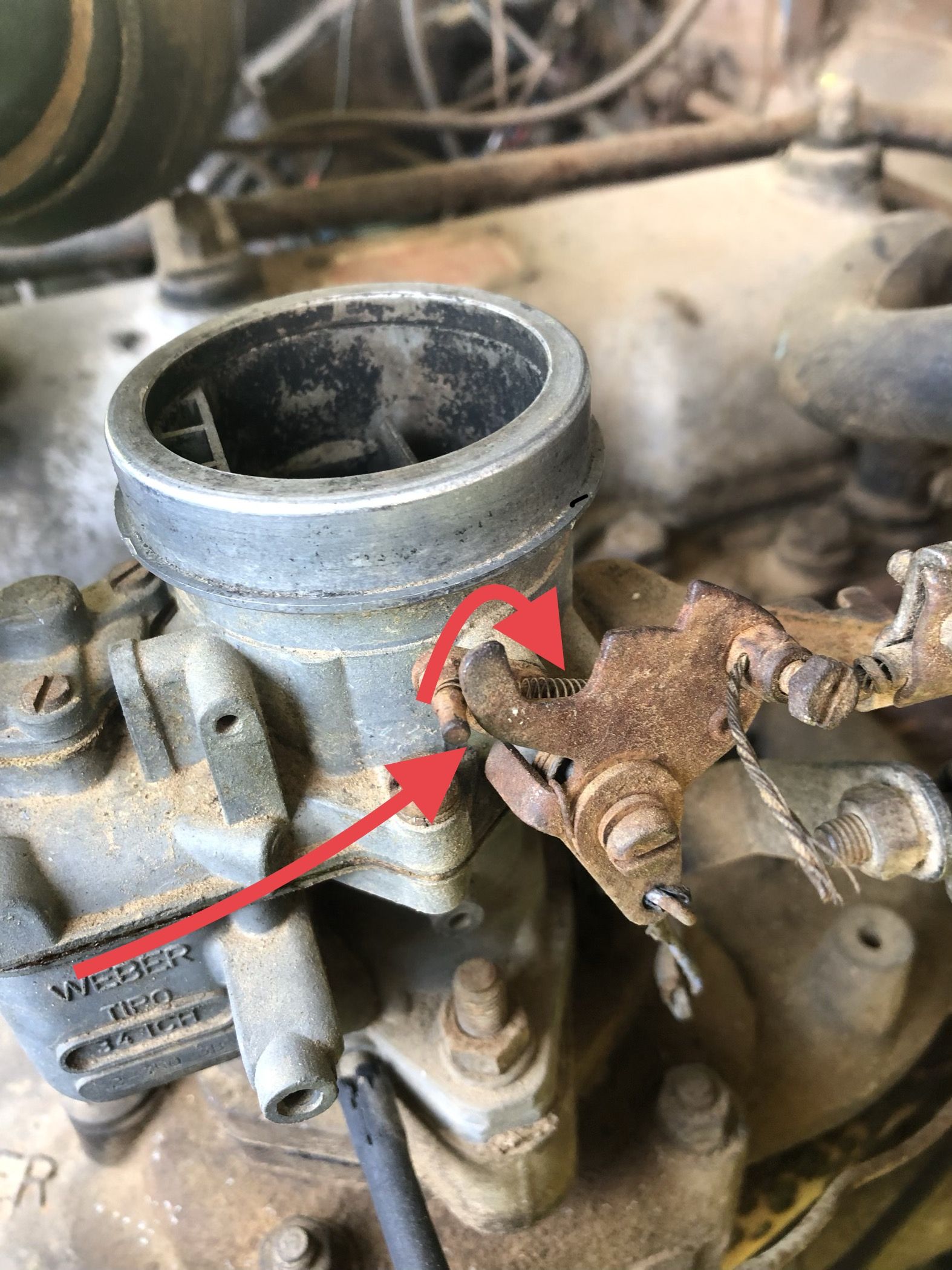

Having trouble starting when cold. Pulling the choke only seems to move the plate a tiny fraction. It looks to me to be set up incorrectly, see picture. Any advice greatly appreciated



Attachments

•

  422.8 KB · Views: 91

DanClarke

Well-Known Member

Full Member

Posts

16,494

Location

Benfleet, Essex

• Jun 27, 2019

• #2

Reassembled wrong? Shouldn't that plate rotated by the pulling on the cable be pulling that stud that sticks out along its top surface up a slope? At least that's what it looks like.
But I don't know. Will look for weber 34 adjustment pics on the web to see if that's the case. ....... hold on.

[edit] Nope, I'm talking testicles.
This link has the setup for that carb. 34 ICT
http://www.redlineweber.com/html/Tech/34_ICT_tunning.htm



Last edited: Jun 27, 2019

marjon

Well-Known Member

Full Member

Posts

16,862

Location

Bulgaria

• Jun 27, 2019

• #3

Looks to me as if the plate needs to be turn 90 anti clockwise first then connect cable.

Something ain’t right that’s for sure.

J



H

Hicap phill

Well-Known Member

Posts

16,338

Location

Wiltshire

• Jun 27, 2019

• #4

Hope this helps

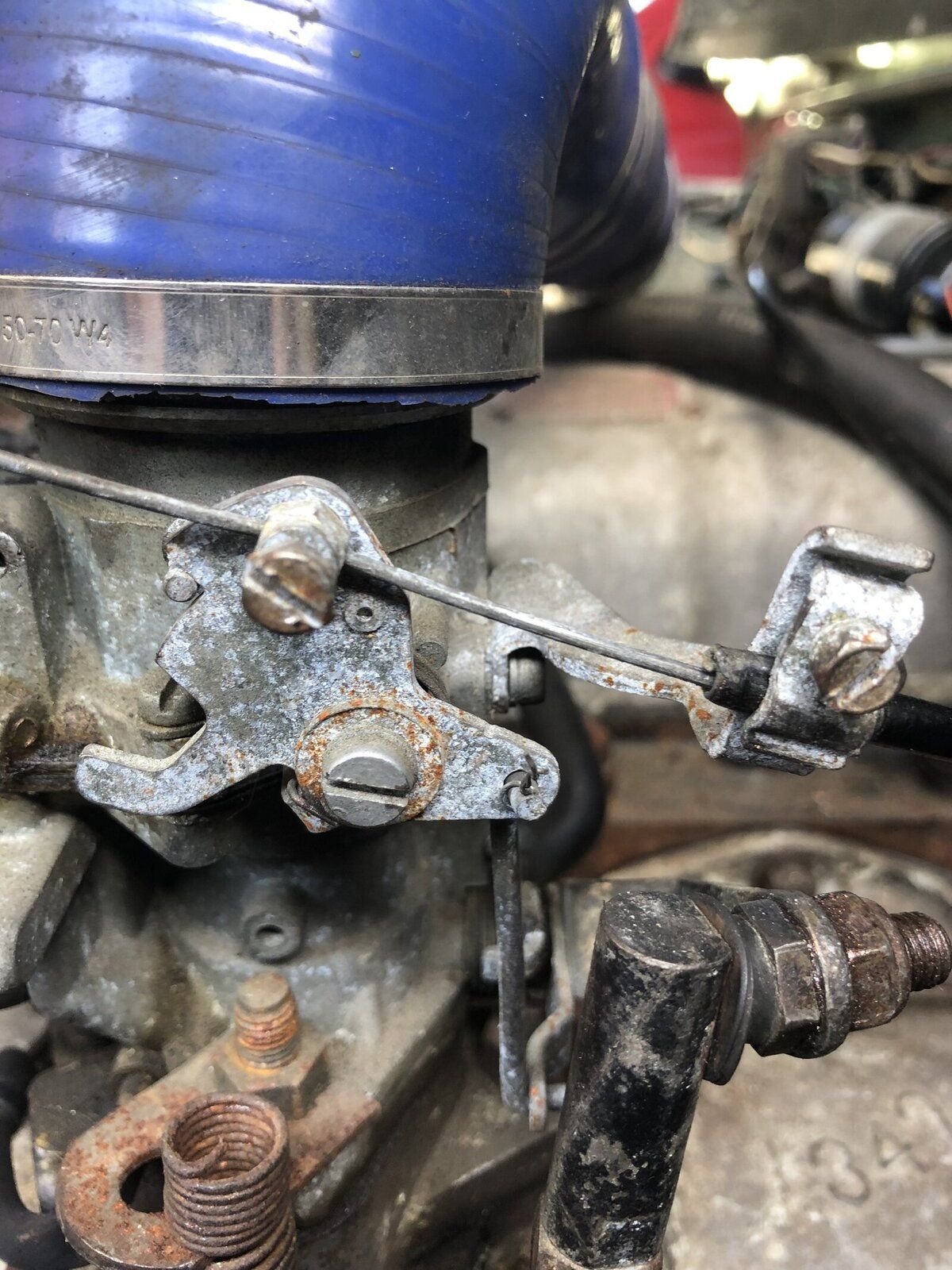

Choke off

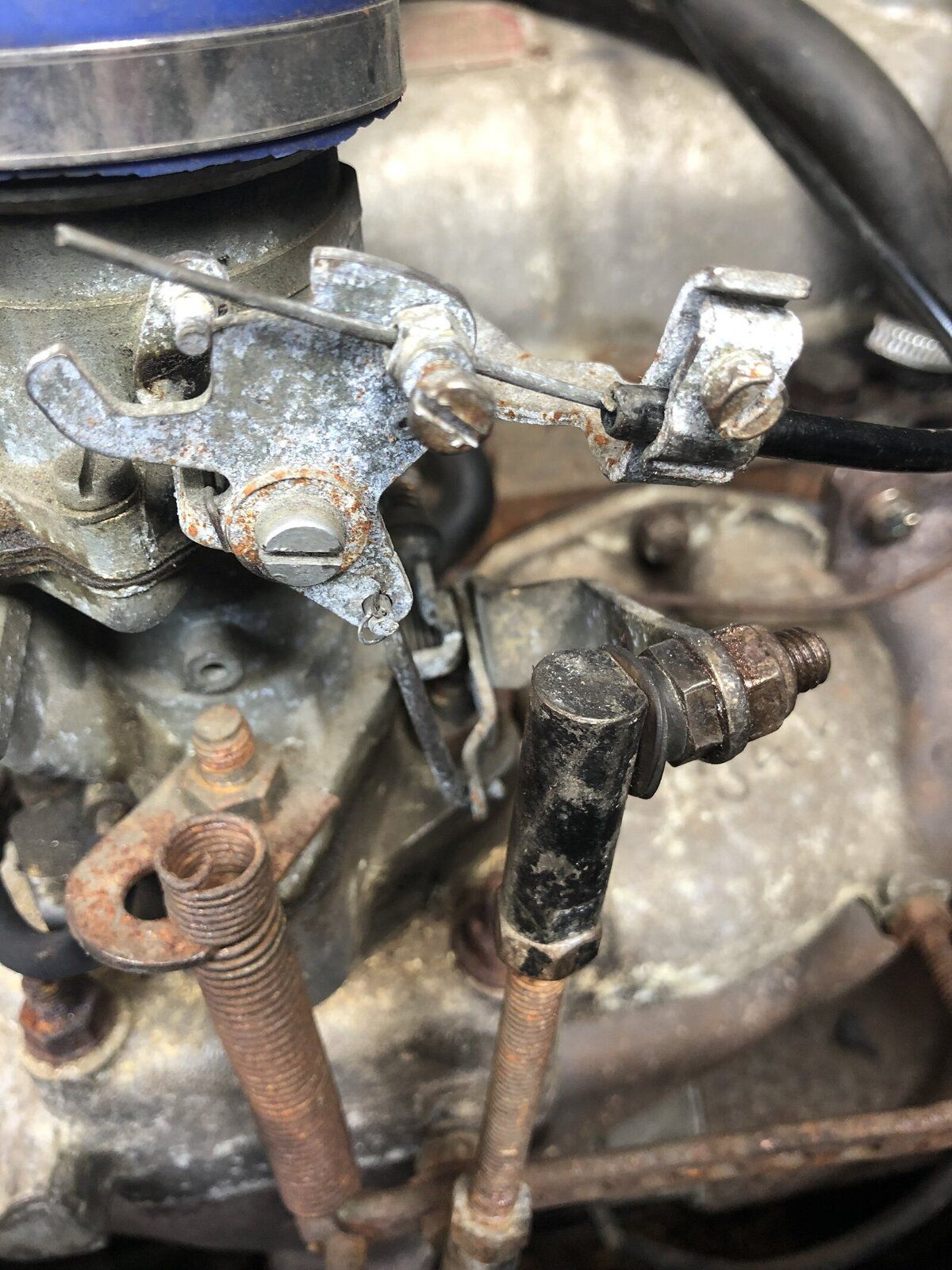

Choke on



O

OldBluey

New Member

Posts

2

Location

Sevenoaks

• Jun 28, 2019

• #5

Hicap phill said:

Hope this helps

Choke off
View attachment 182479

Choke on

View attachment 182480

Click to expand...

That’s great, thanks! I think it had slipped as a few screws were quite loose. The choke’s still a bit sticky but seems to be working as I’ve just got it started.
