New to 200 TDi belt change and oil leak

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

ciderman

Active Member
Posts
768
Location
sunny worcestershire
HI
I Am new to this engine and i cannot understand the books. 2 questions: if the engine has no flywheel fitted how to i time it to change the cam belt- there are marks on the cam pulley and secondly; Does this look like oil from the crank front oil seal which should be replaced?
thanks.

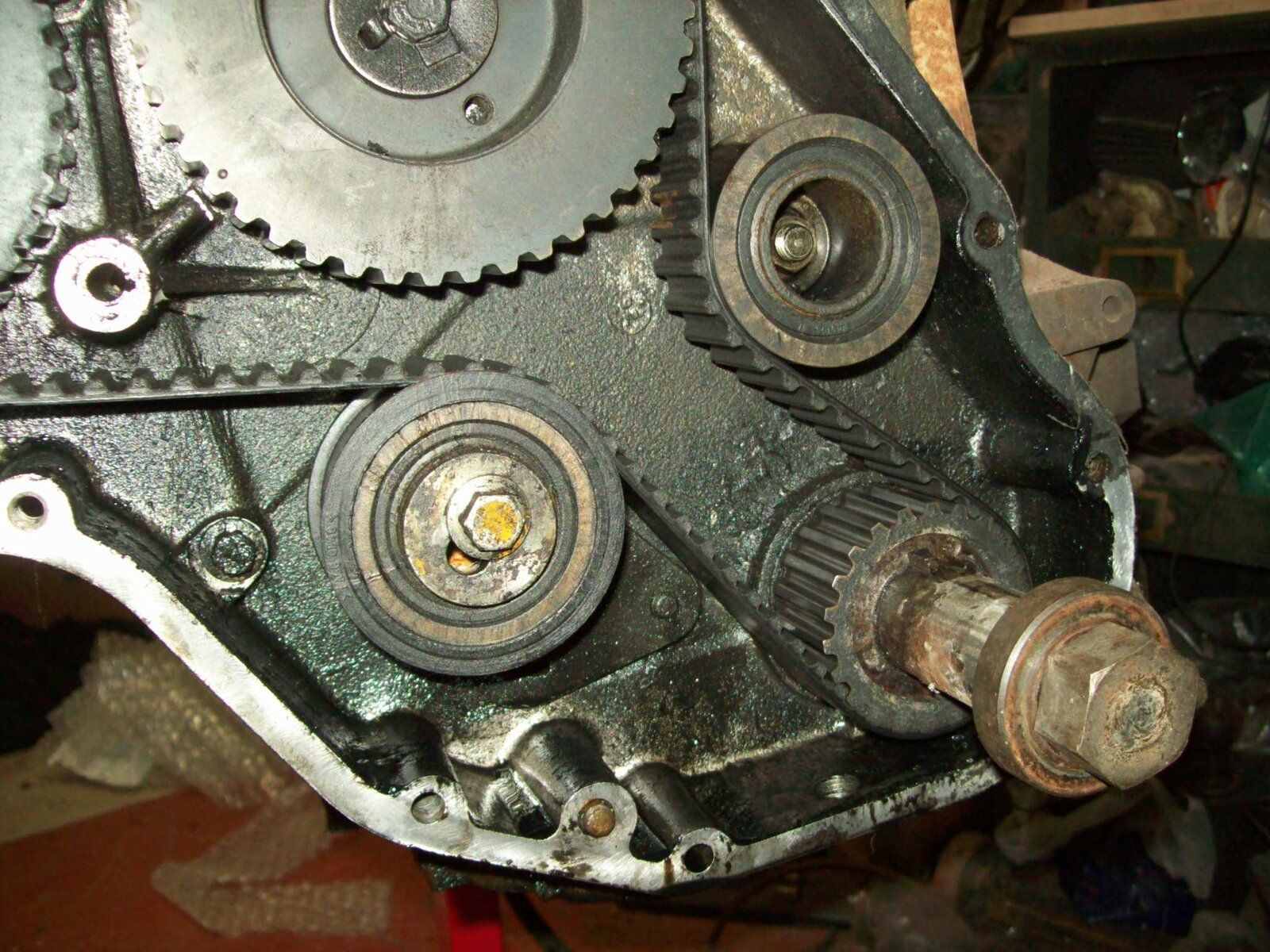

29jun20-200tdi 005.JPG

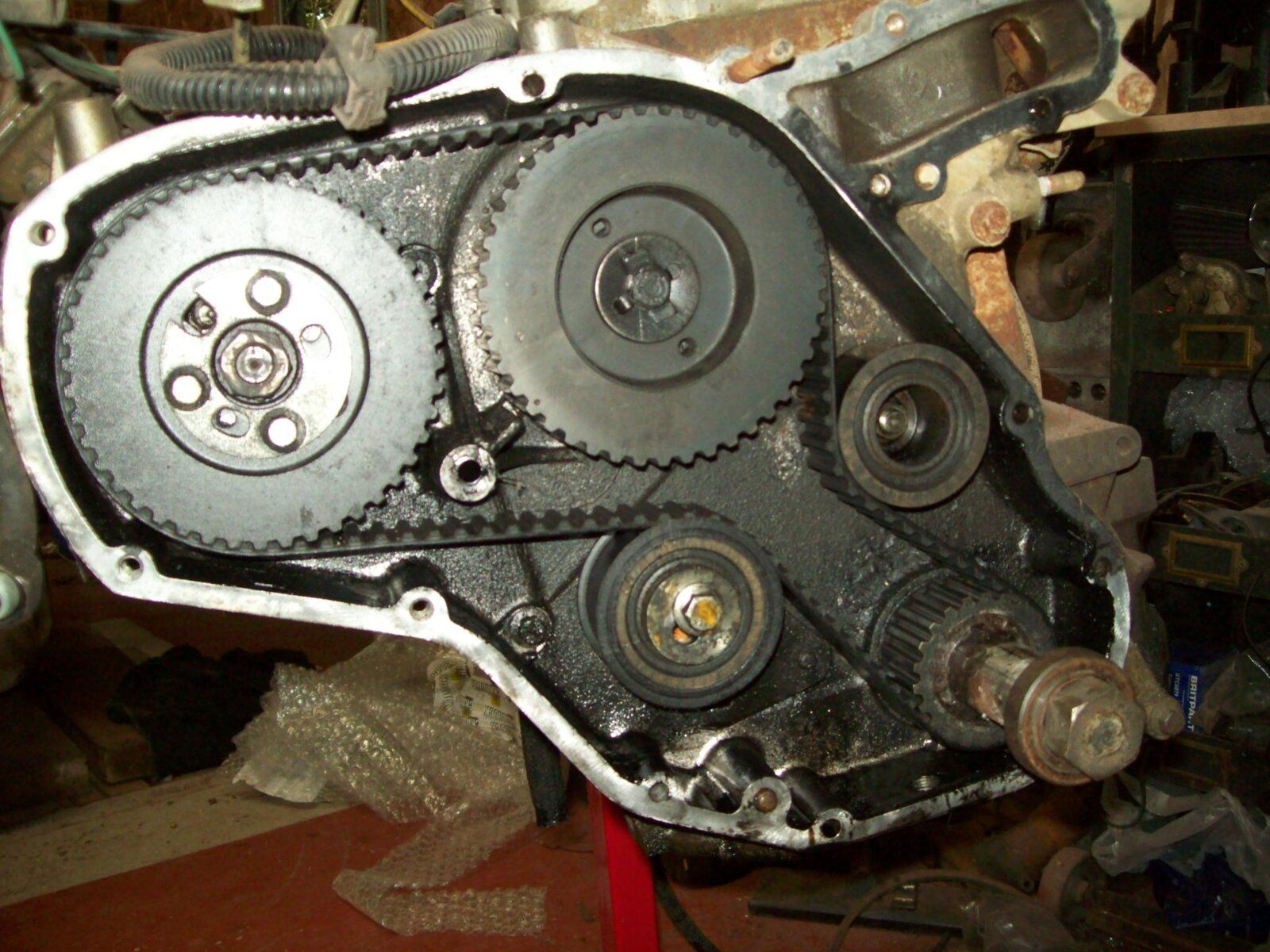

29jun20-200tdi 003.JPG

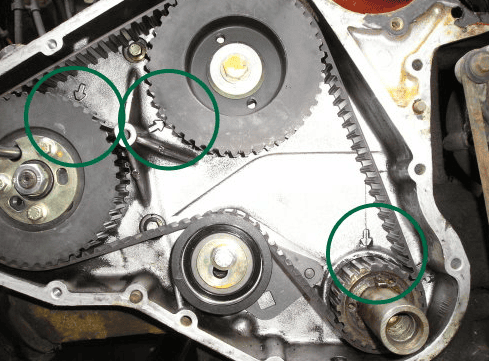

Screen Shot 2020-06-29 at 20.37.48.png
Arrow cast into cam belt housing, clean up the area above the crank pulley directly in line with the crankshaft keyway and you will see it.

Pic stolen from the web,

There is also the timing pin( I think a 9.5mm drill is sometimes used) in the injector pump pulley seen in the pic, good idea to replace both the crank and cam seals as you’re in there with good quality ones
