Disco 2 New hub, now 3 amigos...

Discussion in 'Land Rover Discovery' started by Bobdog, Mar 19, 2019.

< Previous Thread | Next Thread >
  1. Bobdog

    Bobdog Well-Known Member

    Joined:
    May 1, 2012
    Posts:
    3,520
    Likes Received:
    3,901
    Location:
    Horsham West Sussex
    As above, just fitted 2 new shocks and a new n/s hub (britpart... yes I know...). All went together well, quick test and 3 amigos came up. Stuck it on the nanocom, abs fault showing, so cleared it and lights stayed on. Took it for a test drive, lights stayed on, back on the nano and no faults showing! Tried again, now I'm getting ECU communication error, but only in SLABS, it's showing engine readings ok. What have I done wrong? (Apart from buy britpart but money is an issue right now)

  2. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,688
    Likes Received:
    1,719
    Location:
    West midlands
    Someone with more know how will correct this, but I'm sure I read ages ago that some cheaper hubs had wrong number of teeth on the ABS reluctor (?) ring

  3. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    11,680
    Likes Received:
    1,299
    Location:
    West of Transylvania
    Your ECU is rising against the britpart hub :cool:

    On the serious side, unplug nanocom then plug it back and try again and if you'll get comms and still no fault codes go into BCU - Read inputs - Instruments and see what you get for each of the amigos...btw do you get the bongs too or just the lights?
    what code?

    another thing... do the amigos come on all together imediately after the ignition self test?

    Last edited: Mar 19, 2019
  4. Bobdog

    Bobdog Well-Known Member

    Joined:
    May 1, 2012
    Posts:
    3,520
    Likes Received:
    3,901
    Location:
    Horsham West Sussex
    Ok... all lights came on together, including handbrake light and green hdc light. I wondered if when pulling out the shock turrets, I may have dislodged a cable or connector but all seemed fine. I thought maybe a fuse had gone so looked in the fuse box to find the ABS relay lying on its side, out of its socket! Plugged it back in and went back into nanocom, only the 3 lights on this time and fault logged - "abs sensor electrical failure 006 times"
    Cleared that fault but the lights stayed on even after a drive and ignition reset.
    Oh and no bongs.

  5. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    11,680
    Likes Received:
    1,299
    Location:
    West of Transylvania
    which sensor.? the new one? ... and it comes back the same after it was cleared? ...anyway read live stationary sensor inputs and see what you get there

  6. Bobdog

    Bobdog Well-Known Member

    Joined:
    May 1, 2012
    Posts:
    3,520
    Likes Received:
    3,901
    Location:
    Horsham West Sussex
    Yes the new one. I thought the fault was showing because of the fact I had changed the hub and it would clear ok. I only changed it because it failed the MOT on a noisy bearing (and worn out shock bushes). Could the new sensor cable be faulty? And why was my ABS relay out of its socket?? That's the real mystery!
    Once I clear it, it says no faults but the lights stay on.

  7. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    11,680
    Likes Received:
    1,299
    Location:
    West of Transylvania
    That's a nanocom glitch IMO, it is not 100% reliable when it comes to SLABS fault codes... see the live inputs cos if it's the sensor it will not have the around 2V input like the others

  8. Bobdog

    Bobdog Well-Known Member

    Joined:
    May 1, 2012
    Posts:
    3,520
    Likes Received:
    3,901
    Location:
    Horsham West Sussex
    Looking at sensor inputs which I assume is titled "SENS (V)" , I've got 002.21 for all except Rear Right, which says 000.00
    What does that mean? I changed the front left hub! :confused:

  9. Bobdog

    Bobdog Well-Known Member

    Joined:
    May 1, 2012
    Posts:
    3,520
    Likes Received:
    3,901
    Location:
    Horsham West Sussex
    Fault back, saying "front left sensor electrical failure 006 times"

  10. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    11,680
    Likes Received:
    1,299
    Location:
    West of Transylvania
    That's what i meant about nanocom's unreliability with codes and from my experience the live inputs are OK while the code can be erratic... unplug the front left sensor and read inputs again cos then you should get 0V on front left too which means the live data is good and the fault is in reality with the rear right... make sure it's was not accidentally unplugged

  11. Bobdog

    Bobdog Well-Known Member

    Joined:
    May 1, 2012
    Posts:
    3,520
    Likes Received:
    3,901
    Location:
    Horsham West Sussex
    I'll try that, where is the rear sensor plug?

  12. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    11,680
    Likes Received:
    1,299
    Location:
    West of Transylvania
    follow the wire from the hub it should be somewhere reachable about 40cm above unless your's is with the long wire sensors which are hardwired

  13. Bobdog

    Bobdog Well-Known Member

    Joined:
    May 1, 2012
    Posts:
    3,520
    Likes Received:
    3,901
    Location:
    Horsham West Sussex
    I did what you said, unplugged front left, nothing changed on the nanocom- still showing rear right. Found the plug, attached to the rear chassis. To be fair, I haven't been near the rear hubs today, I thought maybe there was a plug in the engine bay for the rear but apparently the inputs are showing wrong on the nanocom anyway. For whatever reason, the nano seems to think front left is rear right!

  14. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    11,680
    Likes Received:
    1,299
    Location:
    West of Transylvania

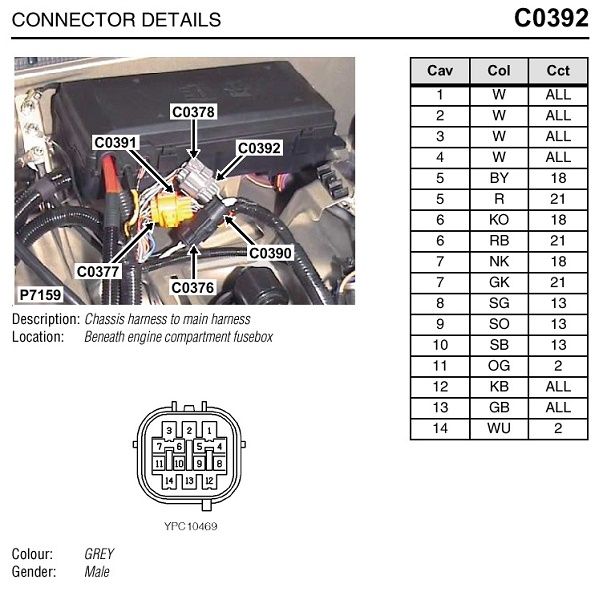

    NO the inputs are showing well but the fault code is wrong (quite common for nanocom in relation with SLABS), the fault is with the RR sensor's input which triggers the amigos... the RR sensor's wiring is connected to C0392/0378 pins 3-4 so eventually check that...eventually if you have the old hub which was removed connect it's sensor to the RR plug and see inputs then and if you still get 0V then it's a wiring issue but if the input is good it's the sensor


    Last edited: Mar 19, 2019
  15. Bobdog

    Bobdog Well-Known Member

    Joined:
    May 1, 2012
    Posts:
    3,520
    Likes Received:
    3,901
    Location:
    Horsham West Sussex
    Erm... my mate who was helping me, cut the old sensor cable to make it easier to remove...
    Looking at those pics, those connectors are under the header tank right above the shock turret which we removed with great difficulty through a tangle of pipes and the cables shown. There is a strong chance something got dislodged in our fight to get it out... I'll have a look tomorrow in daylight.

  16. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    11,680
    Likes Received:
    1,299
    Location:
    West of Transylvania
    Good luck

    Bobdog likes this.
  17. Bobdog

    Bobdog Well-Known Member

    Joined:
    May 1, 2012
    Posts:
    3,520
    Likes Received:
    3,901
    Location:
    Horsham West Sussex
    Just thinking about this again, if the inputs are showing correctly, why is there no change when I unplug the front left sensor? If what you say is correct, i should have seen a zero reading on front left but i didnt. Maybe what I should have done is unplug the rear right sensor.

  18. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    11,680
    Likes Received:
    1,299
    Location:
    West of Transylvania
    I think you've got me with this and your logic is good :oops:, i mixed up things cos i've seen wrong codes with good inputs too many times and i've got carried away but in this case you are right and it seems that nanocom mixed up FL with RR for good... follow your logic and figure it out

    Last edited: Mar 19, 2019
    Bobdog likes this.
  19. Bobdog

    Bobdog Well-Known Member

    Joined:
    May 1, 2012
    Posts:
    3,520
    Likes Received:
    3,901
    Location:
    Horsham West Sussex
    I couldn't wait and went out with a worklight to have a look. Nothing seems loose or damaged. So, bearing in mind the above regarding FL and RR, the nanocom seems confused but it appears there is a connection issue in the sensor cable.
    Britpart...... :mad:

  20. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    11,680
    Likes Received:
    1,299
    Location:
    West of Transylvania
    I think that the relay jumped out of it's socket too as it felt a britpart hub :cool: ... next time when you are on a budget get bearmach aftermarkets cos those are the most reliabe amongst the cheap ones... avoid allmakes as well cos they used to sell hubs with 55 teeth on the reluctor ring... unplug the sensor and measure resistance in it's plug with multimeter...it should be between 950-1100 Ohm if the sensor is good and if it's so then maybe you hurt the wiring beyond it somehow cos the front plugs are hardwired to the ECU no connector involved like from the rears

    Last edited: Mar 19, 2019
