NAS lights- electrical terminals?

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Flossie

Flossie

Well-Known Member
Posts
11,048
Location
Shropshire
I've replaced a few of the bulb holders and the loom side connectors that go into the bulb holders on my 85 110 fitted with the wipac NAS lamps over the years from corrosion.
I've now got another 3 that need doing, loom side and looking at them I can't see why I can't just push out the female terminals and solder new (preferably brass) ones on and reuse the plastic part.
Thing is, I don't know what these terminals are called or what size they are . Googling hasn't helped.
The terminals all go the same way, rusty tin rubbish.
Anyone know the terminals spec?

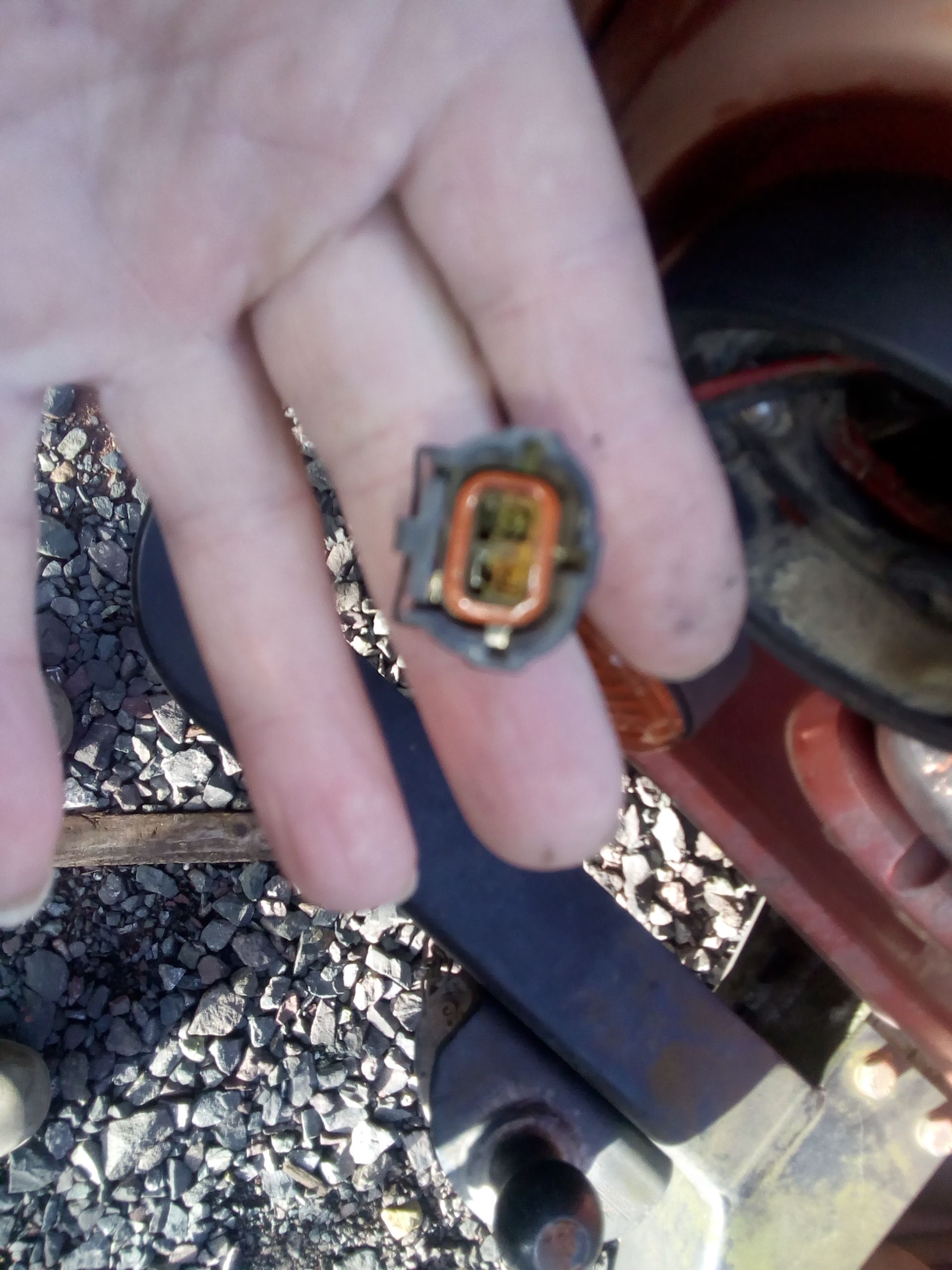

This is the loom side ones I'm after.

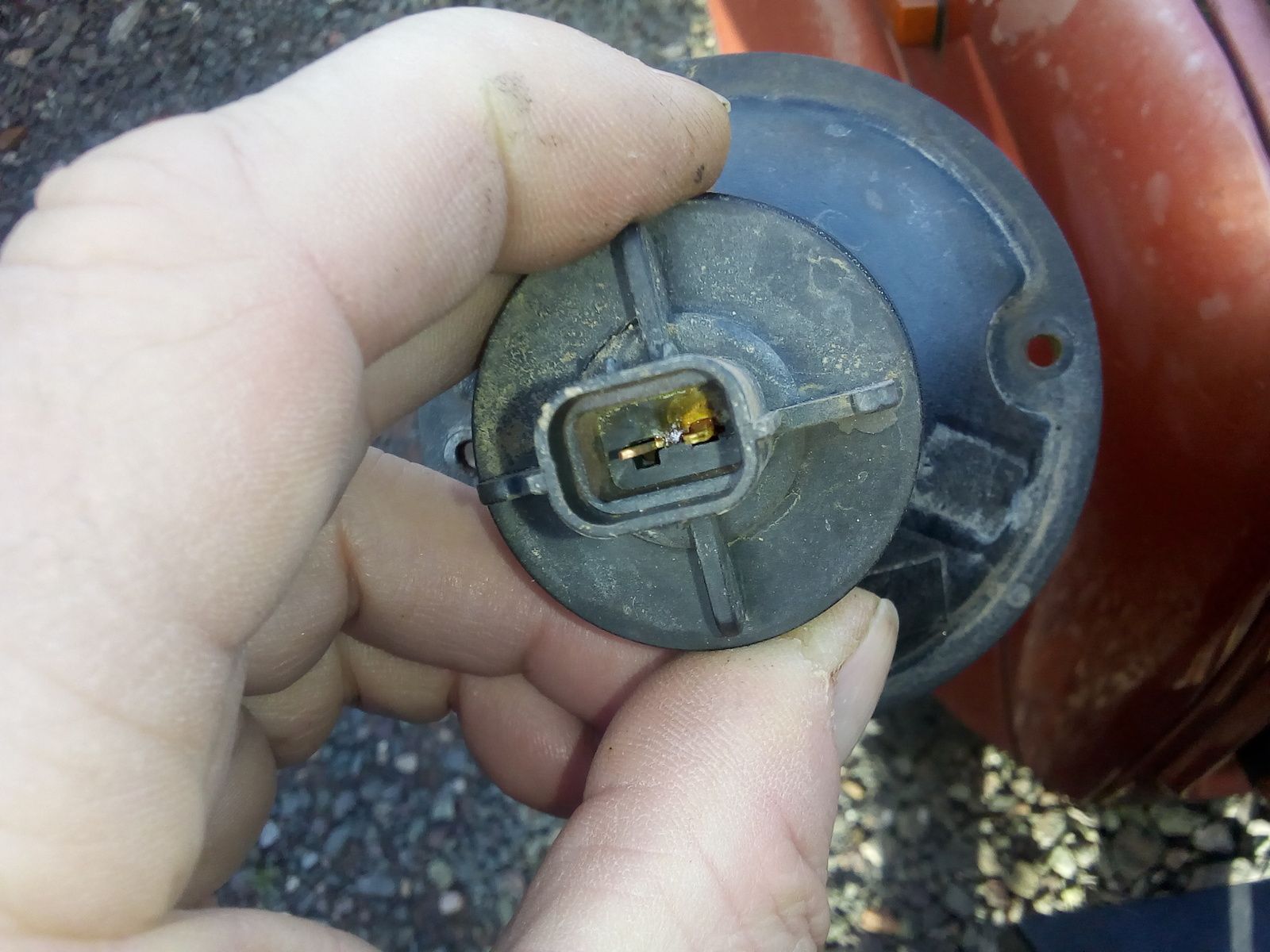

fits into the bulbholder

Last edited:
Hi Gary, the complete kits in the two eBay links I know about, it just seems a waste to replace the whole thing when it would be just as easy to replace the terminals only(and cheaper/greener)
The top bits in black...are they the terminals part numbers etc?

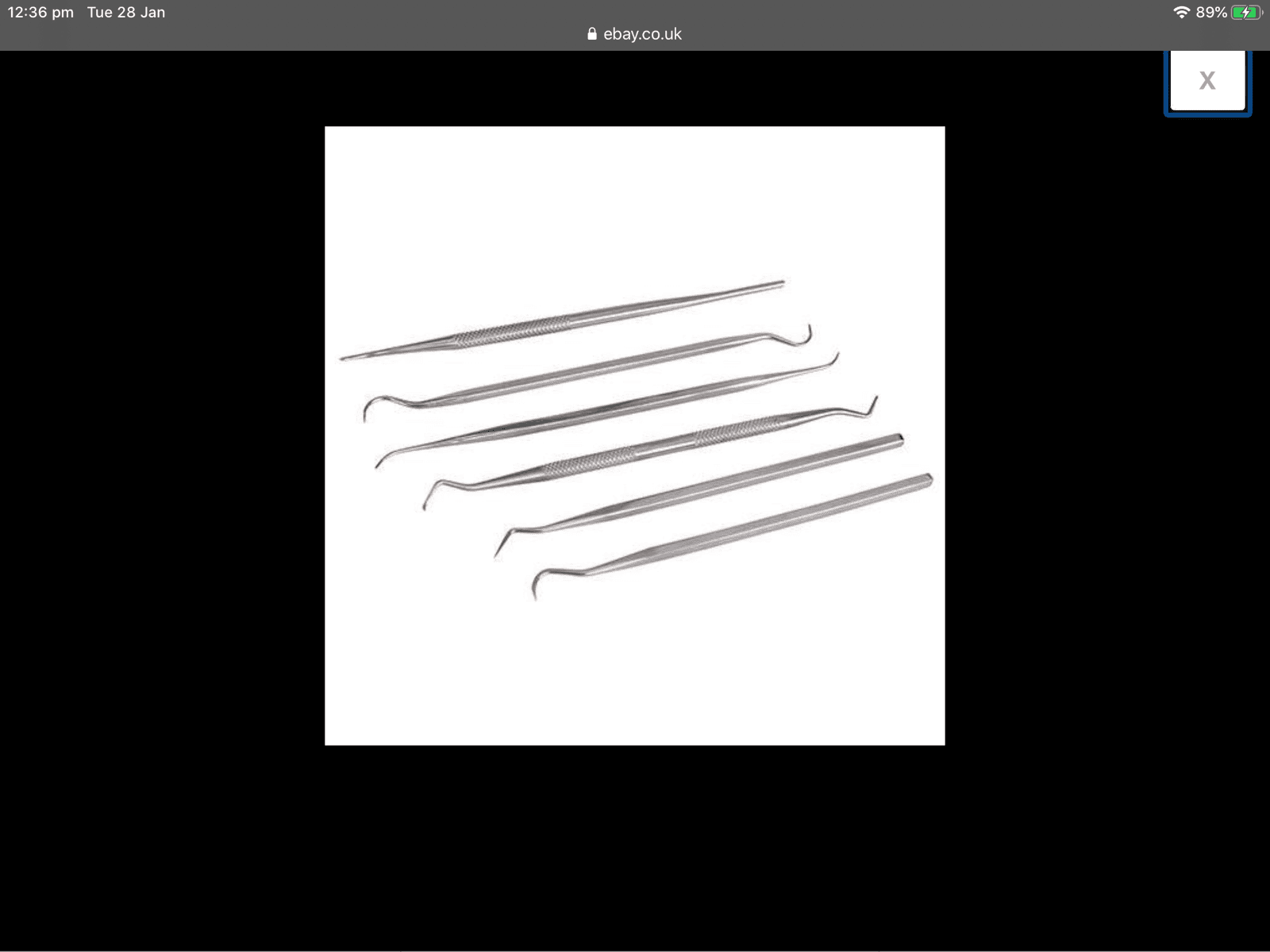

Plus if it helps , I bought some dental metal picks which were perfect for cleaning up terminals, also bought a terminal removal kit

seeing I had so much electronics in the disco and a lot of connectors I had to fix


£2.95 for 10 gold tipped posted- bargain:)
Not sure how you remove the old ones tbh, cross that bridge when I get to it:rolleyes:.
Thanks again pal;)

Flossie said:
£2.95 for 10 gold tipped posted- bargain:)
Not sure how you remove the old ones tbh, cross that bridge when I get to it:rolleyes:.
Thanks again pal;)
Click to expand...

Indeed and know u can save a fortune by just shopping around , what on Earth did we do before ebay, lol

ur so welcome , always a pleasure to help a fellow lz member

Think it’s the side bits on the female that hold them in , Male side there is i think a small catch

will try and see if the sheet I have relates to those terminals

gstuart said:
Ref TE Part No. 345148-1

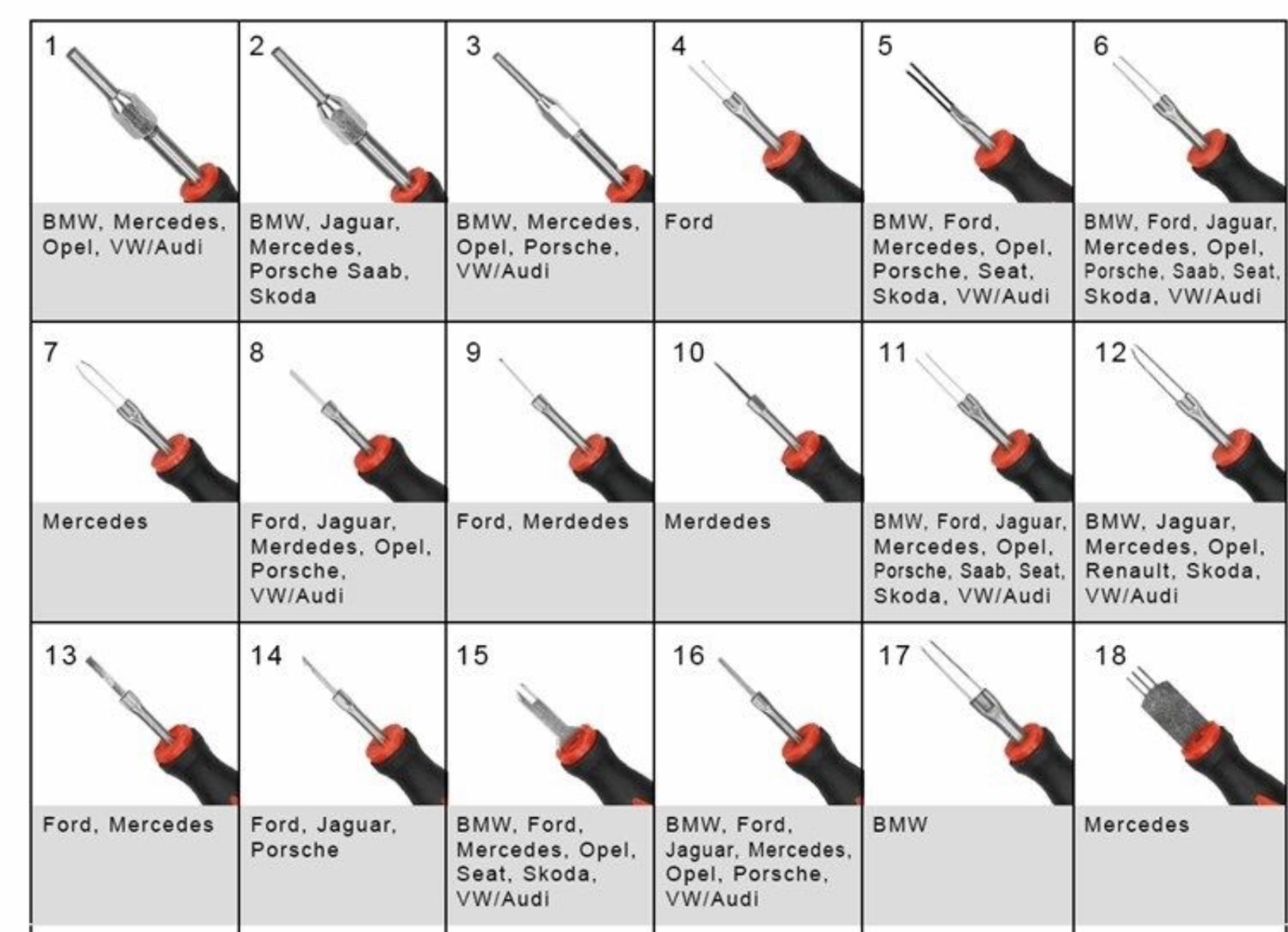

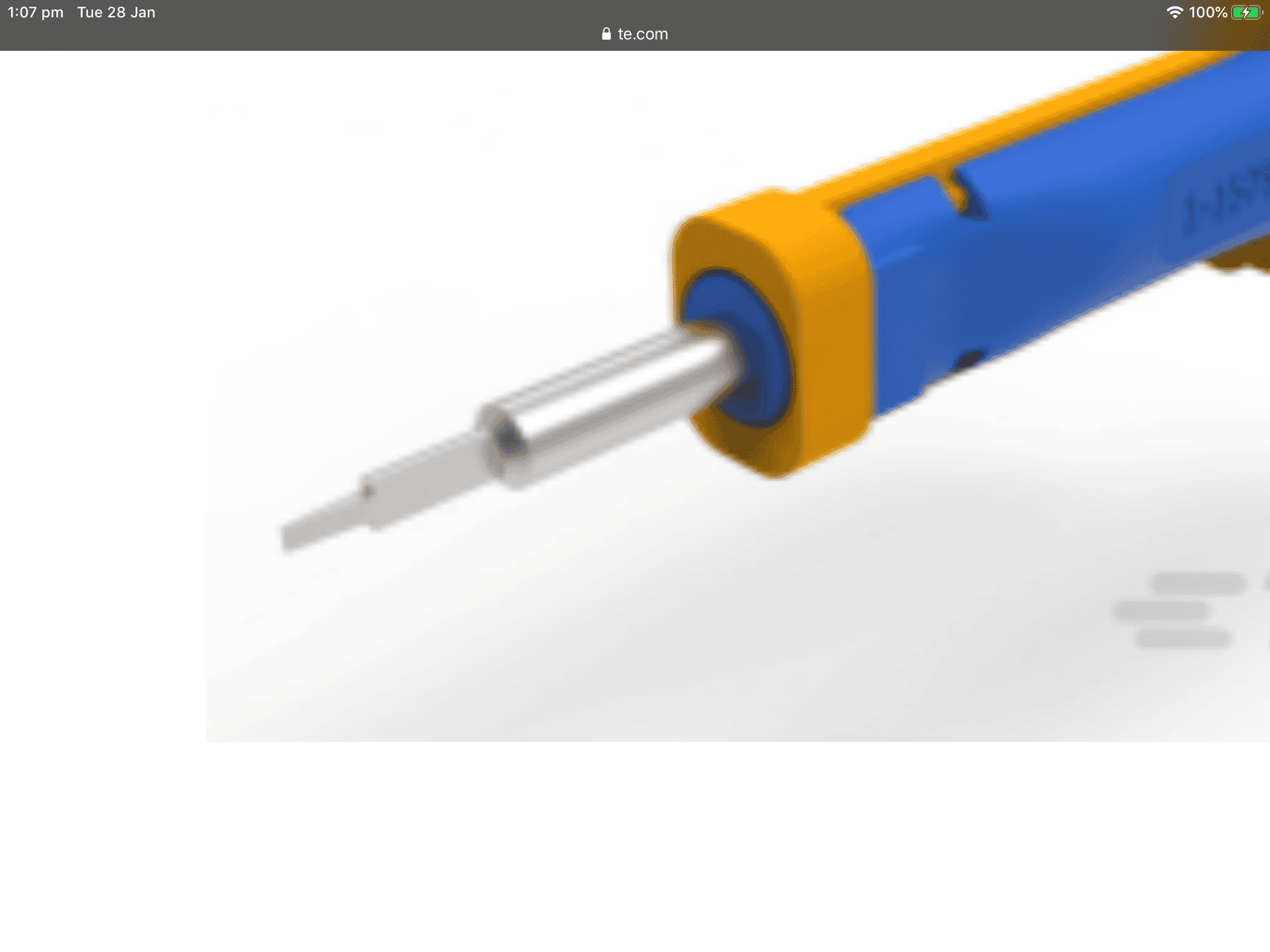

this is the shape of the removal tool

plus if u put the terminal part numbers in it will show u more details

https://www.te.com/global-en/search.html?q=344113-1&source=header

View attachment 199111
Click to expand...
Terminals turned up today and I've had a good look at one with a magnifying glass. The two 'ears' either side of each terminal are solid and don't push in so it looks like the plastic terminal holder will need to be 'streched' apart somehow or the terminal will need brutal force to push it out?
I can't see how that tool in the pic above would work any better than a suitable screwdriver for a backyard tratter tatter like me:D
Lights are still working fine though even with the crusty old terminals cleaned up so I'm going to postpone replacing them this weekend and get the proper tool just in case:rolleyes:.
@gstuart
Can't find that tool anywhere individually but I'm a pooter mong tbh:oops:

Flossie said:
Terminals turned up today and I've had a good look at one with a magnifying glass. The two 'ears' either side of each terminal are solid and don't push in so it looks like the plastic terminal holder will need to be 'streched' apart somehow or the terminal will need brutal force to push it out?
I can't see how that tool in the pic above would work any better than a suitable screwdriver for a backyard tratter tatter like me:D
Lights are still working fine though even with the crusty old terminals cleaned up so I'm going to postpone replacing them this weekend and get the proper tool just in case:rolleyes:.
@gstuart
Can't find that tool anywhere individually but I'm a pooter mong tbh:oops:
Click to expand...


Hi buddy

@Flossie

good to see they turned up and also they are the correct ones or my name will be mud, lol

let me dig through some of my links and see what else I can find to help u

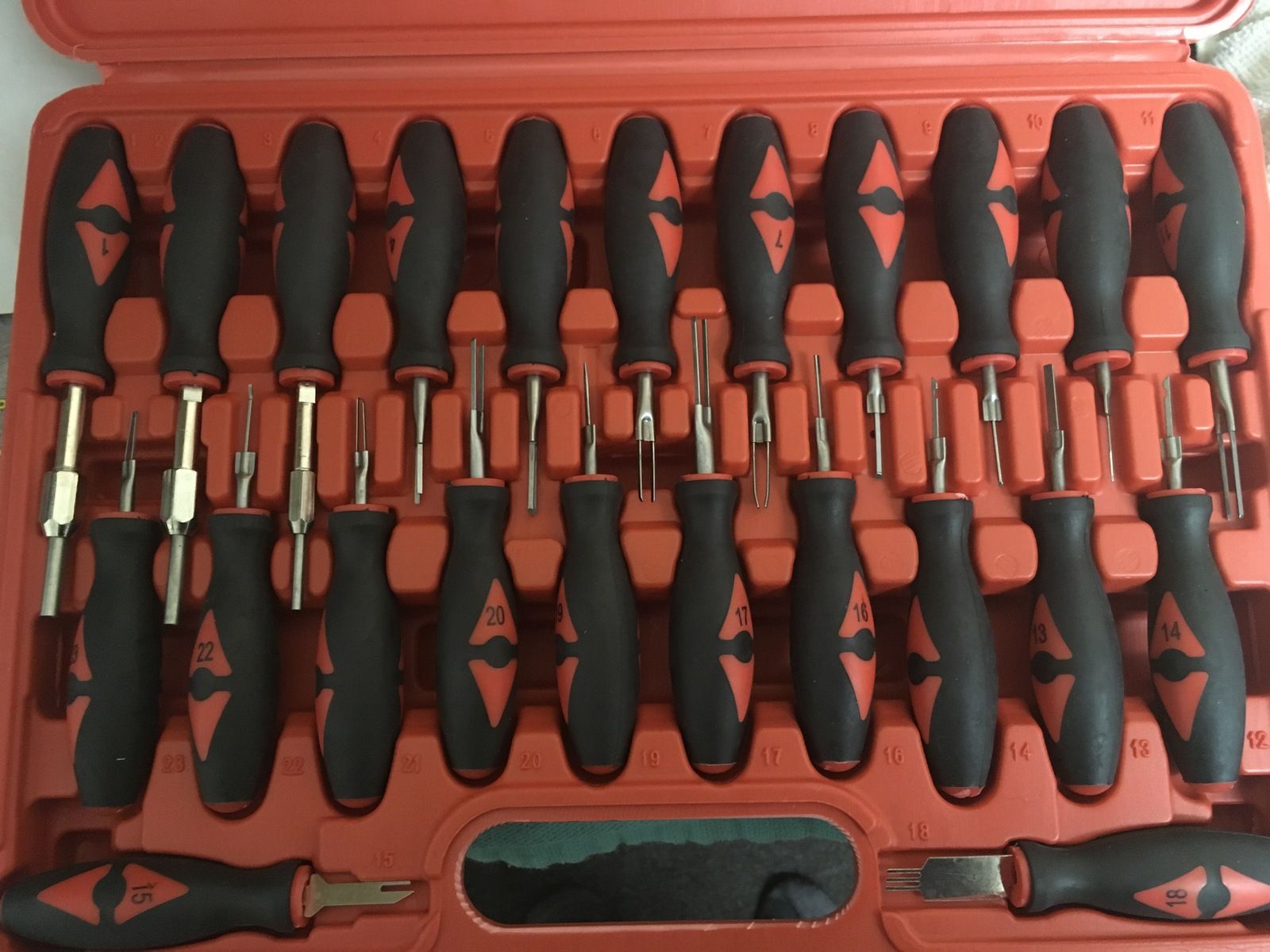

plus will look through that set of terminal tools I bought to see if there’s one that is similar

will do a search now and get back to u as soon as I find some more info for u

@Flossie

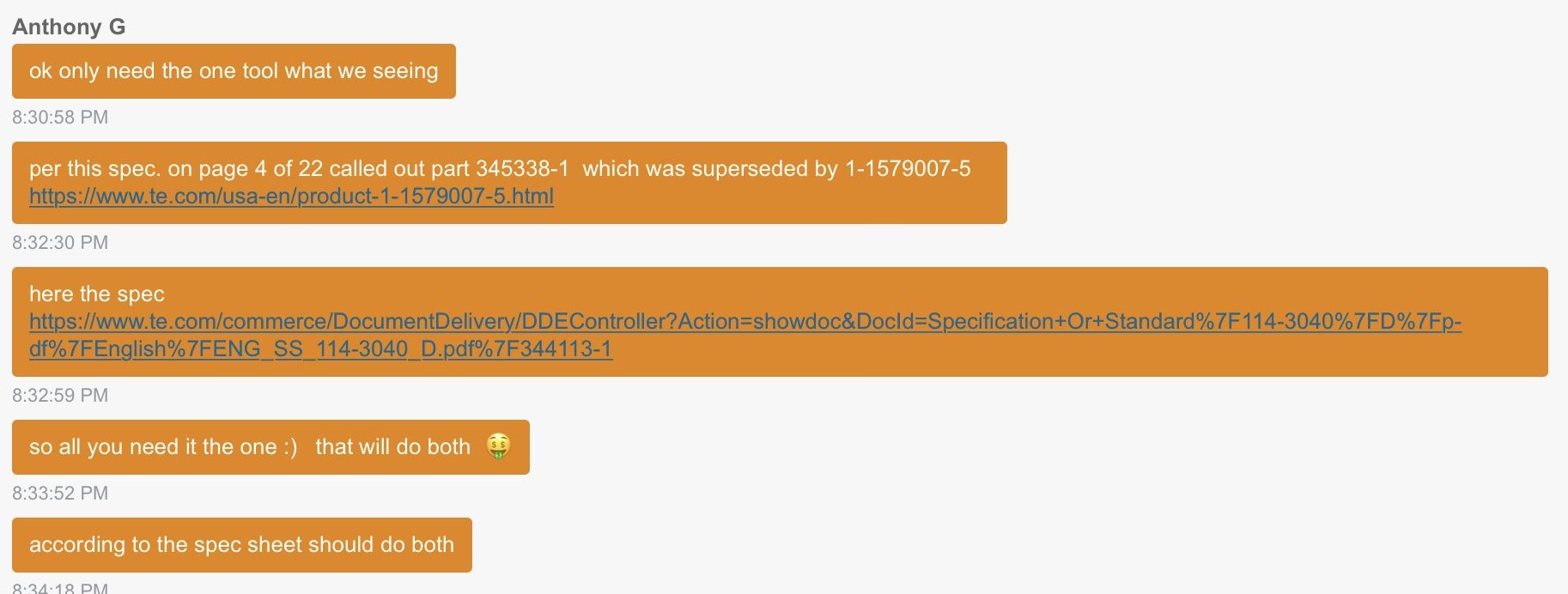

have found ur extraction tools, for both the Male and female , just chatting via live chat to TE

will update u in abit
