P38A Nanocom Tips

Discussion in 'Range Rover' started by awkwardbob, Jan 28, 2021.

< Previous Thread | Next Thread >
  1. awkwardbob

    awkwardbob Well-Known Member

    Joined:
    Aug 3, 2020
    Posts:
    502
    Likes Received:
    260
    Location:
    Glasgow
    Hi,

    finally got my nanocom for Gems but having a heck of a job getting it to play nicely.

    Mostly it says it cannot connect to ECU (whether Hevac, ABS or Airbag).

    I did briefly persuade it to look at the hevac where it reported a short on the heated screen (some areas of screen seem to work, others not so much) But that’s been about it.

    I know some o& the ECUs shut up shop after running their diagnostics but can anyone recommend a reliable procedure to connect to these units ?

    Thanks again

    Bob

  2. Tenebreaux

    Tenebreaux Well-Known Member

    Joined:
    Sep 28, 2019
    Posts:
    3,240
    Likes Received:
    4,857
    Location:
    Armagh
    Battery fully charged? Mine wouldn't communicate when I first got it, turns out the battery was knackered.

    RangeRoller dt and awkwardbob like this.
  3. romanrob

    romanrob Well-Known Member

    Joined:
    Jan 19, 2020
    Posts:
    457
    Likes Received:
    227
    Location:
    SW London
    Best place is to refer to the online instructions / BBS forums.
    Each module has its foibles. IIRC Becm wont work at ignition 2. ECM needs ignition 2 on to give live data. Hevac needs stage 1 on the ignition key, but by stage 2 diagnostics are shut down. After stage 2 you need to go to ignition off before going back to 1 for another try. Eas is ok with ignition on iirc, but only if you have the correct relay under the passenger seat. Abs diagnostics is ignition 2 , but will shut down at 3 kph
    And when i say shut down, you may see values, but they will be either wrong, or frozen...

    tomcat59alan and awkwardbob like this.
  4. awkwardbob

    awkwardbob Well-Known Member

    Joined:
    Aug 3, 2020
    Posts:
    502
    Likes Received:
    260
    Location:
    Glasgow
    Thanks !

    yeah, it seems to be a bit of a minefield !

    will try tomorrow in the daylight !

  5. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    18,607
    Likes Received:
    12,602
    Location:
    wirral and triquivijate
    Thank you that clarifies things,I find the BBS forums a minefield.plugged mine in yesterday, got ECM live data but couldn't access the HEVAC kept getting VSE006 communication error,no reply to vehicle server echo command. Guess it was because I had the engine running.;)

  6. wammers

    wammers No longer with us, RIP Donater

    Joined:
    Oct 19, 2008
    Posts:
    58,171
    Likes Received:
    11,667
    Location:
    Preston Lancs.
    Is BECM unlocked ?

  7. benpalmer

    benpalmer Well-Known Member

    Joined:
    Mar 15, 2011
    Posts:
    295
    Likes Received:
    100
    Location:
    Reading
    Been through this learning experience my self recently. As noted above the Nanocom requires different ignition positions for different modules, and there lots of online help. BBS have user manuals you can download.

    Some times connectors get grimed up when fouled by water - this won't help. Worth cleaning with contact cleaner.

    I've not managed coms with all but the CC module, but first time I tried could only get to 1.

    Keep with it.

  8. awkwardbob

    awkwardbob Well-Known Member

    Joined:
    Aug 3, 2020
    Posts:
    502
    Likes Received:
    260
    Location:
    Glasgow
    I actually managed to connect to most of the systems today and it only threw up a couple of errors with some sensors.
    Doesn’t seem to be anything majorly wrong but likely a few niggly / difficult things to get at.

    will have another look at the nanocom bbs, to see if I can find anything more detailed.

    thanks again

    Bob

  9. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    18,607
    Likes Received:
    12,602
    Location:
    wirral and triquivijate
    Don't know Tony I think I'll have a look at the instructional videos before I do anything. Don't think it has the HEVAC license activated but it showed up on the hard drive and I'm sure I had one screen yesterday which would have let me operate the fans and flaps. Fecked if I could find it today:rolleyes: I did get one screen for the RF receiver and out station memories. Didn't want to touch anything incase I made a mess of everything. :eek: I much prefer something you can take a hammer to.:D

  10. wammers

    wammers No longer with us, RIP Donater

    Joined:
    Oct 19, 2008
    Posts:
    58,171
    Likes Received:
    11,667
    Location:
    Preston Lancs.
    The Nanocom can have problems communicating with HEVAC if the BECM is unlocked. See the spec sheets.

  11. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    18,607
    Likes Received:
    12,602
    Location:
    wirral and triquivijate
    Cheers Tony.

  12. wammers

    wammers No longer with us, RIP Donater

    Joined:
    Oct 19, 2008
    Posts:
    58,171
    Likes Received:
    11,667
    Location:
    Preston Lancs.
    If BECM is unlocked, if you want to leave it unlocked you need to pull the diag in out plug at front of BECM to work on HECAV. White plug from memory.

  13. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    18,607
    Likes Received:
    12,602
    Location:
    wirral and triquivijate
    Think I remember reading that,and your memory hasn't let you down;)

    Last edited: Jan 31, 2021
  14. romanrob

    romanrob Well-Known Member

    Joined:
    Jan 19, 2020
    Posts:
    457
    Likes Received:
    227
    Location:
    SW London
    btw bob, if you're new to the nano... I recommend you leave the cable screwed to the nano unit permanently - otherwise you can get shorts, and blown Diagnostic fuses in the under-bonnet fuse box

  15. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    18,607
    Likes Received:
    12,602
    Location:
    wirral and triquivijate
    Well, I've had a look at the instructional videos and,I think, the nanocom hasn't been set up I bought it from a member and assumed it was.it appears that the available software modules have not been installed to the scanned modules list.If that makes sence I think I need to add them and apply.o_O:D

  16. pete12345

    pete12345 Well-Known Member Full Member

    Joined:
    Jun 15, 2012
    Posts:
    2,198
    Likes Received:
    977
    Location:
    Isle Sheppy
    You can have a play with the emulator on there site before screwing up the settings on your car get a look at all the different menus I’ve it helps


    Attached Files:

  17. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    18,607
    Likes Received:
    12,602
    Location:
    wirral and triquivijate
    I've got the big brother, I'll have a play tomorrow if the temp gets over 0.;)


    Attached Files:

  18. brianp38dse

    brianp38dse Well-Known Member

    Joined:
    May 13, 2014
    Posts:
    17,171
    Likes Received:
    10,673
    Location:
    heathrow

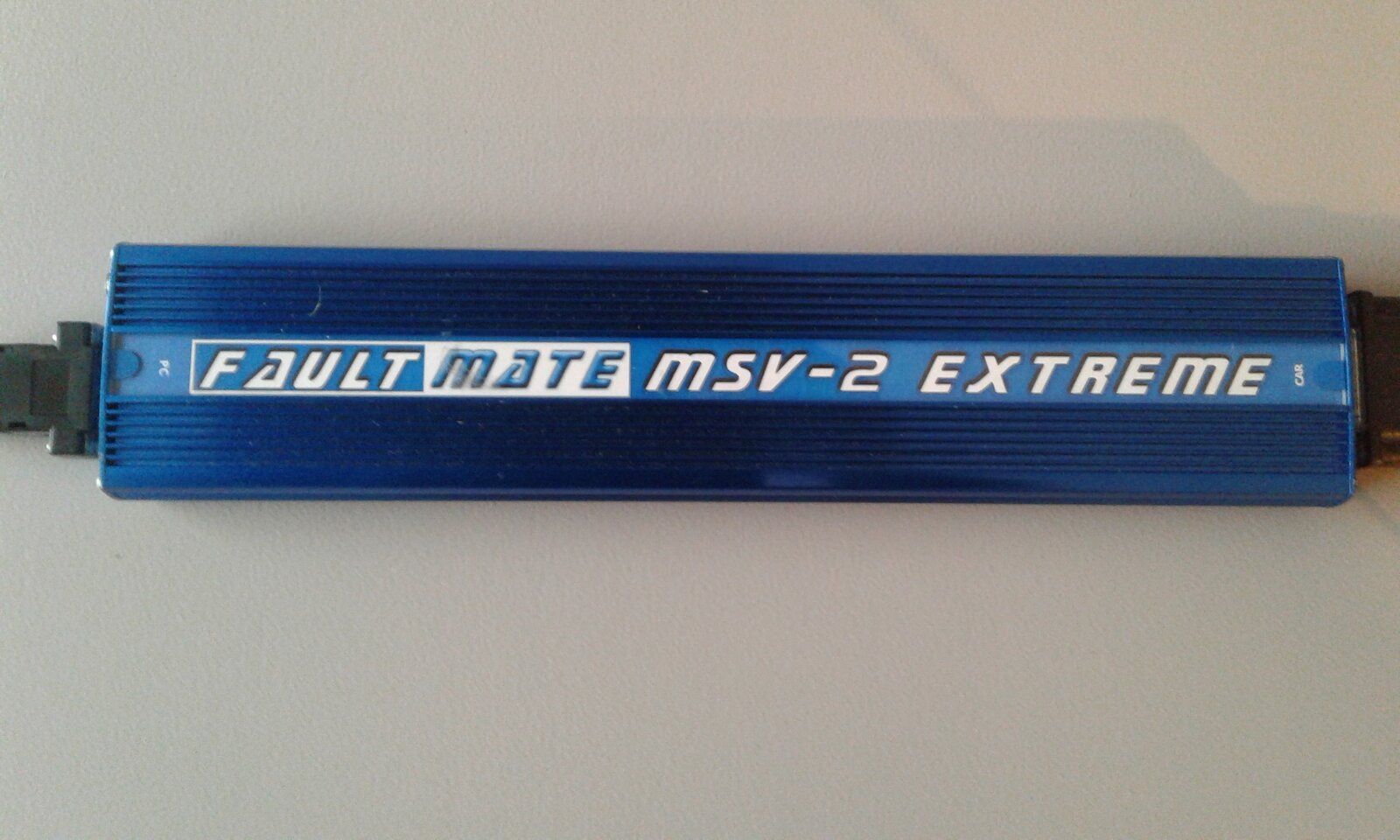

    Mines the predecessor :D

  19. Mark Piercy

    Mark Piercy Well fumbled member.... Full Member

    Joined:
    Jul 11, 2016
    Posts:
    10,192
    Likes Received:
    6,604
    Location:
    Right here!!
    Turn the hevac heating onto the first fan speed and turn the air con off or on.

  20. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    18,607
    Likes Received:
    12,602
    Location:
    wirral and triquivijate
    What's that for Mark? Any views on the available and installed modules ?
