My Freelander TD4

Discussion in 'Land Rover Freelander' started by JC600, Jan 20, 2013.

< Previous Thread | Next Thread >
  1. JC600

    JC600 Well-Known Member

    Joined:
    Jan 13, 2013
    Posts:
    1,086
    Likes Received:
    233
    My Freelander is a 2005 TD4 XEI 3 door in Zambezi silver.

    Mods so far.

    Wind deflectors
    Front & rear light guards
    Union Jack badge

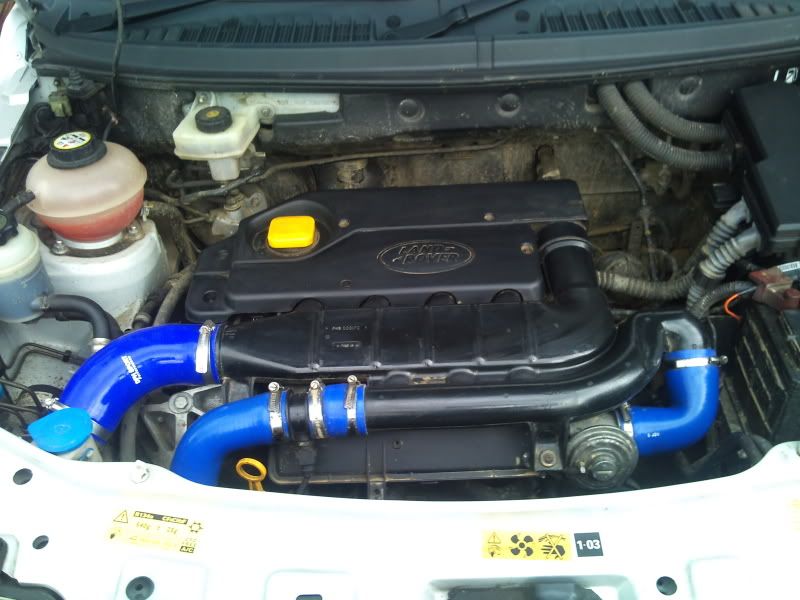

    Silicone intercooler & intake hoses
    16x7 Black modular wheels with 235/70/16 BF Goodrich AT/KO tyres
    OE Freelander centre caps
    OE roof rails
    Uprated headlight bulbs
    Sony xplod head unit
    CB

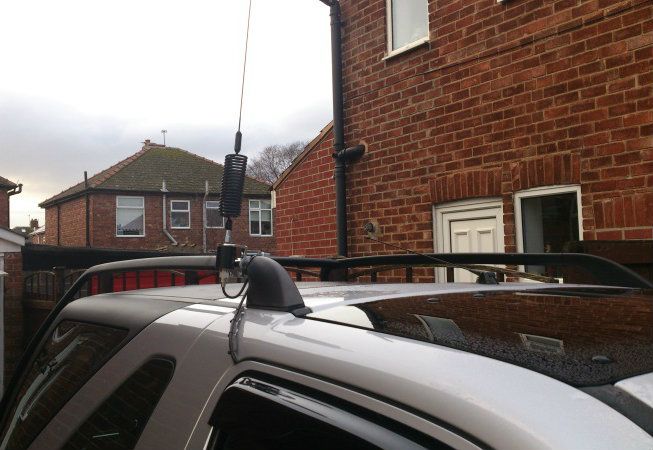

    Stinger antenna with ground plane
    Rover 200 BRM alloy gear knob
    New leather gaiter
    Side steps removed
    Bearmach 2" lift kit
    Goodridge extented brake lines
    Mantec sump guard
    Dog guard
    Rear window guard
    Land Rover low level roof cross bars
    Custom mud flaps
    Custom small back box
    False floor with Slide out cooker shelf & D rings
    12v socket in load space
    LED strip light in place of rear loadspace light
    Bearmach rock sliderz - re-painted in truck bed liner paint
    Rear work light
    Green cotton replacement filter
    EBC ultimax heavy duty brake pads
    Front spot lights
    Genuine Land Rover soft A bar
    Genuine G4 challenge decals
    Race2Recovery stickers
    Extended diff breather
    Genuine LR long range spotlights
    12v trailer socket hidden behind rear bumper
    Custom spot light covers

    Some pic's. :)

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: Apr 6, 2014
  2. cox325

    cox325 Active Member

    Joined:
    Jan 30, 2011
    Posts:
    714
    Likes Received:
    1
    Location:
    Cardiff
    now, that does look nice, very much like the rear storage. excellent example. thank you.

  3. JC600

    JC600 Well-Known Member

    Joined:
    Jan 13, 2013
    Posts:
    1,086
    Likes Received:
    233
    Cheers mate, how's you? haven't seen you on MUD FL for a while. :)

  4. mick 1986

    mick 1986 Active Member

    Joined:
    Aug 20, 2010
    Posts:
    711
    Likes Received:
    3
    Location:
    Hunwick, Co. Durham
    I like that mate! It's along the similar lines of what I want to do to mine.

    How have you done the boot light mate and what light did you use? I'm after mounting two on mine up the top to act more as down lights, but I can't really find a suitable light.

    Did you make a frame for the shelf in the boot? If so how and out of what? I'm thinking of using some thin walled steel pipe, aprox 1/2" diam with about 1/16" wall, but I'm not sure my welder will be soft enough to weld it.

  5. JC600

    JC600 Well-Known Member

    Joined:
    Jan 13, 2013
    Posts:
    1,086
    Likes Received:
    233

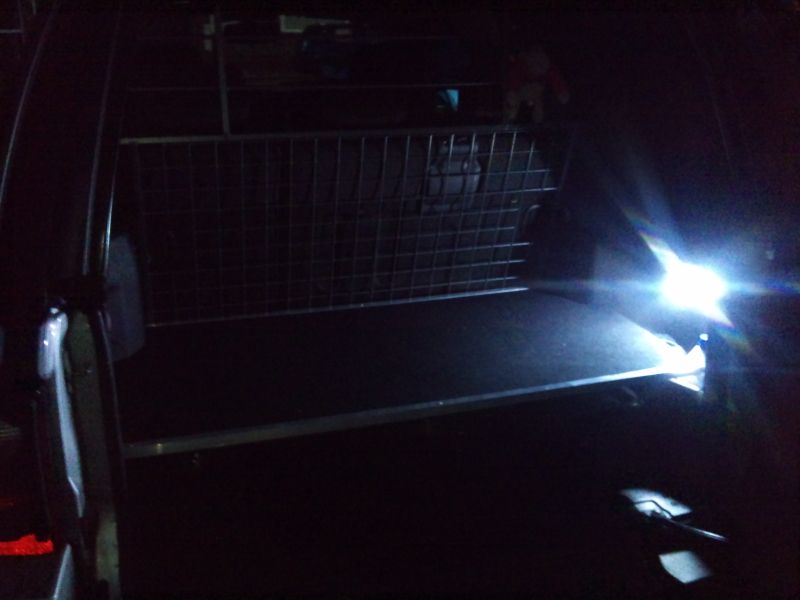

    Cheers Mick, the light is 12v LED strip light. Like this LED Interior Lamps Lighting : LED 103112 Strip Lamp 12V Just took the old light out, and fitted one in its place using existing wires. Going to fit another on the opposite side soon.

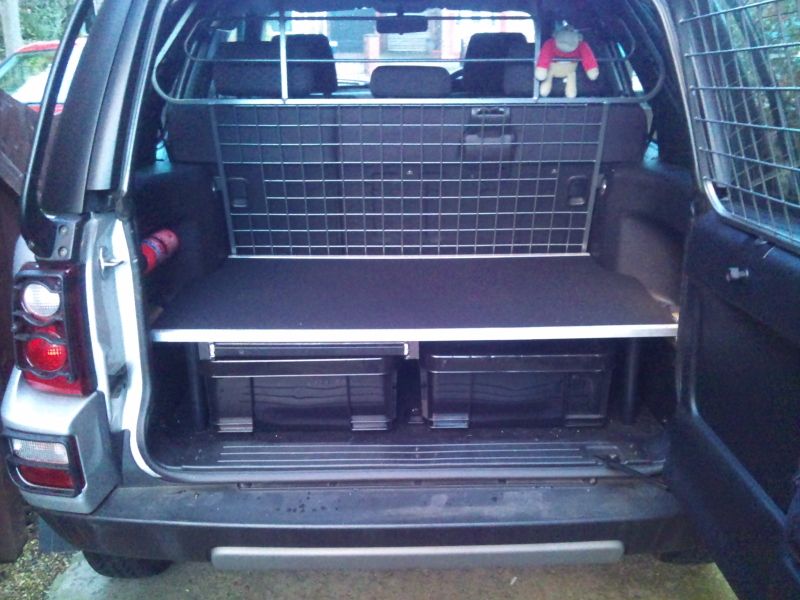

    The shelf is just on metal 3" round table legs cut down, so its removal in seconds. Top is 12mm MDF, covered in heavy duty cloth and alloy 90 deg edging on the back and front. :)

  6. mick 1986

    mick 1986 Active Member

    Joined:
    Aug 20, 2010
    Posts:
    711
    Likes Received:
    3
    Location:
    Hunwick, Co. Durham
    Sweet. Cheers mate. I'm thinking of building something more permanent in mine, like bolted together but still removable.

    How long has the lift kit been fitted? Have you had any problems since fitting it?

  7. cox325

    cox325 Active Member

    Joined:
    Jan 30, 2011
    Posts:
    714
    Likes Received:
    1
    Location:
    Cardiff
    I pop in from time to time, have a read. Sold my Freebie in Oct, miss her. But cant leave the marque alone, love seeing what others do with theirs..

  8. JC600

    JC600 Well-Known Member

    Joined:
    Jan 13, 2013
    Posts:
    1,086
    Likes Received:
    233
    No probs mate. :)

    Been fitted since Oct 2011, no problems yet........well got a problem at the moment, but don't think its Lift kit related. Think its my prop support bearings, but if not. It may be related, will find out tomorrow. :D

    Last edited: Jan 20, 2013
  9. JC600

    JC600 Well-Known Member

    Joined:
    Jan 13, 2013
    Posts:
    1,086
    Likes Received:
    233
    Ok cool, yours was a smart looking Freebie.....can't believe you sold it. :)

  10. cox325

    cox325 Active Member

    Joined:
    Jan 30, 2011
    Posts:
    714
    Likes Received:
    1
    Location:
    Cardiff
    neither can I !! but the disco, works van, mrs Peugeot and the freebie was too much on the drive. I asked the wife to move out instead, but then no one did the shopping!! She came back, freebie went!!

  11. JC600

    JC600 Well-Known Member

    Joined:
    Jan 13, 2013
    Posts:
    1,086
    Likes Received:
    233
    lol :D

  12. mick 1986

    mick 1986 Active Member

    Joined:
    Aug 20, 2010
    Posts:
    711
    Likes Received:
    3
    Location:
    Hunwick, Co. Durham
    Lets hope it's not related. How many miles would you say you have done on it? I use mine as a daily driver for work, doing between 20-30miles per day, so don't want it to go breaking on me.

    To be fair, today it threw a wobbly! The can started to cool even tho it was on hot air, and the engine temp started to rise. My initial thort was the water pump, but there wasn't a squealing belt or anything like that. Got to catterick market and popped the bonnet, expansion tank empty, quick look and the centre of the steering rack was wet. Filled the expansion tank, started the engine and it was ****ing coolant out of one of the pipes that feeds the heater matrix. Cut the pipe, slotted some pipe in as a "temp" fix and jubilee clipped it up. Job done for now.

  13. JC600

    JC600 Well-Known Member

    Joined:
    Jan 13, 2013
    Posts:
    1,086
    Likes Received:
    233
    Around 6-7k since it was done, don't use it daily. But done some long hauls, 300mile trips. I know people you have had them fitted a lot longer, and no problems. :)

    Glad you got it fixed mate, Catterick isn't far from me lol

  14. mick 1986

    mick 1986 Active Member

    Joined:
    Aug 20, 2010
    Posts:
    711
    Likes Received:
    3
    Location:
    Hunwick, Co. Durham
    So am I mate. I found quite an oil leak from the rocker cover aswel, I really need to get it sorted.

    Where you from? Do you go laning round this way? Pately bridge and the like?

  15. teddywood1

    teddywood1 Well-Known Member

    Joined:
    Jul 7, 2011
    Posts:
    5,297
    Likes Received:
    218
    Location:
    stoke-on-trent

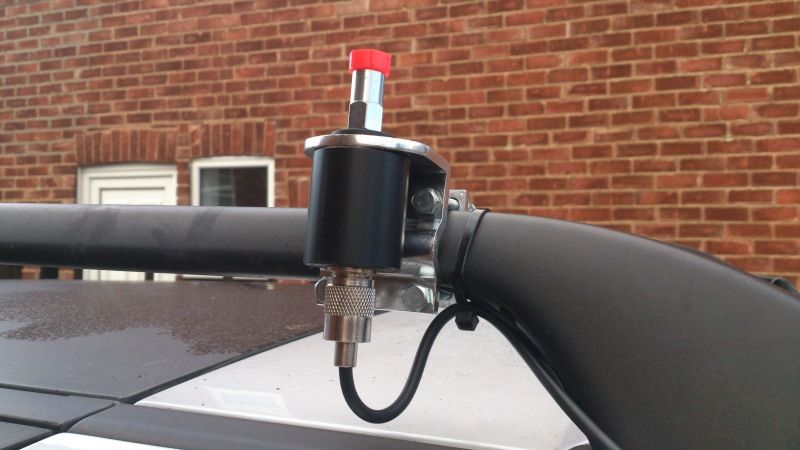

    Jc have you a seperate earth wire to that antenna mount as the bars have a plastic coating on and this will effect your standing wave ratio "SWR"

  16. JC600

    JC600 Well-Known Member

    Joined:
    Jan 13, 2013
    Posts:
    1,086
    Likes Received:
    233
    Not anymore, got a ground plane.....so now not required, and now crystal clear with no static. :)

  17. mick 1986

    mick 1986 Active Member

    Joined:
    Aug 20, 2010
    Posts:
    711
    Likes Received:
    3
    Location:
    Hunwick, Co. Durham
    I would assume so as he sai it's got it's own ground plane, it would make sense to earth it.

    What connector is the most common for CBs? I use a few different coax cables and connectors for work, so could make all my own cables. Do they use 50 or 75ohm coax?

  18. JC600

    JC600 Well-Known Member

    Joined:
    Jan 13, 2013
    Posts:
    1,086
    Likes Received:
    233
  19. JC600

    JC600 Well-Known Member

    Joined:
    Jan 13, 2013
    Posts:
    1,086
    Likes Received:
    233
    Mines RG58 coax cable, with PL259 plugs on each end....standard set up. Not sure on the ohm. :)

  20. mick 1986

    mick 1986 Active Member

    Joined:
    Aug 20, 2010
    Posts:
    711
    Likes Received:
    3
    Location:
    Hunwick, Co. Durham
    From what I can find on google and ebay, rg58 is 50ohm. As for the pl259, I don't think it's a type of connector I can source. I will see what the other blokes I work with can come up with before I go buying anything.
