Military Front Bumper

Hi ive done a search here and a google and can't find what Im after, I wonder if anyone can help

Ive bought a military front bumper for my 90 and along with it the pin and pin retainer.....I can't for the life of me remember how they were in the military...I remember putting the pin in the top and the spring arrangement held it in there .....I have a new spring but how does the spring/ retainer attach to the bumper underneath?

Does anyone have any part numbers or some photos of the underneath of an original military bumper they could post here?

Many thanks

Pricilla

hi Pricilla

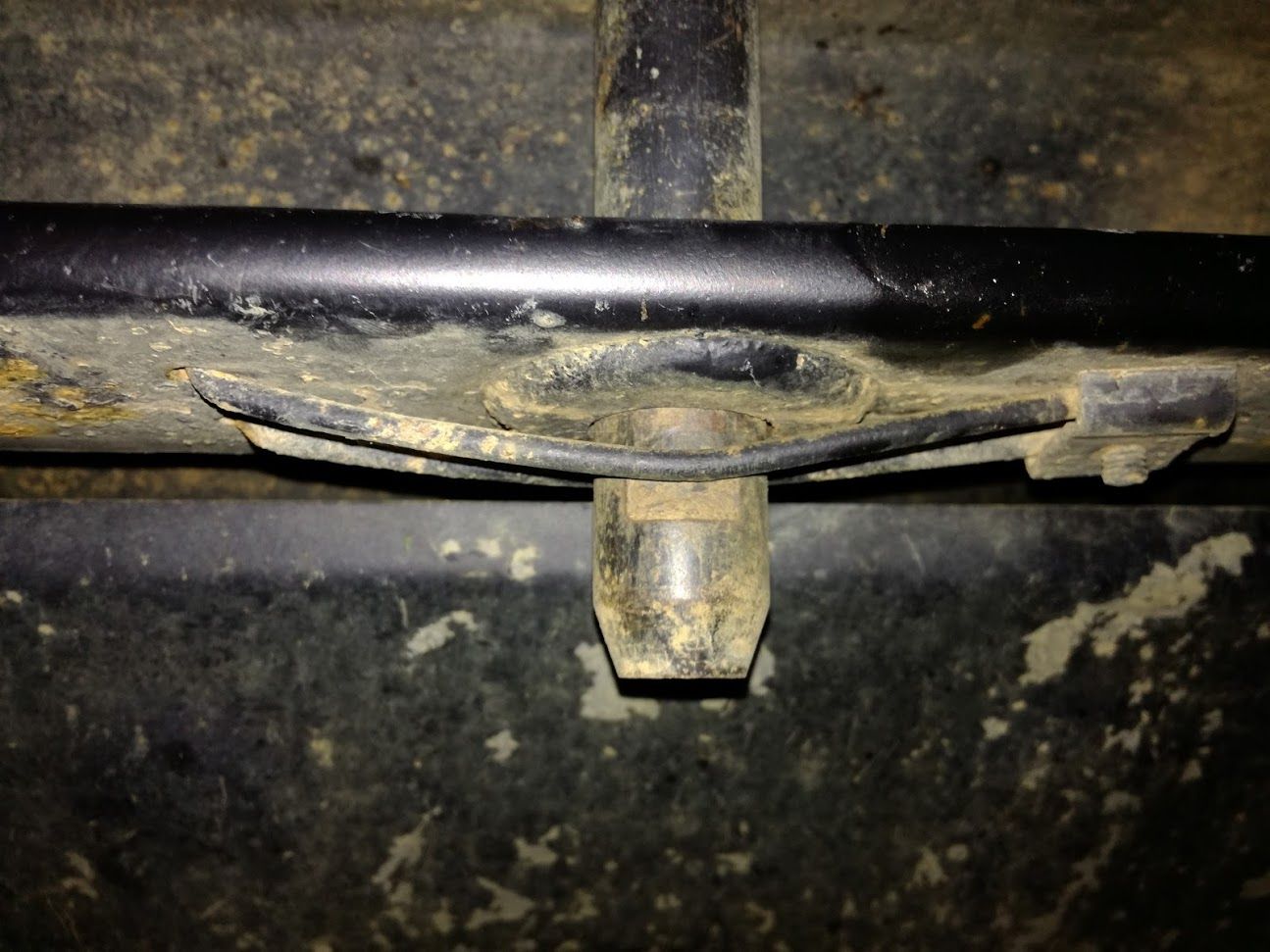

I took a photo of under mine, also got diagram and part numbers if you need. the spring fits in under the bumper and holds the pin via two groves, you just turn the pin to get it out.
hope that helps.

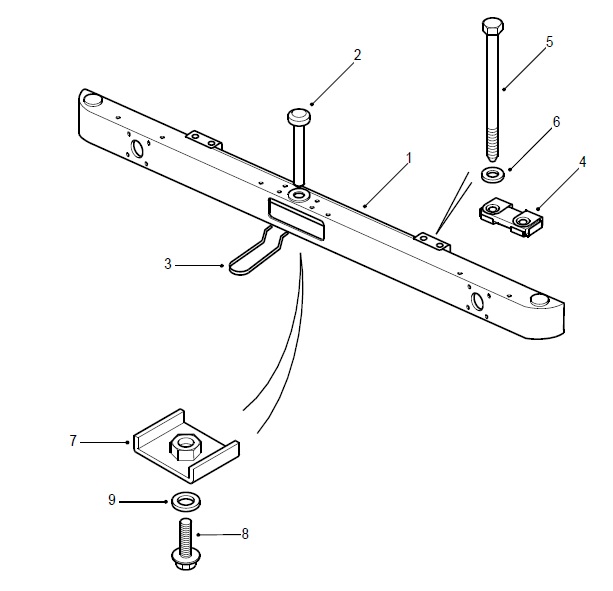

1 - DPB001270PAT
2 - RRC6681
3 - KNR500010
4 - NRC6994
5 - NTC5401
6 - WA110068L
7 - RRC6683
8 - FS106167L
9 - WA106001L
