Map sensor

Discussion in 'Land Rover Freelander' started by Jimjamer, Mar 23, 2018.

< Previous Thread | Next Thread >
  1. Jimjamer

    Jimjamer New Member

    Joined:
    Mar 22, 2018
    Posts:
    6
    Likes Received:
    1
    Location:
    Kings lynn
    Could anyone please point me in the right direction as I’m wanting to change my map sensor

  2. Arctic2

    Arctic2 Well-Known Member

    Joined:
    Oct 2, 2014
    Posts:
    1,974
    Likes Received:
    443
    Location:
    Westmidlands
    On a TD4 yes if so you can remove it and clean it with some carb cleaner, but always best to clean the manifold and EGR at the same time, I have just done four manifolds ready for our meets starting this weekend.


    Attached Files:

  3. Geodark

    Geodark Active Member

    Joined:
    Jul 26, 2007
    Posts:
    224
    Likes Received:
    44
    Hi JimJamer, what exactly are you asking? is it where the MAP is, how to replace it? best place for a new one?

    Pete

  4. Jimjamer

    Jimjamer New Member

    Joined:
    Mar 22, 2018
    Posts:
    6
    Likes Received:
    1
    Location:
    Kings lynn
    Yes am looking to replace it then clean current one for a spare, just don’t know where it is I what bits I need to disconnect to get to it

  5. Jimjamer

    Jimjamer New Member

    Joined:
    Mar 22, 2018
    Posts:
    6
    Likes Received:
    1
    Location:
    Kings lynn
    Yes I’m looking to clean all of that this weekend as I’ve got my self a replacement part so can clean one whilst still keeping it mobile, I just don’t know where to locate certain parts under the bonnet

  6. hd3

    hd3 Well-Known Member

    Joined:
    Feb 5, 2012
    Posts:
    2,459
    Likes Received:
    421
    Location:
    Bradford u.k.
    map sensor is below the engine cover
    on the side of the intake manifold
    the yellow arrow shows aprox. location
    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

  7. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,534
    Likes Received:
    6,738
    Location:
    Near Newquay
    You'll need to unplug the MAP sensor to remove the inlet manifold. There's little point in replacing the MAP unless you're cleaning out the manifold at the same time.

  8. Jimjamer

    Jimjamer New Member

    Joined:
    Mar 22, 2018
    Posts:
    6
    Likes Received:
    1
    Location:
    Kings lynn
    Brilliant thanks, just what I needed to see this is of great help, the only other thing I’ve got to locate is the boost control valve as I’ve gor a code come up P1E30. Thanks

  9. pardec

    pardec Active Member

    Joined:
    Oct 3, 2009
    Posts:
    993
    Likes Received:
    74
    Location:
    South Manchester- North Devon
    I presume you mean for the turbo.

    If you look through the cut out in the drivers side inner wing you will see it. Small black thing with 3 small (6-8mm) pipes going to it

  10. hd3

    hd3 Well-Known Member

    Joined:
    Feb 5, 2012
    Posts:
    2,459
    Likes Received:
    421
    Location:
    Bradford u.k.
    you on about the turbo vacuum solenoid ?

    if so .. be a pic in post no.1
    https://www.landyzone.co.uk/land-rover/td4-lack-of-power-at-70mph-fixed.77147/

    can be seen - worked on - through the offside wheel arch
    and .. from under the vehicle just behind .. and left of .. the wheel
    easier methinks to work on it from underneath ..

    ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

  11. Jimjamer

    Jimjamer New Member

    Joined:
    Mar 22, 2018
    Posts:
    6
    Likes Received:
    1
    Location:
    Kings lynn
    Thanks all I’ve got to the bottom of it all was an electrical fault so now I just need to find out where I can get a new plug from as need to splice some cables together. I’ve done a temporary repair with an electrical connection block


    Attached Files:

    GrumpyGel likes this.
  12. Arctic2

    Arctic2 Well-Known Member

    Joined:
    Oct 2, 2014
    Posts:
    1,974
    Likes Received:
    443
    Location:
    Westmidlands
    Let me look in my shed tomorrow I have a few R40 looms they use the same plug

  13. Arctic2

    Arctic2 Well-Known Member

    Joined:
    Oct 2, 2014
    Posts:
    1,974
    Likes Received:
    443
    Location:
    Westmidlands

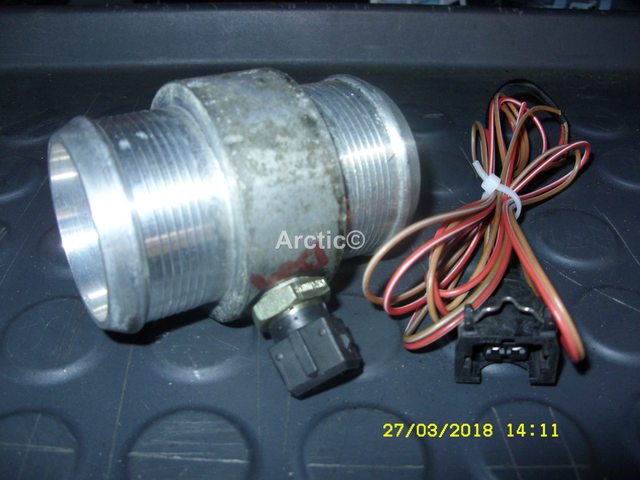

    I managed to find the loom in my shed, therefore I took the opportunity to dissect it so each plug and connection was separate, the plug you are after is the Turbocharger boost temperature sensor right< with two wires red/white brown/grey. as opposed to the turbo boost pressure sensor, (MAP) which as three wires connected to it.

    Drop me a message if you need the plug

    [​IMG]1

    [​IMG]2

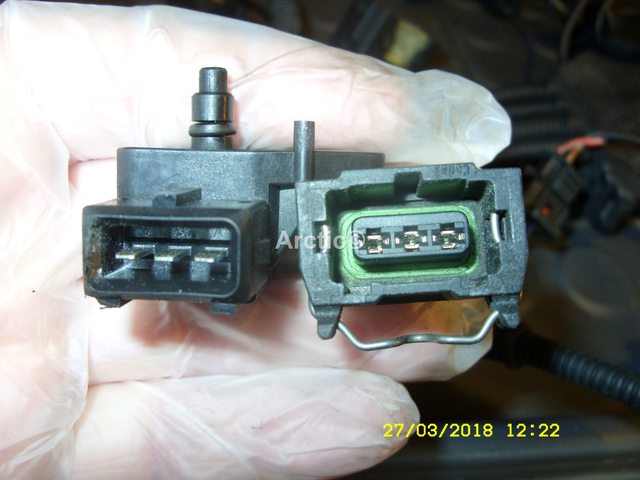

    MAP plug
    [​IMG]3

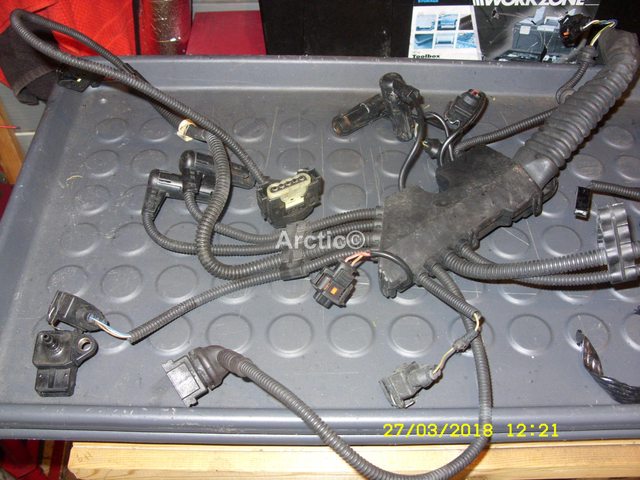

    Loom
    [​IMG]4

    Madmustang likes this.
  14. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,534
    Likes Received:
    6,738
    Location:
    Near Newquay
    That's a 2 pin Female Junior Power Timer Connector Plug. They are common and cheap. But make sure you get all the plug components needed. Amazon have them for about £5 for the kit.;)

    Last edited: Mar 27, 2018
