P38A Manual gear box swap 4.0v8
- Thread starter LR-hobbs
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
I would imagine all the bits are available for the mechanical side of the change. The diesel came with a manual box so all bits to take the R380 in the P38 are available.
Not sure how much of an electrical/electronic nightmare it maybe.
But I would have to say very doable with patience and time for sure.
Uness you are getting somebody else to do it then it could get costly.
Why?
J
Not sure how much of an electrical/electronic nightmare it maybe.
But I would have to say very doable with patience and time for sure.
Uness you are getting somebody else to do it then it could get costly.
Why?
J
- Posts
- 4,408
- Location
- Near Heathrow.
+1 on Why ?
A few guesses:
- BECM (& possibly engine ECU) will require settings changed.
- Modified wiring for Reverse & Neutral switches.
- Bell housing & Clutch bits, plus clutch master ?
- Replacement pedal assembly ?
Again why ?
A few guesses:
- BECM (& possibly engine ECU) will require settings changed.
- Modified wiring for Reverse & Neutral switches.
- Bell housing & Clutch bits, plus clutch master ?
- Replacement pedal assembly ?
Again why ?
I just prefer manuals and wanted to know wether it's something an amateur could do themselves.
If you need something to do I am sure it is possible for a reasonably mechanical savvy person.
As said the electrics/electronics would probably be more of a challenge. But wiring diagrams are available so I dont see why not.
It was (the 4.0) fitted in the Disco as a manual so the settings to change should be available in the ECU and the BECM has a manual setting, if they work together is another thing. So that said do you have a Nanocom?
J
- Posts
- 13,441
- Location
- Sud ouest France !
Weren't some of the ex police 38's manuals?
Apparently yes, 6 out there somewhereWeren't some of the ex police 38's manuals?
.
Cop a load of this ex-police Range Rover P38A
This ex-police Range Rover P38A was part of the fleet operated by Cheshire Constabulary. Nobody wanted to see a ‘blues and twos’ Range Rover P38A in their…
petrolblog.com
I couldnt resist a search
.J
norseman
Well-Known Member
- Posts
- 3,350
- Location
- Essex - UK
I seem to remember that, despite the allegedly high standards of police vehicle maintenance, these cars were usually on their third engine by the time they were cast out of service.
- Posts
- 13,441
- Location
- Sud ouest France !
Because they were thraped my good man to keep up with the scoobies and rs louts
Last edited:
- Posts
- 4,408
- Location
- Near Heathrow.
BECM & GEMS definitely have gearbox type setting. Can't find anything in Thor or EDC.

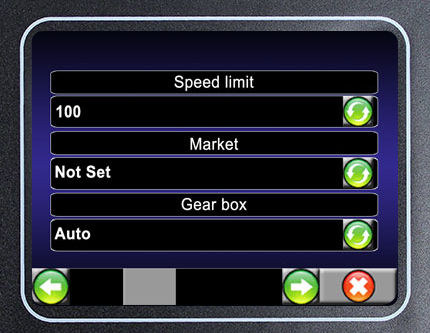

BECM Settings:

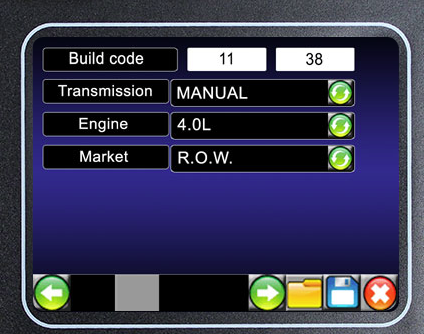

GEMS ECU:
BECM Settings:
GEMS ECU:
RangeRoller dt
Well-Sprung Member
- Posts
- 14,715
- Location
- Trapped inside my head @ LZ asylum
It’s not like a straight swap or for the feint of heart.
You don’t have a clutch pedal or associated requirements like master/slave cylinders, cooling for it, electrics all sorts of niggles before you even get to adapting a box to fit. That doesn’t mean it can’t be done just rather involved, and it won’t be drivable the whole time it takes.
One member even put a manual box in an L322 which he uses regularly so anything is possible if you aremad committed enough.
Have a good read through related historic posts in the searchbar while you ponder your possibilities. It’s been discussed previously and if you are serious about it there’s a lot of homework to do
You don’t have a clutch pedal or associated requirements like master/slave cylinders, cooling for it, electrics all sorts of niggles before you even get to adapting a box to fit. That doesn’t mean it can’t be done just rather involved, and it won’t be drivable the whole time it takes.
One member even put a manual box in an L322 which he uses regularly so anything is possible if you are
Have a good read through related historic posts in the searchbar while you ponder your possibilities. It’s been discussed previously and if you are serious about it there’s a lot of homework to do
