Disco 2 M & S lights - RAVE and Nanocom disagree!

Discussion in 'Land Rover Discovery' started by PopPops, Oct 14, 2019.

< Previous Thread | Next Thread >
  1. PopPops

    PopPops Member

    Joined:
    Oct 21, 2018
    Posts:
    53
    Likes Received:
    10
    Location:
    Fareham, Hampshire
    Hello All,

    A bit odd. M & S lights just started flashing and limp home mode going into reverse a couple of times. Nothing unusual there for a Disco 2! Connected Nanocom, fault code P0705, position switch monitor, as I had expected. I used the Nanocom to monitor the WXYZ inputs from the switch as a reference, moving the gear lever a couple of times got rid of the fault. I thought I would compare what the Nanocom said with what's in RAVE as a sanity check for the future, and they disagree, in fact, either RAVE or Nanocom seem to have WXYZ reversed!

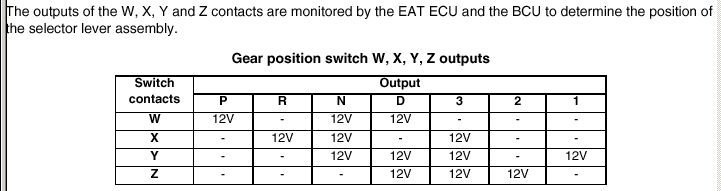

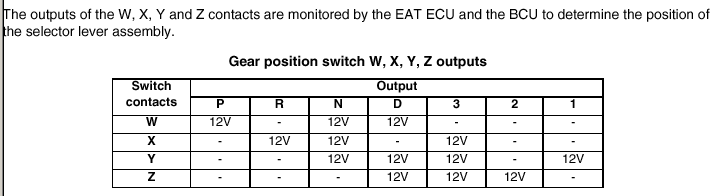

    This is from RAVE:

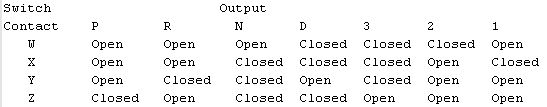

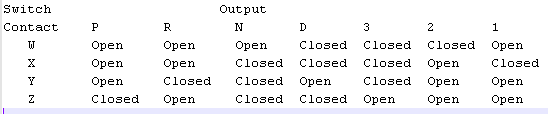

    And this is the equivalent from Nanocom:
    Open = "-" and Closed would = 12V in RAVE.
    So, is RAVE or Nanocom correct?

    And are there any tips for getting the XYZ switch off, apart from growing a few extra hands the size of my 9 year old grandaughter's!!!:p

    Thanks!


    Attached Files:

  2. sierrafery

    sierrafery Well-Known Member

    Joined:
    Jun 30, 2007
    Posts:
    12,404
    Likes Received:
    1,542
    Location:
    West of Transylvania
    IMO RAVE is correct cos it's confirmed by the official ZF document too(see attachment page 8) though as long as you have a switch monitoring fault code current it's possible that nanocom shows those incorrect inputs which triggered the fault code


    Attached Files:

    JUKE179r and PopPops like this.
  3. PopPops

    PopPops Member

    Joined:
    Oct 21, 2018
    Posts:
    53
    Likes Received:
    10
    Location:
    Fareham, Hampshire
    Many thanks, what a useful document! Mine's a 2004, but I'm sure not much can have changed.

    Yes, it seems Nanocom have reversed the WXYZ. I took the readings when the fault had gone (moved the gear lever a few times) and been cleared. I'll remove the switch and dismantle it, if it ever stops raining here!

    Thanks again, what an immense source of knowledge!

  4. JUKE179r

    JUKE179r Well-Known Member

    Joined:
    Jul 5, 2018
    Posts:
    900
    Likes Received:
    295
    Location:
    Suffolk County
  5. ronsealdeath

    ronsealdeath Sagging Member

    Joined:
    Aug 30, 2012
    Posts:
    1,264
    Likes Received:
    44
    Location:
    Swansea, Wales
    When off the car its very easy to dismantle with a drill to take the rivets out. If its an brown unit, it may be unsalvageable. The newer black units are simpler.
    I cleaned up the contacts and treated with recommended magic oil stuff that sierraferry recommended. Its a pretty simple thing, just seal it all back up with silicone so its waterproof.
