Lt77 Oil Change

Discussion in 'Defender 90 / 110 / 130' started by border, Jul 6, 2020.

< Previous Thread | Next Thread >
  1. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    2,548
    Likes Received:
    527
    Location:
    North East. UK

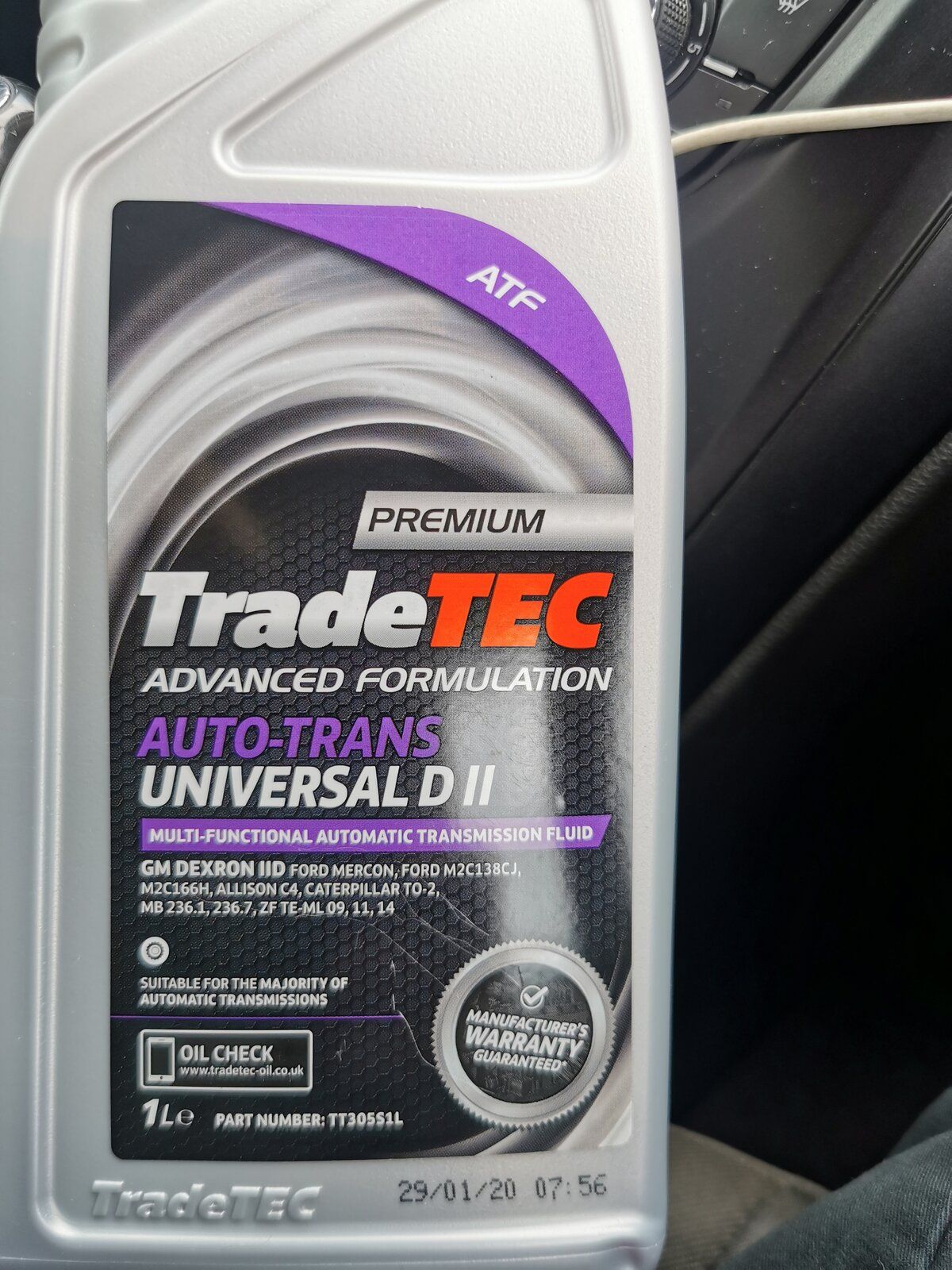

    Gonna change Oil on my LT77. Is this OK


    Attached Files:

  2. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    87,602
    Likes Received:
    16,147
    Location:
    louth lincs
  3. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    2,548
    Likes Received:
    527
    Location:
    North East. UK
    Thanks Mate

  4. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    7,092
    Likes Received:
    4,806
    Location:
    Shropshire
    Make sure the fill plug can be undone before draining.

    Beneagles, wireman and Hicap phill like this.
  5. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    2,548
    Likes Received:
    527
    Location:
    North East. UK
    Yes will do.
    I am doing Transfer Box aswell with EP90.
    Just to make sure before I make anymore mistakes.

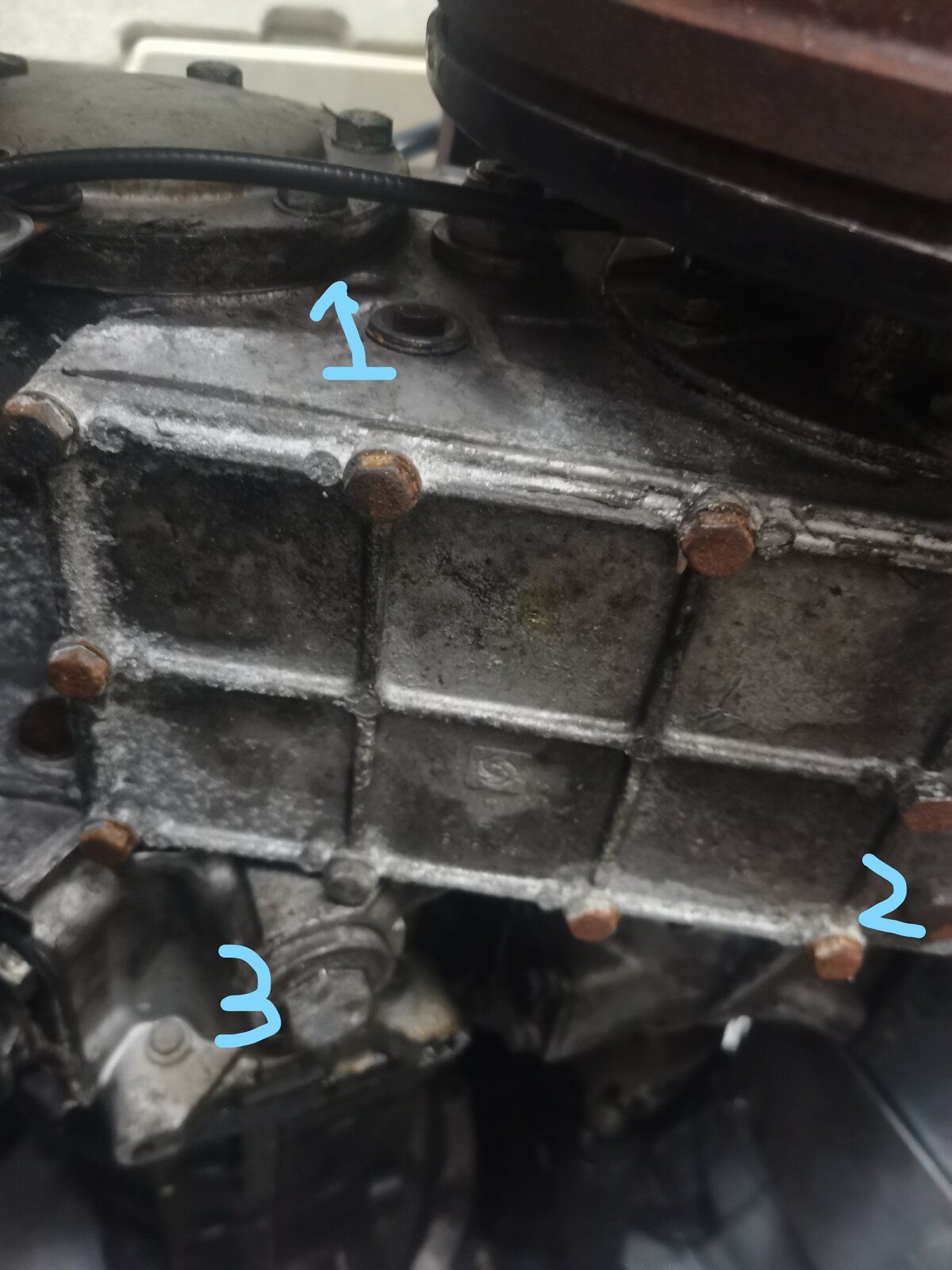

    Please correct me if I am wrong . In Pics Number 1 TB Filler, 2 TB Drain. 3 Gearbox Drain, 4 Gearbox Filler. ??


    Attached Files:

  6. mick 1986

    mick 1986 Well-Known Member

    Joined:
    Aug 20, 2010
    Posts:
    2,131
    Likes Received:
    554
    Location:
    Lost
    Im sure the LT77 has 2 drain plugs in it. One has a filter above it, the other doesn’t. I think it’s something to do with the extension case, but could be wrong.

    Edit, yes it does have 2, I thought it did.
    Have a look at this:
    https://www.landroverexpedition.com/technical/lt77-gearbox-oil-change/

    Disco1BFG likes this.
  7. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    2,548
    Likes Received:
    527
    Location:
    North East. UK
    Thanks Mick, Glad I asked now, knew there was a filter, have ordered one, but wasnt sure about other plug.

    mick 1986 likes this.
  8. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    87,602
    Likes Received:
    16,147
    Location:
    louth lincs

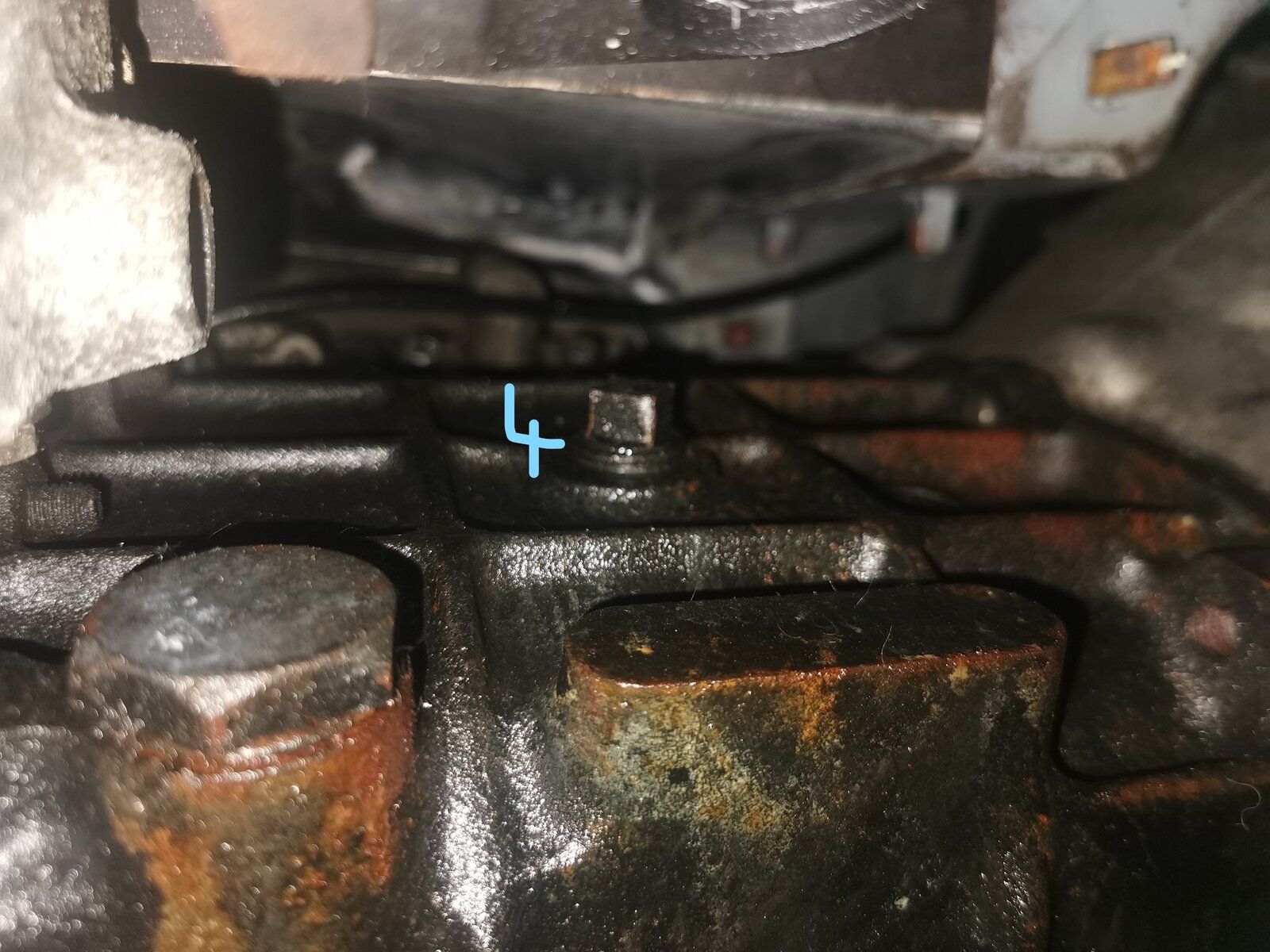

    under 4 is the gear box drain, you clean the filter

  9. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    2,548
    Likes Received:
    527
    Location:
    North East. UK
    I see it now James Dam thing was staring me in the face. Not got a clue when or if its been done before so ordered filter and washers.
    So 3 and this one to Drain.

    jamesmartin likes this.
  10. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    2,548
    Likes Received:
    527
    Location:
    North East. UK
    Just thinking now of a Plan now to fill the Bloody thing up, after Ive drained it.
    I can see it from the top if I remove the gear stick Gator thingy, so was thinking of some kind of tube and fill it from up there .
    Unless anyone knows a trick for doing it.

  11. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    87,602
    Likes Received:
    16,147
    Location:
    louth lincs
    you cant fill through the top either a tube or squirty bottle or garden sprayer

    Al2O3 likes this.
  12. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    9,121
    Likes Received:
    3,223
    Location:
    North of the Wall
    I use an old garden sprayer. Very easy as it's trigger controlled.

    flat and jamesmartin like this.
  13. Stanleysteamer

    Stanleysteamer Well-Known Member

    Joined:
    Nov 22, 2013
    Posts:
    10,192
    Likes Received:
    7,927
    Location:
    East Dorset
    Me too, bit slow but better!:)

    Al2O3 likes this.
  14. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    9,121
    Likes Received:
    3,223
    Location:
    North of the Wall
    You can decant the correct amount too!

  15. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    7,092
    Likes Received:
    4,806
    Location:
    Shropshire

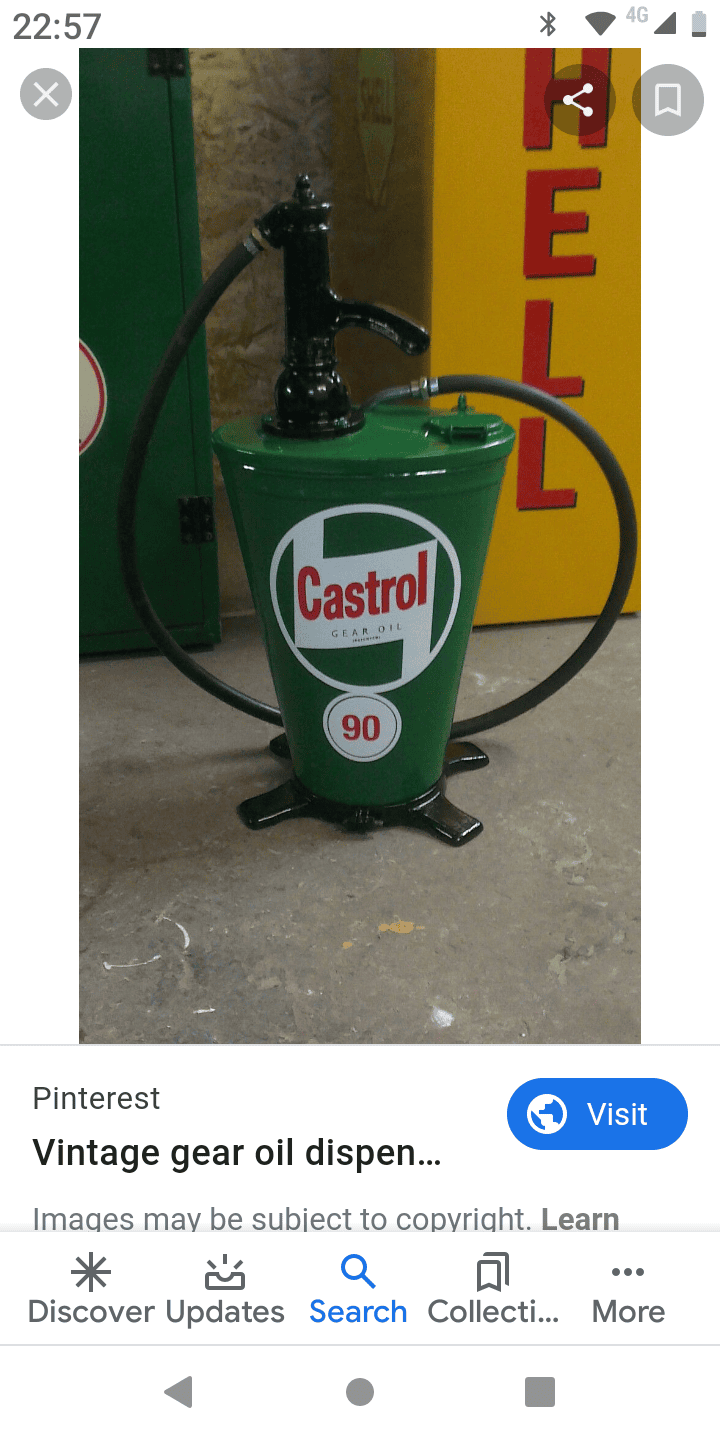

    I've got one of these, been in the family at least 40 yrs. Awesome thing. Not cheap to buy now though secondhand. Library pic not mine. Mine is well scruffy/dented. Screenshot_20200706-225724.png

    Disco1BFG and Al2O3 like this.
  16. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    9,121
    Likes Received:
    3,223
    Location:
    North of the Wall
    That's oil can porn, that is! :)

  17. Stanleysteamer

    Stanleysteamer Well-Known Member

    Joined:
    Nov 22, 2013
    Posts:
    10,192
    Likes Received:
    7,927
    Location:
    East Dorset
    Sadly they make so much money as an antique we are reduced to summat usually used to spray weedkiller!
    Very pretty! Wish I had one!:(

  18. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    87,602
    Likes Received:
    16,147
    Location:
    louth lincs
    mine is scruffy too still use it for the gear oils

  19. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    7,730
    Likes Received:
    2,550
    Location:
    Far away from you!!
    I stole your idea. It’s a top notch one :D

  20. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    2,548
    Likes Received:
    527
    Location:
    North East. UK
    Think Ill have to make do with this , till I can afford one of then fancy sprayers.:D


    Attached Files:

    Disco1BFG, Al2O3 and lynall like this.
