LT230 oil feed plate

Discussion in 'Defender 90 / 110 / 130' started by turrican, May 16, 2020.

< Previous Thread | Next Thread >
  1. turrican

    turrican Active Member

    Joined:
    Feb 23, 2013
    Posts:
    101
    Likes Received:
    44
    I've got a bit of play on my LT230 input gear, to stop it getting worse and to bide me some time I'm looking to fit an oil feed plate and new PTO cover. However I can't seem to find an oil feed plate in stock anywhere (Ashcroft online store says out of stock).

    Does any know where I can find one?

    Cheers

  2. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    86,249
    Likes Received:
    15,278
    Location:
    louth lincs
    ive got a few but you either have to drill out the center of the spigot or cut threads off mainshaft, if you have suffix c or later t/box better to fit a cross drilled gear

  3. turrican

    turrican Active Member

    Joined:
    Feb 23, 2013
    Posts:
    101
    Likes Received:
    44
    I've got suffix b, I have seen other threads where people have just reversed the plug on the PTO cover which then allows to fit.

    Do you have the covers as well?

  4. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    86,249
    Likes Received:
    15,278
    Location:
    louth lincs
    youve lost me with that, you either have to drill or cut as far as i know, i would have a cover id think, i ve collected quite a few oil thrower plates whilst rebuilding t/boxes, common fit to early r380 which had no threaded spigot on end of the shaft

  5. turrican

    turrican Active Member

    Joined:
    Feb 23, 2013
    Posts:
    101
    Likes Received:
    44

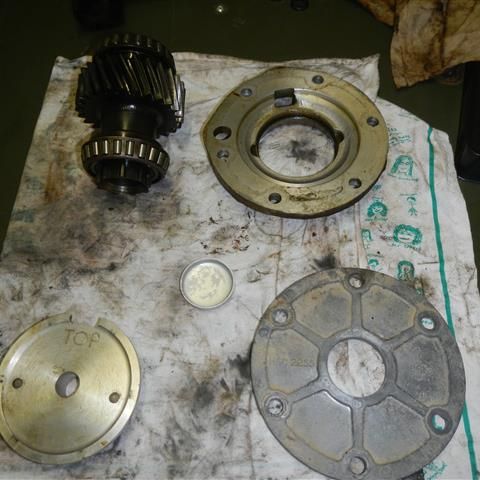

    I've attached a pic I found, some of the aluminium cover plates have a bung/plug in the middle. Are your ones solid?


    Attached Files:

  6. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    86,249
    Likes Received:
    15,278
    Location:
    louth lincs
    ali ones have a hole with a core plug, thrower plate doesnt though ill put a pic up of what i have

  7. turrican

    turrican Active Member

    Joined:
    Feb 23, 2013
    Posts:
    101
    Likes Received:
    44
    I've PM'd you.

  8. Rougharse Racing

    Rougharse Racing Well-Known Member

    Joined:
    Jan 27, 2017
    Posts:
    584
    Likes Received:
    282
    Location:
    The Grim North
    I fitted one to mine which is a L230 on the back of LT77, it went straight on without any fuss. Do I need to check for problems, or is the issue with R380 boxes?

  9. turrican

    turrican Active Member

    Joined:
    Feb 23, 2013
    Posts:
    101
    Likes Received:
    44
    Sorry don't know anything about R380 boxes.

  10. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    86,249
    Likes Received:
    15,278
    Location:
    louth lincs
    lr made the oil thrower plate for r380 boxes they dont have a threaded spigot on the rear of mainshaft, so pate fits as designed
    if you want to fit an oil thrower plate to an lt77 you either have to cut mainshaft thread off or as ashcrofts do modify the plate by enlarging the hole in the center so thread can fit into it

    Last edited: May 17, 2020
  11. Rougharse Racing

    Rougharse Racing Well-Known Member

    Joined:
    Jan 27, 2017
    Posts:
    584
    Likes Received:
    282
    Location:
    The Grim North
    Thanks for the reply, mine came from Ashcrofts, so hopefully it was modified by them.
