Loose throttle cable 2a

Hey guys. So after dropping my engine back on the 2a iv started putting it all back together. Noticed that my throttle cable is very loose now and the outer cable doesn't stay in place. I have to move the hand throttle well over half way just to take up the slack. Any ideas?

Only I would normally adjust the cable if this was my old mini but this throttle cable has a proper end fitted to it for a pin and split pin so I don't know where iv gone wrong

Ideas anyone?

Try taking this to the series forum.you'll get some response. The workshop manual has detailed structions on this. I'll see what it says. Do you have one? Is it petrol or diesel?

John S said:

Try taking this to the series forum.you'll get some response. The workshop manual has detailed structions on this. I'll see what it says. Do you have one? Is it petrol or diesel?

Click to expand...

Diesel or petrol would help a bit. But assuming it's diesel, there's a plastic adjuster where the outer terminates above the pump. However, it seems unlikely that it would take up half the travel, so maybe the outer is unseated where it enters the pedal box.

Diesel. I keep having to re-seat the outer cable cos it just falls out loose

SpringDon?

Stormintrooper said:

Ideas anyone?

Click to expand...

adjust the linkage theres a pinch bolted arm you adjust

jamesmartin said:

adjust the linkage theres a pinch bolted arm you adjust

Click to expand...

Any chance you could show me a picture of said part?

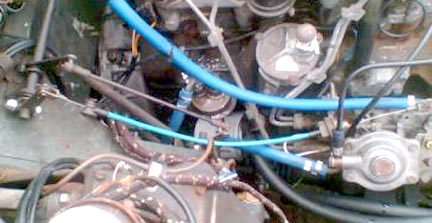

lhs of pic

The part on the far left?

yes the arm with cable attached is adjustable,

or this one same thing by the way of adjustment
