L322 Locking wheel nut location?

Discussion in 'Range Rover' started by omega1, Jan 26, 2022.

< Previous Thread | Next Thread >
  1. omega1

    omega1 Active Member

    Joined:
    Jul 10, 2021
    Posts:
    65
    Likes Received:
    41
    Location:
    Hampshire, UK
    Hi all,

    I purchased an L322 (02) a while back and didn't check for the locking wheel nut (my bad). I'm now looking at doing some work and have realised I do not know where the locking wheel nut is (or should be). I've taken the boot apart looking for it and can't find it and just wanted to check where it should be and, worse case scenario, what to do if it really is missing.

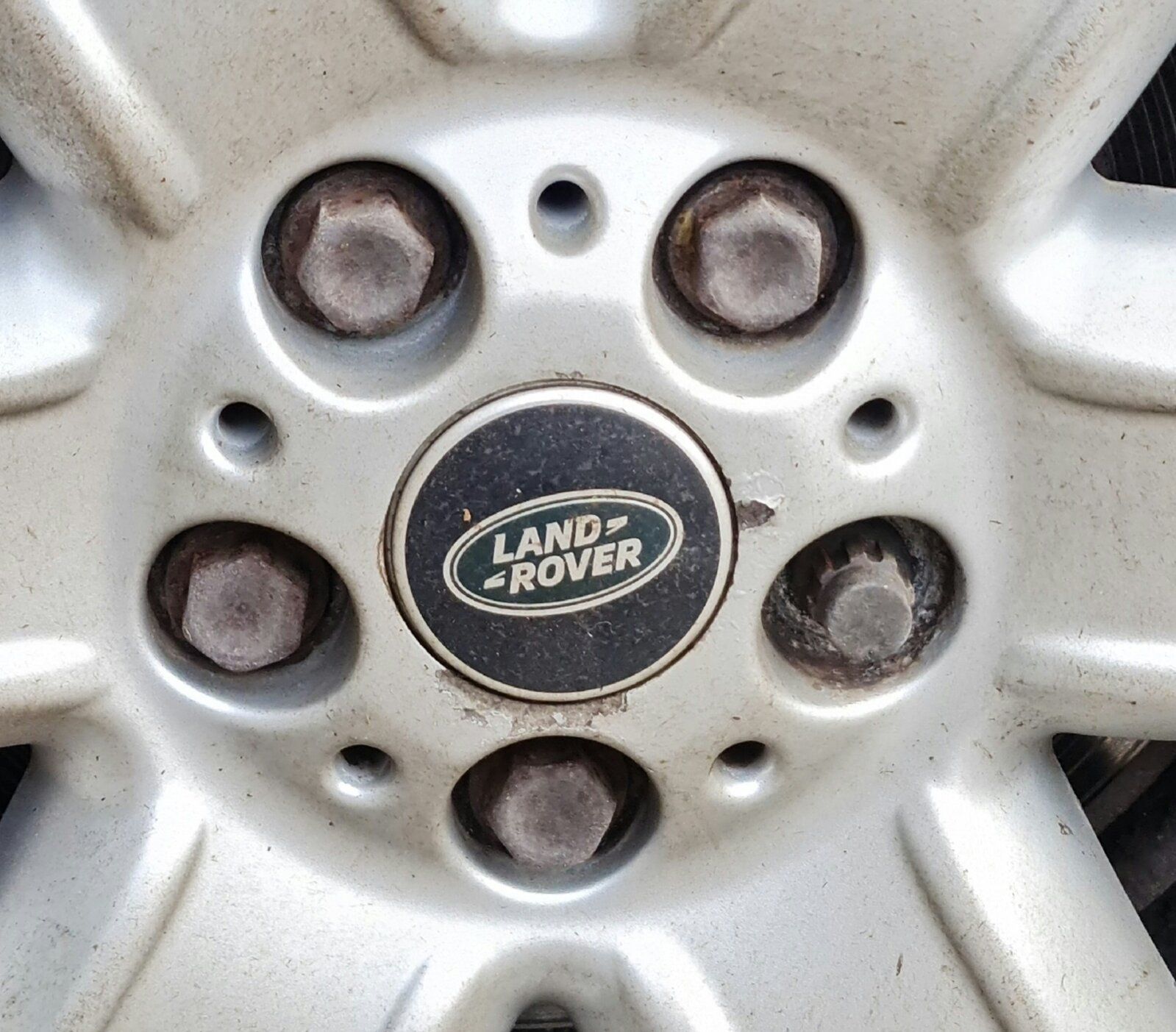

    Attached image of (wheel) nuts.

    Thanks in advance.


    Attached Files:

  2. kermit_rr

    kermit_rr Green Member Full Member

    Joined:
    Dec 9, 2018
    Posts:
    18,831
    Likes Received:
    23,340
    Location:
    North Shropshire
    If it were mine, I'd take it off and replace with a normal one

  3. omega1

    omega1 Active Member

    Joined:
    Jul 10, 2021
    Posts:
    65
    Likes Received:
    41
    Location:
    Hampshire, UK
    Thanks, this is the bit I'm struggling with as I can't find the locking wheel nut to remove it.

  4. kermit_rr

    kermit_rr Green Member Full Member

    Joined:
    Dec 9, 2018
    Posts:
    18,831
    Likes Received:
    23,340
    Location:
    North Shropshire
    Find a 12 point socket you can hammer on there nice and tight and give it a whirl. You'll probably ruin the wheel nut, but so what.
    Failing that your local tyre garage will likely help

    omega1 likes this.
  5. Lezley

    Lezley Member

    Joined:
    Oct 17, 2020
    Posts:
    58
    Likes Received:
    18
    Location:
    Scotland
    I had a similar issue when my adaptor stripped and would no longer rotate the locking nut. You can get locking wheel nut removal sockets, you select one a bit bigger than the nut. When you put them on rotating the socket causes it to cut into the nut and eventually it will rotate it off. You then put the nut with adapter attached in the vice, rotate in the opersite direction to release the socket. Alternatively, as I did, find an old socket slightly smaller than the locking nut, hammer it on and remove the nut as normal, they shouldn't be that tight 140Nm. You then have to hammer the nut back out the socket and move on to next wheel. Hope that helps, good luck

    omega1 likes this.
  6. badfluffy

    badfluffy Well-Known Member

    Joined:
    Dec 18, 2019
    Posts:
    721
    Likes Received:
    624
    Location:
    bedford
    looks an after market one

    omega1 likes this.
  7. omega1

    omega1 Active Member

    Joined:
    Jul 10, 2021
    Posts:
    65
    Likes Received:
    41
    Location:
    Hampshire, UK
    Could anyone share where the locking wheel nut is meant to be located within the vehicle?
    I may be looking in the wrong place.
    Thanks.

  8. marjon

    marjon Well-Known Member Full Member

    Joined:
    Jul 15, 2018
    Posts:
    9,869
    Likes Received:
    20,585
    Location:
    Bulgaria
    Ours sits in a hole in the rubber that holds the bits and bobs next to spare wheel ( 2011)

    J
