L322 Lock down wheel refurb

Discussion in 'Range Rover' started by biketeacherdave, May 7, 2020.

< Previous Thread | Next Thread >
  1. biketeacherdave

    biketeacherdave Well-Known Member

    Joined:
    May 22, 2014
    Posts:
    3,623
    Likes Received:
    998
    Location:
    south east london
    In response to a few pms iv decided to give my wheel refurb its own post with each stage. All done with rattle cans....enjoy.
    So my wheels were pretty bad and needed cleaning up the plan was a full rub down some primer then some new wheel silver spray paint.

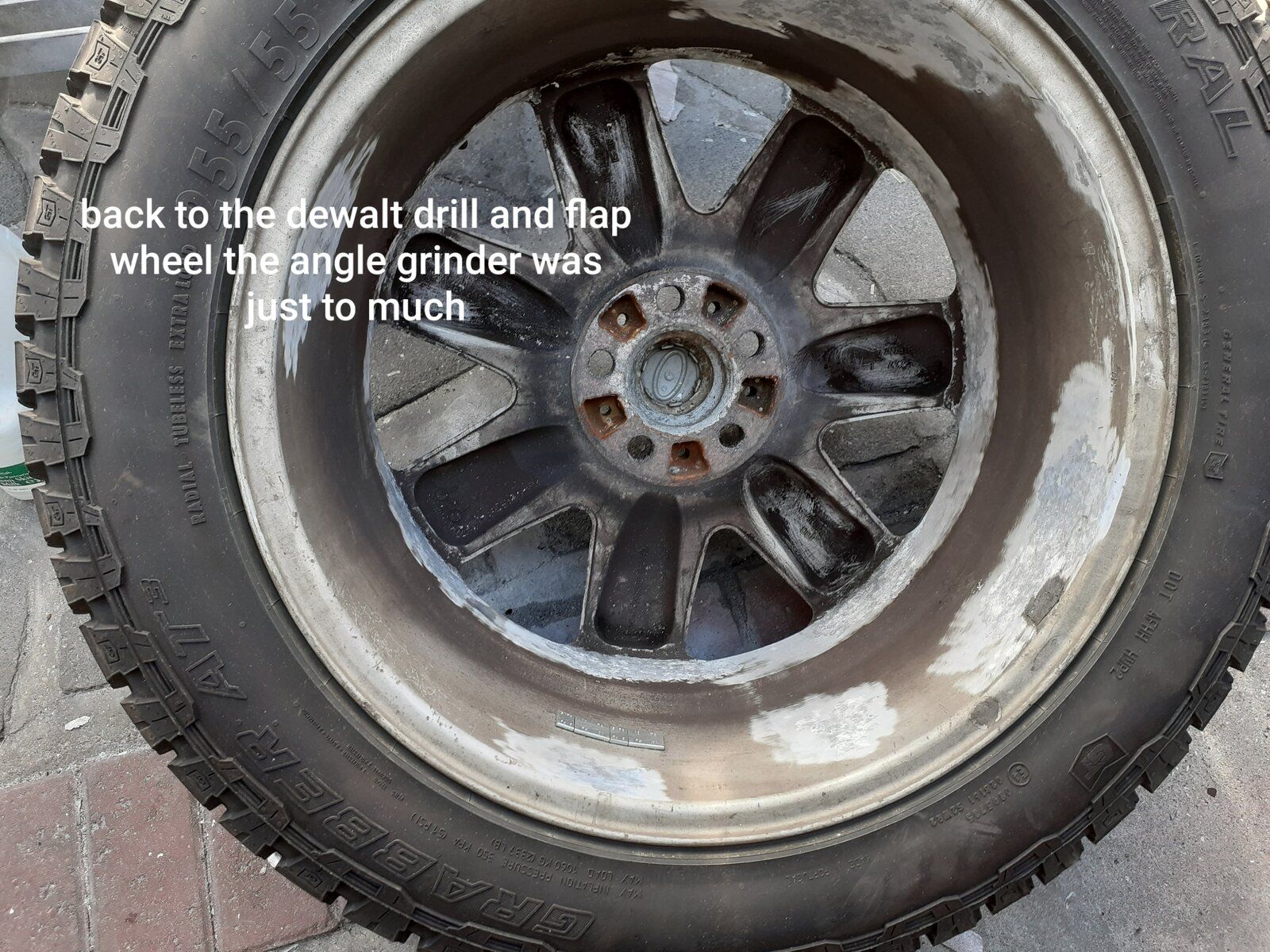

    Cleaned up ok mixture of wire brush, dremmel for the corners and rubbing down with sand paper of various grade.
    Iv had to make do with what I had in the shed, garage and any other place I had bits of old sand paper laying around. Lock down nothing open no where to buy new supplies.
    All the wheels got a few coats of etch primer needed to help the top coat stick to the bare metal, there was lots as the corrosion was down to the alloy in a lot of places
    Here we have a finished wheel. I managed to get rattle cans off the bay. This was called wheel silver. I hated the colour and the finish was poor due to me not preping the wheels well enuff.
    Back to the drawing board. Time to start again. Rub the wheels down once again order up some filler primer and different top coat.
    This time iv spent a lot longer on prep. Better rubbing down more coats of etch primer followed by filler primer. I love this stuff it goes on pretty good x3 coats per wheel 1 every 15 mins and left over night to dry. No wet sanding like I did on the etch primer.
    It's all in the prep. It's now time for top coat I decided on something dark but not black as the car is Baltic blue.......took me ages but decided on Bavarian anthracite dark grey.
    Had todo the wheels 2 tone the inside rims have been given x3 coats of satin black.
    There never gonna be purfect but 100% better than they were.
    Iv let the top coat dry for a few days or so time for clear coat. Got x1 wheel done late today.
    Here is the final finish my lockdown rattle can special hand preped odds and sods sand paper a few cans of etch primer a few cans of filler primer some top coat and clear coat and a lot of man hours.


    Attached Files:

    Last edited: May 7, 2020
    MrGorsky, Tricky of York and Dippypud like this.
  2. wooly123

    wooly123 Active Member

    Joined:
    Oct 16, 2014
    Posts:
    153
    Likes Received:
    26
    Location:
    rye east sussex
    well done,a very good job,you must be well pleased,i will have to mine sometime.

  3. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    5,634
    Likes Received:
    2,120
    Location:
    sud ouest France
    Niiiice, I got your address from Google maps.. Saw you n the garden. Mine are on the way with cake. ;)

    Dippypud likes this.
  4. biketeacherdave

    biketeacherdave Well-Known Member

    Joined:
    May 22, 2014
    Posts:
    3,623
    Likes Received:
    998
    Location:
    south east london
    Will need to be a bloody good cake

  5. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    5,634
    Likes Received:
    2,120
    Location:
    sud ouest France
    We are going to meet up at Datateks holiday gîte... And I'll bring wine and cake:cool: SMirC-thumbsup.svg.png

  6. biketeacherdave

    biketeacherdave Well-Known Member

    Joined:
    May 22, 2014
    Posts:
    3,623
    Likes Received:
    998
    Location:
    south east london
    You can break the news to him

  7. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    5,634
    Likes Received:
    2,120
    Location:
    sud ouest France
    QUOTE="biketeacherdave, post: 4865807, member: 112995"]You can break the news to him[/QUOTE]

    @Datatek is all for it... Errr.... Don't quote me on that.... :eek:

  8. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    36,551
    Likes Received:
    3,674
    Location:
    Near Poitiers SW France
    @Datatek is all for it... Errr.... Don't quote me on that.... :eek:[/QUOTE]
    No problem, it's £80 per day cash for the Gite, tents are only £40 per day:p

    Mark Piercy likes this.
  9. Bix

    Bix Well-Known Member

    Joined:
    Jan 6, 2012
    Posts:
    3,195
    Likes Received:
    275
    Location:
    Shrewsbury
    Thems are some good looking wheels. Dammit now I want to do mine, but it is currently the last job on the list... but I mean, I imagine it wouldn't hurt to buy the supplies to do my spare, for practice.

    [Edit: did you remove the wheel weights, or just spray over them?]

  10. biketeacherdave

    biketeacherdave Well-Known Member

    Joined:
    May 22, 2014
    Posts:
    3,623
    Likes Received:
    998
    Location:
    south east london
    Just sprayed over them

  11. gold rover

    gold rover Well-Known Member

    Joined:
    Nov 22, 2010
    Posts:
    7,186
    Likes Received:
    4,361
    Location:
    Scotland,
    Nice. I like the black inside.

  12. brianp38dse

    brianp38dse Well-Known Member

    Joined:
    May 13, 2014
    Posts:
    9,678
    Likes Received:
    3,951
    Location:
    heathrow
    So whats the turn round time for you to do a set of wheels:D

    Very nice job in deed :):):)

    Mark Piercy likes this.
  13. biketeacherdave

    biketeacherdave Well-Known Member

    Joined:
    May 22, 2014
    Posts:
    3,623
    Likes Received:
    998
    Location:
    south east london
    It ain't gonna happen :D

    Mark Piercy and brianp38dse like this.
  14. brianp38dse

    brianp38dse Well-Known Member

    Joined:
    May 13, 2014
    Posts:
    9,678
    Likes Received:
    3,951
    Location:
    heathrow
    Just think it could be a nice little lockdown earner:D:D:D

    Mark Piercy likes this.
  15. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    5,634
    Likes Received:
    2,120
    Location:
    sud ouest France
    I agree.. o_O
    @Datatek, I'll sleep in the '38:D

  16. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    36,551
    Likes Received:
    3,674
    Location:
    Near Poitiers SW France
    Ah, the parking charge is cheaper, only £20 per night:p:D:D

    Mark Piercy likes this.
  17. Bagshot

    Bagshot Well-Known Member

    Joined:
    May 14, 2016
    Posts:
    678
    Likes Received:
    414
    Location:
    Cornwall
    Anyone get the feeling..'never again'!!

  18. Bix

    Bix Well-Known Member

    Joined:
    Jan 6, 2012
    Posts:
    3,195
    Likes Received:
    275
    Location:
    Shrewsbury
    Never say never again...

  19. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    5,634
    Likes Received:
    2,120
    Location:
    sud ouest France
    What, never ever!!

  20. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    5,634
    Likes Received:
    2,120
    Location:
    sud ouest France
    Ever.....
