light bar wires

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
trbod

trbod

New Member
Posts
414
Location
west yorkshire
just fitted me a light bar ans wondering the best way to wire them in.i was thinking of running them down underneath the roof rack then drilling through just above the side window on the back end.

any thoughts or pictures of this or other ways boys n girls.


tarrrrrrrrrrrrrrrrrrrrrrrrrrrr

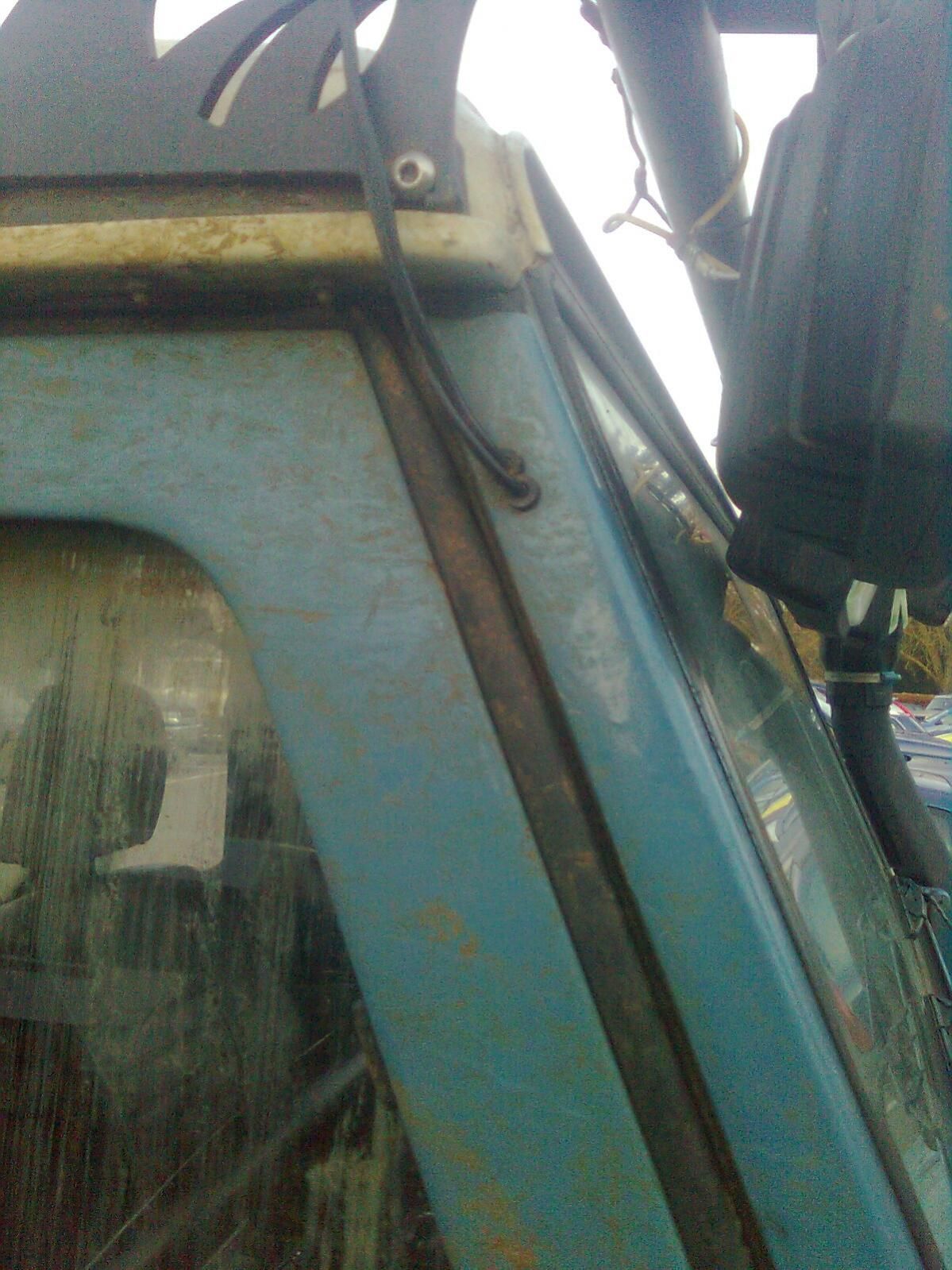

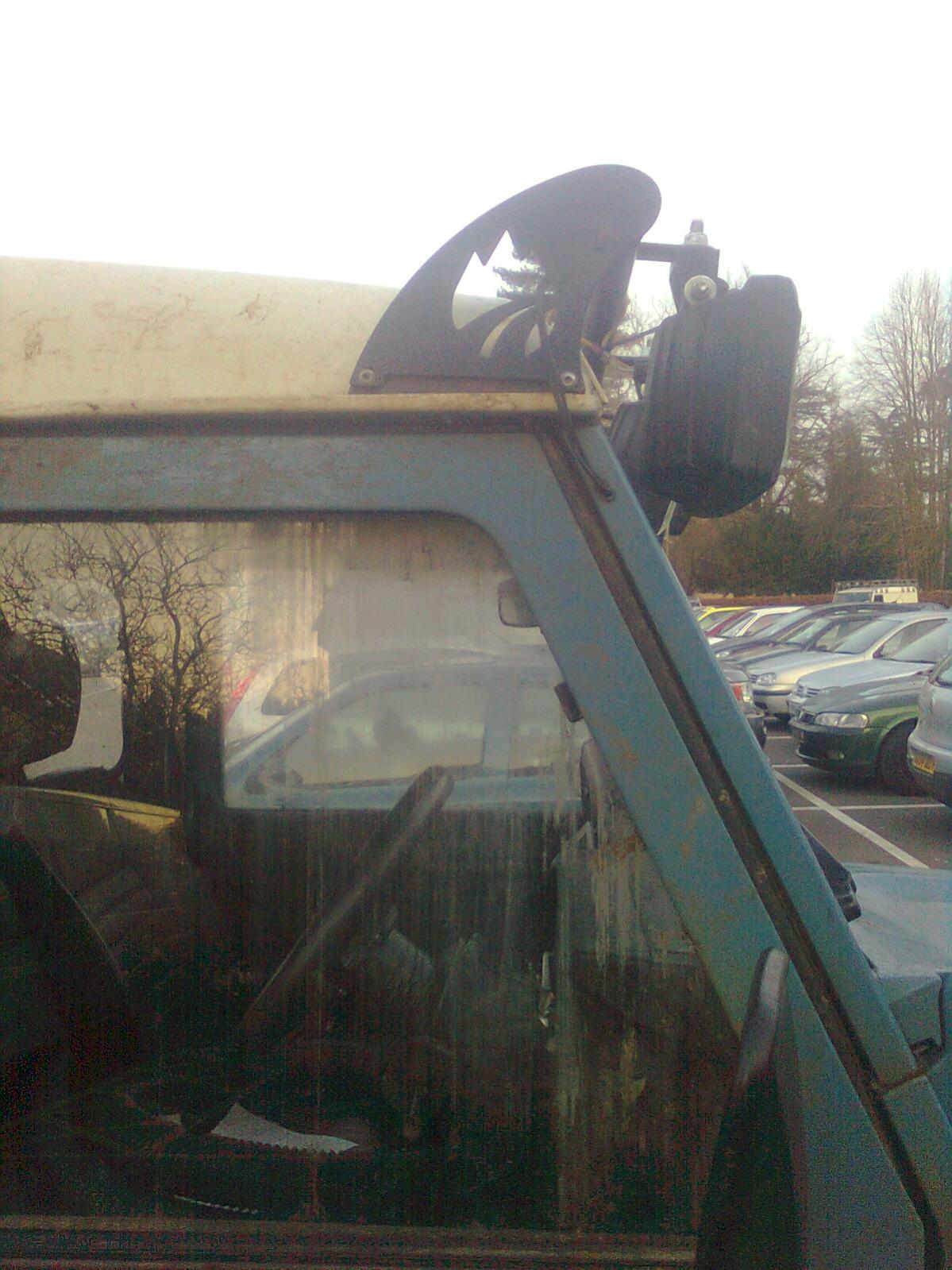

yer i ran mine along the bar then drilled to small holes in the side of the drivers side just infront of the door then ran them down the inside and into the dash. if you look in the corners by the windscreen thers a couple of plastic blanking strips that just unscrew so ran them behind that. also stuck a couple of rubber gromits in the holes to try and stop water leaking in

ther we go


Attachments

  • Image0032.jpg
    244.5 KB · Views: 251
  • Image0033.jpg
    208.1 KB · Views: 365

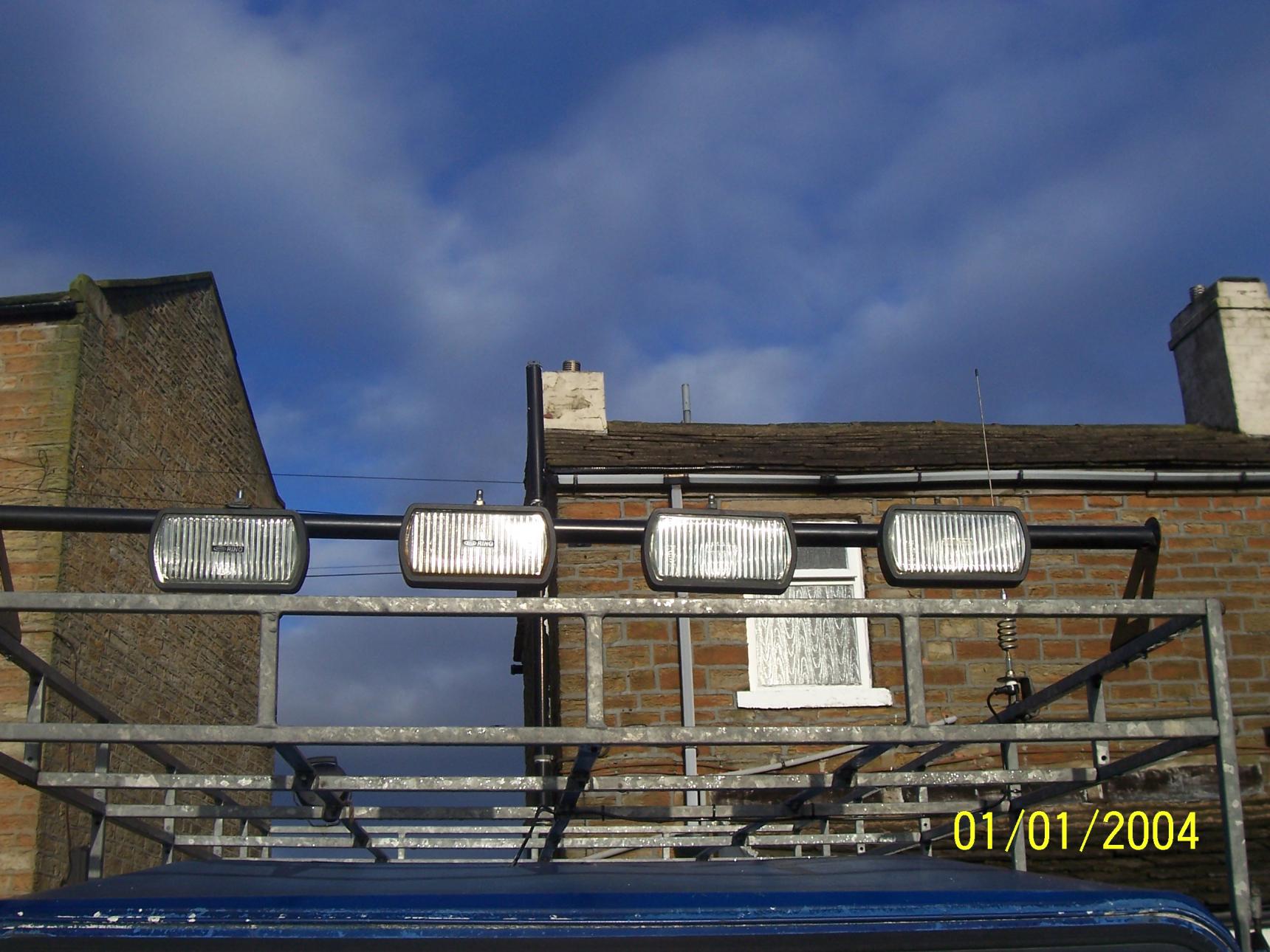

thats how it is at min but i also have an unwired work light on the back , that was main reason for thinkning of going through the back , out of site and just the one hole


Attachments

  • 100_1536.jpg
    235.4 KB · Views: 221
wher did u get those lights? well ul need at least 2 wires, 1 for earth and one for power. In reality ull need 3 min. one power for front, one for rear and an earth, unless u want to put the front 4 lights and the rear work light on the same switch. tbh the way ive dun mine its pretty discrete. u dont really notice it tho i can see why ud want it away out of sight. could always go thru the roof but greater chance of leaks

got them from a scrappie only 20 nicker , i have a control panel with 5 switches on im thinkning of doing one for the light bar , 1 for rear working light , 1 for the internal light in the back so kids canr mess about, 1 for mi map light and one for mi spots on the abar

am trying to do all this before i start plywooding the inside out then i can hise cables better

was that way up when i took them off , ive just put them a tad further back so when i take the bonnet fully back they dont bang together

Sean said:
wasn't on about your lights, the other blokes
Click to expand...
yer they are but stops em getting hit by branches. lookin to get sum smaller size ones similar to that in the pics of the roof rack. any ideas wher to get them. had a look but cant seem to find any :confused::(
