Led light bars

Discussion in 'Defender 90 / 110 / 130' started by Tom6830, Nov 28, 2019.

< Previous Thread | Next Thread >
  1. Tom6830

    Tom6830 New Member

    Joined:
    Sep 2, 2019
    Posts:
    9
    Likes Received:
    0
    Location:
    Brecon
  2. kevstar

    kevstar Well-Known Member

    Joined:
    Sep 25, 2013
    Posts:
    4,547
    Likes Received:
    4,633
    Location:
    In Isolation
    I have one on my disco but its the 52" curved one which gives more of a wider angle compared to my mates
    one which is much the same as the one in your link.
    They are mega bright I have 2 huge led spots aswell they make a massive difference. :D

    UsInWorld likes this.
  3. gaza gas

    gaza gas Well-Known Member

    Joined:
    Dec 29, 2018
    Posts:
    447
    Likes Received:
    154
    Location:
    n. wales
    kev hi been looking for a decent flood light radius 10mtrs. a good close range work lamp.
    all look good but reliability. i need some thing that will not fail.

  4. Val. h

    Val. h Active Member

    Joined:
    Jun 7, 2016
    Posts:
    125
    Likes Received:
    16
    Location:
    West Wales
    How does the quoted power work. Surly 3900watts would fry your battery???

    Tenebreaux likes this.
  5. Tom6830

    Tom6830 New Member

    Joined:
    Sep 2, 2019
    Posts:
    9
    Likes Received:
    0
    Location:
    Brecon
    I’m guessing the quotes watts are wrong

  6. Tenebreaux

    Tenebreaux Well-Known Member

    Joined:
    Sep 28, 2019
    Posts:
    842
    Likes Received:
    970
    Location:
    Armagh
    325 Amps does seem a little excessive.

  7. kermit_rr

    kermit_rr Well-Known Member

    Joined:
    Dec 9, 2018
    Posts:
    5,496
    Likes Received:
    2,805
    Location:
    North Shropshire
    They quote 10-30v, maybe the 3900w is at 24v, even so it's quite hefty!!!
    A pokey 150a alternator won't keep you driving

  8. kevstar

    kevstar Well-Known Member

    Joined:
    Sep 25, 2013
    Posts:
    4,547
    Likes Received:
    4,633
    Location:
    In Isolation
    I cant put my hands on the receipts for mine but when im driving with all my lights bar & spots my
    volt meter drops from 14.2 down to 13.9.

    They convert the amount of lumens into watts something like 1 watt = 100 lumens so the higher
    the lumens the brighter the light, but they don't draw much at all so there is no way they figures
    work out. Im just in the dark as much as you lol (pardon the pun):D

  9. Steve Flint

    Steve Flint Member

    Joined:
    Nov 7, 2015
    Posts:
    54
    Likes Received:
    11
    Location:
    Scarborough
    Watts is still a measurement of power, in DC terms Watts equals volts times amps, So if this wattage is correct the light bar would need to be wired using starter motor cable.

    Steve.

    mick the builder likes this.
  10. kermit_rr

    kermit_rr Well-Known Member

    Joined:
    Dec 9, 2018
    Posts:
    5,496
    Likes Received:
    2,805
    Location:
    North Shropshire
    I have to say i wouldn't buy it. Either is wrong, but there are plenty of others on ebay boasting 3000+ watts, or its going to kill the vehicle
    If the advert is wrong on the watts, what else is wrong...

  11. mick the builder

    mick the builder Well-Known Member

    Joined:
    Jul 12, 2010
    Posts:
    3,814
    Likes Received:
    2,047
    Location:
    Sligo,Wild West of Ireland.
    I always go for one where the blurb in the add has good grammar unlike the ones that say," thanking you for chosen are lighting bar and hope you have plenty enjoyable times using it."

    UsInWorld likes this.
  12. border

    border Well-Known Member

    Joined:
    Aug 17, 2008
    Posts:
    2,179
    Likes Received:
    374
    Location:
    North East. UK

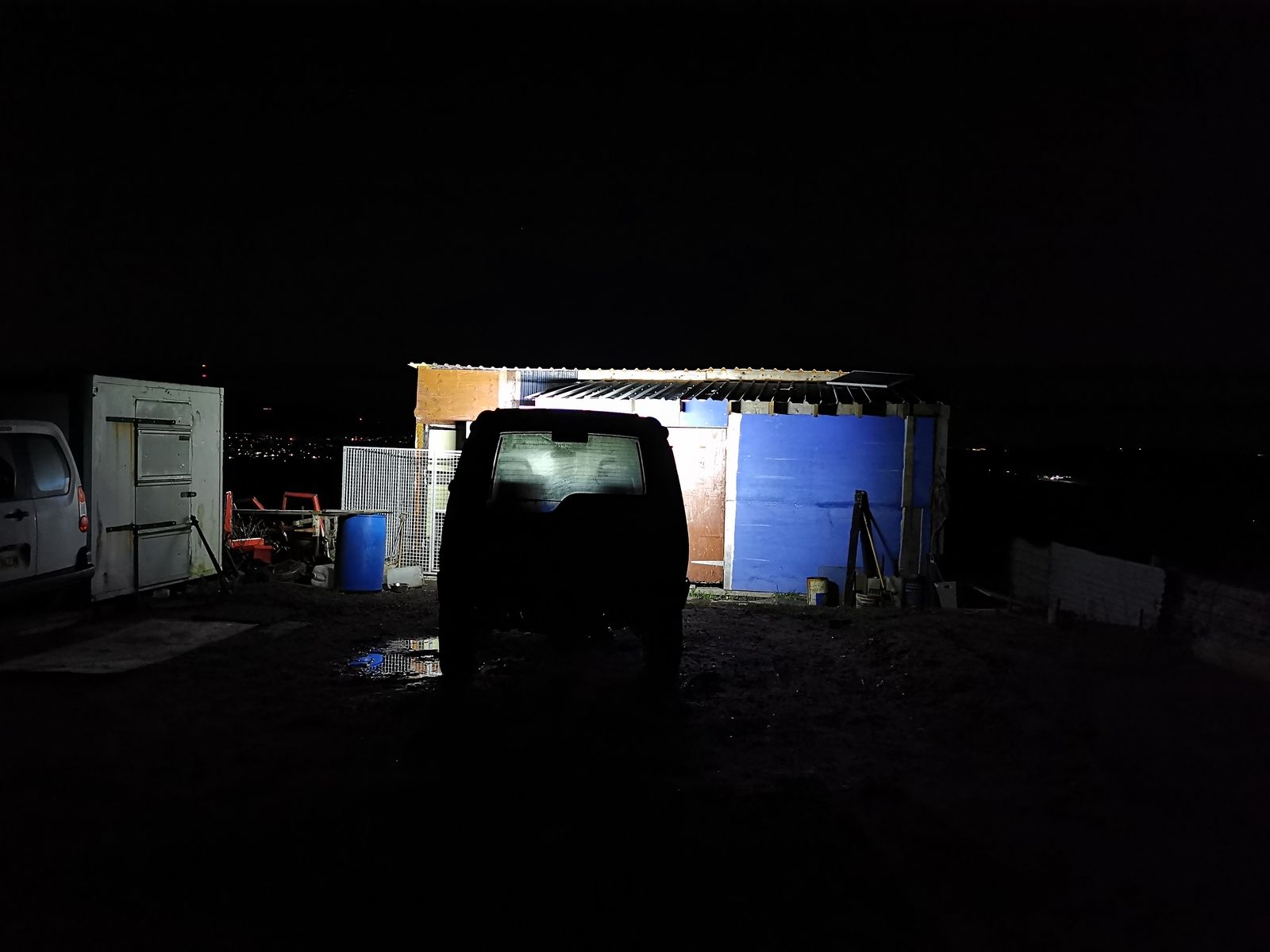

    Mines a curved one and its really good, aint got a clue what watt it is but never had a problem with it, then again never left it on for a long time. Very wide beam seems to shine out sideways to, as well as forward, lights the whole yard up,


    Attached Files:

  13. ogb

    ogb Active Member

    Joined:
    Jun 2, 2015
    Posts:
    286
    Likes Received:
    81
    Location:
    Moray, NE Scotland
    Perhaps not an answer to the OP's question, but doesn't a roof mounted light bar put everything close to the vehicle into deepest darkest blackness and make it useless for illuminating the way ahead except at a distance, which is why we have headlamps?

  14. Val. h

    Val. h Active Member

    Joined:
    Jun 7, 2016
    Posts:
    125
    Likes Received:
    16
    Location:
    West Wales
    What the big over cab lights do, is to light up the ground imediately in front of the vehicle making it easy to see and to navigate safely over the rough stuff when off roading. This type of light is not desiged to be a driving light having as you say no reach of beam. For this the spotlights on the front bumper/grill are the best. Though I have to say, if all the lights are used together on the road you will obviously be able to see much more both close and far. HTH.

  15. leeds

    leeds Well-Known Member

    Joined:
    Jul 23, 2010
    Posts:
    296
    Likes Received:
    115
    Lets just have a look at the specifications

    Specifications:
    Dimensions: 52 Inch
    LED Count: 390/PCS
    Operating Voltage: DC 10-30V
    Color Temperature: 6000K
    Power: 3900W
    Lumens: 390000LM
    Beam: Combo Beam
    Waterproof rate: IP 68


    3,900 watts is wrong . have inserted comma for clarity

    390,000LM is wrong. have inserted comma for clarity

    Elsewhere it declares light output as 31,200LM, 12 volt and it a FOG light with a combo pattern.

    Now top end specification LED are capable of 100+LM measured output per watt.

    Top end spec LED comes with top end price tag of $+ each rather then cents price each of bottom end. Note no mention of LED maker or product number, will not go down BIN route (Batch Identification Number often split into10 different grades within a particular product code)

    Now is claimed light output of 31,200 or is it 390,000 LM the theoretical light output, the calculated light output or a measured light output?

    My guess? Wet a finger, stick it up in the air, guess a number and stick a nought or two on the end.
    As for the IP rating, shear guess work

    Also look at

    Do their best to fiddle UK HMRC

    Yes it might slip under the radar. However am still arguing with an importer about a duty/vat of £90.25 invoice on goods and shipping costing 165 USD 3 months down the line. Of course there is the handling charges etc on top
