Large cups

F

FUNGUS

Member

Posts

24

Location

Swindon

• Dec 20, 2021

• #1

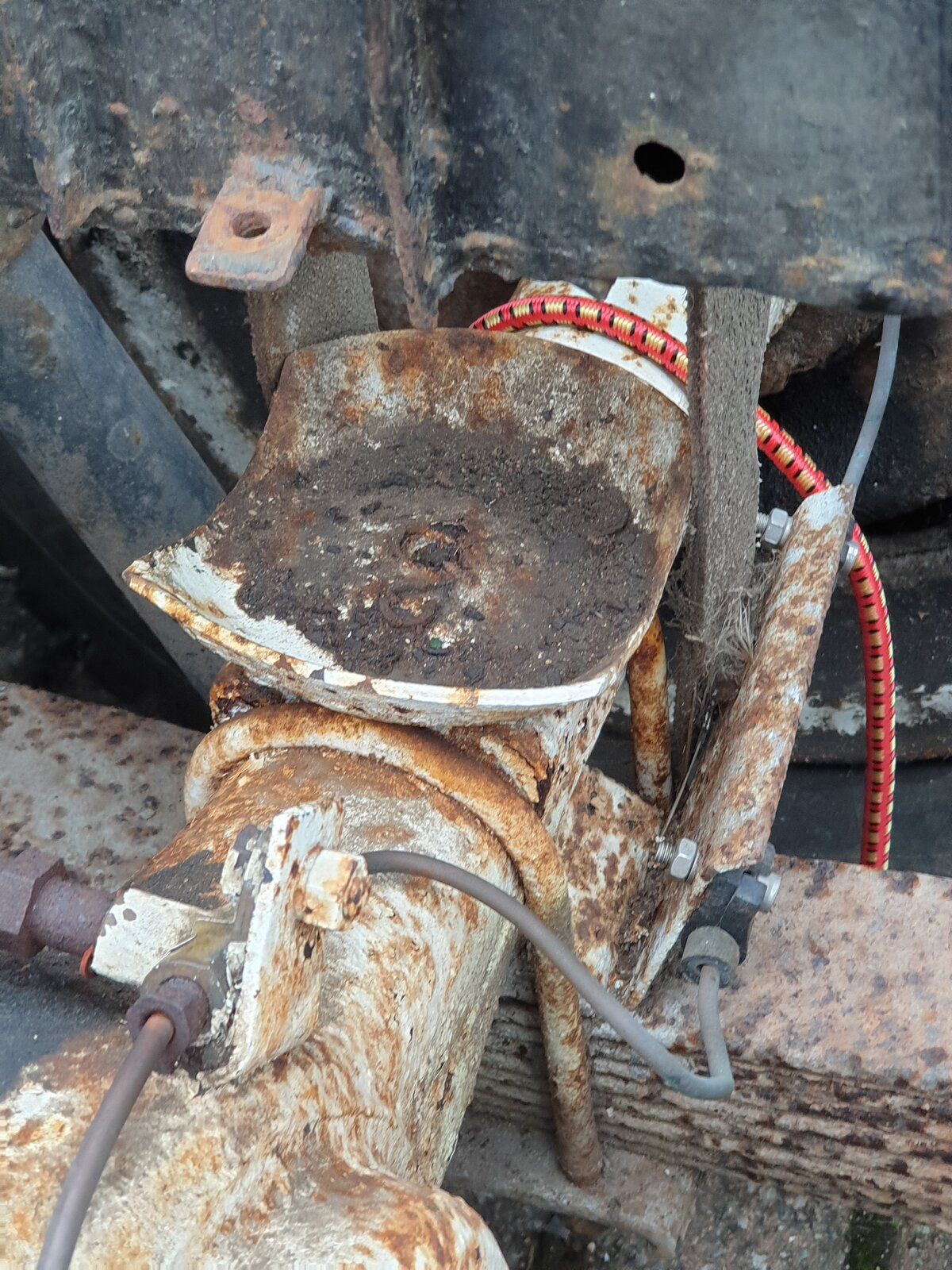

My series IIA has large cups under the bump stops. Any ideas why? And they do interfere with the axel straps. I'm about to move the axels yo a new chassis and am thinking of just grinding them off in the move.



Attachments

•

  389.6 KB · Views: 146

TheMegaMan

Well-Known Member

Posts

516

Location

Cambridge

• Dec 20, 2021

• #2

Looks to me like they are for coil springs. Is it possible the axle came from a Defender?



F

FUNGUS

Member

Posts

24

Location

Swindon

• Dec 20, 2021

• #3

TheMegaMan said:

Looks to me like they are for coil springs. Is it possible the axle came from a Defender?

Click to expand...

It's possible, I was hoping someone would know for sure. Just seemed a strange place for them to be.



Blackburn

Well-Known Member

Posts

3,105

Location

Tyneside

• Dec 20, 2021

• #4

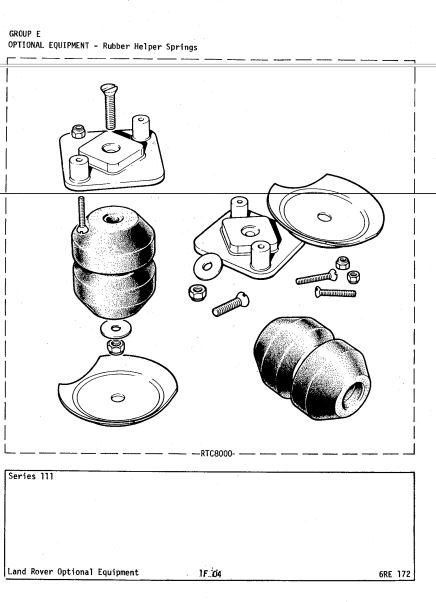

If I recall correctly you could get a rubber helper springs that sat in a cup like that.
Optional parts catalogue pdf No2.



Attachments

•
  Helper spring.JPG

  45.6 KB · Views: 130

F

FUNGUS

Member

Posts

24

Location

Swindon

• Dec 20, 2021

• #5

Blackburn said:

If I recall correctly you could get a rubber helper springs that sat in a cup like that.
Optional parts catalogue pdf No2.

Click to expand...

Thanks for the info. That makes sense. It was a tow truck with crane in its first incarnation, so helper springs would make sense.



tottot

Well-Known Member

Posts

8,082

Location

west wales coast

• Dec 20, 2021

• #6

Plus 1 on helper springs.



W

Wildefalcon

Well-Known Member

Posts

1,685

• Dec 21, 2021

• #7

Definitely helper springs. Also fitted to armoured Landrovers, including the lightweight Landrovers in northern Ireland.

Grind them off. Just a rust trap.
