Landrover 90 truck cab seat belt fitting pics please

Discussion in 'Defender 90 / 110 / 130' started by haza88, Jun 27, 2022.

< Previous Thread | Next Thread >
  1. haza88

    haza88 Well-Known Member

    Joined:
    Nov 10, 2009
    Posts:
    886
    Likes Received:
    301
    After a bit of help pictures ideally

    does any one have or could take some pics for me of where the seat belts and buckles mount on a landrover 90 truck cab 1984 to be precise)

    it came with poor bucket seats and harnesses got standard seats and seat belts to fit but I really am struggling to work out how they mount

    Any pics much appreciated

  2. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    13,132
    Likes Received:
    31,423
    Location:
    Wiltshire
    Not near the motor….
    Look by the door opening for a threaded hole, this is for the top seat belt bracket.
    Straight downwards the inertia part bolt
    Then the buckle is by the outer part of the seat.
    (If you don’t get any photos remind me Friday when I’m home)

    haza88 likes this.
  3. haza88

    haza88 Well-Known Member

    Joined:
    Nov 10, 2009
    Posts:
    886
    Likes Received:
    301
    Lovely job cheers I feel the belts and brackets I have are for a later model and different inc the buckles

  4. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    13,132
    Likes Received:
    31,423
    Location:
    Wiltshire
    Take a photo of what you have. They may have changed on later models

  5. Beneagles

    Beneagles Well-Known Member Full Member

    Joined:
    Oct 27, 2009
    Posts:
    5,574
    Likes Received:
    4,264
    Location:
    North Perthshire
    May not be much use, but only pic I have :
    1984 110.
    Shows the top mount for both sides. As @Hicap phill says the inertia part is straight down from there.
    headlining back in.JPG

  6. haza88

    haza88 Well-Known Member

    Joined:
    Nov 10, 2009
    Posts:
    886
    Likes Received:
    301
    Thank you they are different on a truck cab

    the ones I have came loose in a box and they are definatly from a newer defender and two of the brackets I have identified and are for a van back

  7. mpd2378

    mpd2378 Member

    Joined:
    Jun 2, 2022
    Posts:
    29
    Likes Received:
    10
    Location:
    Uk

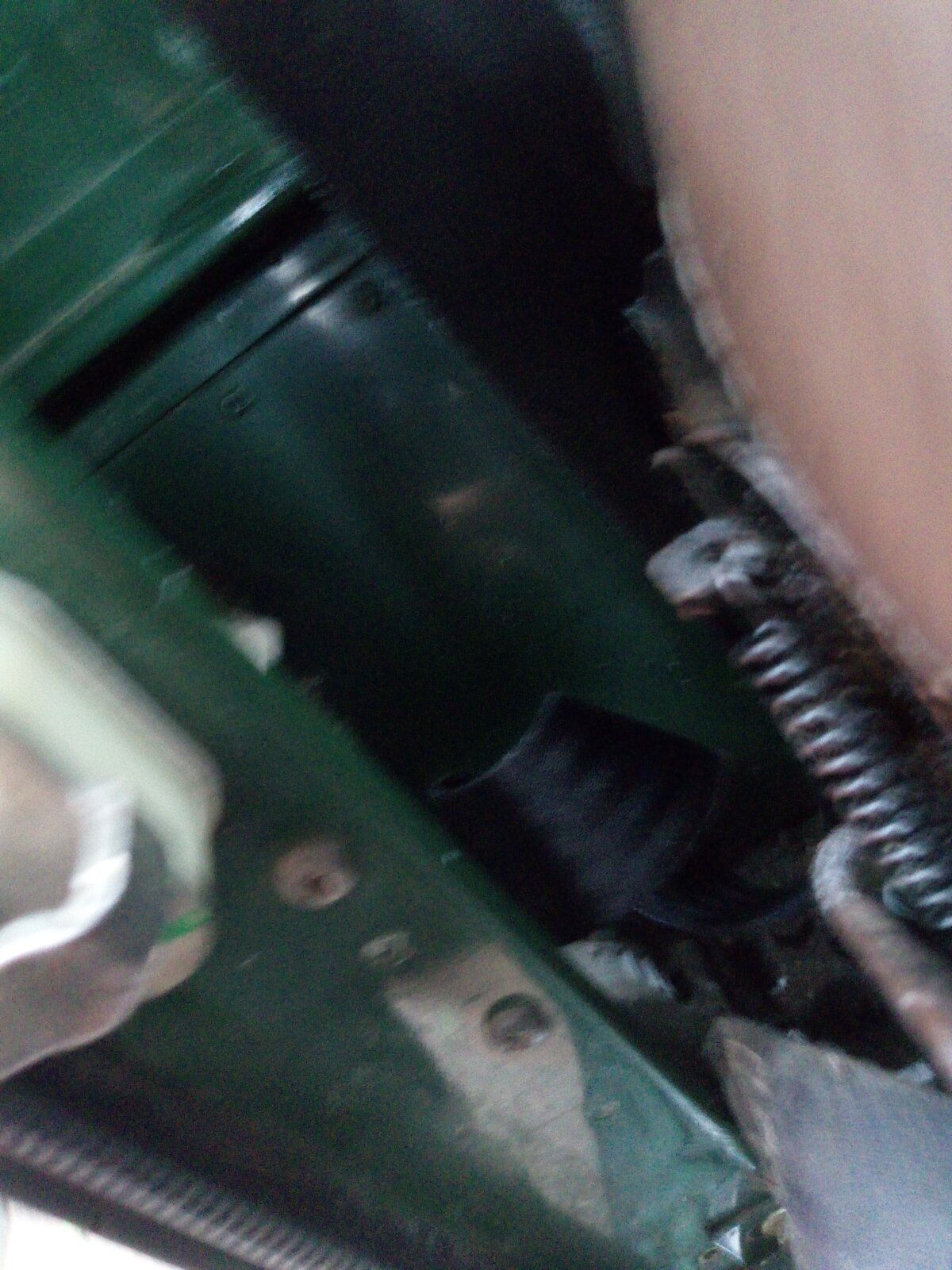

    Mines a '94 but may be useful?


    Attached Files:

    haza88 likes this.
  8. haza88

    haza88 Well-Known Member

    Joined:
    Nov 10, 2009
    Posts:
    886
    Likes Received:
    301
    Thank your for the pics , so tonight I realised why I have been struggling an over seat of aluminium has been bolted over the top once removed revealed the corrosion hole of where seat belts used to bolt, looking on yrm they sell panel repairs , so bit more research needed before ordering

    Hicap phill likes this.
  9. haza88

    haza88 Well-Known Member

    Joined:
    Nov 10, 2009
    Posts:
    886
    Likes Received:
    301
  10. haza88

    haza88 Well-Known Member

    Joined:
    Nov 10, 2009
    Posts:
    886
    Likes Received:
    301
  11. mpd2378

    mpd2378 Member

    Joined:
    Jun 2, 2022
    Posts:
    29
    Likes Received:
    10
    Location:
    Uk
    Just use a really,really big bolt!:)

    haza88 and Hicap phill like this.
  12. dag019

    dag019 Well-Known Member

    Joined:
    May 18, 2014
    Posts:
    4,037
    Likes Received:
    1,874
    Location:
    Warwick
    Just bear in mind that although you have a huge hole in the floor, the seatbelt should bolt to a bracket under the floor that is then (from memory) bolted to the chassis. It is not just bolted through the aluminum sheet.

    haza88 likes this.
  13. haza88

    haza88 Well-Known Member

    Joined:
    Nov 10, 2009
    Posts:
    886
    Likes Received:
    301
    Yea just about to order repair panel and correct brackets from yrm that’s my months spending money gone

  14. miktdish

    miktdish Guns n Chainsaws Full Member

    Joined:
    Jan 23, 2012
    Posts:
    2,123
    Likes Received:
    956
    Location:
    Near Lanark, South of Glasgow. Scotland

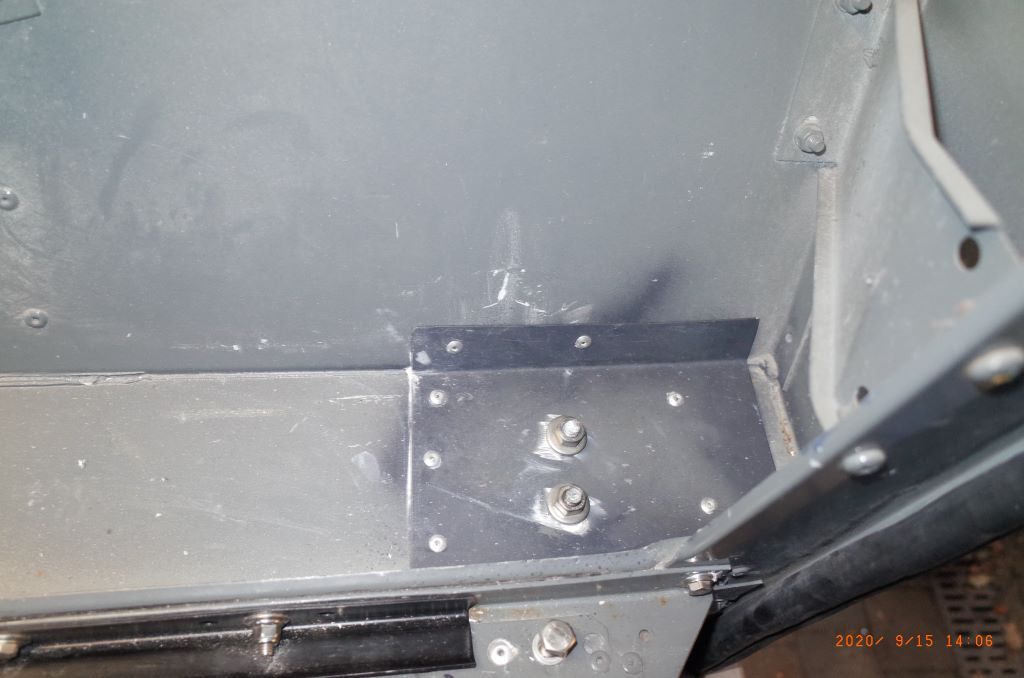

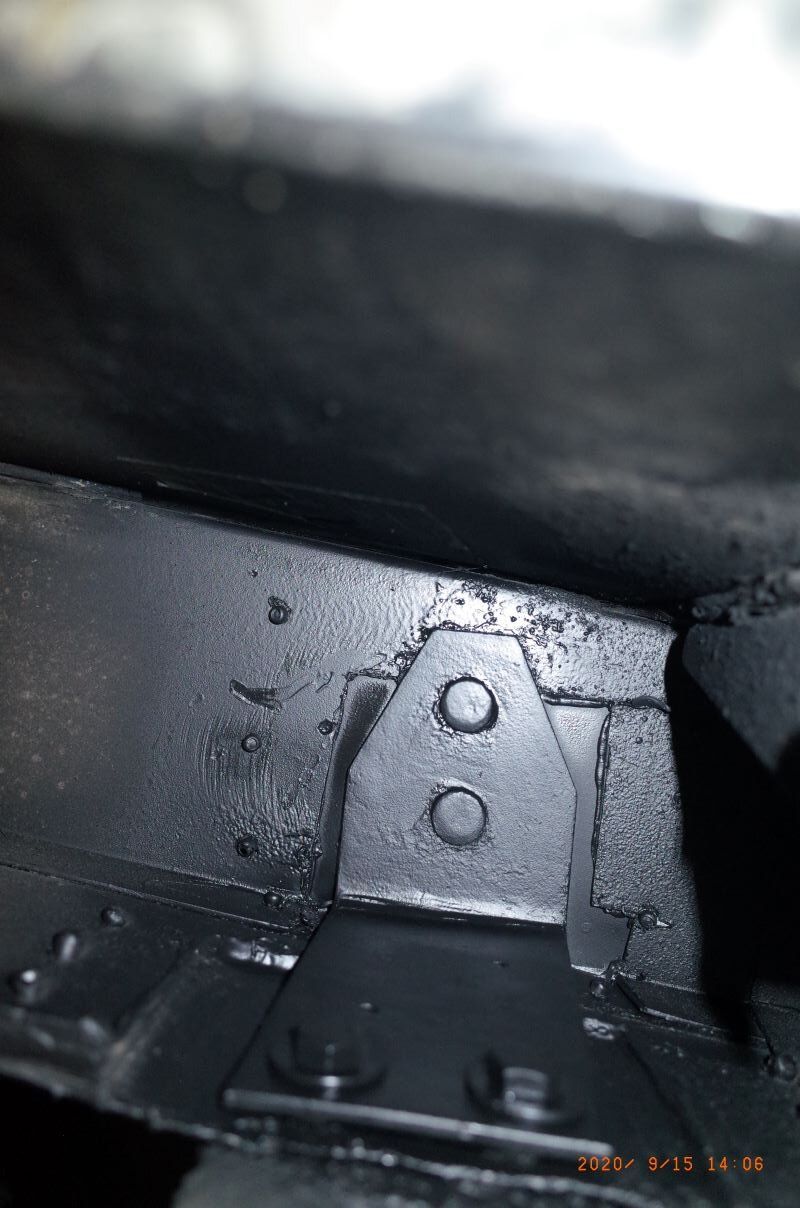

    They all do this. No need for repair panels, I used some 1.5mm alluminium plate (roadsign).
    Hopefully you can see from this pictures whats needed.
    The alluminium doen't hold the seatbelt, its just sandwiched between the bracket (bolted underneath to the out rigger ...





    haza88 and Hicap phill like this.
  15. miktdish

    miktdish Guns n Chainsaws Full Member

    Joined:
    Jan 23, 2012
    Posts:
    2,123
    Likes Received:
    956
    Location:
    Near Lanark, South of Glasgow. Scotland
    Last edited: Jun 30, 2022
    haza88 likes this.
  16. haza88

    haza88 Well-Known Member

    Joined:
    Nov 10, 2009
    Posts:
    886
    Likes Received:
    301
    Cheers for the pics very helpful

  17. haza88

    haza88 Well-Known Member

    Joined:
    Nov 10, 2009
    Posts:
    886
    Likes Received:
    301
    Y not stainless out of interest?

  18. haza88

    haza88 Well-Known Member

    Joined:
    Nov 10, 2009
    Posts:
    886
    Likes Received:
    301
  19. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    13,132
    Likes Received:
    31,423
    Location:
    Wiltshire
    You may also need this. This holds the inertia part,(just inside the door by the striker)

    haza88 likes this.
  20. haza88

    haza88 Well-Known Member

    Joined:
    Nov 10, 2009
    Posts:
    886
    Likes Received:
    301
