Joining Fuel Lines

border

Well-Known Member

Posts

3,517

Location

North East. UK

• Sep 14, 2019

• #1

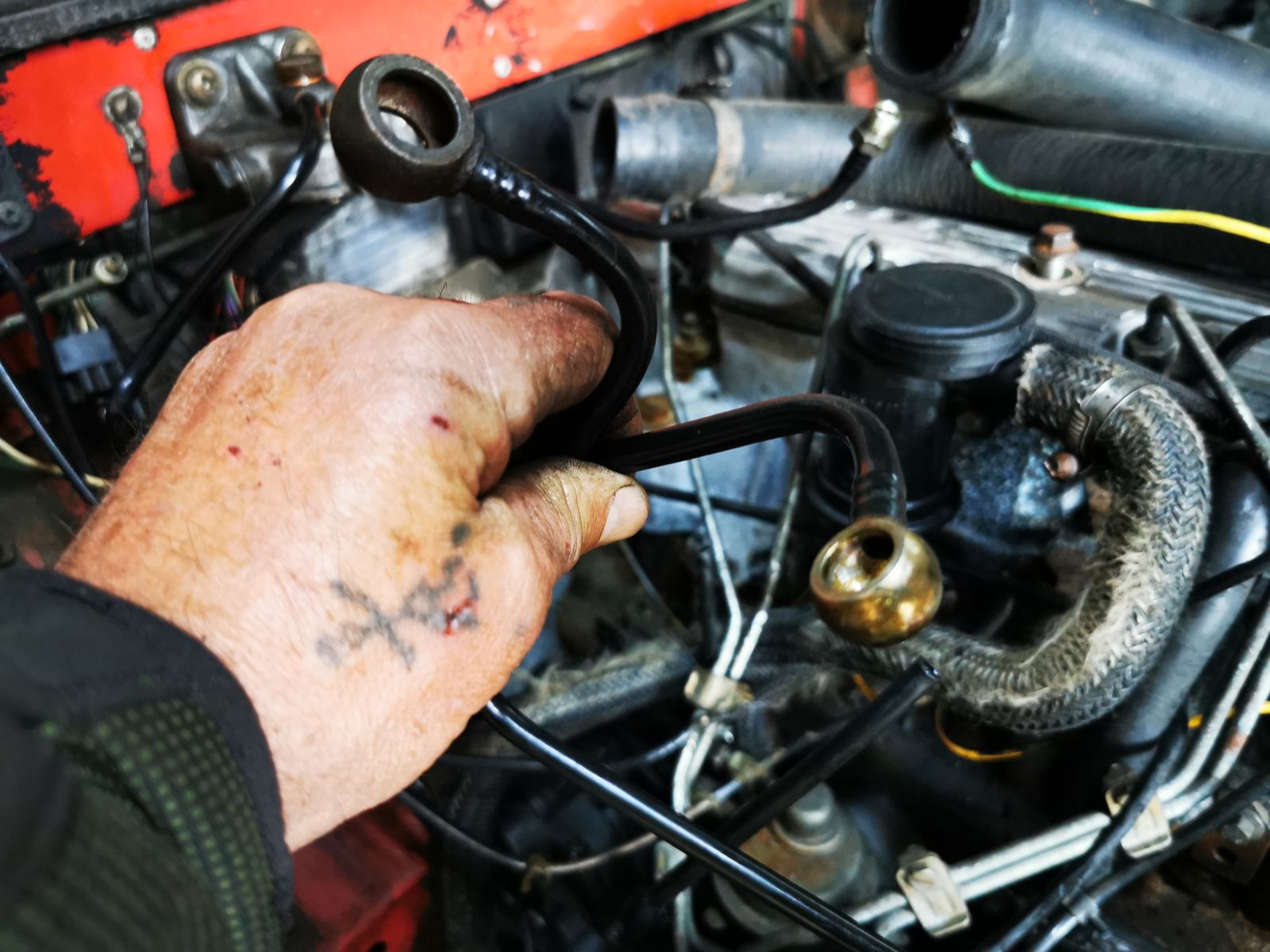

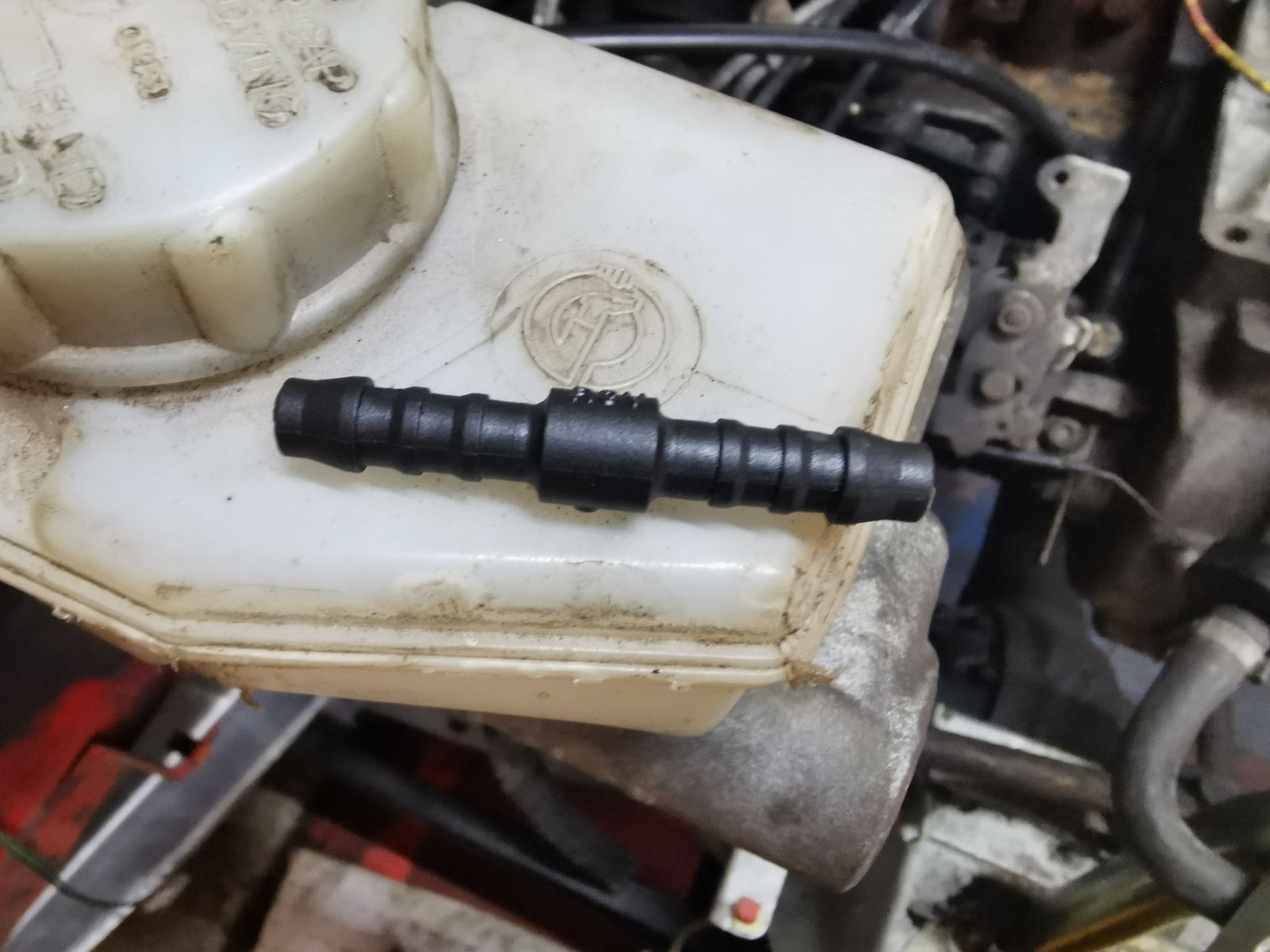

Need to join 2 sets of Fuel lines one from Filter to Lift Pump and the other from Filter to Injection Pump. Can I just cut and join with hose and jubilee clips ? Found these connectors but the hole looks smaller so not sure if it would restrict the flow.



Attachments

•

  215.2 KB · Views: 100
•

  164.4 KB · Views: 86

mick 1986

Well-Known Member

Posts

2,537

Location

Lost

• Sep 14, 2019

• #2

border said:

Need to join 2 sets of Fuel lines one from Filter to Lift Pump and the other from Filter to Injection Pump. Can I just cut and join with hose and jubilee clips ? Found these connectors but the hole looks smaller so not sure if it would restrict the flow.

Click to expand...

Replace the nylon lines with rubber. Extra joins are extra air ingress areas. They will lead to problems sooner or later.



border

Well-Known Member

Posts

3,517

Location

North East. UK

• Sep 14, 2019

• #3

mick 1986 said:

Replace the nylon lines with rubber. Extra joins are extra air ingress areas. They will lead to problems sooner or later.

Click to expand...

Might nip down to Halfords in Morning to get some.



Flossie

Well-Known Member

Posts

11,053

Location

Shropshire

• Sep 14, 2019

• #4

10mm brass plumbing compression fittings.
Did mine 14 yrs ago still good.
I didn't use inserts for the pipe, some say you should but 14yrs and never a leak



L

lynall

Well-Known Member

Full Member

Posts

25,899

Location

Kent

• Sep 15, 2019

• #5

Know any truck mechs? if so ask for a couple of meters of nylon pipe and replace the whole lot, easy to do.
