Is this a 12J??

Discussion in 'Series' started by Seth 88, Jun 6, 2020.

< Previous Thread | Next Thread >
  1. Seth 88

    Seth 88 Member

    Joined:
    Jun 5, 2020
    Posts:
    42
    Likes Received:
    29
    Location:
    Norfolk

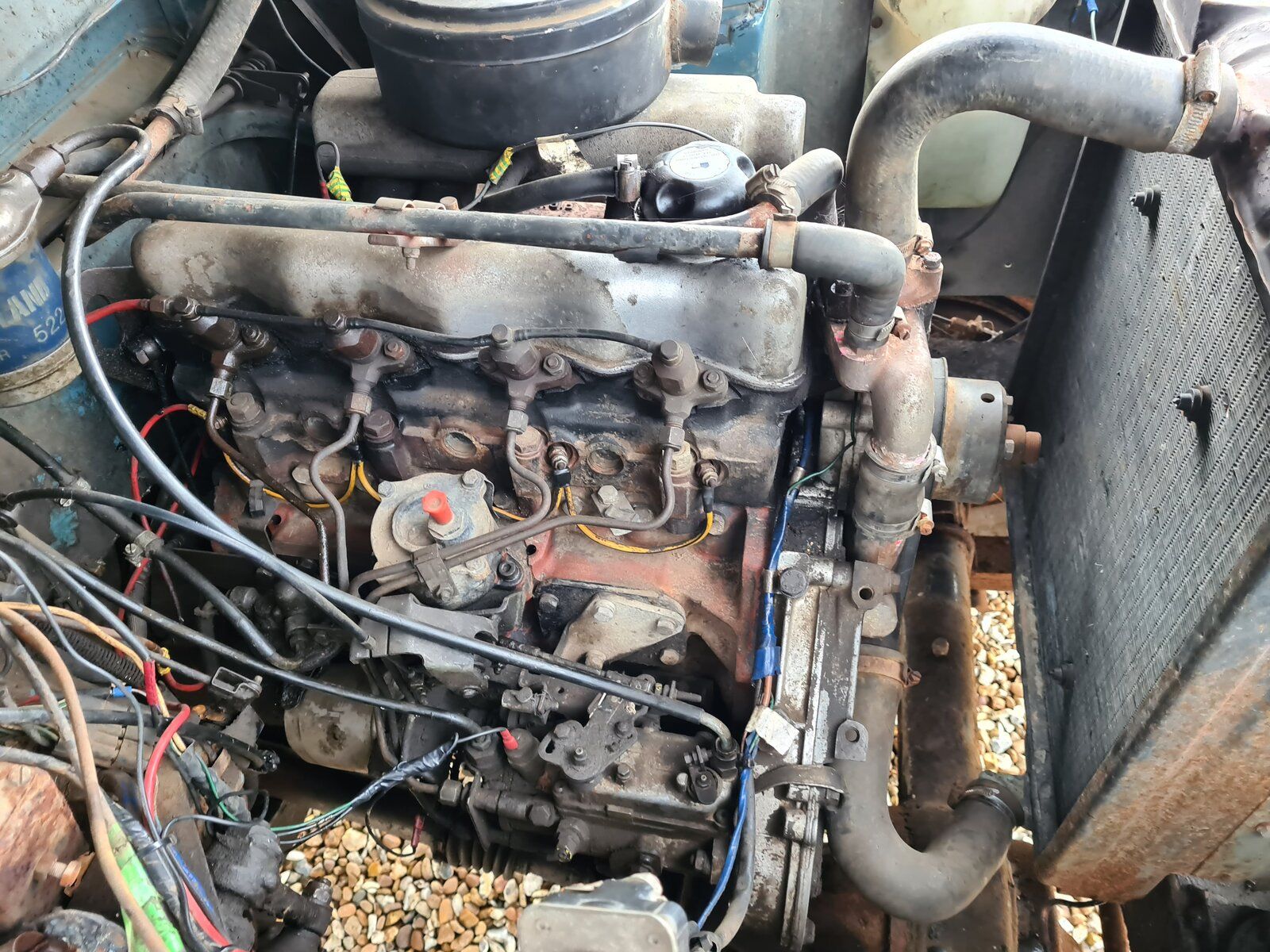

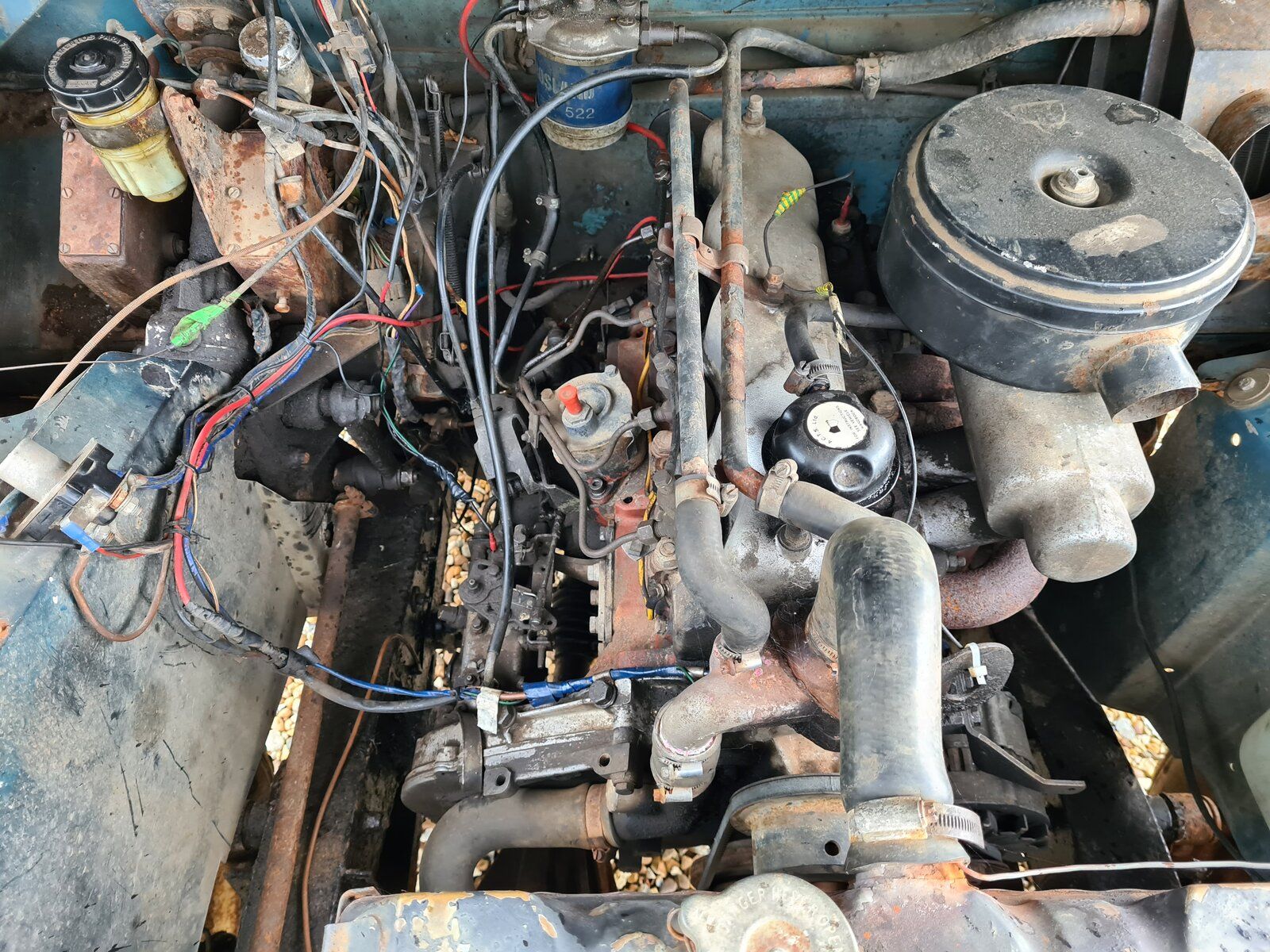

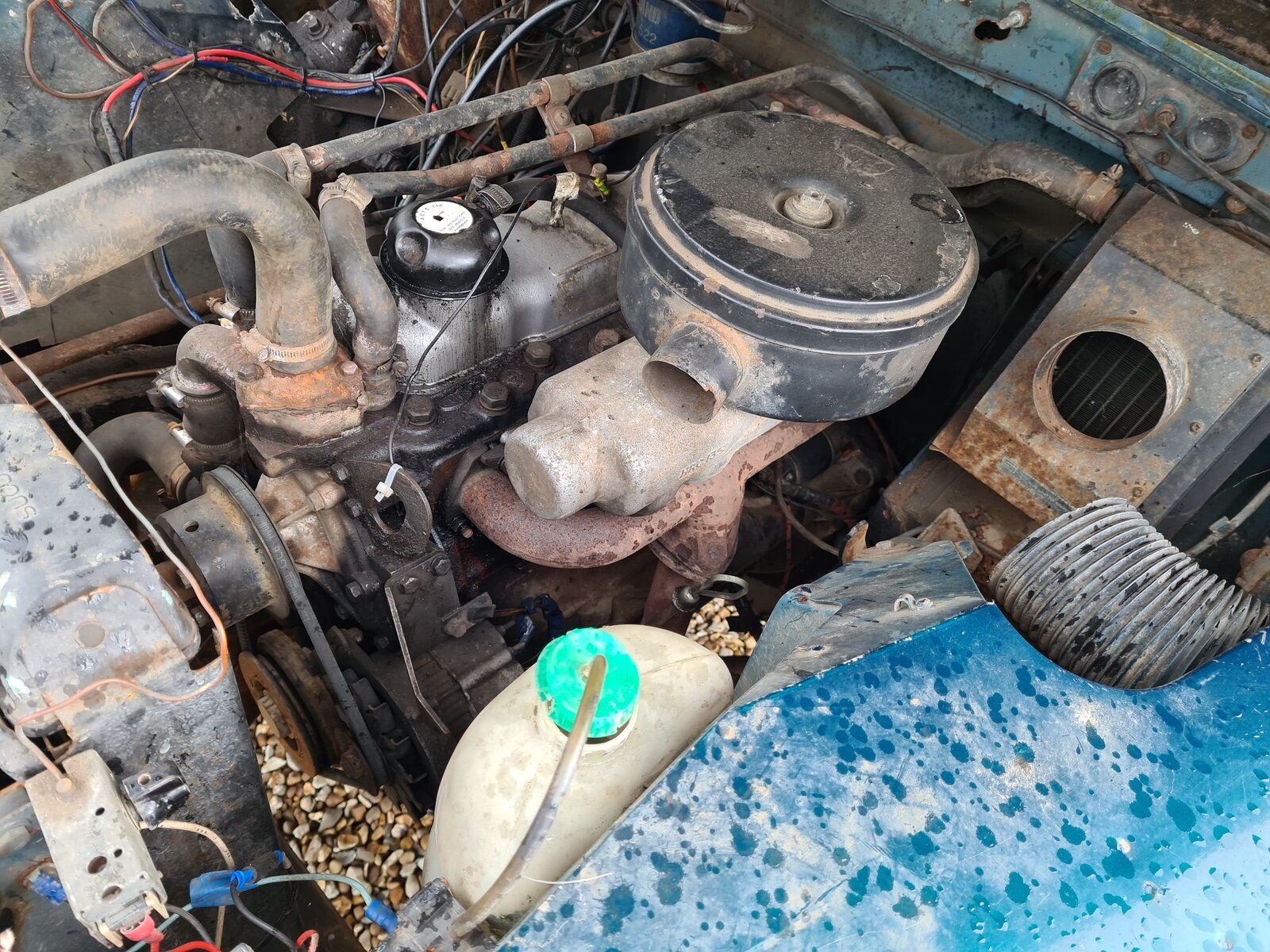

    just trying to identify what the series/code this 2.5 n/a diesel engine in my 1983 Series III is. I've looked for the serial number on the side near injectors but can't see it.





    Any help gratefully received, thanks!

  2. Rodeo Joe

    Rodeo Joe Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    1,527
    Likes Received:
    687
    Location:
    norfolk
    Thats exactly the same set up I've got in my 88. Its either 12J or 19J they both look the same when the 19J has the turbo removed like mine.
    You can put the fan back on and reinstate the series front end, it will fit ok.

    Wildefalcon and Seth 88 like this.
  3. Seth 88

    Seth 88 Member

    Joined:
    Jun 5, 2020
    Posts:
    42
    Likes Received:
    29
    Location:
    Norfolk
    Thanks @Rodeo Joe, really handy to know. The non standard front end doesn't bother me aesthetically, but considering reinstating to normal as the bonnet on current front end doesn't fit great!

    Thanks for the advice :)

  4. Blackburn

    Blackburn Well-Known Member

    Joined:
    Feb 21, 2013
    Posts:
    2,639
    Likes Received:
    440
    Location:
    Tyneside

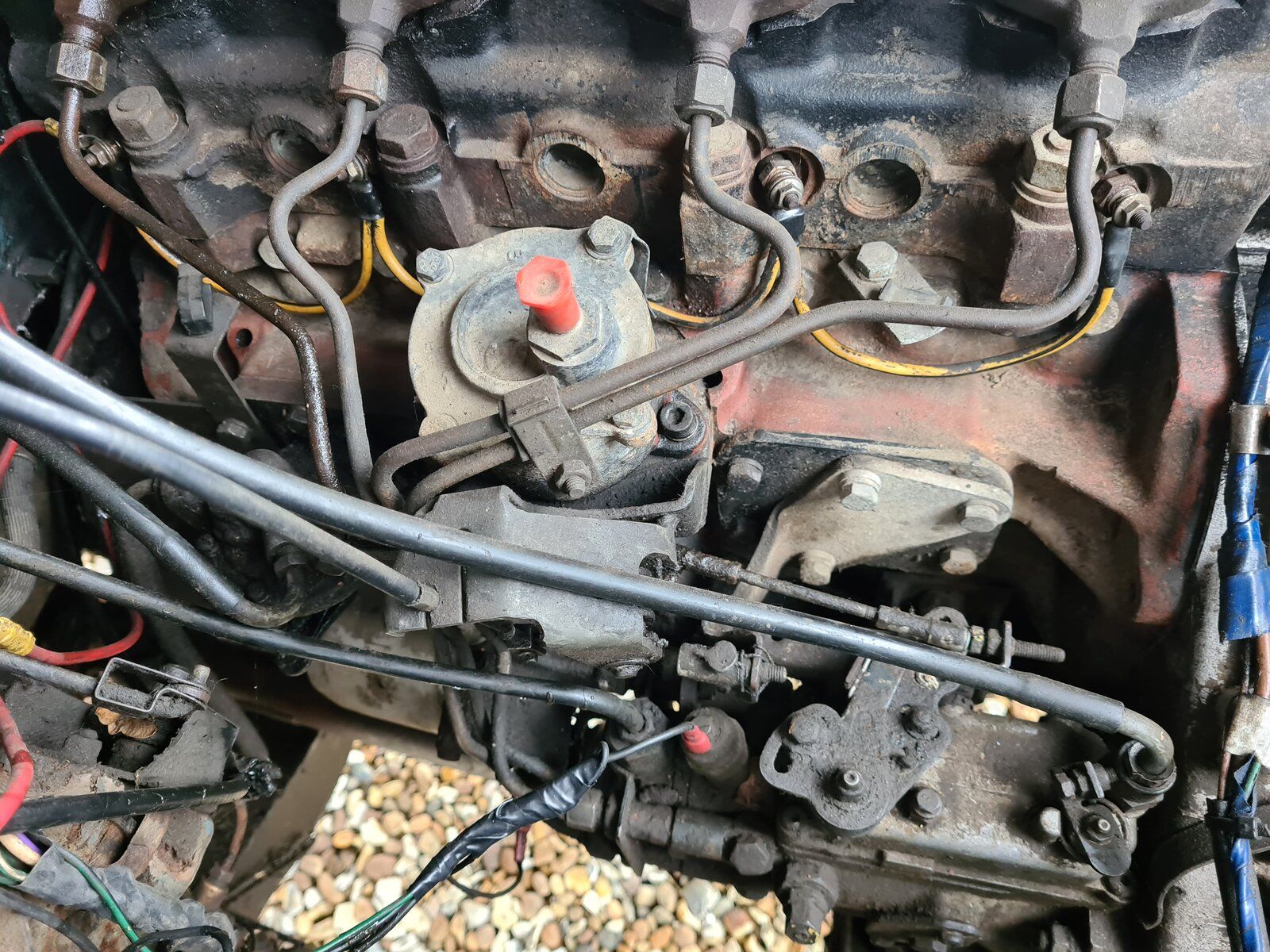

    Is that not a number on the flat between 3rd and 4th glow plugs to the right of the little bracket with clip on top , my 15J was stamped in that area.

    Seth 88 likes this.
  5. wireman

    wireman Well-Known Member

    Joined:
    Nov 22, 2008
    Posts:
    876
    Likes Received:
    315
    Location:
    Warrington
    I think you're right, you can just see the start, possibly 12J...?

    Seth 88 likes this.
  6. Rodeo Joe

    Rodeo Joe Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    1,527
    Likes Received:
    687
    Location:
    norfolk
    Well spotted!

    Seth 88 likes this.
  7. Seth 88

    Seth 88 Member

    Joined:
    Jun 5, 2020
    Posts:
    42
    Likes Received:
    29
    Location:
    Norfolk
    Nice one, thanks @Blackburn , will look at that today (rain permitting) and report back. :cool:

  8. Seth 88

    Seth 88 Member

    Joined:
    Jun 5, 2020
    Posts:
    42
    Likes Received:
    29
    Location:
    Norfolk
    Hi all, just trying to get a service pack (filters etc) from paddocks and it raised an interesting Q. They were questioning whether in fact it is a 2.5d and said a VRM check shows the engine as a 12v.

    I just checked V5C and it says 12v too on the engine serial number. Anyone able to help me understand this please?

    Thanks

  9. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    87,377
    Likes Received:
    15,989
    Location:
    louth lincs
    its a 12j with a sherpa manifolds and air filter,obviously its been recorded poorly

    Seth 88 likes this.
  10. Seth 88

    Seth 88 Member

    Joined:
    Jun 5, 2020
    Posts:
    42
    Likes Received:
    29
    Location:
    Norfolk
    @jamesmartin thank you, thats really helpful. Shame its recorded wrong.

    Also useful info on the sherpa manifolds, I didn't know about them so will do some research into them.

    Cheers

  11. Rodeo Joe

    Rodeo Joe Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    1,527
    Likes Received:
    687
    Location:
    norfolk
    Seth 88 likes this.
  12. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    87,377
    Likes Received:
    15,989
    Location:
    louth lincs
    and oil filter err3340,fuel filter rtc6079

    Seth 88 likes this.
  13. Seth 88

    Seth 88 Member

    Joined:
    Jun 5, 2020
    Posts:
    42
    Likes Received:
    29
    Location:
    Norfolk
    Thank you both, really helpful!! :)

  14. Seth 88

    Seth 88 Member

    Joined:
    Jun 5, 2020
    Posts:
    42
    Likes Received:
    29
    Location:
    Norfolk
    Quick Q. I cannot see that I have an expansion tank for coolant. The hoses run directly to and from engine to the rad. Does the 12j normally have an expansion tank?

    If not, how do I check coolant level?

    TIA
    Chris

  15. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    87,377
    Likes Received:
    15,989
    Location:
    louth lincs
    its in a series with a series rad presumably so you dont need a separate tank
    undo rad cap

    Seth 88 likes this.
  16. Seth 88

    Seth 88 Member

    Joined:
    Jun 5, 2020
    Posts:
    42
    Likes Received:
    29
    Location:
    Norfolk
    Yes it is a Series. OK, thanks, good to know, thought someone had done a bodge job on it or something!

  17. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    87,377
    Likes Received:
    15,989
    Location:
    louth lincs
    no, your tank is on the top of the rad,like all earlier rads

    Seth 88 likes this.
  18. Rodeo Joe

    Rodeo Joe Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    1,527
    Likes Received:
    687
    Location:
    norfolk
    If its a series rad. there should be an overflow bottle though on the side where the washer bottle is.

    Seth 88 likes this.
  19. Seth 88

    Seth 88 Member

    Joined:
    Jun 5, 2020
    Posts:
    42
    Likes Received:
    29
    Location:
    Norfolk
    Hi @Rodeo Joe, thanks, nothing there. The overflow pipe from the rad simply empties onto the ground through the engine bay. I'll post a pic later today.

  20. Blackburn

    Blackburn Well-Known Member

    Joined:
    Feb 21, 2013
    Posts:
    2,639
    Likes Received:
    440
    Location:
    Tyneside

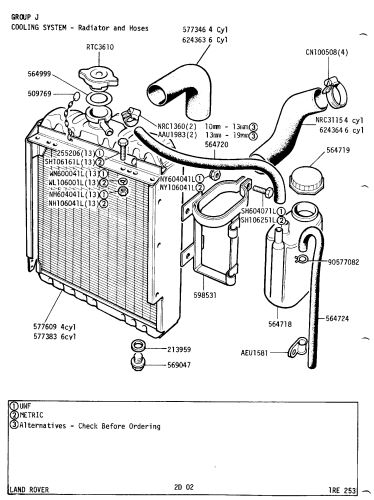

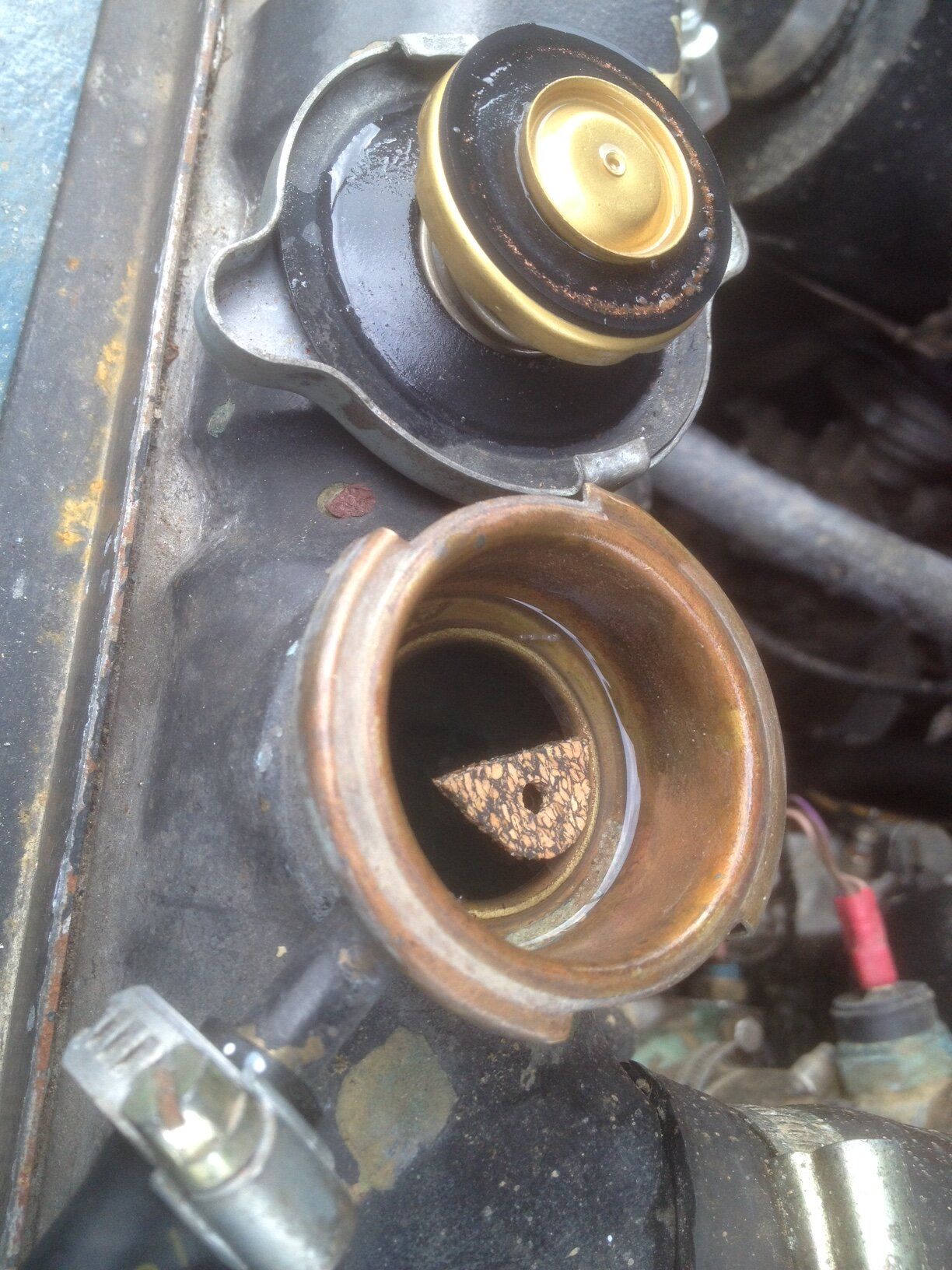

    What year is your landrover expansion bottle was fitted to later series 3 radiator pic of top of your radiator with cap off will help. Keep cap in pic also upside down.
    Show where the overflow outlet is positioned I think that changes on radiator.


    Attached Files:

    Seth 88 likes this.
