Is it EP90

Discussion in 'Defender 90 / 110 / 130' started by Mackers, Apr 17, 2019.

< Previous Thread | Next Thread >
  1. Mackers

    Mackers Well-Known Member

    Joined:
    Nov 1, 2018
    Posts:
    1,895
    Likes Received:
    1,089
    Location:
    UK

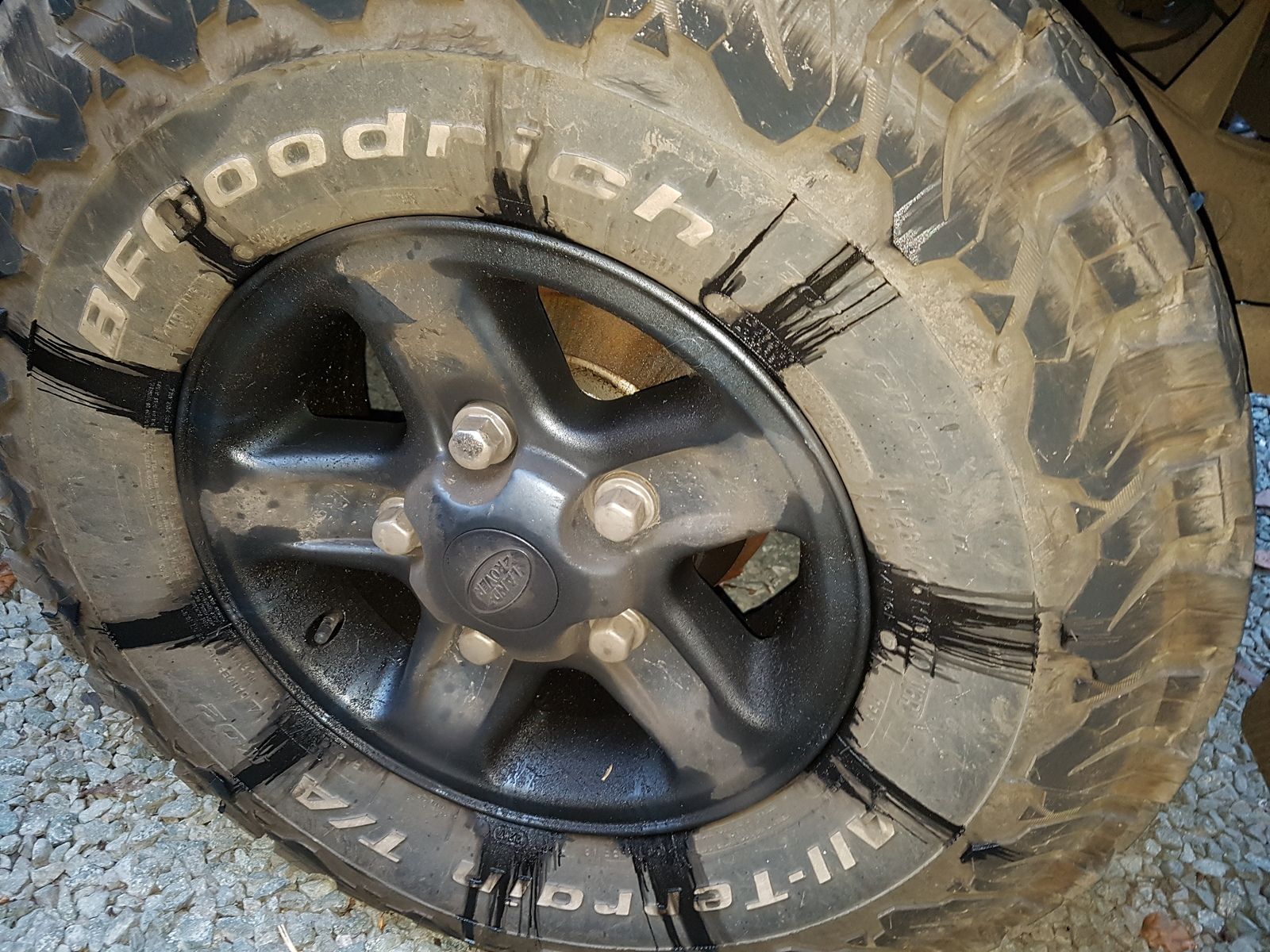

    20190414_195210.jpg So I've just seen the nut on the axle facing the back of the car. Should I take it off and.put some EP90 in it until the hub seal is looked at next week?

  2. marjon

    marjon Well-Known Member

    Joined:
    Jul 15, 2018
    Posts:
    1,599
    Likes Received:
    1,232
    Location:
    Bulgaria
    What nut (pic) there’s loads:oops:

    And you are going to farm out a job, and lose the excuse to buy some big manly tools:(

    To answer probably yes.

    J

  3. Mackers

    Mackers Well-Known Member

    Joined:
    Nov 1, 2018
    Posts:
    1,895
    Likes Received:
    1,089
    Location:
    UK
    Well it's a plug with a half inch square inset which a half inch drive will fit in.

  4. marjon

    marjon Well-Known Member

    Joined:
    Jul 15, 2018
    Posts:
    1,599
    Likes Received:
    1,232
    Location:
    Bulgaria
    There’s 2.

    Which 1

    J

  5. slomofo

    slomofo Well-Known Member

    Joined:
    Jan 18, 2010
    Posts:
    538
    Likes Received:
    106
    Location:
    Bardsville
    Top it up until it’s dribbling out of the filler plug - clean your brakes as they might be contaminated.

    Mackers likes this.
  6. Mackers

    Mackers Well-Known Member

    Joined:
    Nov 1, 2018
    Posts:
    1,895
    Likes Received:
    1,089
    Location:
    UK
    I've got the same star shape on my tyres either side so probs both ends. I'll do what slomofo says cos I've washed the wheels yesterday, done 40 miles today and there's not much of a tyre star now, making me think the oil's ran out.

  7. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    9,082
    Likes Received:
    2,850
    Location:
    Kent
    If its only a week and you aint doing massive high speed miles leave it be until fixed.
    It could just be the drive member/gasket/cap that is leaking and a little oil goes a very long way to making a huge mess.
    If you pop the wheel off you will be able to see whats going on.

    Mackers likes this.
  8. Mackers

    Mackers Well-Known Member

    Joined:
    Nov 1, 2018
    Posts:
    1,895
    Likes Received:
    1,089
    Location:
    UK
    I thought that when the new disc a brakes were put on, but the metal circle on the outside was dry as a bone. It's behind that's the prob but apparently there's no seal as such that can be fitted.

  9. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    4,011
    Likes Received:
    3,330
    Location:
    Wiltshire
    Above that nut on the axle case you will find the breather. Remove this (watch for the 2 copper washers) & blow up the pipe. Bet it's blocked.
    Your doing more miles & faster speed causing the pressure build up.

    If you also remove the plug in the axle put your finger in to see if you can touch the oil. You can tell how much you've lost.
    Good luck

    frog hopper, 1988smithy and Mackers like this.
  10. marjon

    marjon Well-Known Member

    Joined:
    Jul 15, 2018
    Posts:
    1,599
    Likes Received:
    1,232
    Location:
    Bulgaria
    Don’t know who told you that?
    When/if you do top up don’t undo the wrong plug otherwise your Landy will definitely mark its spot.

    J

    Mackers likes this.
  11. Henry_b

    Henry_b Well-Known Member

    Joined:
    Jan 29, 2018
    Posts:
    4,464
    Likes Received:
    3,010
    Location:
    Hereford
  12. bluedog333

    bluedog333 Well-Known Member

    Joined:
    Jun 7, 2014
    Posts:
    2,734
    Likes Received:
    1,369
    Location:
    Henley on Thames, Oxfordshire
    Did you fit the alloys, or was it the previous owner? I’d check the axle breather and banjo bolt firstly, as others have suggested. Top up diff with EP 80/90, but that’s quite a leak! Maybe a failed/missing inner oil seal, but would need to know more about the axle type and wheel alterations.

  13. Mackers

    Mackers Well-Known Member

    Joined:
    Nov 1, 2018
    Posts:
    1,895
    Likes Received:
    1,089
    Location:
    UK

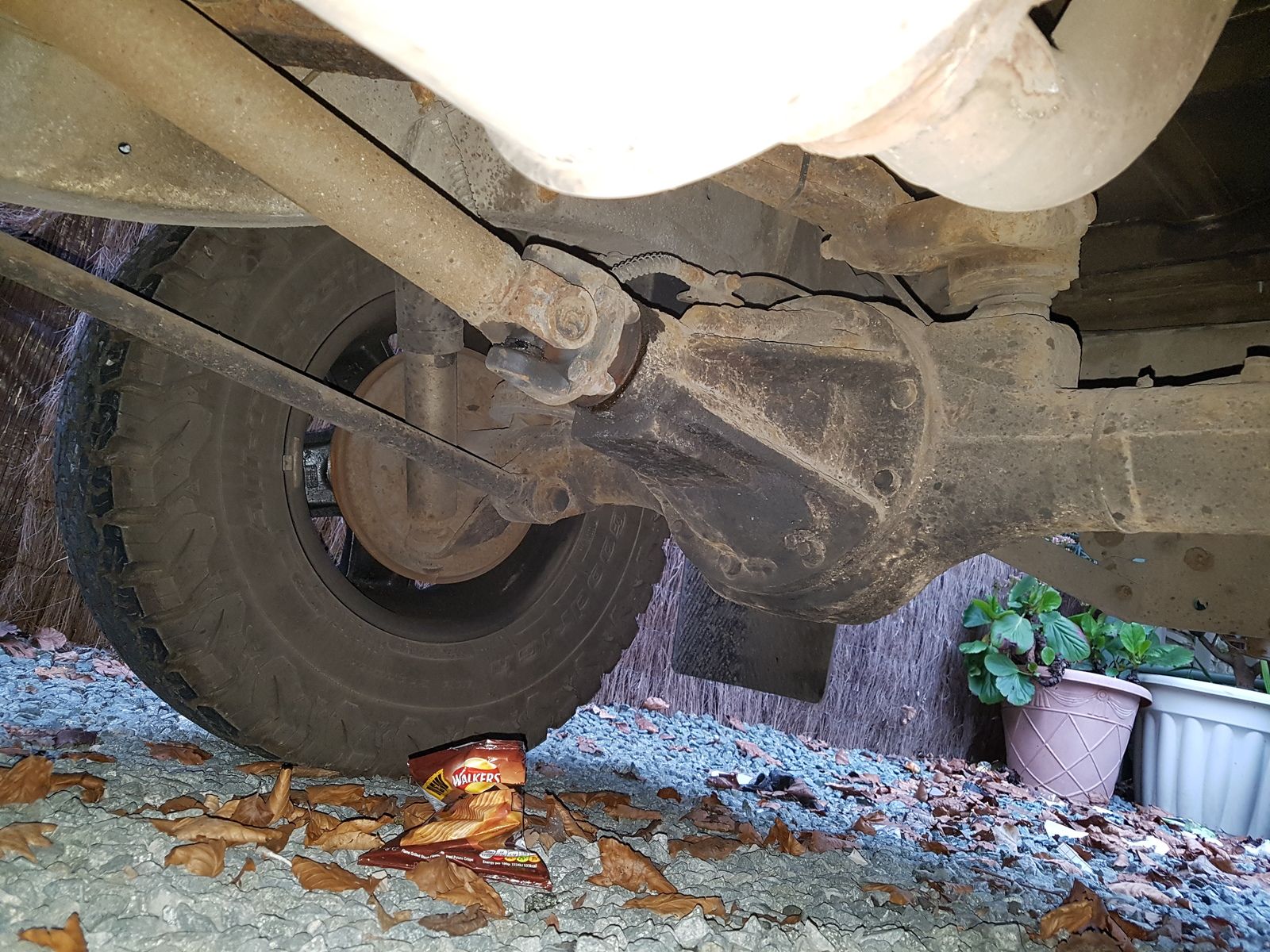

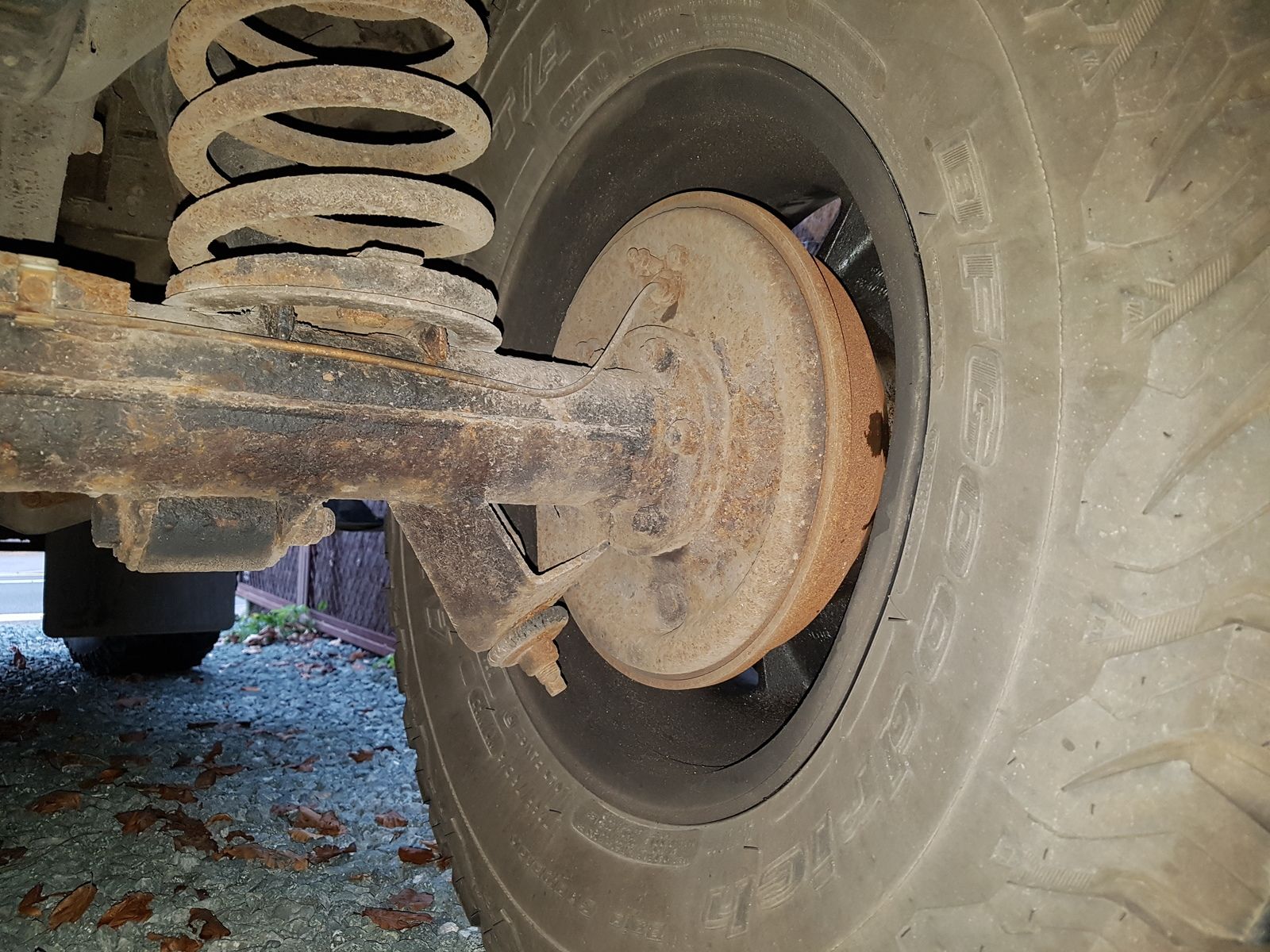

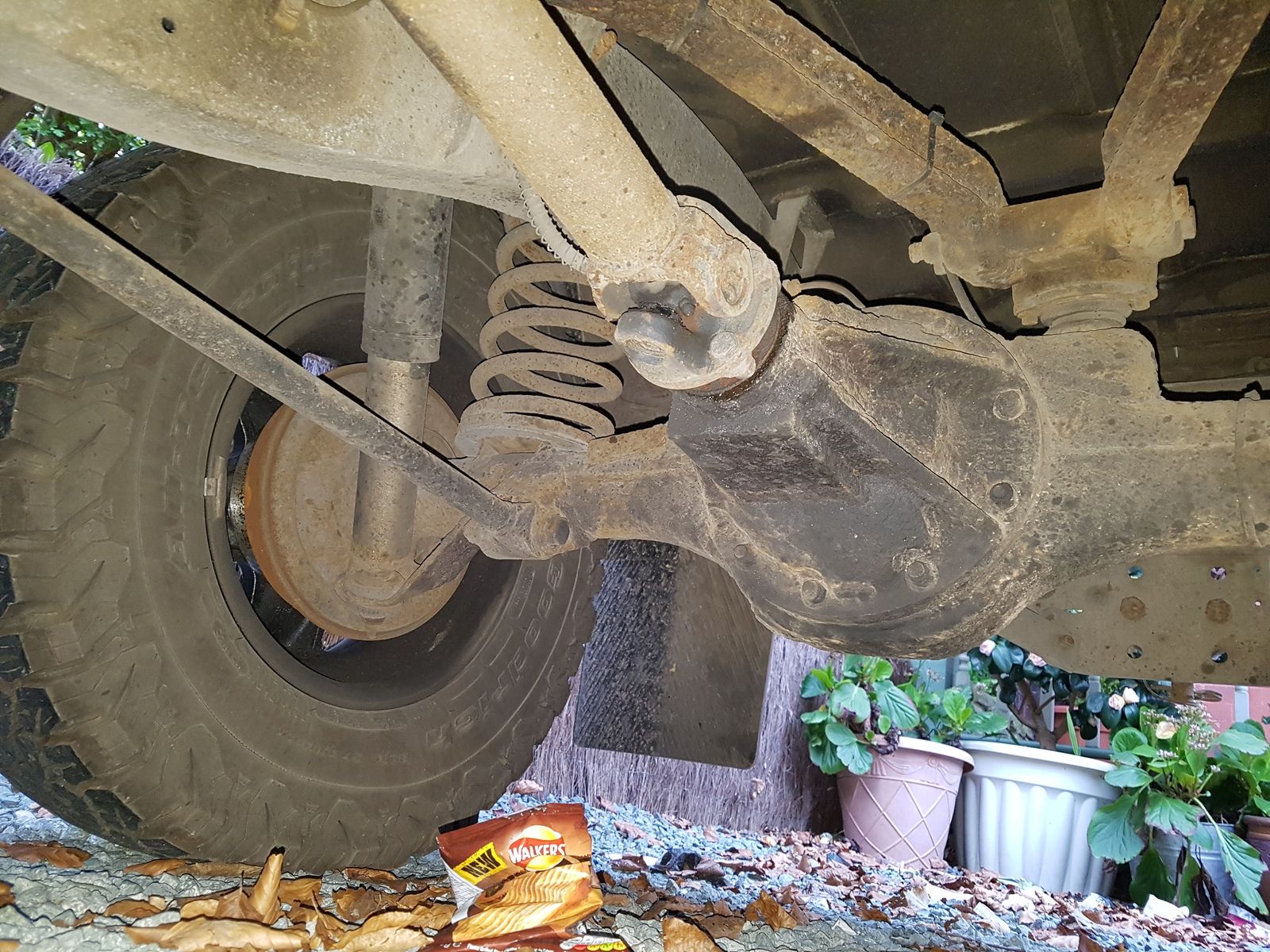

    Now here's the thing. The previous owner had an MOT with an advisory saying that the rear hub seals were perished. I assumed he had them done because the MOT a year later that he had done a day before I picked it up didn't mention it. However, when I got it back home, the first garage I took it too (who ripped me off) said the inner rear axle seal was perished. He tried to get me to put a drum brake axle on but I didn't want one. Then, the chap who fitted my brakes said there isn't a seal behind the hub wheel? Just been out and taken these pics if you don't mind having a quick look and advising. Cheers.



  14. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    4,011
    Likes Received:
    3,330
    Location:
    Wiltshire
    At lest you can't see oil coming off the bottom off/out the drum.
    Wash the oil off the rim & monitor till repairs have taken place.

    Mackers likes this.
  15. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    5,442
    Likes Received:
    2,694
    Location:
    Shropshire
    You already have a drum brake axle.
    The garage probably said to fit a DISC braked axle which is a good upgrade imho.
    Plenty around off discos.

    1988smithy likes this.
  16. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    9,082
    Likes Received:
    2,850
    Location:
    Kent
    There must be a LZ member close to you who could take a look see?

    Drums are okay but they are a maintenance pita compared to discs which any old muppet can fix.

  17. Mackers

    Mackers Well-Known Member

    Joined:
    Nov 1, 2018
    Posts:
    1,895
    Likes Received:
    1,089
    Location:
    UK
    Yeah. Friend of the fam. Major expert, marshall at the mud baths some of you do. He's away this weekend but he'll sort it next friday. Just needed to know if there was something I could do and if safe to use for a week.

    Hicap phill likes this.
  18. Mackers

    Mackers Well-Known Member

    Joined:
    Nov 1, 2018
    Posts:
    1,895
    Likes Received:
    1,089
    Location:
    UK
    Did it. Tokk half a litre. Had trouble getting other end of air pipe out so order another before I take thenold one out
