Hi can anyone confirm that the outlet on the airintake manifold on a defender 300tdi is M12x1.5
Intake outlet thread
- Thread starter bongo1
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 9,105
- Location
- Roaming the UK on assignments
If you have a basic tap and die set run the bolt through a die or run the tap through it.
I do believe that the bolt you reference is M12 x 1.5 thread pitch.
Out of curiosity what are you planing to do?
I do believe that the bolt you reference is M12 x 1.5 thread pitch.
Out of curiosity what are you planing to do?
bongo1
Active Member
- Posts
- 462
- Location
- MACCLESFIELD cheshire
Its to take a feed for a boost gauge
bongo1
Active Member
- Posts
- 462
- Location
- MACCLESFIELD cheshire
I do believe that is correct , i just wanted to confirm it .
- Posts
- 9,105
- Location
- Roaming the UK on assignments

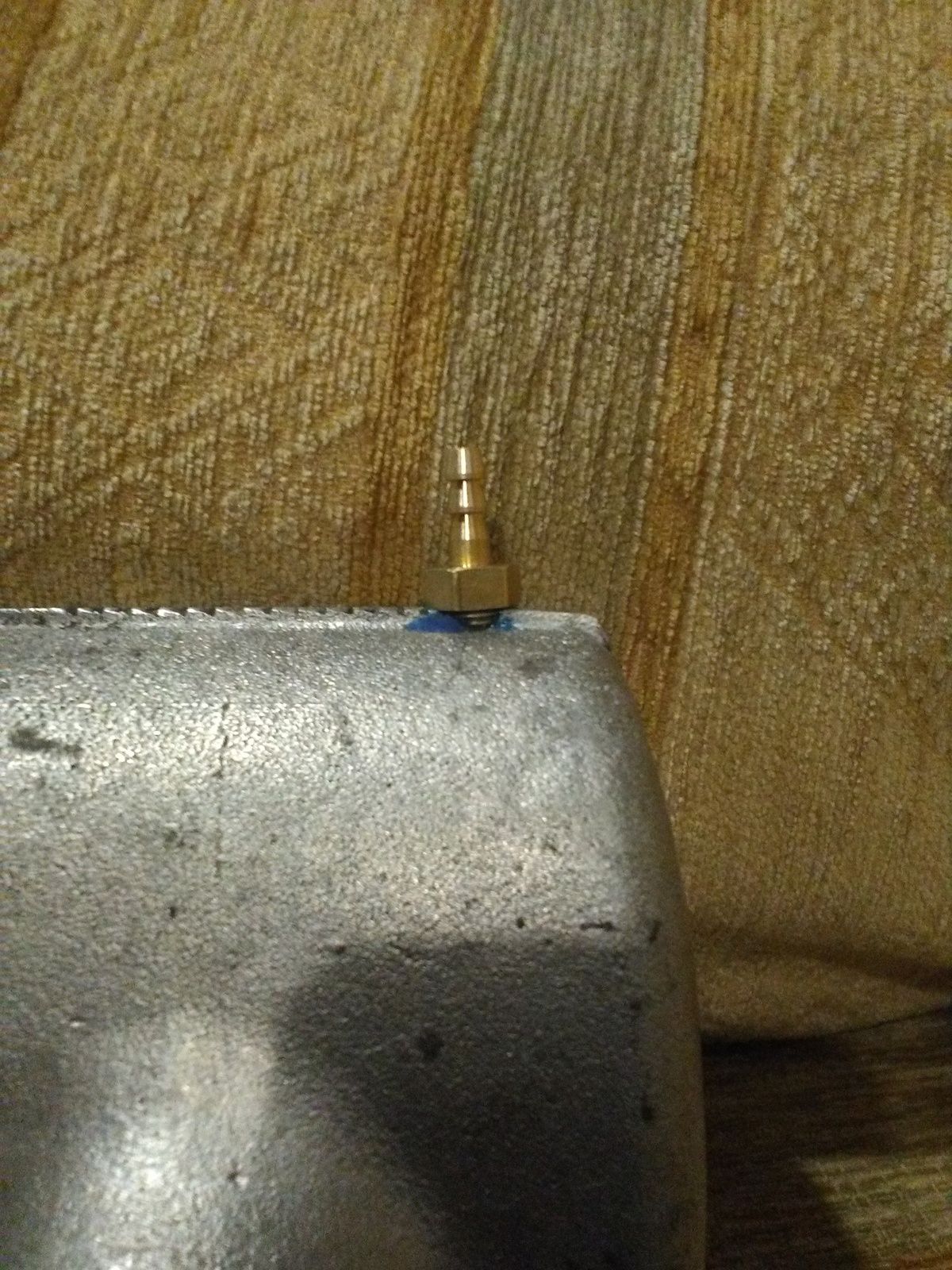

I drilled and tapped my manifold on my 200Tdi for the barbed hose fitting.
If you have a local scrap yard pop in there and see if you can find a banjo and bolt from a diesel filter that fits, it will give you the 90 degrees you need off the back of the manifold to go towards the dash then you just need a double barb fitting to connect the pipes
bongo1
Active Member
- Posts
- 462
- Location
- MACCLESFIELD cheshire

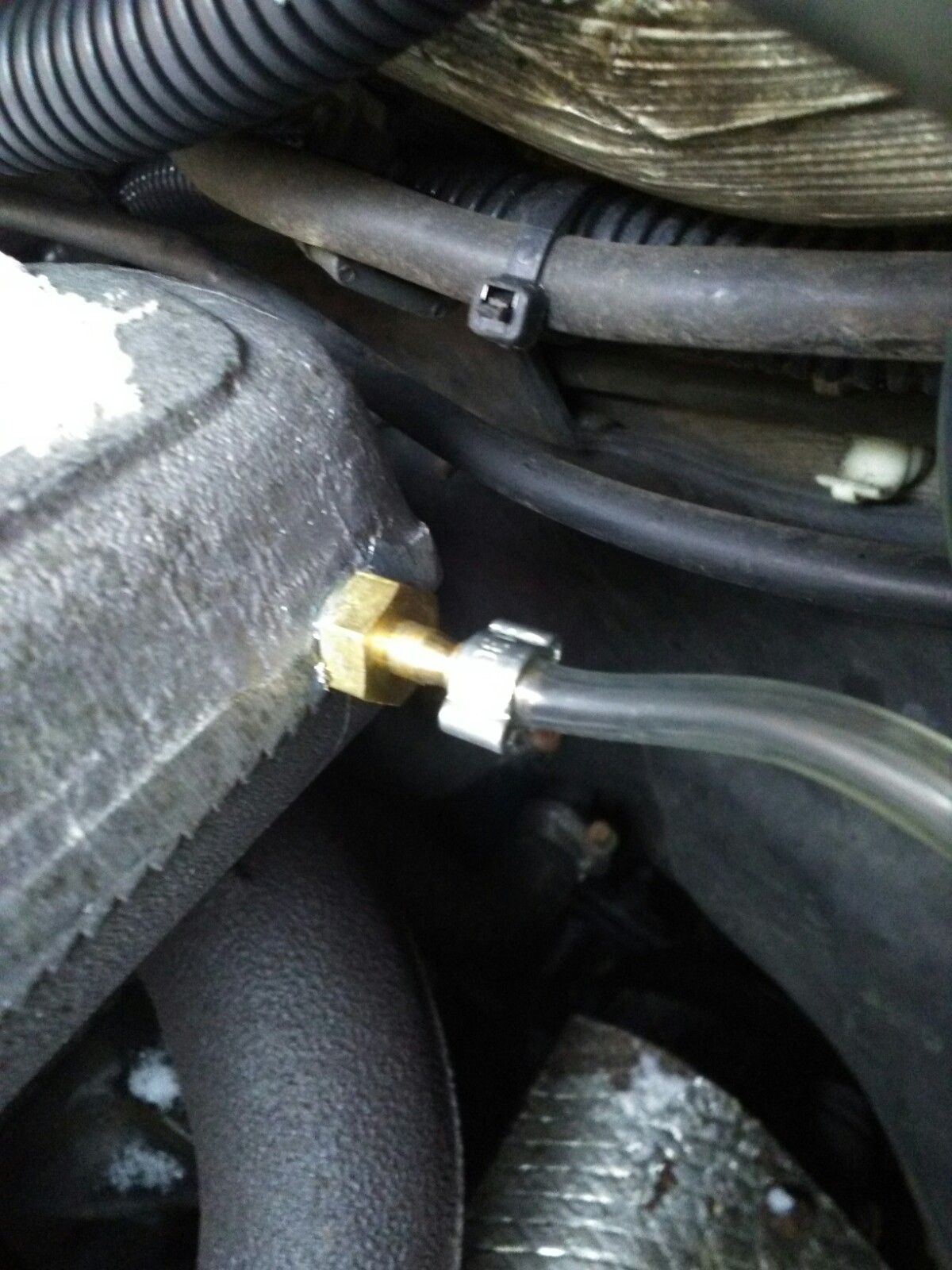

Hi thanks for those , luckily i did not have to drill + tap , I had a look around and found a banjo 12x1.5 with 4mm barb , Perfect fit into the back of the plenum on my 300tdi . The best way was point it toward the passenger side then the pipe loops back toward the drivers and goes in the grommet at the back of the dash . The banjo is next to a pipe + jubilee clip so its either vertical or down towards the manifold or horizontal as i have it , I will play tomorrow as it got to dark , but its fitted and the needle moves even just revving the engine , so happy with that . Im much happier with it there as its leaving the other pipes alone and standard , if there's any issues i can just put the bung back in and get home , As you can .
Now its onto getting the blanking plate off for a EGT , They feel with a quick try like they will snap like carrots , so will keep spraying WD40 when its hot and cold then build up courage to get the breaker bar on them .
Now its onto getting the blanking plate off for a EGT , They feel with a quick try like they will snap like carrots , so will keep spraying WD40 when its hot and cold then build up courage to get the breaker bar on them .
