P38A Indicators not working

Hi all, any pointers on where I should look to diagnose/fix the indicators not responding when they should?
I have a copy of RAVE but flicked through several hundred pages on my ipad and not found anything relevant yet. No reference to them in the manual for which fuse they are on, or could it be a relay?

Cheers
Nick

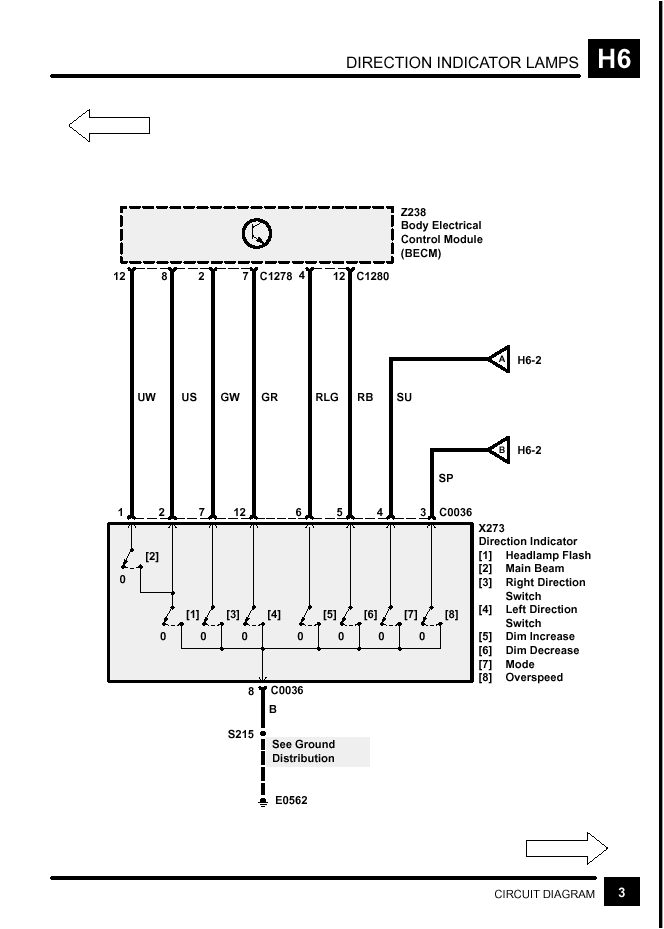

Do the hazards work? If they do then the wiring is probably OK.

If the hazards work, it may well be a broken wire to the indicator stalk where it flexes.

DanClarke said:

Do the hazards work? If they do then the wiring is probably OK.
View attachment 270242

Click to expand...

Thanks to you and @Datatek - I’ll check and come back.

Good news. Both hazards and indicators are actually working, it is just the audible ‘tick’ that has disappeared.

Salisbury Nick said:

Good news. Both hazards and indicators are actually working, it is just the audible ‘tick’ that has disappeared.

Click to expand...

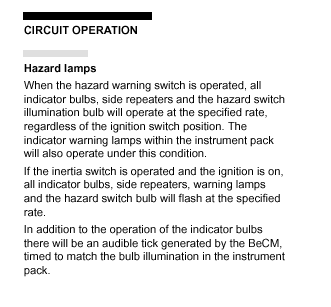

That "tick" is generated by the BeCM.

DanClarke said:

That "tick" is generated by the BeCM.
View attachment 270307

Click to expand...

Oh. It does not sound good then if it’s a BeCM fault?

Salisbury Nick said:

Oh. It does not sound good then if it’s a BeCM fault?

Click to expand...

I think it is just a pulse/signal sent to a "sounder" of come kind. I just went to check mine and the sound itself is coming from somewhere inside the binnacle.
So it may just be a wiring fault or your sounder has gone bad. The sounder clicks in time with the lighting of the L/R turn binnacle lamp(s)

On the back of the instrument cluster is a speaker that does all the dreaded beep beeps
Maybe someone has disconnected it so they can drive in piece with out fear.

brianp38dse said:

On the back of the instrument cluster is a speaker that does all the dreaded beep beeps
Maybe someone has disconnected it so they can drive in piece with out fear.

Click to expand...

Easy way to check it is leave the key in the ignition and the drivers door open?
Mine beeps constantly and displays "Key in Ignition" until I remove the key OR close the door.

years ago my indicators did not beep. at the same time the high/low transfer motor stopped working.i took the motor off made up some link wires to con the becm into thinking the motor was in high, and boom the indicators were beeping again.

DanClarke said:

Easy way to check it is leave the key in the ignition and the drivers door open?
Mine beeps constantly and displays "Key in Ignition" until I remove the key OR close the door.

Click to expand...

My L322 does that, but the p38 never has.

Salisbury Nick said:

My L322 does that, but the p38 never has.

Click to expand...

Must be a software version thing then.

Salisbury Nick said:

My L322 does that, but the p38 never has.

Click to expand...

My P38's beep once with the message "key in ignition" when the drivers door is opened.

Datatek said:

My P38's beep once with the message "key in ignition" when the drivers door is opened.

Click to expand...

I’ll try that. Thanks.
