I'm Flumoxed

How do I tell the difference if it's a late series 111 and an eairly 110 defender, It's a station wagon has leaf springs an the instrument cluster on the left
(left hooker) Ahh, no papers so no help thier, Remember I'm new to the wonderful world of Landys

its a series 3 as it has leaf sprangs ware as the 110 has coil springs.

ah yer there again lazy, the stage 1, which is technically a defender was on leafs. does the front gril sit level with the fronts of the wings or is it sunk back about a foot

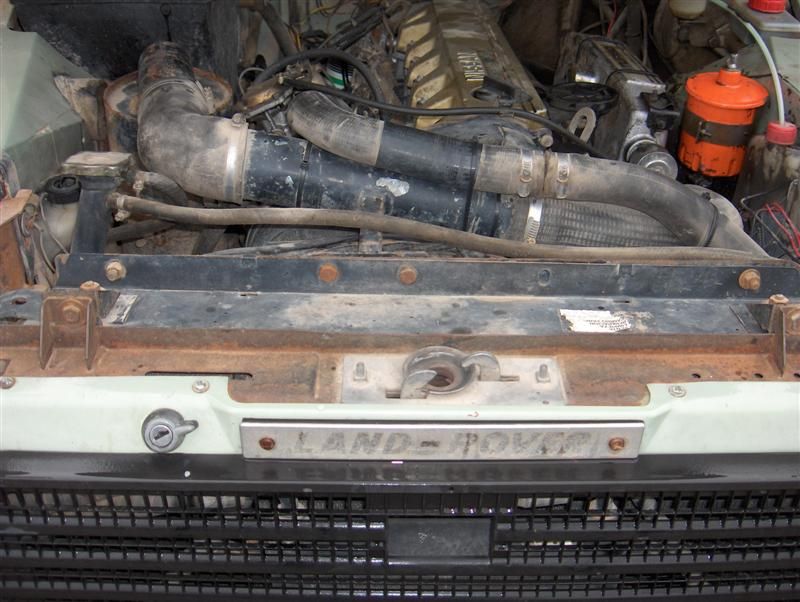

The front grill is level with the wings an the grill is plastic but some one put a 6 pot in it so the grill could of been moved forward,
Any difference in the chassis between a series 111 an a stage 1? Also it has no movable vents under the windscreen

The series III chassis was modified by moving the grille, radiator and first cross-member forward, deleting cross-member number two, making the cross-member under the gearbox removal, and cutting away the cross-member behind the transmission to clear the prop' shaft.

Axles are standard series III but with 3.54:1 differentials and with Range Rover style constant velocity joints in the steering swivels, on account of the constant four wheel drive.

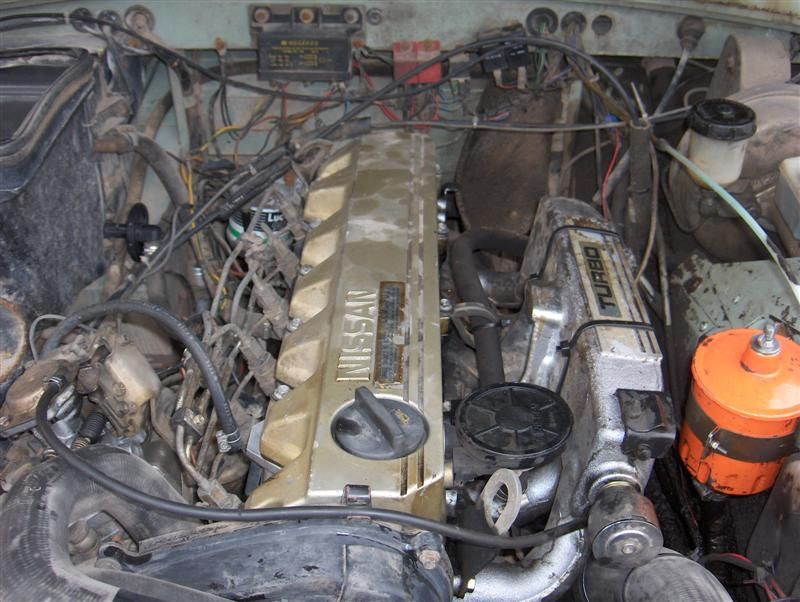

Yup I can see now it's a stage 1, with a six pot instead of the V8

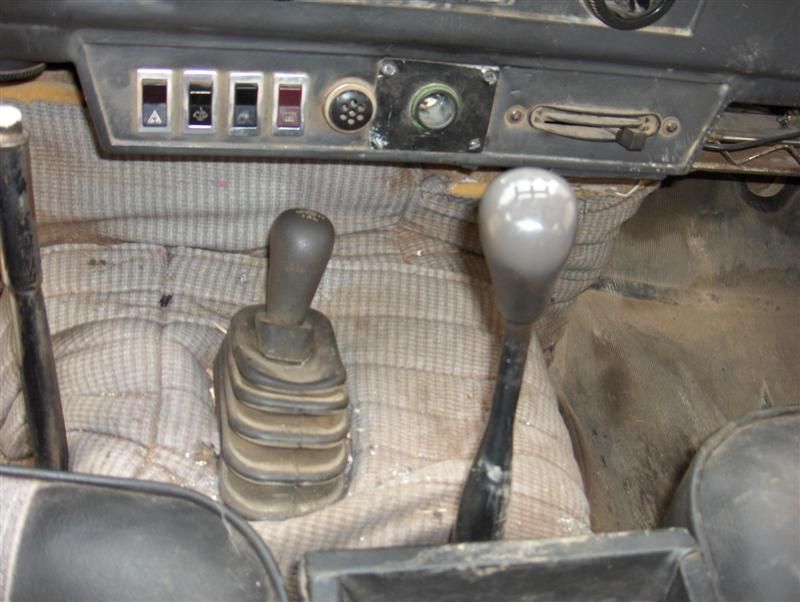

also it's not a constant 4WD any more as it has a Nissan box I imagine the
transfer is nissan too, on a closer inspection looks like the rear axel has been
cut an shut to give to prop shaft a straight run, here's a few pic's

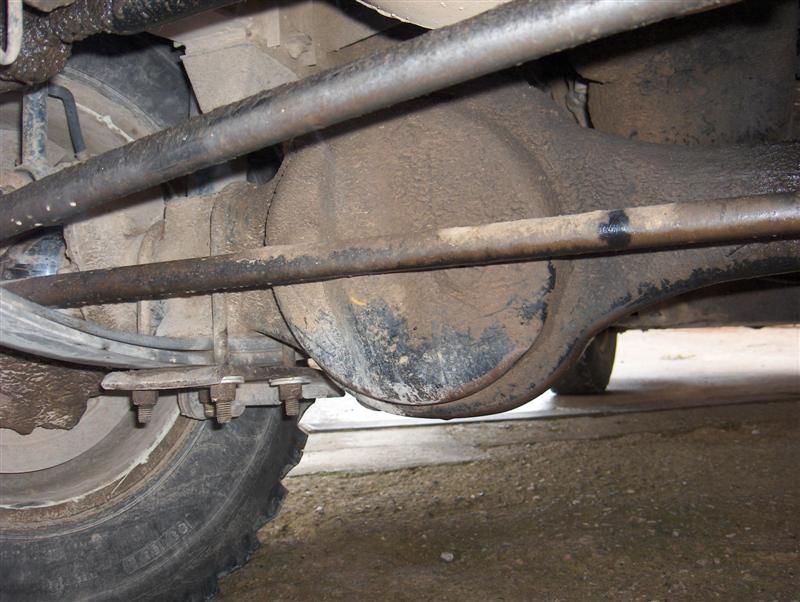

That does not look like a land rover Axel to me, it looks like you have more Nissan than land rover

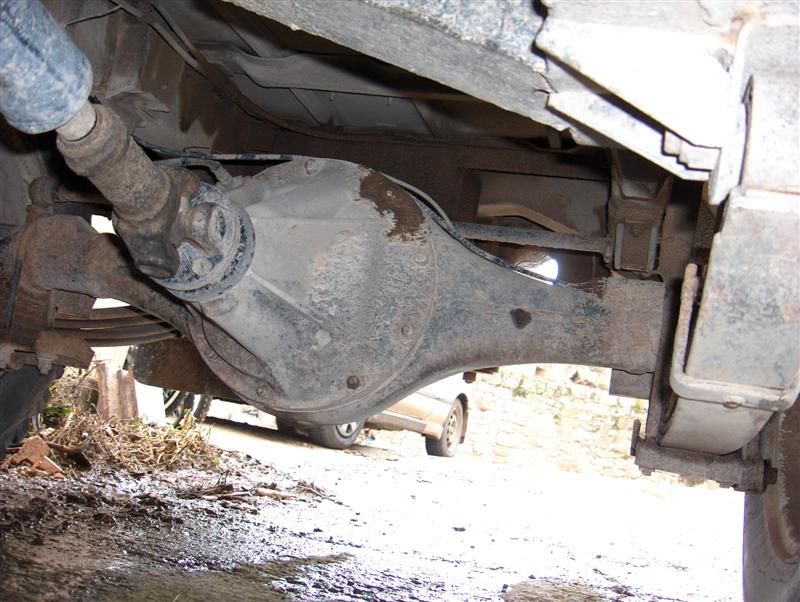

So if thats not a Land rover fear axel I imagine this isnt a Land rover

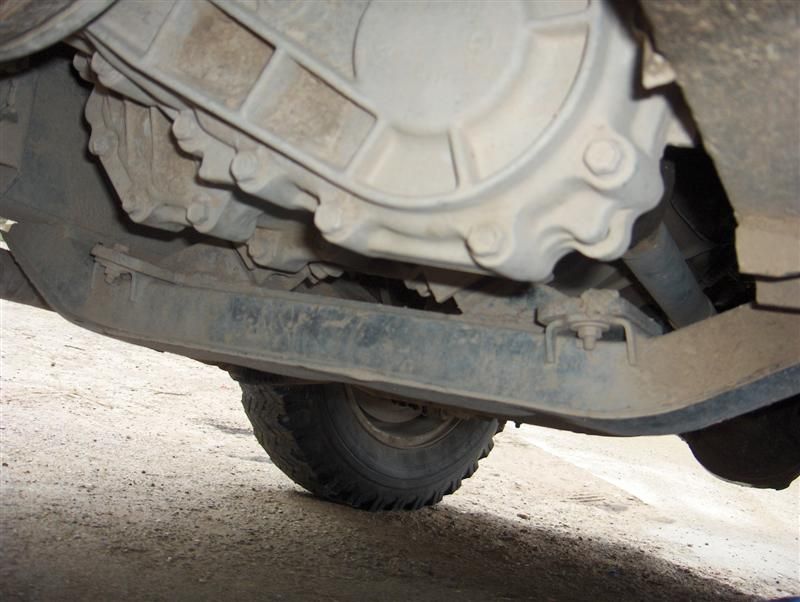

front axel, what do you think. the gearbox cross member dosent look original either

I have no history for this landy, the last owner died a year ago an his wife is no help. I'm going to have to identify the parts sooner or later or buying spares will be impossible.

check the axle deain plug. if it has a huge srewdriver slot in it then its a lr axle. neither axles look lr to me but you never know.seems you have a bitsa

mm! that axle looks the same as mine and thats a landy axle

The front one looks landy to me but not the back.

dunnit?

Year

yup, im having a rethink on the front un, its landy, but the back un aint

So what do you call a half Nissan half land rover such as this?

Reliable?

how about sacrilege.

pariah said:

Reliable?

Click to expand...

That made me chuckle,

Lazy Landy said:

how about sacrilege.

Click to expand...

I'm going to call her Verity, clean her up an give her a coat of pink paint.

Look like Landy axles to me to
