How to - Land Rover 90 TD to Discovery 200TDi Engine Conversion

Discussion in 'Technical Archive' started by richardjeaton, Nov 29, 2009.

?

Approve or not??

Poll closed Dec 17, 2011.
  1. It was Great

    80.0%
  2. Utter ****e

    0 vote(s)
    0.0%
  3. I've had better

    20.0%
< Previous Thread | Next Thread >
  1. larrynumber1

    larrynumber1 New Member

    Joined:
    Aug 4, 2009
    Posts:
    209
    Likes Received:
    0
    Location:
    Kildare, Ireland.
  2. Langers

    Langers Well-Known Member

    Joined:
    Oct 7, 2009
    Posts:
    3,162
    Likes Received:
    8
    Location:
    Kent or Shropshire

    Yeah the blocks are all the same. Would probably be wise to go for genuine but I haven't got much cash at the moment and need to get back on the road... with any luck my OEM part should suffice ;)

  3. Langers

    Langers Well-Known Member

    Joined:
    Oct 7, 2009
    Posts:
    3,162
    Likes Received:
    8
    Location:
    Kent or Shropshire
    Ok guys, having trouble removing the top bellhousing bolts from the Tdi... any tips on how to do it? We've taken off the engine mounts and lowered her as far as she'll go but it still seems nigh-on impossible to get a tool in to undo the nuts :confused:

    Cheers

  4. Langers

    Langers Well-Known Member

    Joined:
    Oct 7, 2009
    Posts:
    3,162
    Likes Received:
    8
    Location:
    Kent or Shropshire
    S'ok, no worries, finally got her out after drilling a few big holes in the floor/transmission tunnel :D

  5. Langers

    Langers Well-Known Member

    Joined:
    Oct 7, 2009
    Posts:
    3,162
    Likes Received:
    8
    Location:
    Kent or Shropshire
    Rightio then... slow progress, but I've now removed the clutch, flywheel and flywheel housing from the Tdi.

    Bit stuck now, I've got a clutch, flywheel and flywheel housing from both engines, and I'm not sure what combination I need to put back onto the Tdi. Not being a mechanic I'm just not really sure what I'm looking at. Do I need to replace any seals or gaskets? I've got a 'rear crankshaft oil seal' arriving at some point this week, but not sure if I need any others. Should I clean it all up before putting it back together or just leave it as is?

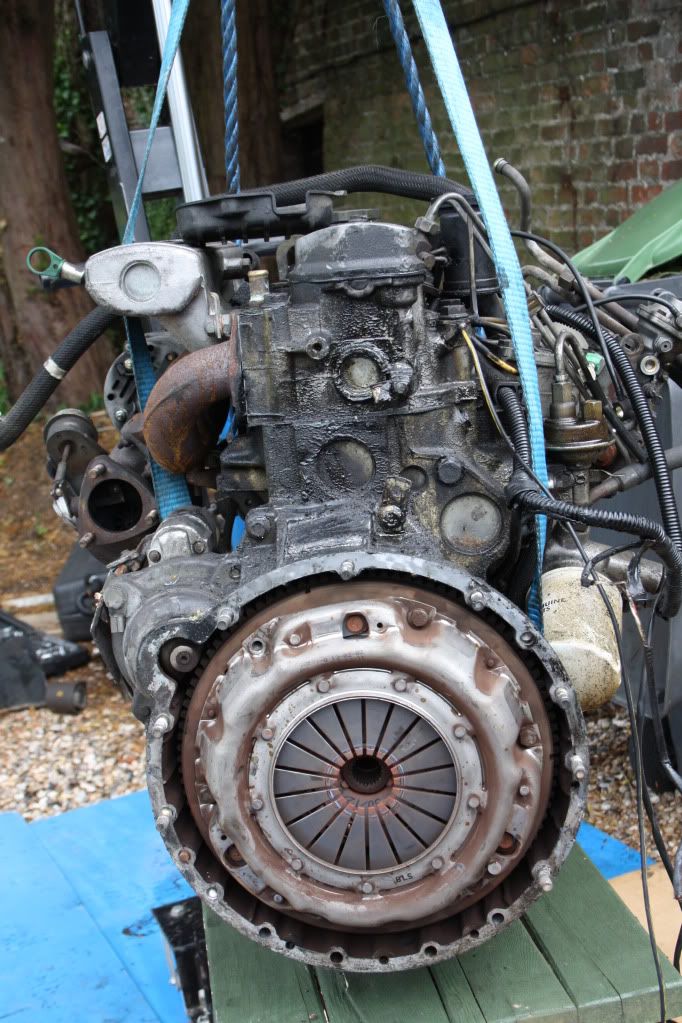

    Thanks, and here's some piccies I've taken along the way. :D:D

    [​IMG]

    [​IMG]

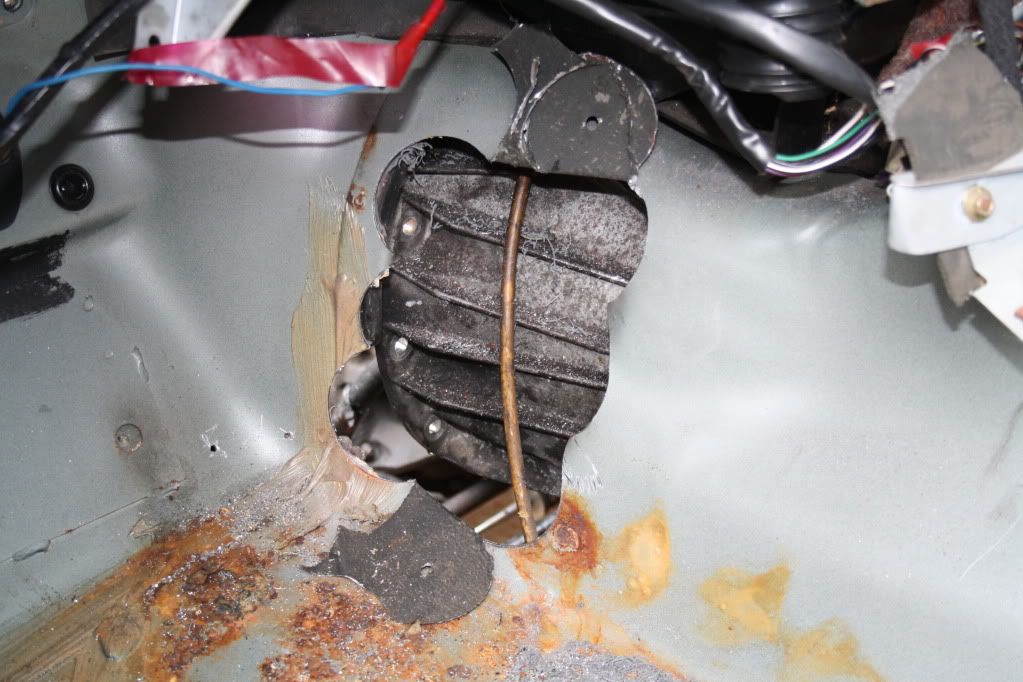

    Holes I drilled to get at the last couple of bellhousing nuts :D
    [​IMG]

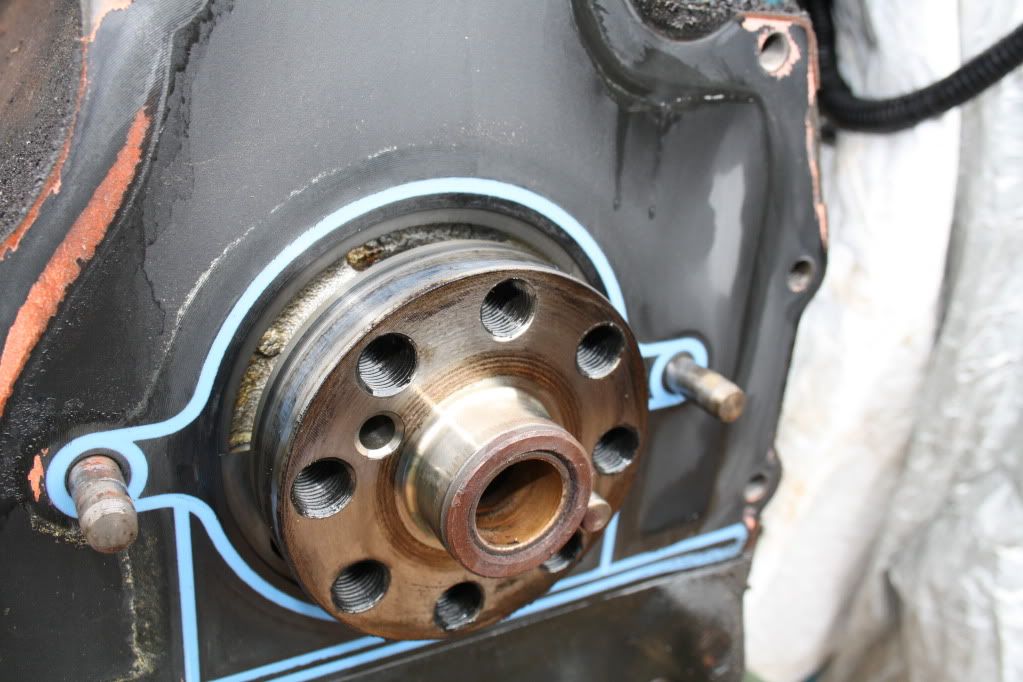

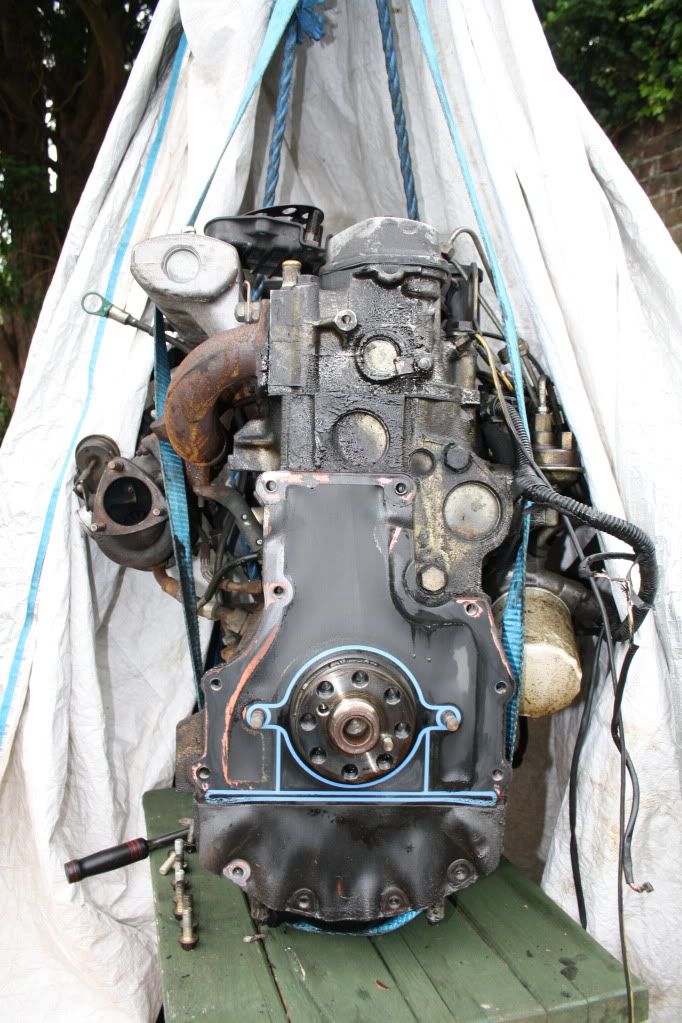

    Back of the Tdi
    [​IMG]

    [​IMG]

    So any advice appreciated, completely new to this but having a lot of fun! :)

  6. Sirus

    Sirus Your all Banned except me

    Joined:
    Apr 18, 2007
    Posts:
    22,196
    Likes Received:
    114
    Location:
    The Country of Black
    Use the housing off your old engine and flywheel.....then you aint got no hassles bolting it back up

  7. Langers

    Langers Well-Known Member

    Joined:
    Oct 7, 2009
    Posts:
    3,162
    Likes Received:
    8
    Location:
    Kent or Shropshire
    Yeah ok then. Do I need to put any new gaskets in or anything? Also which clutch do I put back in... both are in good nick.

  8. Sirus

    Sirus Your all Banned except me

    Joined:
    Apr 18, 2007
    Posts:
    22,196
    Likes Received:
    114
    Location:
    The Country of Black
    Clean it up and replace the rear seal. If the flywheel is rusting give a a going over with the wire brush. Oh and make sure you use loctite and torque the flywheel bolts back up to the right torque setting.

  9. Sirus

    Sirus Your all Banned except me

    Joined:
    Apr 18, 2007
    Posts:
    22,196
    Likes Received:
    114
    Location:
    The Country of Black
    You use the cltch for the flywheel and gearbox.....i.e. your old un. I would put a new one in though aand a new fork as it could save you hassle later on.

  10. oil dripper

    oil dripper Well-Known Member

    Joined:
    Aug 27, 2005
    Posts:
    5,659
    Likes Received:
    6
    Location:
    Here i think
    And mek sure yer flywhells nice an tite:rolleyes::D:p

  11. Langers

    Langers Well-Known Member

    Joined:
    Oct 7, 2009
    Posts:
    3,162
    Likes Received:
    8
    Location:
    Kent or Shropshire
    Righto, thanks for the tips chaps :)

    Sirus when you say a new rear seal, I take it you mean a rear crankshaft oil seal?

  12. Sirus

    Sirus Your all Banned except me

    Joined:
    Apr 18, 2007
    Posts:
    22,196
    Likes Received:
    114
    Location:
    The Country of Black
    Yes the crankshaft seal (use a doubty one)....and the cardboard gasket (one with the pretty blue pattern on it)

  13. Langers

    Langers Well-Known Member

    Joined:
    Oct 7, 2009
    Posts:
    3,162
    Likes Received:
    8
    Location:
    Kent or Shropshire
    Ok, great cheers.

    Oddly, when I took the flywheel housing off the TD engine, it had no cardboard gasket in there at all, just bare metal. Thought it was a bit odd, plus it was full of oil :eek: :D

  14. landymanmel90

    landymanmel90 New Member

    Joined:
    Mar 5, 2010
    Posts:
    255
    Likes Received:
    0
    Location:
    wales
    HELLO ALL......just a little tip on the oil cooler pips.
    Use yr old td pips from yr td rad.
    Swap yr threded connections from yr old rad.
    Cut off the elbows to the engine side.
    Use yr 200tdi elbows and get a couple of double ear o ring clips from yr local fwb or use that well known selling site on internet ( tbay i think )lol.
    All in all it cost me about 80p.
    Use NIPPER PLIERS, you can find a cheep pair at a carbooty if you havent got any.
    "but" if they are quite sharp be careful not to cut the o ring clip do a little on each side till they are tight.
    Think the size i needed was 22-24 but dont quote me on it, wise to check.

    Ok thanks for the info from richardjeaton on the temp problem i almost got a new HG lol.
    and thanks to all the other posters on there help to......:crazy_driver:

  15. sypher

    sypher Well-Known Member

    Joined:
    Jan 18, 2009
    Posts:
    1,997
    Likes Received:
    0
    Location:
    Forest of dean
    Or you can take out the adaptors from the TD oil filter housing and use your TD pipes without cutting a thing :D .

  16. landymanmel90

    landymanmel90 New Member

    Joined:
    Mar 5, 2010
    Posts:
    255
    Likes Received:
    0
    Location:
    wales
    True .....
    Maybe there is different types because i tryed that and mine didnt fit so thats why i cut off the elbows.:crazy_driver:

  17. abbs

    abbs New Member

    Joined:
    Jan 20, 2008
    Posts:
    15
    Likes Received:
    0
    Location:
    Ilchester
    Brilliant thread, followed it almost to the letter and now have defender that goes up hills in 5th!! If anyone wants a breakdown of my costs, pm me and I'll forward a spreadsheet. £951 including the disco. You can play with the mods to work it into a budget. I've put a VAT bit on the spreedsheet so you can have a look at the cost when it goes up to 20%.

  18. tyre man dave

    tyre man dave Active Member

    Joined:
    Sep 6, 2010
    Posts:
    734
    Likes Received:
    0
    Location:
    redcar cleveland
    hi richard.
    just done 200tdi swap in2 90
    followed your info on what to do,
    just a bit stuck on wiring
    can you help me out.
    need to know where to link wires into 90 loom
    brown wires from starter mtr /red/white wire,
    i,ve done oil/water temp .
    done heater plug relay
    is there anything else on the wiring side to do.
    i,m abit thick when it comes to wiring.

    thanks for your help getting me this far
    landy nutter/ tyre man dave

  19. Langers

    Langers Well-Known Member

    Joined:
    Oct 7, 2009
    Posts:
    3,162
    Likes Received:
    8
    Location:
    Kent or Shropshire
    Sounds like you got it all apart from the starter motor wires - all of them go onto the top stud on the starter, and the black cable on the starter goes onto the engine block iirc (should still be connected if you haven't changed the starter). The alternator wires are the same colour, but you will need to connect the 90 wires onto the Tdi wires at some point - the Tdi uses different plugs to the TD.

  20. Terra Ero

    Terra Ero Member

    Joined:
    Mar 5, 2007
    Posts:
    97
    Likes Received:
    1
    Location:
    Northumberland - the REAL North of England.
    Well, been stuck on what everyone agrees is a simple job now for over week - about to have to start hiring a car, so any advice gratefully received (apart from scrapping it, which has seriously occured to me I have to admit). I have a 110 Defender (1984) which was 2.5 n/a and into which I'm attempting to fit an ex-Disco 200TDI. Everywhere on the net says this is pretty easy, and I've used the excellent guide on this thread - but here's the catch that has had me stopped for 3 days now (on top of which I've ran out of time off and I'm now on my night shifts and reaching exhuastion point with doing this instead of sleeping! - But need a working vehicle by tuesday latest or else I'm going to have to hire). Mounts adapted etc, engine in - except no way, no how can I get the nearside/passenger side of the flywheel to meet fully with the bellhousing. I've taken it back out, checked the studs, all straight and true and matching the holes, checked for obstructions, waggled the engine and so no to the point where I've hurt my back, even tried levering with a scaffy bar! But no matter how I approach it, for some reason we can't get that side to go fully home. I did think it might be the starter heat shield, but there is clearence there. The mountings have room for the mounting bolt to move forward on both sides, the gearbox has been raised to meet the flywheel cover (and even tried with it down and every position in between). We simply cannot get that side to meet up. It always goes on askew. As close as we can get it is with the studs, just reaching the very outer edge of the holes in the bellhousing on that side. The other side will go in no problem, but we cannot get it to go straight in, and as much as we look, we can see no logical reason! Any thoughts anyone?
