How to fit powerfold mirrors to early FL1.

Discussion in 'Technical Archive' started by JRNORWAY, Feb 26, 2014.

< Previous Thread | Next Thread >
  1. JRNORWAY

    JRNORWAY Active Member

    Joined:
    Feb 7, 2013
    Posts:
    357
    Likes Received:
    9
    Location:
    Norway
    I have tried to source some info on fitting powerfold mirrors to my early FL1. (99 L series). I have read that its easy, but you should remove the gasket before you fit them. I did this when i fitted the RH mirror here the other day, but i found a leak so took a new look at it today and got them both fitted with the gasket in place.

    After dismantling your old mirror you have to bore out two holes in the door skin.

    [​IMG]

    [​IMG]

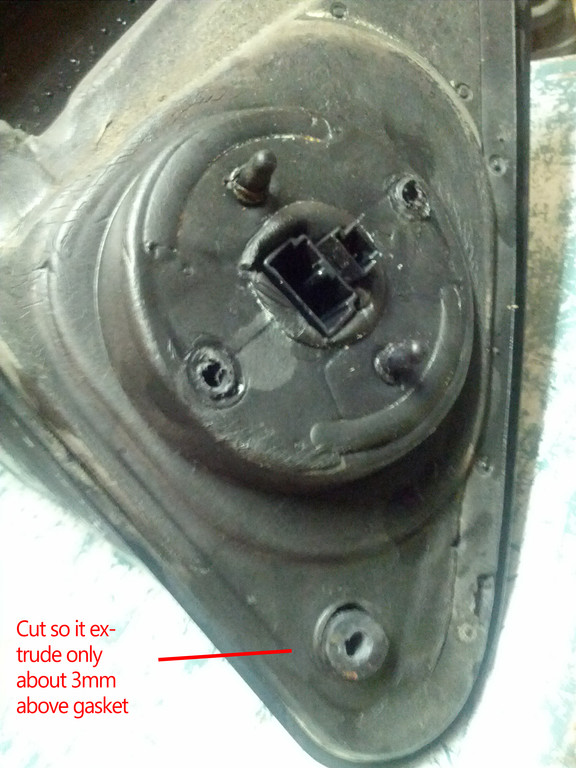

    When this is done you have to cut where the bolt fastens at the mirror about 3mm over the gasket.

    [​IMG]

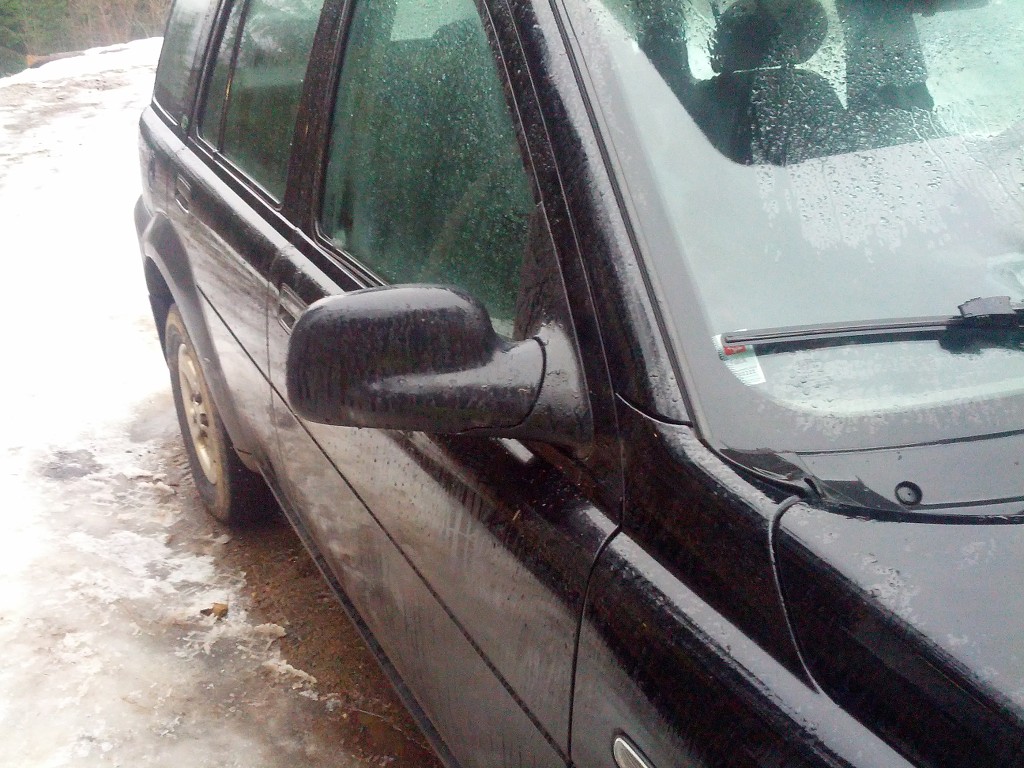

    Very easy job indeed. Here im done and just need to get the wiring done.

    [​IMG]

    [​IMG]

    Last edited: Feb 26, 2014
    Hippo likes this.
  2. teddywood1

    teddywood1 Well-Known Member

    Joined:
    Jul 7, 2011
    Posts:
    5,333
    Likes Received:
    233
    Location:
    stoke-on-trent
    job well done and it is luck you have the wiring there.

  3. JRNORWAY

    JRNORWAY Active Member

    Joined:
    Feb 7, 2013
    Posts:
    357
    Likes Received:
    9
    Location:
    Norway

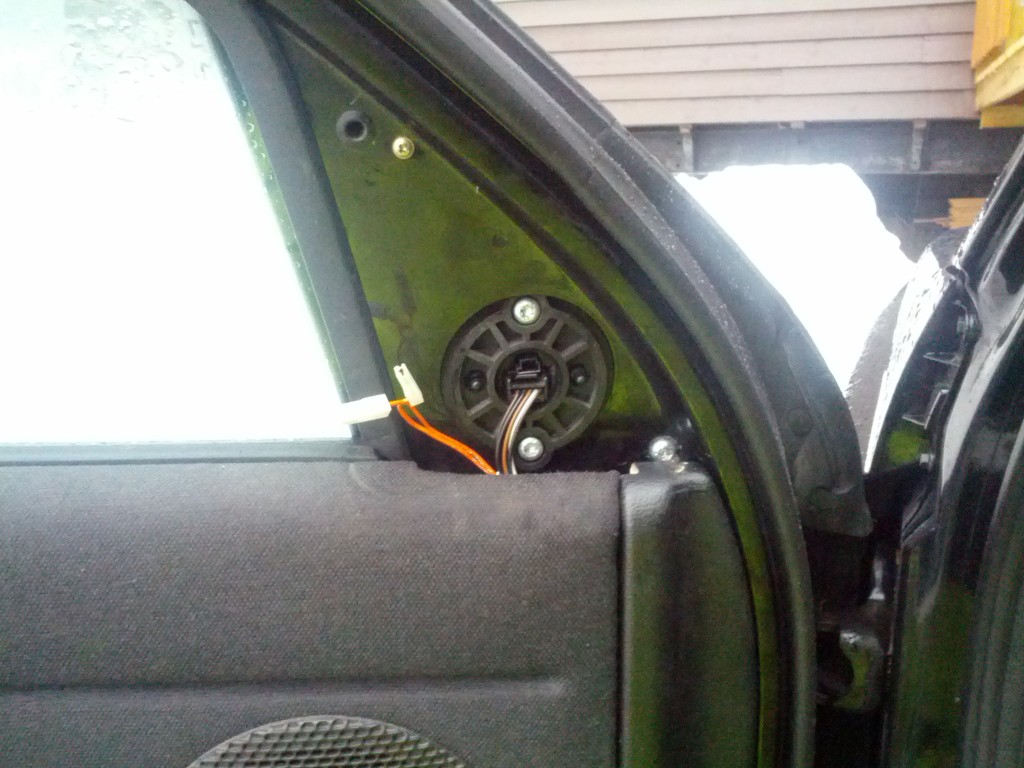

    The wiring for the mirrors is the same. There is just one extra connector for the powerfold motion thats missing. This one is not present on the early ones. The extra wiring in the picture is for the tweeter speaker.

  4. JRNORWAY

    JRNORWAY Active Member

    Joined:
    Feb 7, 2013
    Posts:
    357
    Likes Received:
    9
    Location:
    Norway

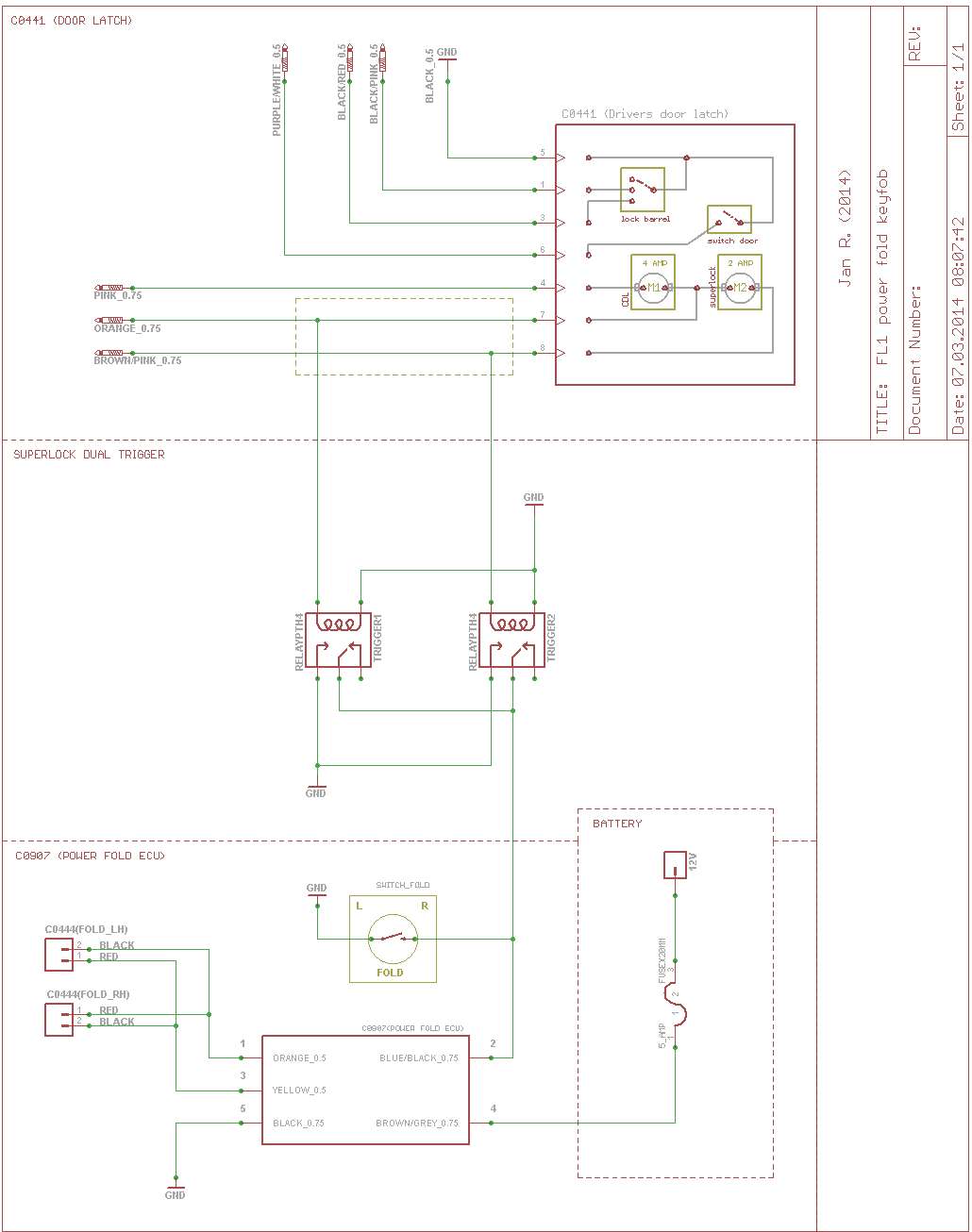

    This is how im gonna wire up my power fold mirrors to the keyfob. It will fold/unfold on drivers door "superlocked"; "not superlocked" and manual via the fold button.

    [​IMG]

    Last edited: Mar 7, 2014
  5. Winu

    Winu Active Member

    Joined:
    Oct 27, 2012
    Posts:
    795
    Likes Received:
    45
    Location:
    Poland,Warsaw
    Looks interesting ,

  6. JRNORWAY

    JRNORWAY Active Member

    Joined:
    Feb 7, 2013
    Posts:
    357
    Likes Received:
    9
    Location:
    Norway

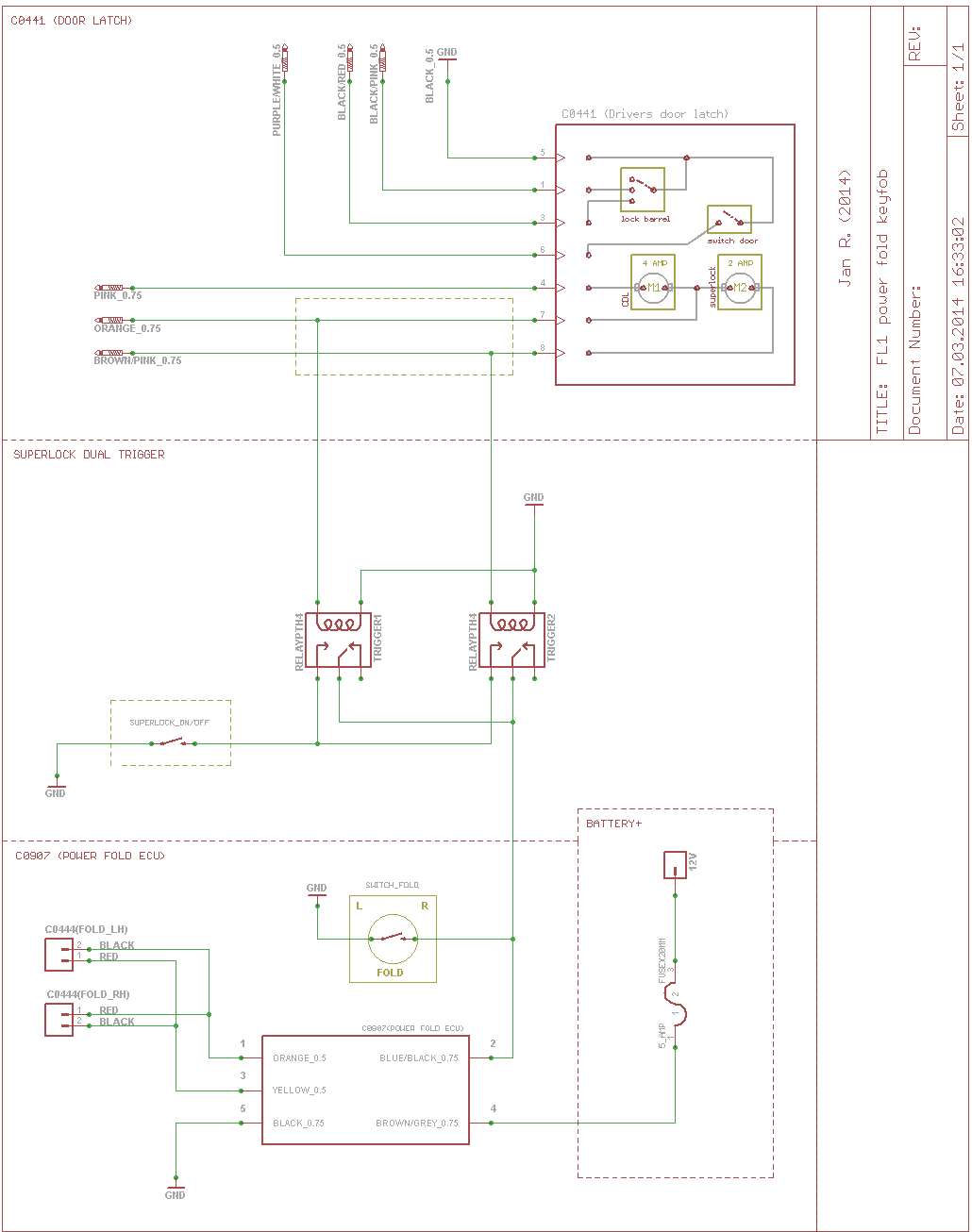

    Just made a little change for the possibility to turn off superlock folding if needed.

    [​IMG]

    Last edited: Mar 7, 2014
  7. teddywood1

    teddywood1 Well-Known Member

    Joined:
    Jul 7, 2011
    Posts:
    5,333
    Likes Received:
    233
    Location:
    stoke-on-trent
    I just had a on-off-on switch and did it that way but through the ignition so when that was off I knew they were off I will try to get a drawing up

  8. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    13,820
    Likes Received:
    2,340
    Location:
    Near Newquay
    That's exactly how I made my remote power fold system work.
    Definitely take the feeds from the superlock motor.

  9. JRNORWAY

    JRNORWAY Active Member

    Joined:
    Feb 7, 2013
    Posts:
    357
    Likes Received:
    9
    Location:
    Norway
    Today i have wired up the power fold mirrors to fold/unfold on the keyfob(superlock). Everything is working as it should do. I even made a youtube video just to show off :D

    FL1 keyfob power fold

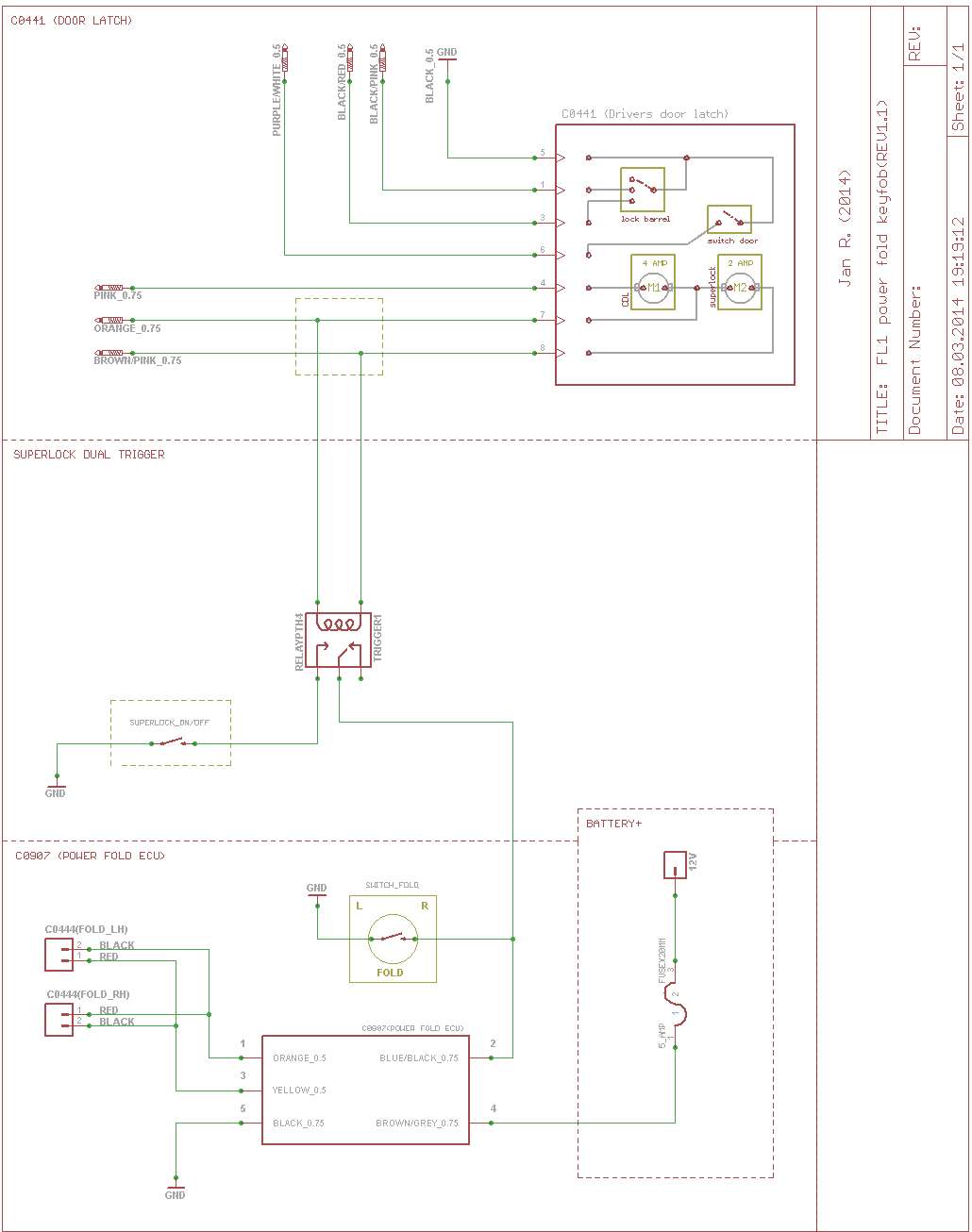

    I dropped the 2 relay configuration and this is the final wiring schematic with only one relay:

    [​IMG]

  10. baptista

    baptista Active Member

    Joined:
    Dec 4, 2011
    Posts:
    642
    Likes Received:
    26
    Location:
    Lisbon, Portugal
    cool!!!
