Hose Part number Please

IndiTd4 · Jan 12, 2013

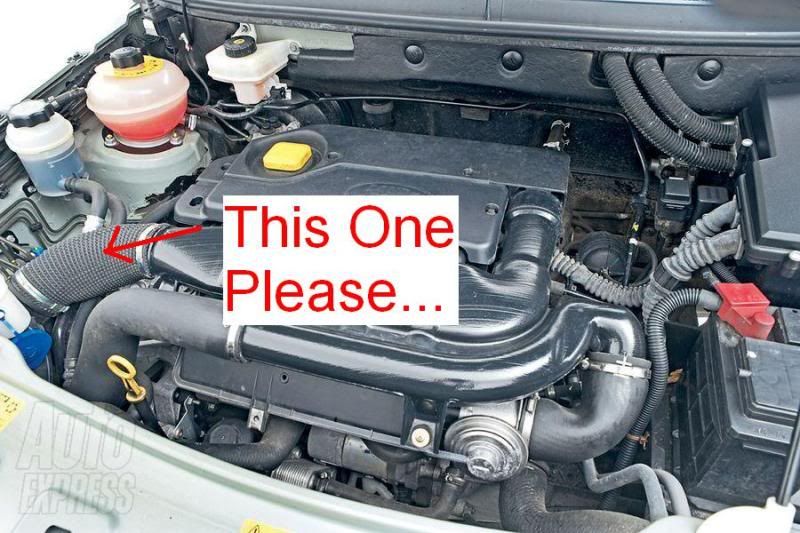

I have looked High & Low but cant find a part number for the hose marked in the picture below..

Really appreciate you help on this one..

If its too pricey for the LR Part or equivalent then I will go for the Silicone one,
but I was wanting to stay away from that, as its an expensive route to go down..

Thanks in advance..

Singvogel · Jan 13, 2013

The LR part (if you could find it) is too expensive.

Solid 5 or 6mm solid silicone is too pricey - and way over the top for a low pressure intake hose.

What you need is a half metre length of the much cheaper corrugated silicone induction hose - which is what I bought. Cut it in half and share with a friend.

Here it is:

70mm 2 3/4" BLUE Silicone Ducting Flexible Induction Air Intake Pipe Hose 0.5M | eBay

Singvogel.

IndiTd4 · Jan 13, 2013

Is it any good for anywhere else on the Freelander??

if not strong enough on its own, maybe it could go over the other pipes if the
diameter is big enough??

Give the bling look on a budget??

Singvogel · Jan 13, 2013

IndiTd4 said:
Is it any good for anywhere else on the Freelander??

if not strong enough on its own, maybe it could go over the other pipes if the
diameter is big enough??

Give the bling look on a budget??

No - it doesn't fit anything else - just the air intake.

It's infinitely stronger than the original.

The original is about 2cms too short IMHO that's why mine split anyway.

SV.

IndiTd4 · Jan 13, 2013

whats the diameter of the other hoses??

Ian jones · Jan 13, 2013

IndiTd4 said:
I have looked High & Low but cant find a part number for the hose marked in the picture below..

Really appreciate you help on this one..

If its too pricey for the LR Part or equivalent then I will go for the Silicone one,
but I was wanting to stay away from that, as its an expensive route to go down..

Thanks in advance..

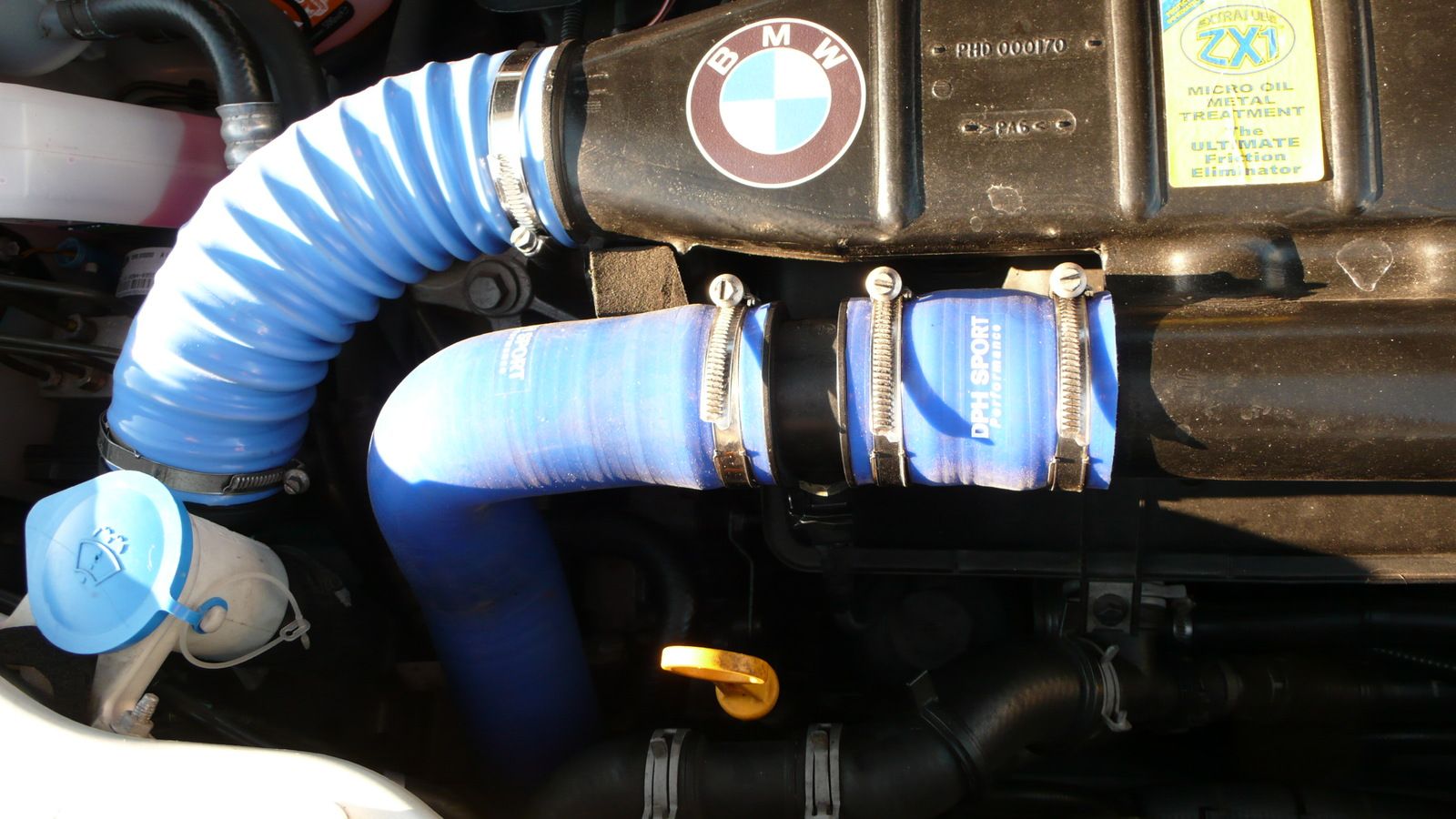

Hi , silicone hoses do cost more , but look the part my old hoses were porous , and needed replacing

webley2000 · Jan 13, 2013

Totally agree with Singvogel here.

I used this,

70mm 2 3/4" BLUE Silicone Ducting Flexible Induction Air Intake Pipe Hose 0.5M | eBay

as he recommended no problems with it and theres enough left to replace again if its ever necessary.
Landrover part was about £40.00 at the time I did mine.

IndiTd4 · Jan 13, 2013

Ian jones said:
Hi , silicone hoses do cost more , but look the part my old hoses were porous , and needed replacing

Don't get me wrong mate I do like the silicone look, but I have just replaced 2 pipes before December, so would be extra expense I could do without at the moment, just paid £445 for a new alternator and belts to be fitted..

Maybe when the Lotto is nice to me..

IndiTd4 · Jan 13, 2013

webley2000 said:
Totally agree with Singvogel here.

I used this,

70mm 2 3/4" BLUE Silicone Ducting Flexible Induction Air Intake Pipe Hose 0.5M | eBay

as he recommended no problems with it and theres enough left to replace again if its ever necessary.
Landrover part was about £40.00 at the time I did mine.

I think this is the way to go for ££ savings at the moment,

I was trying to ascertain if I could put this pipe over the other ones that
people change to give the same cosmetic look as Ian has on his...

Hence the question what is the diameter of the other hoses,,

Ian jones · Jan 13, 2013

IndiTd4 said:
I think this is the way to go for ££ savings at the moment,

I was trying to ascertain if I could put this pipe over the other ones that
people change to give the same cosmetic look as Ian has on his...

Hence the question what is the diameter of the other hoses,,

Hello again . sizes are inner bores measured across the hose , egr 55mm , intercooler/turbo 50mm , airintake as mentioned 70mm , could not find my old one to measure . add 5mm on the above for the outer measurment

IndiTd4 · Feb 19, 2013

Well guys, I cant afford to get the full set at the moment so I have gone for the worst one I have at present,

Td4 Air Intake Hose, that cloth whatever it is thing,

I am sure it is collapsing when driving, allowing a squeaking noise come from it, or just sucking air through it as it is so porous,

so I am starting here, then will change the others as and when I get the money, or they are needed..

Ebay image;

Already purchased a full set of T Bar clamps;

2x 63-68mm (EGR)
2x 68-73mm (Inter-cooler)
2x 79-85mm (Air Intake)

I am hoping they will fit the hoses I will be getting??
Will make up my mind about the 4th hose when I get that far..
Inter-cooler to Turbo hose and another 2x 63-68mm T Bar Clamps..

Will post again when I have fitted it..

Ian jones · Feb 20, 2013

Air intake was my first replacement , the old one looked like an old hoover bag , the intercooler hose size is 55mm , so your clamps need to be smaller

IndiTd4 · Feb 20, 2013

Ian jones said:
Hello again . sizes are inner bores measured across the hose , egr 55mm , intercooler/turbo 50mm , airintake as mentioned 70mm , could not find my old one to measure . add 5mm on the above for the outer measurment

The actual advert states in full;

63-68 FITS 57mm
68-73 FITS 60mm
79-85 FITS 70mm

You stated earlier in this thread (above) that the hoses were measured on the inside and to add 5mm to the given dimensions..

Intercooler/turbo 50mm = 55mm
(63-68 FITS 57mm) Should tighten up enough..

egr 55mm = 60mm
(68-73 FITS 60mm) Should tighten up perfectly..

airintake 70mm = 75mm
(79-85 FITS 70mm) Might be a bit on the tight side, but might squeeze it on..

Worst case is I will use the old Jubilee clip until I get the right size..

Ian jones · Feb 20, 2013

IndiTd4 said:
The actual advert states in full;

63-68 FITS 57mm
68-73 FITS 60mm
79-85 FITS 70mm

You stated earlier in this thread (above) that the hoses were measured on the inside and to add 5mm to the given dimensions..

Intercooler/turbo 50mm = 55mm
(63-68 FITS 57mm) Should tighten up enough..
egr 55mm = 60mm
(68-73 FITS 60mm) Should tighten up perfectly..
airintake 70mm = 75mm
(79-85 FITS 70mm) Might be a bit on the tight side, but might squeeze it on..

Worst case is I will use the old Jubilee clip until I get the right size..

I am with you now

IndiTd4 · Feb 20, 2013

Phew!!!!

I was worried for a while there...

IndiTd4 · Feb 21, 2013

As promised the hose turned up today and I have checked that the larger T Bar clamps for the airintake 70mm = 75mm fit...and they are great perfect in fact, so when the weekend gets here I will fit it and take pics..

(79-85 FITS 70mm) Might be a bit on the tight side, No its a perfect fit..

IndiTd4 · Mar 2, 2013

Well as said the first one has been purchased and now fitted,,

Two bits of good news,,

1. Wife thinks it looks great..
2. My whistle has now gone...
