P38A Hifi peeps update!!

Update!
After talking to @pwood999 ,
I got I touch with Incartec.
They pointed me to this after an email with the original stereo numbers and plug types.
So this is what I got ..
sitting under the head unit is the high to low converter.
No steering wheel unit included as I wasn't to fussed about the controls not functioning.
It works a treat, it also has adjustable output controllers so the sensitivity can be adjusted to suit your listing levels. I.e. seriously loud or reasonable.
Installed with the micro phone in a spare blanking plug in the dash.

And can bother people while I'm driving my Range Rover... Via the mic...

A little bit of dust there....

Thanks for the help.

Mark Piercy said:

Update!
After talking to @pwood999 ,
I got I touch with Incartec.
They pointed me to this after an email with the original stereo numbers and plug types.
So this is what I got ..

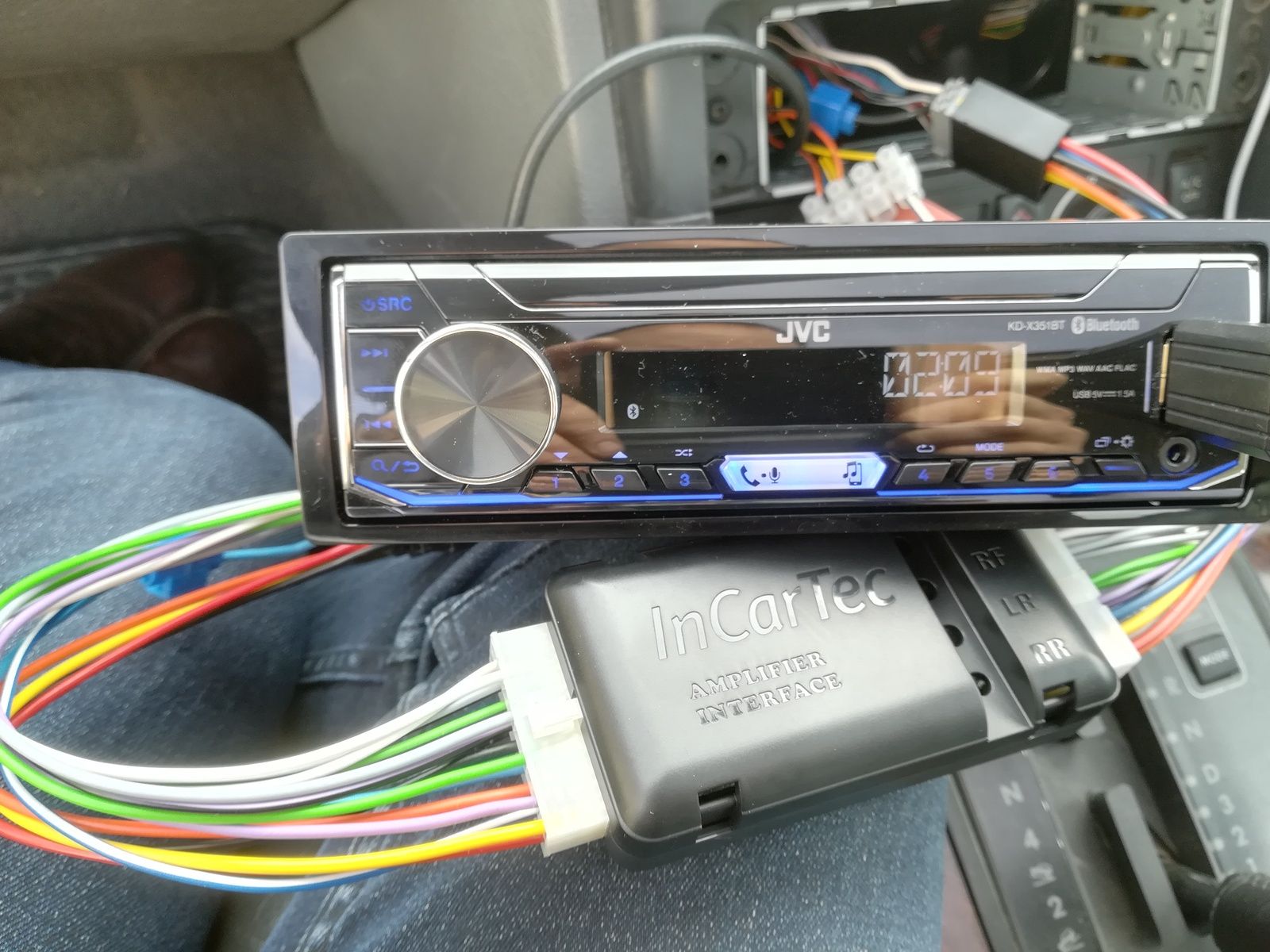

View attachment 194356 sitting under the head unit is the high to low converter.
No steering wheel unit included as I wasn't to fussed about the controls not functioning.
It works a treat, it also has adjustable output controllers so the sensitivity can be adjusted to suit your listing levels. I.e. seriously loud or reasonable.

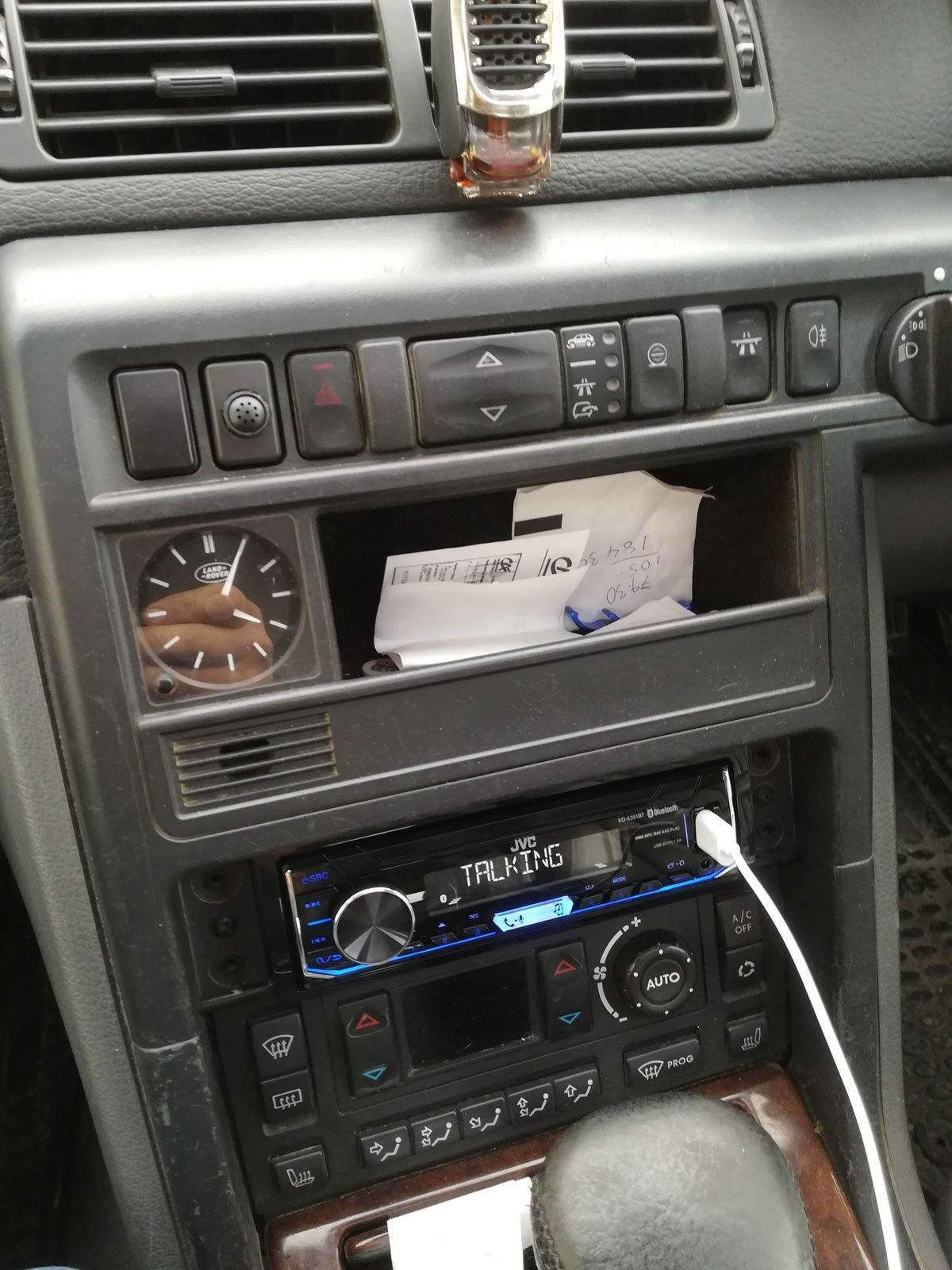

Installed with the micro phone in a spare blanking plug in the dash.
View attachment 194357

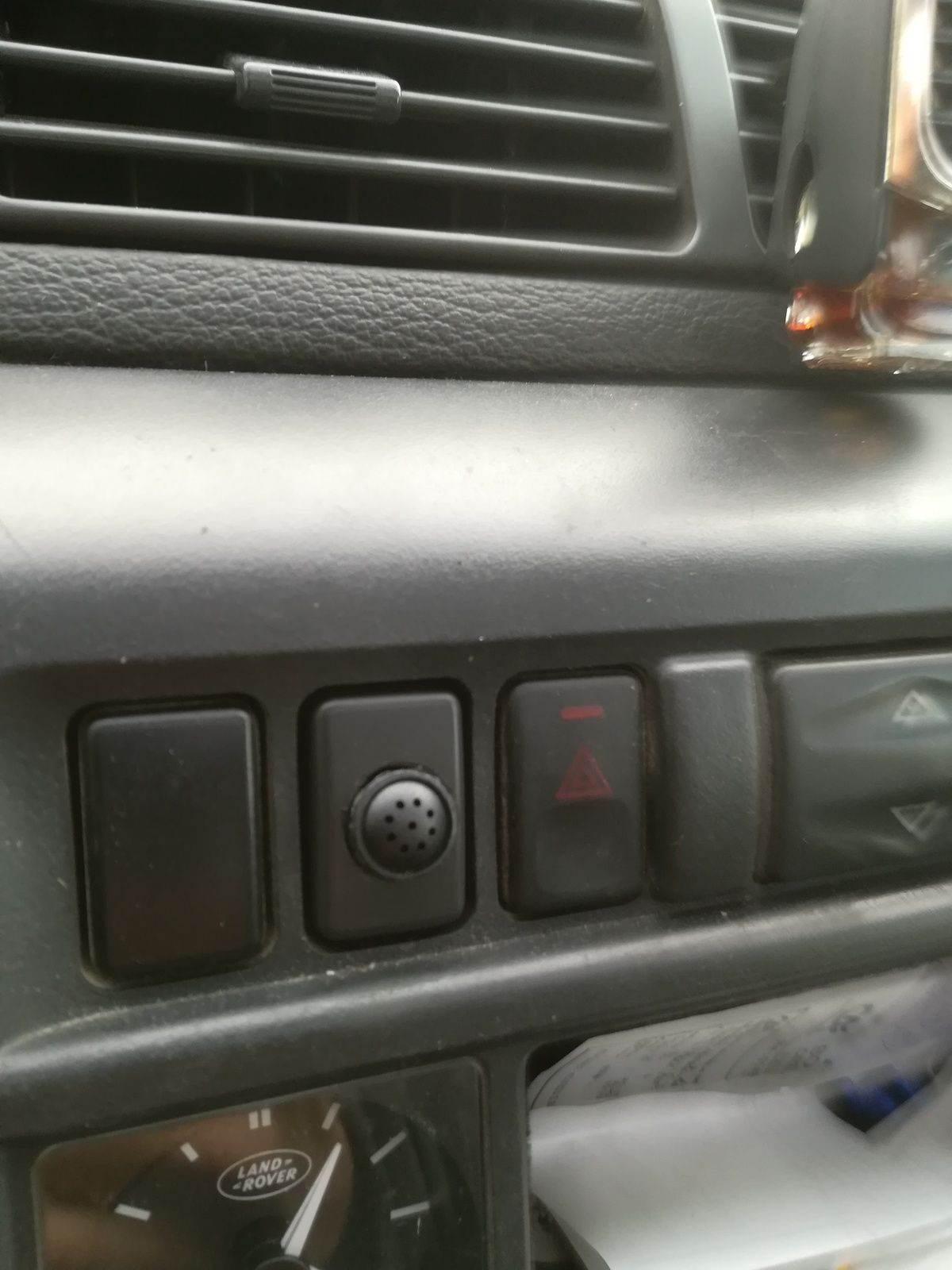

And can bother people while I'm driving my Range Rover... Via the mic...
View attachment 194358
A little bit of dust there....

Click to expand...

That looks like a nice tidy installation! What was your total cost please?

Thanks.

Jon Dor said:

That looks like a nice tidy installation! What was your total cost please?

Thanks.

Click to expand...

In Euros,
jvc kd-x351bt head unit 69€.
The high to low adapter was 53€ Inc postage.
Depending on your stereo.
Mine has the h+kardon speakers with a sub.
I had sent them pictures of the stereo and the plugs on the rear and they advised to use this system.

Sounds (pun intended) cost-effective if the sound quality is there.
I need to tweak mine as CD player won't come out to play.
When that's sorted, I'll decide whether to stick with current Harmon Kardon + sub, or change.

Mark Piercy said:

In Euros,
jvc kd-x351bt head unit 69€.
The high to low adapter was 53€ Inc postage.
Depending on your stereo.
Mine has the h+kardon speakers with a sub.
I had sent them pictures of the stereo and the plugs on the rear and they advised to use this system.

Click to expand...

Sorry... Forgot ask Mark; was the new unit a "straight swap" into the "hole" vacated by OE unit, or was some "fettling" necessary by removing some plastic/using an extra piece of trim?
Cheers.

Same dimensions for the new head units cage. I just need to source the aftermarket side trim parts that make up for the smaller facia size.

The newer stereo unit being a multi media type means the body is only 3/4 the depth of a standard unit. Bearing in mind all the gubbins that go in behind it, i.e. the iso leads and high/low adapter... It's a god send it is shallower

Mark Piercy said:

Same dimensions for the new head units cage. I just need to source the aftermarket side trim parts that make up for the smaller facia size.

Click to expand...

Thanks Mark...won't bug you again this evening

I'll add, that the speaker system is all standard and nothing modified so to keep as much as possible standard beneath it's skin. Less to put standard.....iiiiiiiifff and ever sell it.

Not bugging me at all buddy.
Happy to help.
Mr @pwood999 is a god send on stereo wizardry.

Mark Piercy said:

Not bugging me at all buddy.
Happy to help.
Mr @pwood999 is a god send on stereo wizardry.

Click to expand...

I'll no doubt get in touch with him if I can't suss-out getting the stock Harmon Kardon install working correctly.
TTFN...GONE!

Nice effort, I did this in mine

biketeacherdave said:

Nice effort, I did this in mine

Click to expand...

GREAT JOB! This is ideally what I had in mind, but I'm wanting to use the original Harmon Kardon system...multi CD-changer, speakers etc. Is that effectively what you've done mate?
Cheers!

No....my dsp amp died they cannot be repaired...I tried soooooo rewired the door speakers installed the android retained steering wheel controls all mod cons its great

Where is DSP amp located please?

The amp is in the rear left compartment behind the CD changer, if you have one which I doubt with the set up you have now installed I think you have separate door amps

biketeacherdave said:

The amp is in the rear left compartment behind the CD changer, if you have one which I doubt with the set up you have now installed I think you have separate door amps

Click to expand...

OK. Would that complicate matters significantly?

If you have a dsp amp and it does you wont get anything to work unless you do what I did which is why I think you have door amps
