Camshaft

New Member
Posts
111
Hello i have a discovery td5 with seven seats and i am wanting to remove the loadspace two seats to replace with the side cubby boxes, does anyone know how to remove them? Thanks in advance, Paul

The actual removal is easy four nuts and the seat drops out. The problem is this will release the spring and render the refitting almost impossible.

RAVE shows a bracket made of wood that keeps the spring in tension and holds the fixing brackets in place. The bracket is quite complicated. I used two metal plates and these seem to have worked however I have not jet replaced the seat so may find this is not the case.

If you can get a copy of the rave instructions this is the way to go.

Here you go


Attachments

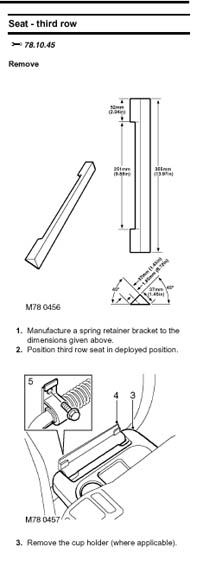

  • 1.jpg
    30 KB · Views: 176

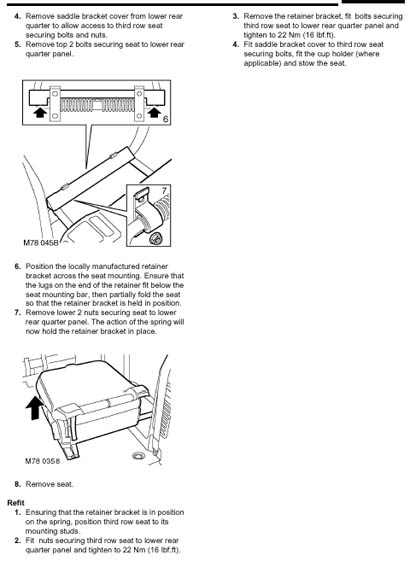

  • 2.jpg
    48.8 KB · Views: 187
