help !!!

i need help...vacuum rooting drawing for a mk1 discovery 2.0 mpi ...anyone ?

What exactly do you need, I got a manual of tinterweb for free that covered the disco MPI.
sorry not on this device, bit more detail and I will have a look for you.

Oh and welcome always good to say hello to the community first in the proper section with pics of your latest love/ hate.

J

first place thank you...

i need to know where to connect all the vacuum pipes...where all they go ...its working on low rpm s, and stall....i ear a noise of vacuum lost..near the intake mainfold ...and some pipes are missing....regards Samuel from Portugal...thank you again

I will have a look see what I can find, later or in the am. Depends how much I drink tonight

J

Ok had a quick look, nope can’t find anything. Will look again in the morning. Some pics may help if you can get some so I know where to look. As I don’t think there are many vacuum pipes, has it been lost in translation?
we have a defender 2.0mpi but it’s pretty much the same.

J

Ok, so had another good look in the manual and it only mentions 3 that I can see.

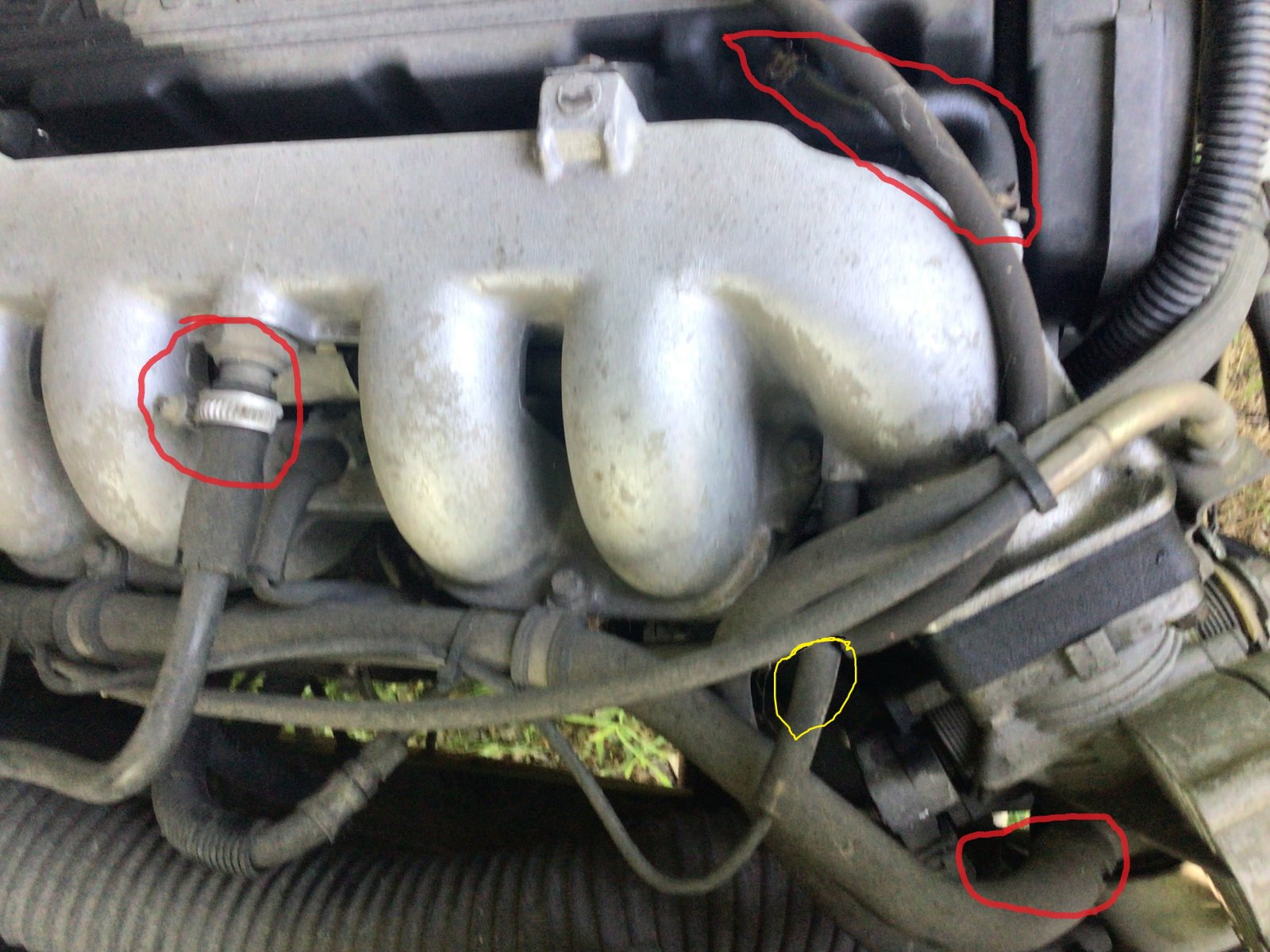

Took a pic of our defender and the pipes are as the manual states, so took a pic.




Big 1 in the middle of the manifold goes to the brake servo.

Small upper right is the crankcase breather that goes after the throttle body disc, Note manual says something about a restrictor in this hose (dont know what or how)

Larger hose bottom right is also a crankcase breather but is before the throttle body disc and goes around to the top/back of the cam cover.

The yellow 1 (mine is has a "T" piece for LPG) is a small 1 and it runs to the ECU.

That's all I can find without getting dirty and oily and my heart is not into that today

hope that helps. (Remember this is a pic of my defender not a disco)



J
