HELP ME PLEASE DUEL CIRCUIT BRAKES

AndyTheLandy(Tom) · Aug 10, 2019

got a 1982 series 3 n burst a pipe. its got duel circuit brakes and its the pipe that goes from the master cylinder to the little cross juntion thing on the chassis... i really want to get an mot on this in the next week or so and this is all it needs!!! please help me out what size will the fittings on both ends be! making my own pipe!

steve2286w · Aug 10, 2019

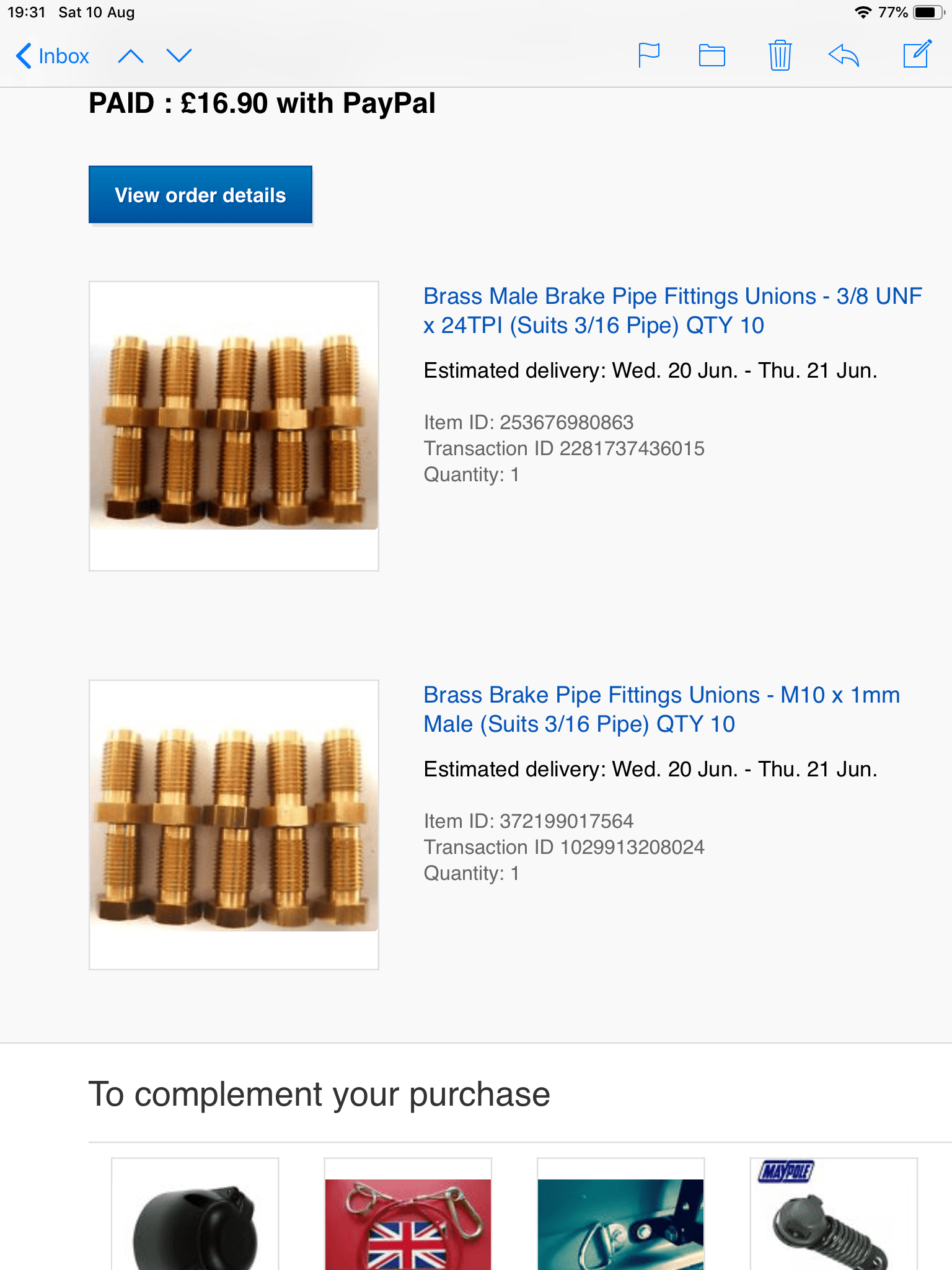

you will come across both of these threads , so if you buy both you’re covered, for speed you could take it too nearest motor factor with your old one and they should make you one up

Rodeo Joe · Aug 10, 2019

As above ....its probably metric (maybe) but take it to a garage they'll knock a couple of lines up for a few quid and sort it.

suburban · Aug 12, 2019

if you are making your own pipe, can't you cut the flares off the end of the old pipe, take off the existing unions and re-use them?

I have to do that on my American truck

JJKM · Aug 12, 2019

Just take it off, take to auto shop, get them to do it. Much easier. There is a multitude of options so even if we give you sizes, they might not be correct!

Gun7354 · Aug 15, 2019

I recently replaced all my flexes on my series 3 (1981). The brake unions were a mix of imperial and metric. Ive now ensured all the unions are metric less for the ones that go into the brake cylinders which are imperial.

Hand full of each will be ok
