help identifying a part thats leaking diesel

cant seem to upload pics
i have a defender this part is at the rear of the engine on the offside its attached to the engine. it might be one big part going onto the offside of the engine as well with fuel pipe going into it. i cant give u a year as this has been an upgraded engine in the v reg and bought it like that please help as its cutting out all the time cause of this leak

What engine is it ?

200 tdi and 2.5 N/a have lift pump at that side. where is it in relation to the fuel filter and how many pipes etc.

Re the pics try making it smaller by reducing the pixel size and resaving before upload if not they take ages so load and for them to view in a post.

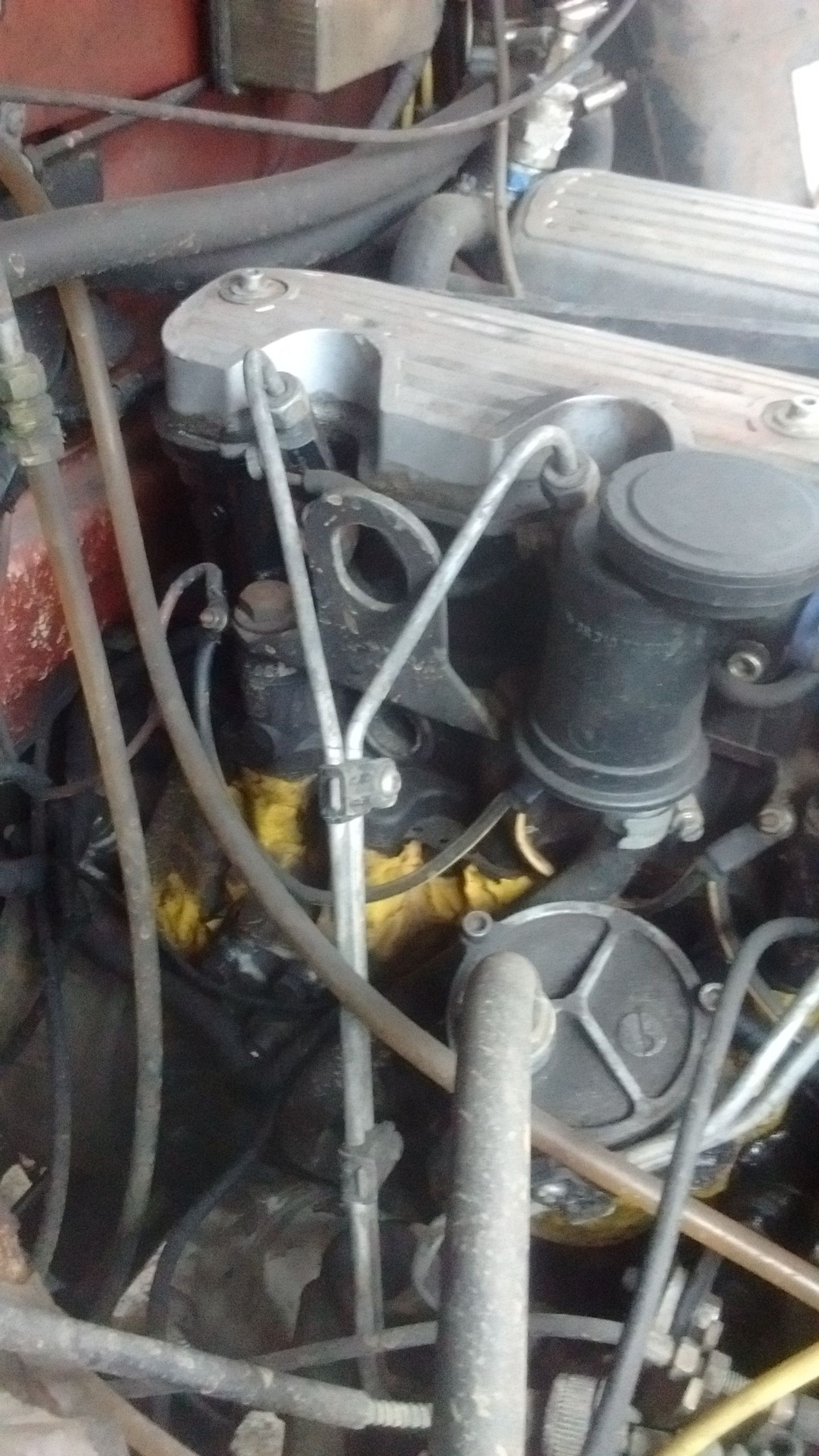

This is a 200tdi, see the yellow paint? Just below that is where the lift pump with 2 pipes to it would be. Mine is removed and blanked off. Is that the area?

Cavey_P38 said:

What engine is it ?

200 tdi and 2.5 N/a have lift pump at that side. where is it in relation to the fuel filter and how many pipes etc.

Re the pics try making it smaller by reducing the pixel size and resaving before upload if not they take ages so load and for them to view in a post.

Click to expand...

its a 2.5 td i think its the fuel regulator

Flossie said:

This is a 200tdi, see the yellow paint? Just below that is where the lift pump with 2 pipes to it would be. Mine is removed and blanked off. Is that the area?View attachment 146555

Click to expand...

that is where it is mine is a 2.5 tdi im sure its a fuel regulator. next question is mine is a v reg so its not the engine that should be in that year what year should i quote for this part

scot the sniper said:

its a 2.5 td i think its the fuel regulator

Click to expand...

2.5td doesn't have a fuel regulator.
Might be TD5?
Has it got 5 cylinders?

Flossie said:

2.5td doesn't have a fuel regulator.
Might be TD5?
Has it got 5 cylinders?

Click to expand...

will have to check that tomorrow mate there is a link on my first message its a pic

V reg should be a td5 I believe

5 cylinders give it away.

if in doubt Take a looking at top of rocker cover from in front of engine and post it the lads on here will certianly identify it as quick as a flash.

After 300 tdi i am stuffed

scot the sniper said:

that is where it is mine is a 2.5 tdi im sure its a fuel regulator. next question is mine is a v reg so its not the engine that should be in that year what year should i quote for this part

Click to expand...

It's a fuel lift pump. I think they are all the same from 2.5na to 300tdi.
Held on with 2 bolts? 2 fuel pipes? One from the tank and the other to the fuel filter?

Sounds like the FPR.

Have a look here.

http://www.discovery2.co.uk/Fpr.html

Cheers

Flossie said:

It's a fuel lift pump. I think they are all the same from 2.5na to 300tdi.
Held on with 2 bolts? 2 fuel pipes? One from the tank and the other to the fuel filter?

Click to expand...

i think ur right i will get it off tomorrow and goto dingbro or is it main gealer part only what price are they plz

scot the sniper said:

will have to check that tomorrow mate there is a link on my first message its a pic

Click to expand...

Can't tell off my phone what that is but doesn't look TDI.
Take a pic showing the whole engine from the front looking in.

neilly said:

Sounds like the FPR.

Have a look here.

http://www.discovery2.co.uk/Fpr.html

Cheers

Click to expand...

thats exactly as it is mate

TD5 then....

ouch £165 off famous four plus the VAT

Common problem FPR on the TD5, easy job but a bugger to get at, make sure everything is clean before removing old one, you can buy a repair kit with new seals and tin gaskets but I opted to replace the whole unit, there are two types so make sure you buy the right one, the number of pipes on yours tells you which one you have, (two or three)
I bought mine from my landrover garage at the same price as online ones, talk to them nice and they may give you discount.

scot the sniper said:

cant seem to upload pics
i have a defender this part is at the rear of the engine on the offside its attached to the engine. it might be one big part going onto the offside of the engine as well with fuel pipe going into it. i cant give u a year as this has been an upgraded engine in the v reg and bought it like that please help as its cutting out all the time cause of this leak

Click to expand...

Looks like you have a TD5 engine (would be good to post these details) and the part leaking is the fuel pressure regulator - you can get a new one or buy a repair kit.

Scooby22 said:

Click to expand...

ok guys have got it of the truck was not to dificult. where is the best place to buy the FPR from seen them on ebay but not sure of decent quality anyone bought one from ebay and was it ok or has anyone bought one cheaper somewhere else rather than main dealer prices.

thanks in advance
scot

LR Direct has a selection https://www.lrdirect.com/LR016318-Connector-Assy/?keep_https=yes Try and avoid the Britpart item if you can. The design changed around 2002 so if yours is a pre-2002 model you'll need a slightly different one
https://www.lrdirect.com/LR016319-Connector-Assy/?keep_https=yes
