God dam it that would be to easy thanks again
P38A Heater
- Thread starter pete12345
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 3,271
- Location
- Near Heathrow.

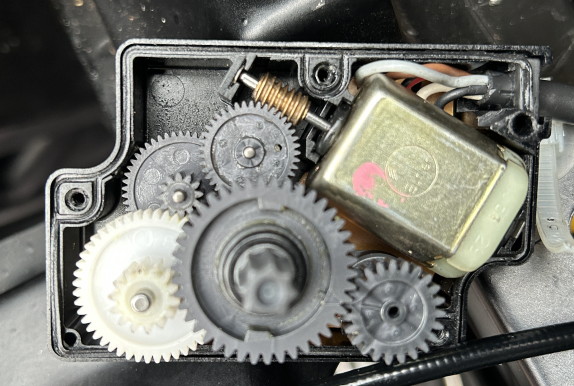

Changed the potentiometer in my passenger motor on Sunday. Make sure the two arrows on the pot & output gears are lined up as in my photo below.
For the drivers side, if you take the instrument cluster surround off you can see the flap gears through the gap (with torch). Then operate the motors with temp controls & check they move.
For the drivers side, if you take the instrument cluster surround off you can see the flap gears through the gap (with torch). Then operate the motors with temp controls & check they move.
- Posts
- 31,406
- Location
- North Shropshire
You need to check the replacement pot is the same. The ones i got were 90° out no problem but means the arrow also 90° out
- Posts
- 1,478
- Location
- Buckinghamshire.
Where do we buy these pots? My distribution motor has just gone kaput. Nanocom says it’s stuck at 78%, even if it’s forced….
Datatek
Well-Known Member
- Posts
- 43,949
- Location
- Near Poitiers SW France
Farnell, CPC or RS components.
- Posts
- 31,406
- Location
- North Shropshire
When i was on this position, the force did frig all.. i used the battery trick to move it slightly, worked fine ever since
- Posts
- 3,271
- Location
- Near Heathrow.
With genuine or correct equivalent) pot, the arrow is pointing to the output gear when the pot is in the middle of it's travel.
I assumed they are linear pots, but at 50% position, the resistance is roughly 60% / 40%.
I assumed they are linear pots, but at 50% position, the resistance is roughly 60% / 40%.
Datatek
Well-Known Member
- Posts
- 43,949
- Location
- Near Poitiers SW France
The correct pot is linear but they are not terribly accurate relative to shaft position.
- Posts
- 31,406
- Location
- North Shropshire
Spikes in the reading as the shaft turns is the killer
- Posts
- 2,427
- Location
- Isle Sheppy
Thanks everyone for advice had a chance to look at the old girl today and the fix was quite simple put a screwdriver through the front vent moved the plastic bit inside a touch and its now blowing hot when I pick the screen & middle button and warm on screen when screen & rear button pushed so no more cold night runs in daughters fiat 500 with no heater at all
- Posts
- 2,427
- Location
- Isle Sheppy
That’s all the work done now for me one day I will list what’s been done over the past 3 years on and off and the car been off the rd all that time but took her out for a run today all was good now all I got to do over the nxt 3 years is fit out a 47ft narrowboat
- Posts
- 4,458
- Location
- Rotherham
just in time for winter too
- Posts
- 15,164
- Location
- Benfleet, Essex
How do we convert this to a manual operation with a lever though?
- Posts
- 1,478
- Location
- Buckinghamshire.
I bet you could modify one of these.....How do we convert this to a manual operation with a lever though?
Datatek
Well-Known Member
- Posts
- 43,949
- Location
- Near Poitiers SW France
Love narrow boats, before I moved to France I considered a live aboard.
- Posts
- 2,427
- Location
- Isle Sheppy
That’s the plan data
all the flaps have the slots for the cables, how did the RRC work?
- Posts
- 1,478
- Location
- Buckinghamshire.

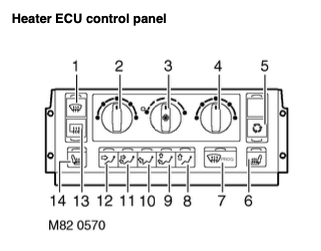

Don’t know about RRC. But the Disco had manual heater controls for temp, fan speed, AND distribution, and all the buttons for A/C etc are there….. How you’d make it talk to a P38 is beyond me I expect. And then you’ve got to mount the thing in place so it looks neat and tidy on top of all that.
I’d still be interested in doing a conversion to manual though!!
