Freelander 1 Heater Core Matrix Pipe OD?

Discussion in 'Land Rover Freelander' started by zefrench, Oct 5, 2016.

< Previous Thread | Next Thread >
  1. zefrench

    zefrench Active Member

    Joined:
    Sep 16, 2013
    Posts:
    428
    Likes Received:
    12
    Location:
    Ontario, Canada
    Hi all

    I need to bypass my heater core matrix, and thus need the outside diameter of both heater matrix pipes.

    Anyone know what those sizes are so I can order a suitable U shaped pipe of the correct dimensions?


    Thanks again

    Martin

  2. zefrench

    zefrench Active Member

    Joined:
    Sep 16, 2013
    Posts:
    428
    Likes Received:
    12
    Location:
    Ontario, Canada

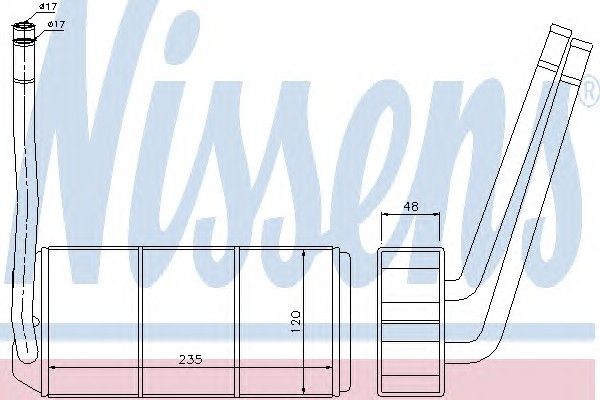

    Based on this handy diagram of the NISSENS 73001 (it is a compatible heater core/matrix for the Freelander), it appears the OD is 17mm.
    I will report back if/when I am ever able to confirm.


    Heater Matrix.jpg
