Series 3 Heater box removal and spinning nuts

Discussion in 'Series Land Rovers' started by FRAJ, Apr 21, 2020.

< Previous Thread | Next Thread >
  1. FRAJ

    FRAJ Member

    Joined:
    May 17, 2019
    Posts:
    42
    Likes Received:
    10
    Location:
    UK

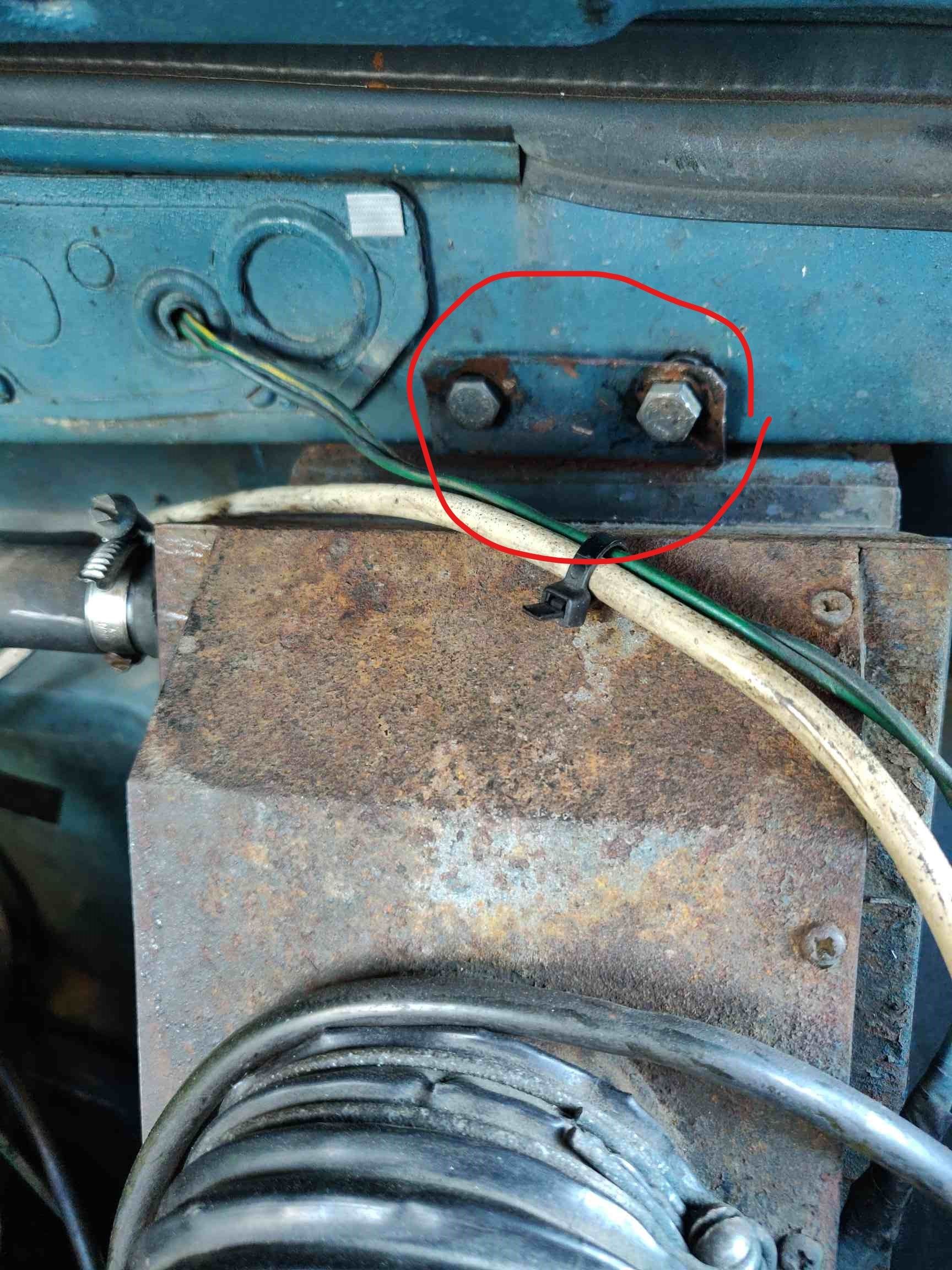

    Easy job I thought - remove the heater box and blower. The 2 main bolts into the bulkhead are just spinning the nuts on the inside; I assume they are press fitted from new, because they can't be accessed from behind the dash. Do I need to grind them off or has anyone got a clever tip to remove them? (I don't have an angle grinder at the moment...). Ta..


    Attached Files:

  2. Turboman

    Turboman Rural Activist

    Joined:
    Aug 21, 2010
    Posts:
    45,108
    Likes Received:
    41,859
    Location:
    Continuously Cruising
    The bolts go into little expanding fittings known as Rivnuts.
    I usually use brute force, get a pair of grips on the bolt heads, and lever them out, using a block of wood on the plate they are inserted into to spread the load.
    Rivnuts come in different metals, the ones in that area should be just a soft alloy.

    steve2286w likes this.
  3. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,886
    Likes Received:
    444
    Location:
    monkeyhangerland
    Like a big pop rivet , can you get to the other side with some mole grips
    If your lucky some super glue might help to bond rivnut to bulkhead then loosen bolt
    If you do get it out you can either drill out and replace or poss tighten up with bolt nut and spacer
    Having the special rivnut tool helps but you can google a diy version

  4. rob1miles

    rob1miles Well-Known Member

    Joined:
    Sep 22, 2017
    Posts:
    2,964
    Likes Received:
    1,068
    Location:
    Slough and Bath
    Sometimes if you can pull hard while turning - by getting a screwdriver under the head, it may (just may) stop the nut turning. If it won't pull out its drilling all the way....

  5. FRAJ

    FRAJ Member

    Joined:
    May 17, 2019
    Posts:
    42
    Likes Received:
    10
    Location:
    UK
    Thanks for the replies - they appear loose, ie not clamping the parts, but I still can't get them to screw out. I will increase the brute force until something gives...

  6. Rodeo Joe

    Rodeo Joe Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    1,578
    Likes Received:
    704
    Location:
    norfolk
    Rivnuts don't screw out they work by magic, had the same problem but got the bolts out by getting a heavy screwdriver hammered in behind the bracket to put some leverage on it and then try easing the bolt out.

  7. Blackburn

    Blackburn Well-Known Member

    Joined:
    Feb 21, 2013
    Posts:
    2,720
    Likes Received:
    467
    Location:
    Tyneside
    If all else fails put a mole grip on the bolt so it cannot spin then drill a hole down its centre till it falls off.
