Headlights stuck on

jamesberry · Feb 2, 2010

Headlights are permanently stuck on at the moment. Have disconnected / checked the switch and stalk and the problem doesnt appear to be with them. Has anyone else had any experiences of such a prob? I keep reading posts which talk about a dim dip module or something like, wondering if that could be my problem?

jamescronin · Feb 2, 2010

Sounds like it could well be the dim dip relay. Usualy if it goes it causes one or both of the sipes beam to stay on even when switched off, but usualy at half power. The side lights usualy go off.

To see if this is the cause you simply unplug it. It's is anotling located behind the instrument panel. If you take it off you will find what looks like a heat sink with a five pin plug in the end bolted to the upper side of the box behind the instruments. Unplug the plug and put some tape over the end to stop it shorting on anything. If the problems go away then just leave it like that. If not then you need to go searching for what is posing the circuit when it is not ment to be doing.

If you feal you realy want to replace the relay to get the dim dip function bbl then it's going to cost you somewhere between 50-80 quid for a new one or qhatever people want for a second hand one, but most people just leave it out altogether as they never last long at all.

bustersbus · Feb 2, 2010

jamescronin said:
Sounds like it could well be the dim dip relay. Usualy if it goes it causes one or both of the sipes beam to stay on even when switched off, but usualy at half power. The side lights usualy go off.

To see if this is the cause you simply unplug it. It's is anotling located behind the instrument panel. If you take it off you will find what looks like a heat sink with a five pin plug in the end bolted to the upper side of the box behind the instruments. Unplug the plug and put some tape over the end to stop it shorting on anything. If the problems go away then just leave it like that. If not then you need to go searching for what is posing the circuit when it is not ment to be doing.

If you feal you realy want to replace the relay to get the dim dip function bbl then it's going to cost you somewhere between 50-80 quid for a new one or qhatever people want for a second hand one, but most people just leave it out altogether as they never last long at all.

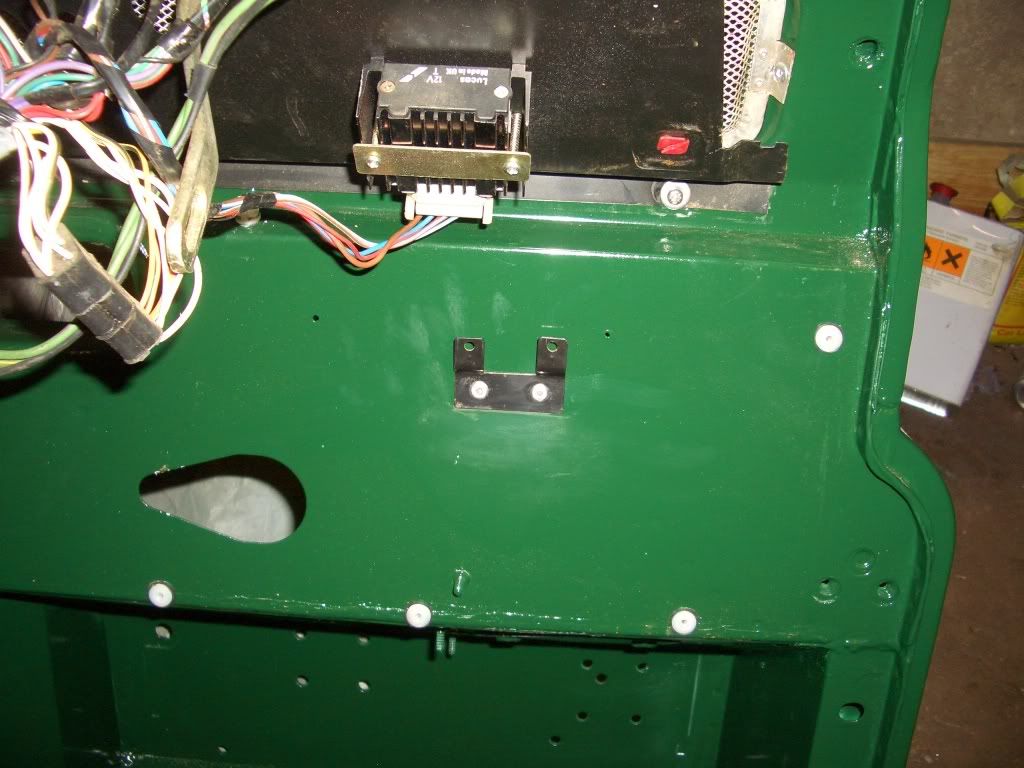

D'ye mean this thing.....

jamescronin · Feb 2, 2010

Ta for the photo

bustersbus · Feb 2, 2010

jamescronin said:
Ta for the photo

Ye're welcome

jamesberry · Feb 2, 2010

Thanks for the info, will have a look on the weekend. Not long had me first land rover but from what I can see there can't be too much else to go wrong as far as the lights are concerned - I hope anyway.

jamescronin · Feb 3, 2010

jamesberry said:
Thanks for the info, will have a look on the weekend. Not long had me first land rover but from what I can see there can't be too much else to go wrong as far as the lights are concerned - I hope anyway.

Just wait

Wozy · Feb 3, 2010

jamescronin said:
Just wait

lol, absolutly.

I remeber thinking the same thing when I had my first 90. The new TDCI I've now got aint much better. .................. But I love her
