Was the new battery the correct capacity? Its dropped to 8.11V, which is very low.
Hdc fault
- Thread starter Leanne676
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Was the new battery the correct capacity? Its dropped to 8.11V, which is very low.
Leanne676
Member
- Posts
- 25
- Location
- Perthshire
It was a new one the same as the old one I took out
Plus 1
Leanne676
Member
- Posts
- 25
- Location
- Perthshire
Attachments
hiya
would be worth having a look to see what the AH and CCA new battery data is because it’s been replaced doesn’t mean it’s the correct one
thks for the readings and indeed extremely low , however can’t tell from the screens if it’s with the engine on/ off and and what revs
what codes did u get
Leanne676
Member
- Posts
- 25
- Location
- Perthshire
The one that goes up to above 14 is the one with the engine on and sitting in idle
thks, assume ur other half being a mechanic has a multimeter , would u mind just getting the VDC with the engine off please
then do another Vdc reading with the engine at 2,000 revs plse
have u had a chance yet on the fault codes , as will be interesting to see what comes up
Like many of us we are always happy to help and it’s nice because u appreciate the help, Ur be suprised of many that don’t even say plse or thank u
Leanne676
Member
- Posts
- 25
- Location
- Perthshire
Yeah he has. There is lots of different things you have to go though and most of them has 2 or 3 things that comes up
Perfect , if u have access to it and unsure can easily talk u through it , but of course don’t want to come across trying to teach u how to suck eggs but happy to walk u through anything on the multimeter if ur not familiar with
Plse let us know the fault codes when u get chance to scan the disco , before and after so candy ta least see what historical codes and current ones are and can then go from there
just the battery is key as if there not charging correctly will throw all sorts of xmas tree lights up on the dashboard
am just looking through the users manual for that scanner to see what it does
Leanne676
Member
- Posts
- 25
- Location
- Perthshire
Attachments
Leanne676
Member
- Posts
- 25
- Location
- Perthshire
Think it dropped when I turned the engine on but went back up
Leanne676
Member
- Posts
- 25
- Location
- Perthshire
So the battery is sitting to low? I won’t be able to put the codes up today as need to go away but when I get time I will. I remember 1 of the codes said brake light switch but already ordered a new one of them just need to fit it

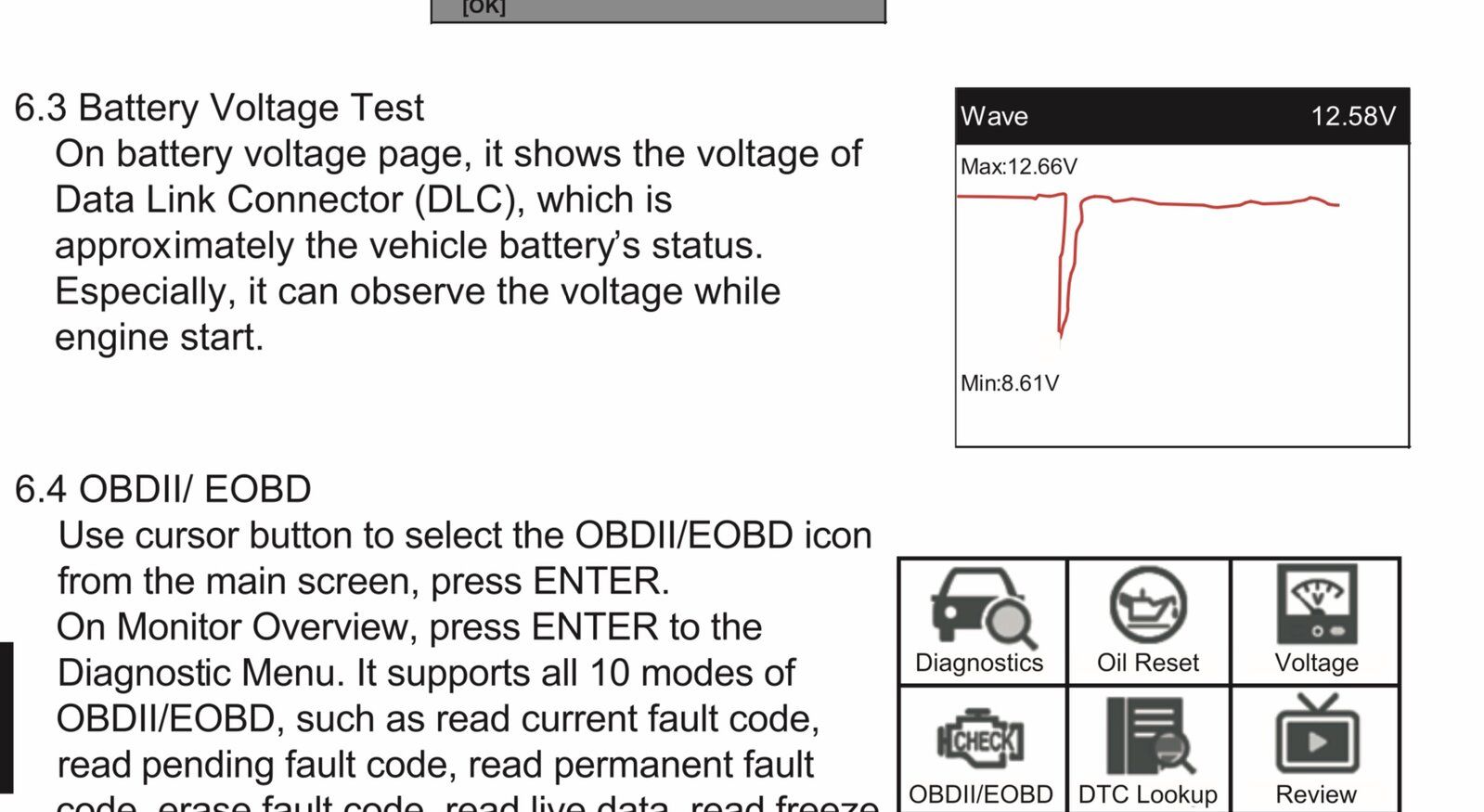

Must admit , I didn’t realise at first that code reader tests what the battery VDC drops to when the engine is being cranked over
after a good charge and left overnight that should read a min of 12.6Vdc , when I’ve done mine around 12.8vdc
Concerning seeing you’ve only just charged it before fitting a brand new battery
no probs , if I may add please be very careful after getting the codes in not just replacing a part, otherwise u can get in the trap of just replacing parts, these are complicated beasts and if ur not careful can send u off in a totally wrong direction
but you’ve got a great head start with u and ur other half being a mechanic , may i ask does he work on all sorts of makes
Plse let us know how u get on
@Nodge68
just quickly , would u mind sending me an email please , can’t find ur email anywhere , , many thks
hope ur good mate
Leanne676
Member
- Posts
- 25
- Location
- Perthshire
Ok. I’m going 2 clear all the codes and see what comes up agen before replacing anything. Yeah he been working in garages for years and he has also worked on lorries
Awesome, should be a walk in the park for him , lol
It’s just that codes can sometimes lead u down the garden path so to speak and indeed please let us know how u get on
