Half shaft wear

Discussion in 'Defender 90 / 110 / 130' started by Rorie, Oct 4, 2018.

< Previous Thread | Next Thread >
  1. Rorie

    Rorie Active Member

    Joined:
    Dec 21, 2011
    Posts:
    641
    Likes Received:
    29
    Is it possible to identify the wear on a half shaft by looking at the splines, or so you really need to feel for play when built into the hub /diff?

  2. Paul D

    Paul D Old, nackered 'n broke, but the Landy is fine . :) LZIR Despatch Agent

    Joined:
    Jun 3, 2007
    Posts:
    14,902
    Likes Received:
    2,525
    Location:
    Doncaster
    Yes, no .. ;)

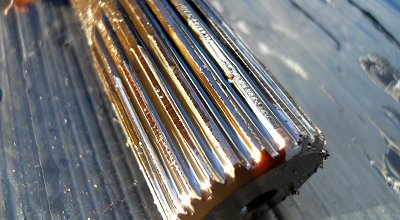

    Images of a google search, top one is a excessive, but the new shaft on the right shows what the splines should look like. The bottom image is a worn shaft, the tops of the teeth are shiny because of wear, sharper, and have a changed profile from relatively square to mostly triangular .. ;)

    [​IMG]

    [​IMG]

    8ha and jamesmartin like this.
  3. Rorie

    Rorie Active Member

    Joined:
    Dec 21, 2011
    Posts:
    641
    Likes Received:
    29

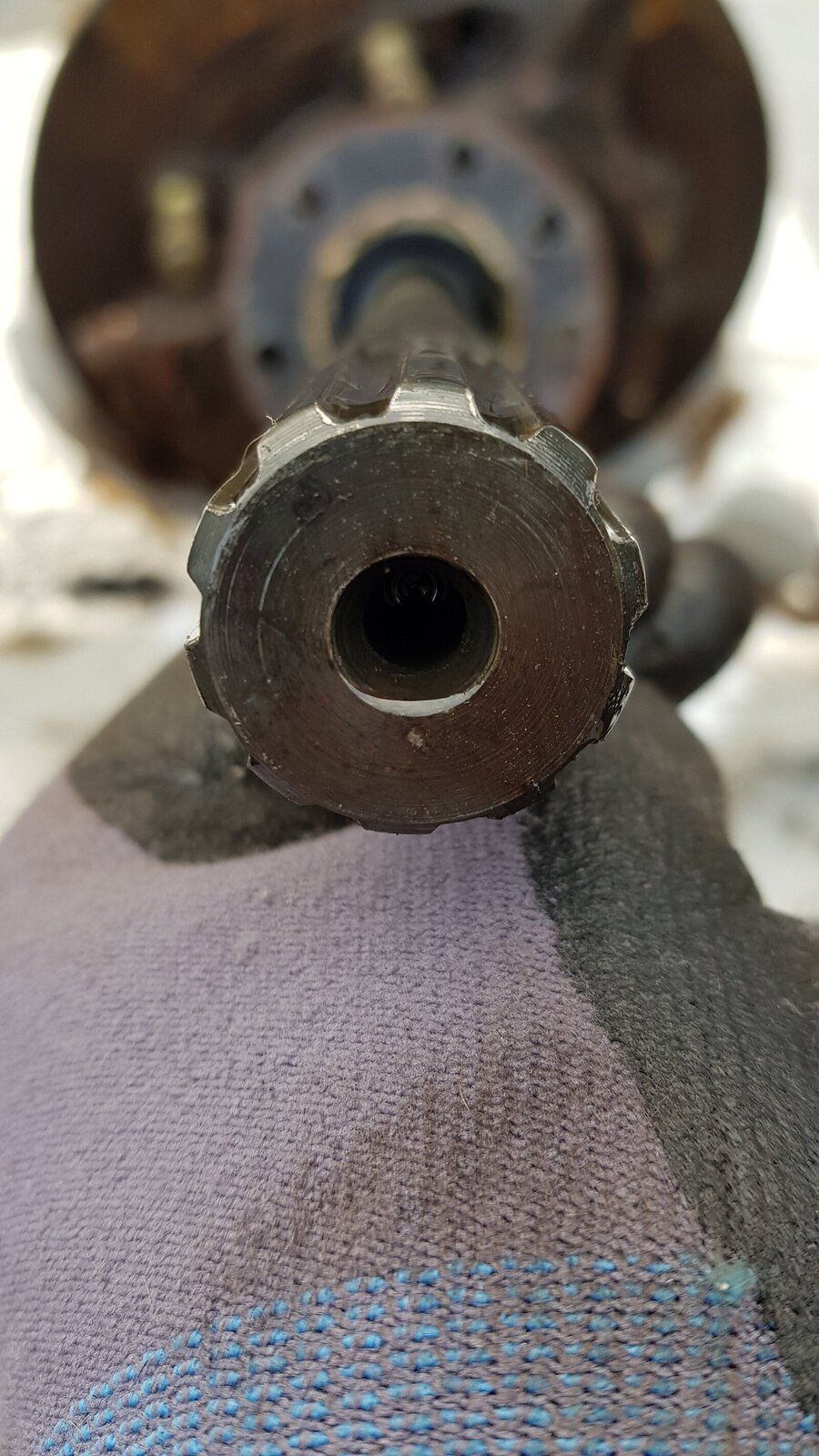

    Here are a few photos of the half shaft I just pulled out last night.

    20181003_165730.jpg 20181003_165734.jpg 20181003_165741.jpg

  4. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    91,348
    Likes Received:
    19,718
    Location:
    louth lincs
    theres the start of wear but not enough to worry about yet

    8ha and Paul D like this.
  5. Paul D

    Paul D Old, nackered 'n broke, but the Landy is fine . :) LZIR Despatch Agent

    Joined:
    Jun 3, 2007
    Posts:
    14,902
    Likes Received:
    2,525
    Location:
    Doncaster
  6. TorsionBhudda

    TorsionBhudda Well-Known Member

    Joined:
    Nov 15, 2014
    Posts:
    1,333
    Likes Received:
    221
    Location:
    Falkirk
    Yeah they look servicable

  7. zeaphod

    zeaphod Well-Known Member

    Joined:
    Aug 13, 2013
    Posts:
    3,044
    Likes Received:
    852
    Location:
    Belfast, Norn Iron
    There's another 100k in that.

    8ha likes this.
