mickyg
New Member
- Posts
- 22
- Location
- washington
still no further with cruise control on disco td5 99 now been told ecu wont work for cruise till 01 can anybody help its taken over my life
going mad
- Thread starter mickyg
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
PASTMASTER
Well-Known Member
- Posts
- 1,235
- Location
- S London
Mines a 99 auto and has working cruise control.
mickyg
New Member
- Posts
- 22
- Location
- washington
cheers was yours added on or factory fitted
PASTMASTER
Well-Known Member
- Posts
- 1,235
- Location
- S London
Factory fit I assume. didn't buy it new.
mickyg
New Member
- Posts
- 22
- Location
- washington
thanks i now know the 99 ecu does work with cruise cant imagine they would change ecu for factory fit cruise
mark-d
Well-Known Member
- Posts
- 1,107
- Location
- Netherlands
my mate had it added to his s-reg td5 belive thats 98/99
mickyg
New Member
- Posts
- 22
- Location
- washington
thanks i can cross wrong ecu off list just have to keep trying dont know whats worse, not having it or looking at the controls and not working
battenberg
Well-Known Member
- Posts
- 2,101
- Location
- Birmingham UK
do yer brake lights work?
mickyg
New Member
- Posts
- 22
- Location
- washington
just checked ,they do why???
thebiglad
Well-Known Member
- Posts
- 7,387
- Location
- Central France
Because the brake pedal switch has two part numbers, for with and without cruise.
Did you change the brake pedal switch when you installed your cruise kit?
Jason2
Well-Known Member
- Posts
- 2,001
- Location
- Poitou Charentes-France
Look matey the only way any body can help you is if you can get the facts right!
In your last thread you say it's a vacuem system that you have fitted!
The 300tdi used a vacuem system for the cruise control, the TD5 is electronic.A vacuem system is not going to work on a TD5.
PS: Mine's a 2000 and it works perfectly
Last edited:
mickyg
New Member
- Posts
- 22
- Location
- washington
no first ive heard of it can you buy and fit switch easy
mickyg
New Member
- Posts
- 22
- Location
- washington
to jason,if you check i have said all along it is a td5 disco and said i checked vacuum pipes because i was advised to,i am learning as i go
battenberg
Well-Known Member
- Posts
- 2,101
- Location
- Birmingham UK
my brake lights failed and knocked out the cruise control, as the cruise control safety cutout works on the brake light switch, a new switch sorted them both...
Jason2
Well-Known Member
- Posts
- 2,001
- Location
- Poitou Charentes-France
Carrying on like this it will be me going mad
(er)What vacuem pipes???

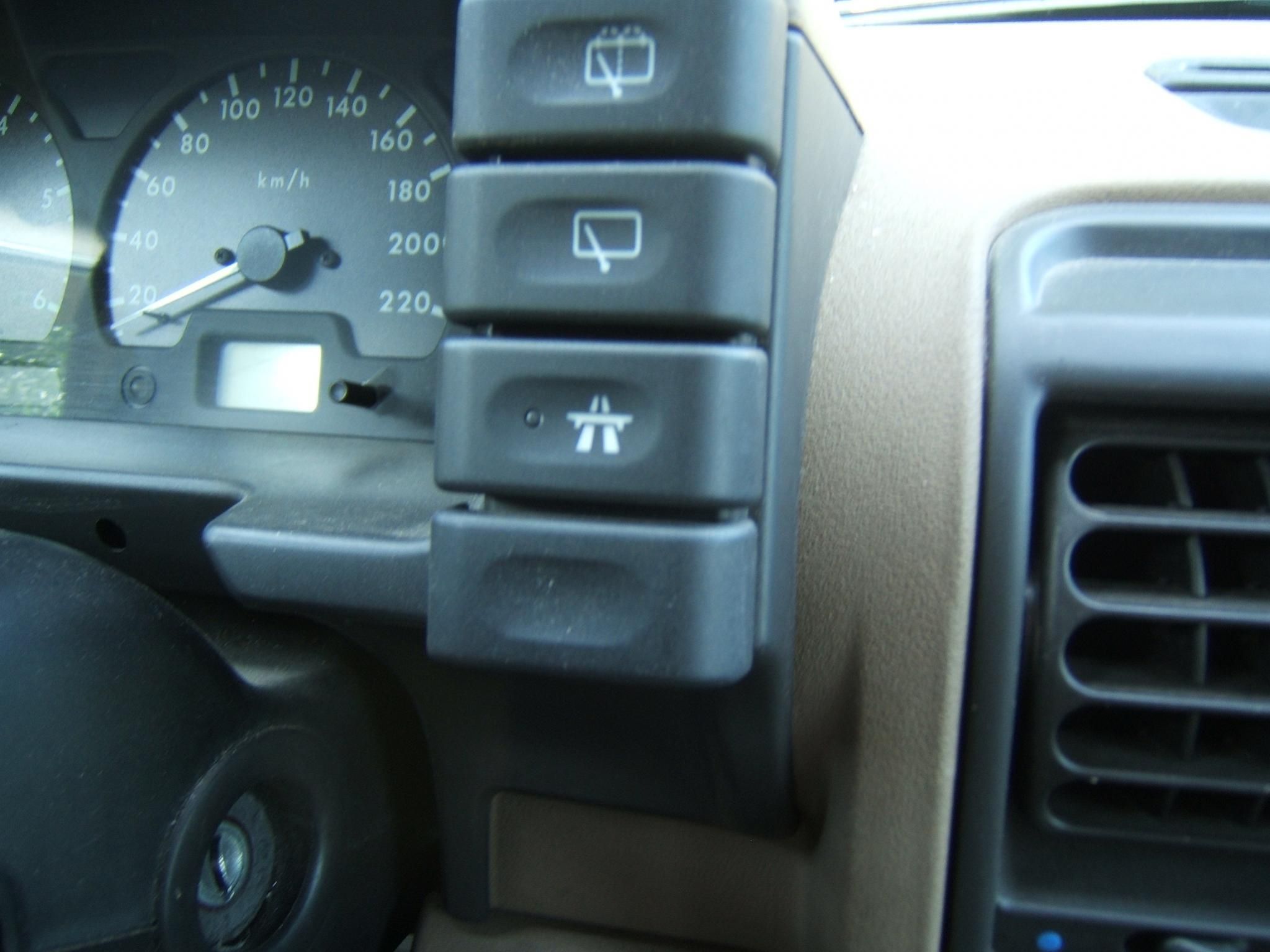

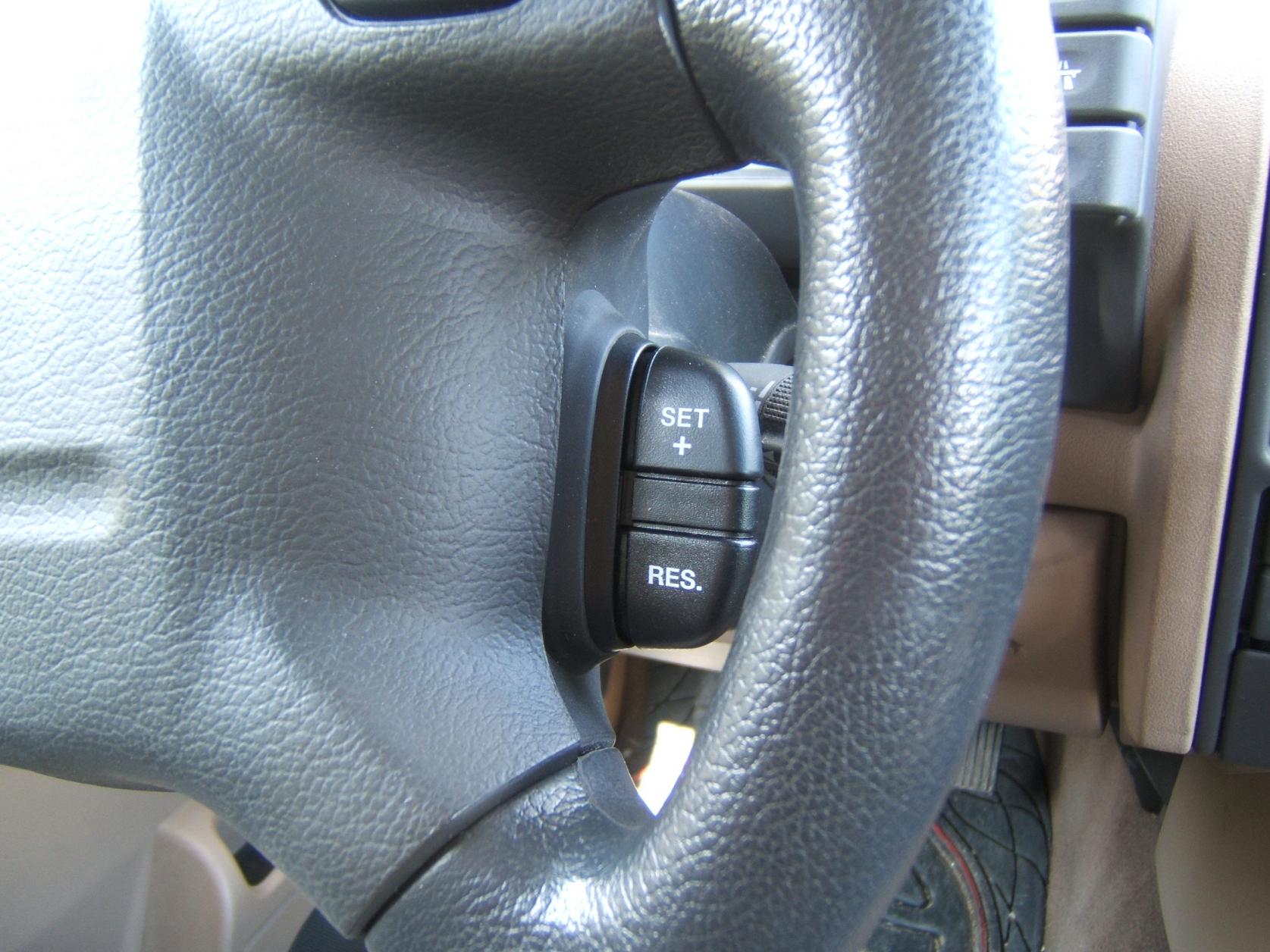

The Discovery TD5 Cruise control is operated by a master switch on the dash under rear wiper switch and a set/reset switch on the steering wheel.
Attachments
mickyg
New Member
- Posts
- 22
- Location
- washington
thanks for the idea but my brake lights are working
fireman-andy
New Member
- Posts
- 222
- Location
- surrey
jason
I have a 2000 d2 and the cruise control is worked on a vacuum. there are 2 throttle cables , one for pedal and one for cruise . the one for cruise is attached to a diaphram which is operated by a vacuum pump more vacuum = more throttle hence vacuum pipes
the switch on the dash and the set resume switch tell the vacuum pump what to do
I have a 2000 d2 and the cruise control is worked on a vacuum. there are 2 throttle cables , one for pedal and one for cruise . the one for cruise is attached to a diaphram which is operated by a vacuum pump more vacuum = more throttle hence vacuum pipes
the switch on the dash and the set resume switch tell the vacuum pump what to do
mark-d
Well-Known Member
- Posts
- 1,107
- Location
- Netherlands
but thats a petrol right?
as far as i know you can just fit the controls and it works but only on the td5
Jason2
Well-Known Member
- Posts
- 2,001
- Location
- Poitou Charentes-France
Taken off evil-bay where I bought my kit:
This will enable your vehicle to have the full use of the cruise control unit already fitted to your 98 - 2004 Disco, Installation takes around 40 minutes to 1 hour.
Just to answer a few of your questions, Every single Disco 2 TD5 from 98 - 2004 rolled off the production line having had fitted the cruise control ECU, all the wiring looms, and absolutely everything required, apart from the switches. They were just dependant on wether the original customer build required this function, in which all that was to be done was to add a steering wheel with the switches and to fit the master switch. So yes to your questions, this kit is all that is required to completely add cruise control to your vehicle, but please feel free to ask any further questions, whether spec / fitting / fitting support.
Note: This is not compatable with the petrol V8
This will enable your vehicle to have the full use of the cruise control unit already fitted to your 98 - 2004 Disco, Installation takes around 40 minutes to 1 hour.
Just to answer a few of your questions, Every single Disco 2 TD5 from 98 - 2004 rolled off the production line having had fitted the cruise control ECU, all the wiring looms, and absolutely everything required, apart from the switches. They were just dependant on wether the original customer build required this function, in which all that was to be done was to add a steering wheel with the switches and to fit the master switch. So yes to your questions, this kit is all that is required to completely add cruise control to your vehicle, but please feel free to ask any further questions, whether spec / fitting / fitting support.
Note: This is not compatable with the petrol V8
martinhollings
New Member
- Posts
- 659
- Location
- newark/nottingham
i fitted it to my 99 with no problems just fit the 2 switches but if i rember one of the swithes there are is two part numbers depending on year never did any thing with the brake light switch
